CLOCKSPRING Connector End View

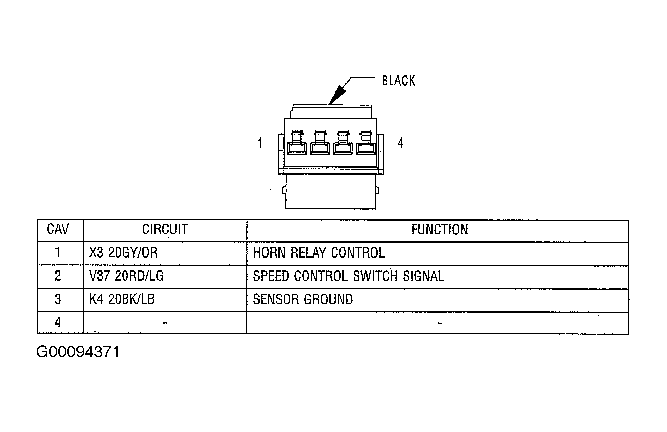

Fig 1: Identifying Clockspring C1 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
