Ignition Switch Connector End View

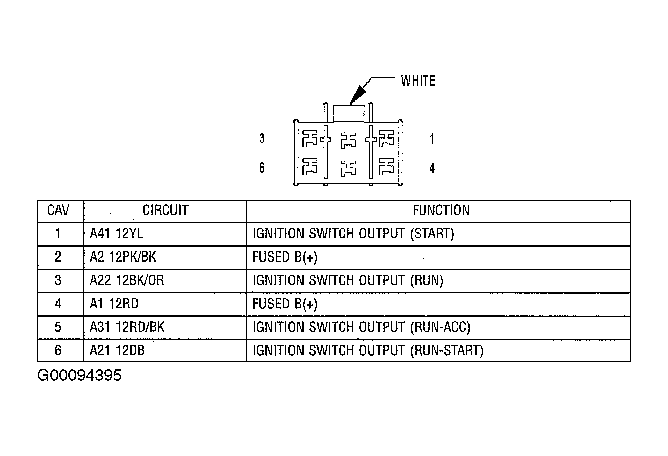

Fig 1: Identifying Ignition Switch C1 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
