Leak Detection Pump Harness Connector End View

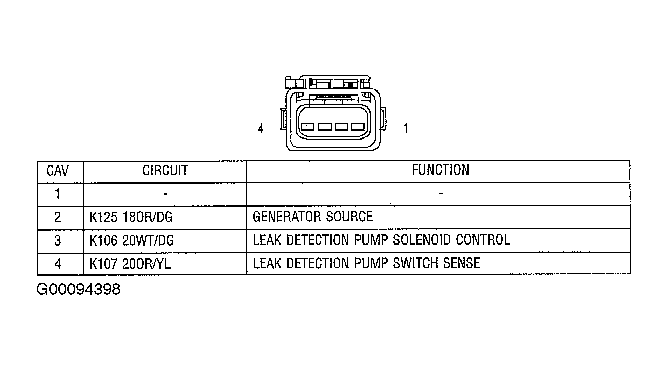

Fig 1: Identifying Leak Detection Pump Harness Connector
G00094398Courtesy of DAIMLERCHRYSLER CORPORATION
