TP Sensor Harness Connector End View (4.0L)

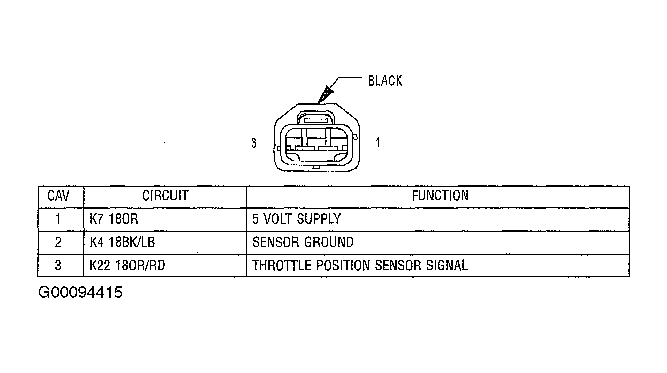

Fig 1: Identifying TP Sensor Harness Connector (4.0L)
G00094415Courtesy of DAIMLERCHRYSLER CORPORATION
