Fuel Rail: Description: 2.4L

The fuel injector rail is used to mount the fuel injectors to the engine. See Fig 1. On the 2.4L 4-cylinder engine, a fuel damper  is located near the front of the fuel rail. See Fig 1.

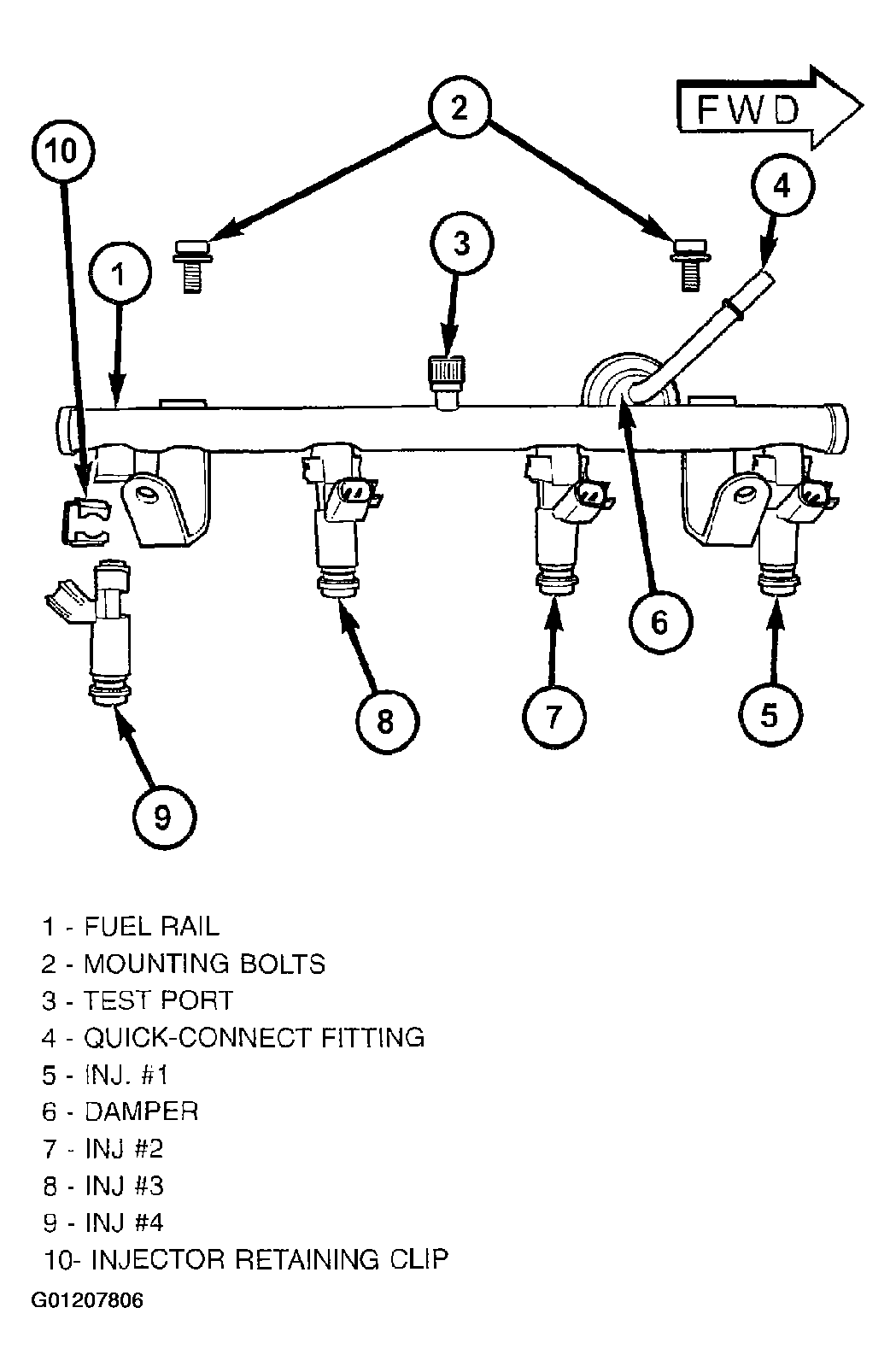

Fig 1: Identifying Fuel Rail-2.4L
G01207806Courtesy of DAIMLERCHRYSLER CORP.
