Specifications Fuel System Pressure & Torque Specifications: Notes

339 kPa +/- 34 kPa (49.2 psi +/- 2 psi).

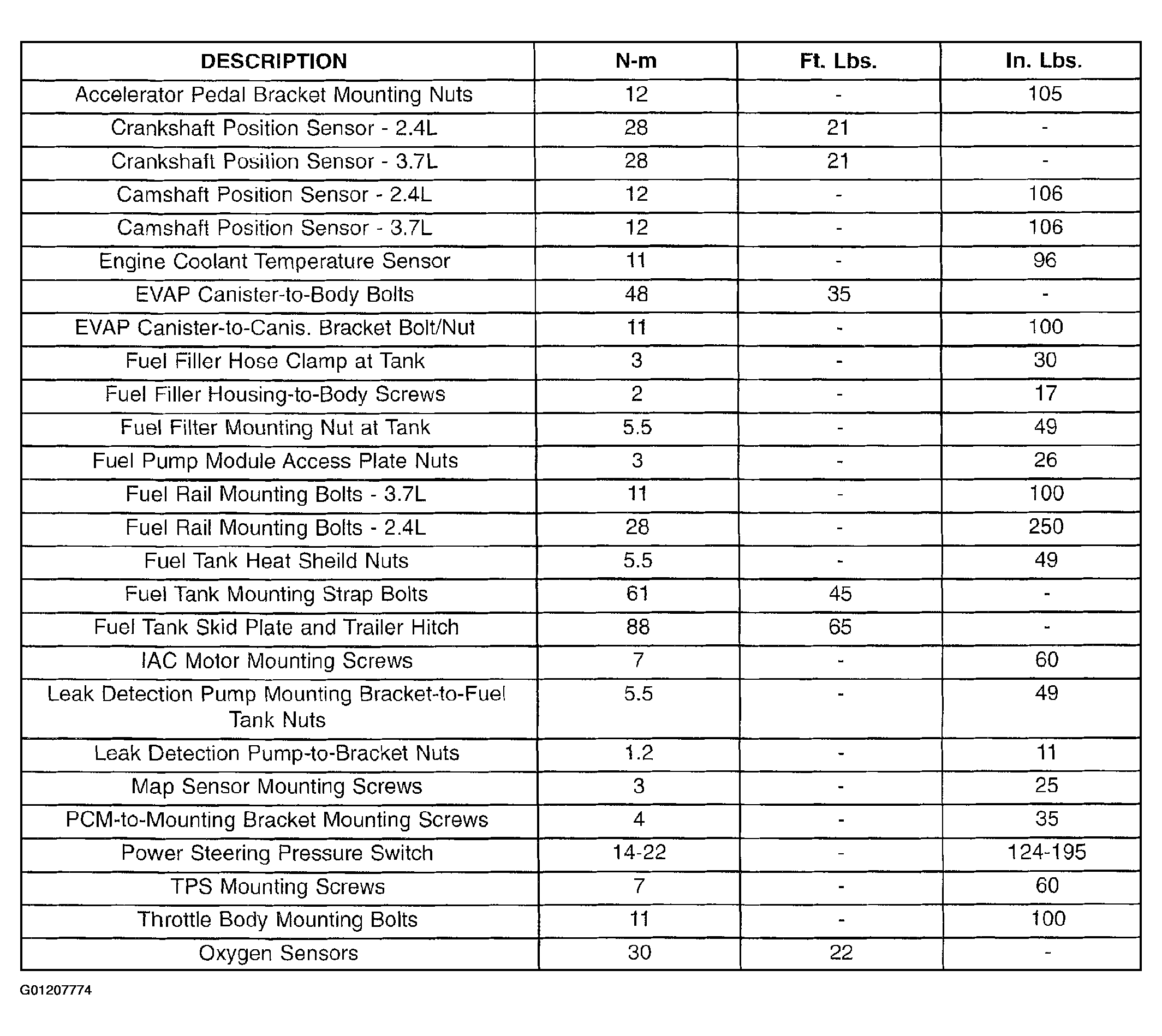

Fig 1: Fuel System Torque Specifications
G01207774Courtesy of DAIMLERCHRYSLER CORP.
