CMP Sensor Harness Connector End View (3.7L)

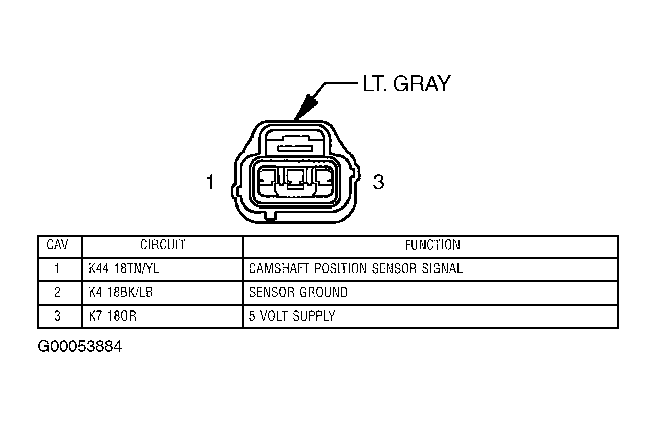

Fig 1: Identifying CMP Sensor Harness Connector (3.7L)
G00053884Courtesy of DAIMLERCHRYSLER CORPORATION
