Fuel Injector Harness Connector End View

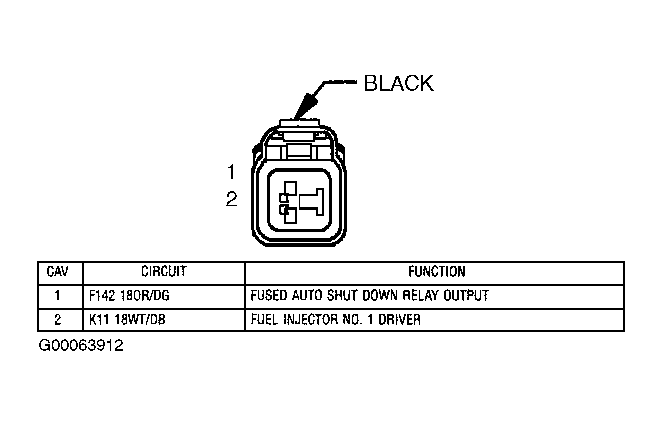

Fig 1: Identifying Fuel Injector No. 1 Harness Connector
G00063912Courtesy of DAIMLERCHRYSLER CORPORATION

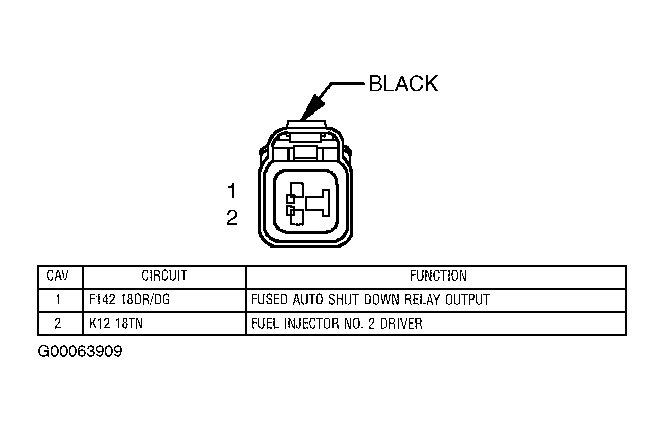

Fig 2: Identifying Fuel Injector No. 2 Harness Connector
G00063909Courtesy of DAIMLERCHRYSLER CORPORATION

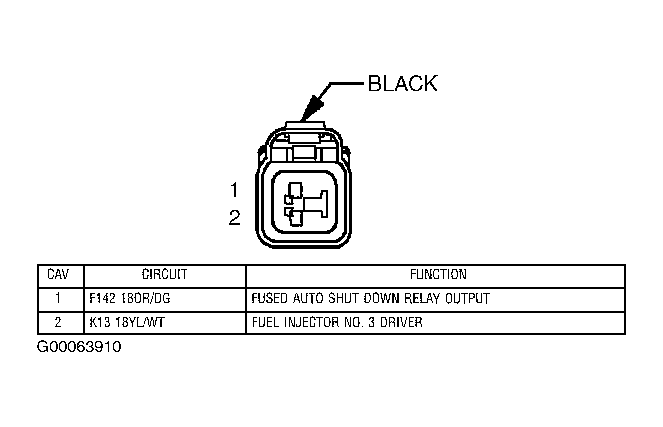

Fig 3: Identifying Fuel Injector No. 3 Harness Connector
G00063910Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Identifying Fuel Injector No. 4 Harness Connector
G00063911Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 5: Identifying Fuel Injector No. 5 Harness Connector (3.7L)
G00063913Courtesy of DAIMLERCHRYSLER CORPORATION

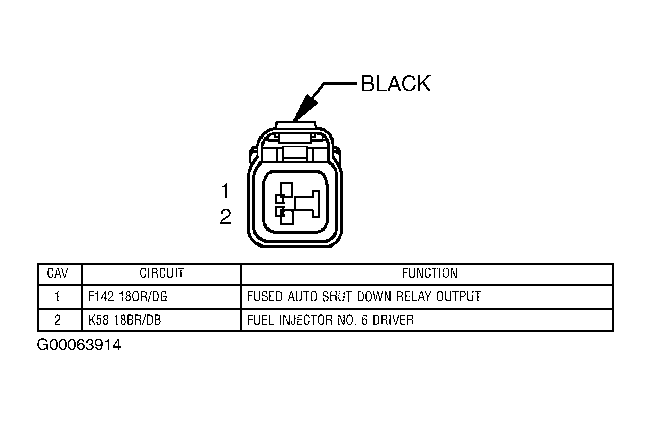

Fig 6: Identifying Fuel Injector No. 6 Harness Connector (3.7L)
G00063914Courtesy of DAIMLERCHRYSLER CORPORATION
