Output Speed Sensor Harness Connector End View (3.7L)

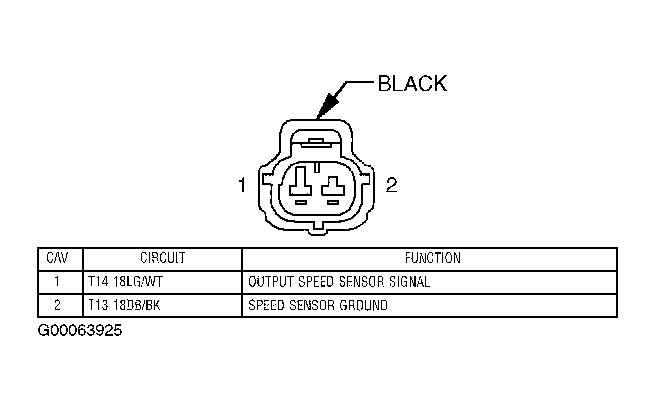

Fig 1: Identifying Output Speed Sensor Harness Connector (3.7L)
G00063925Courtesy of DAIMLERCHRYSLER CORPORATION

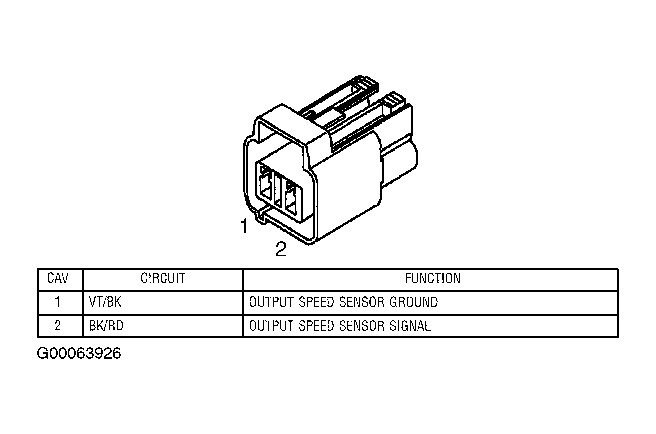

Fig 2: Identifying Output Speed Sensor Connector (Component Side - 3.7L)
G00063926Courtesy of DAIMLERCHRYSLER CORPORATION
