Pcm Harness Connector End View

Fig 1: Identifying PCM C1 Harness Connector (2.4L)
G00063934Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Identifying PCM C1 Harness Connector (3.7L)
G00063935Courtesy of DAIMLERCHRYSLER CORPORATION

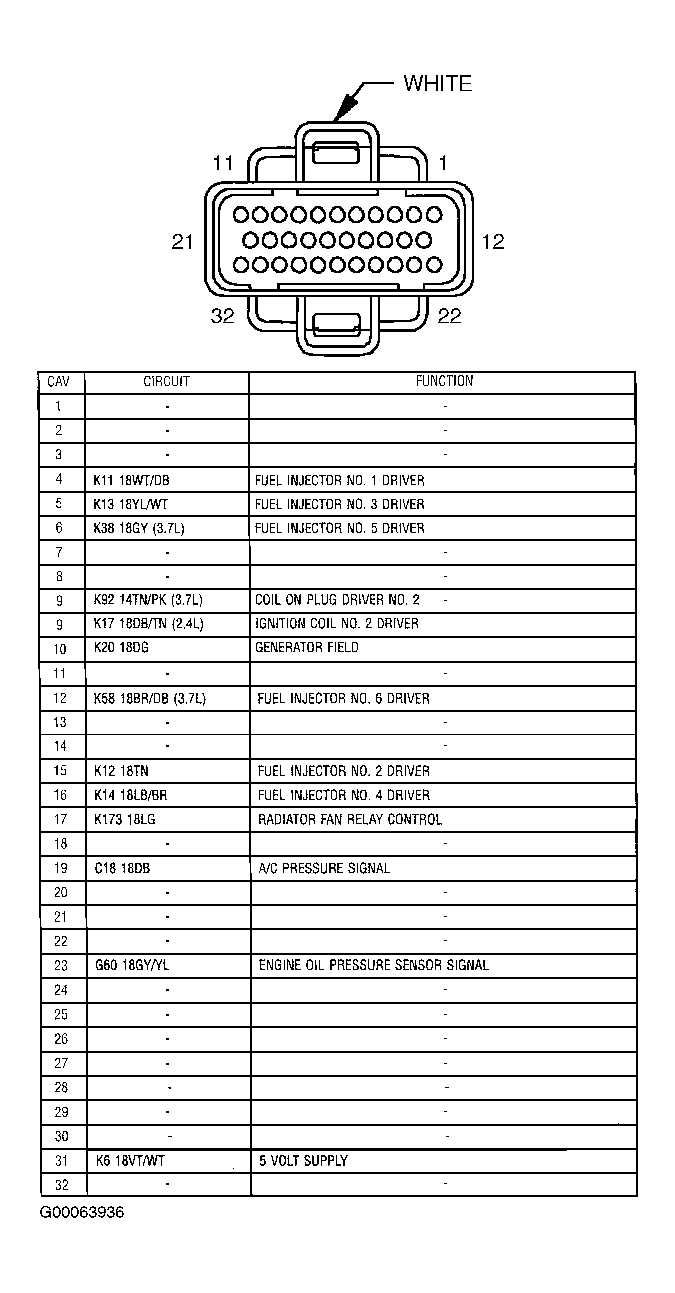

Fig 3: Identifying PCM C2 Harness Connector
G00063936Courtesy of DAIMLERCHRYSLER CORPORATION

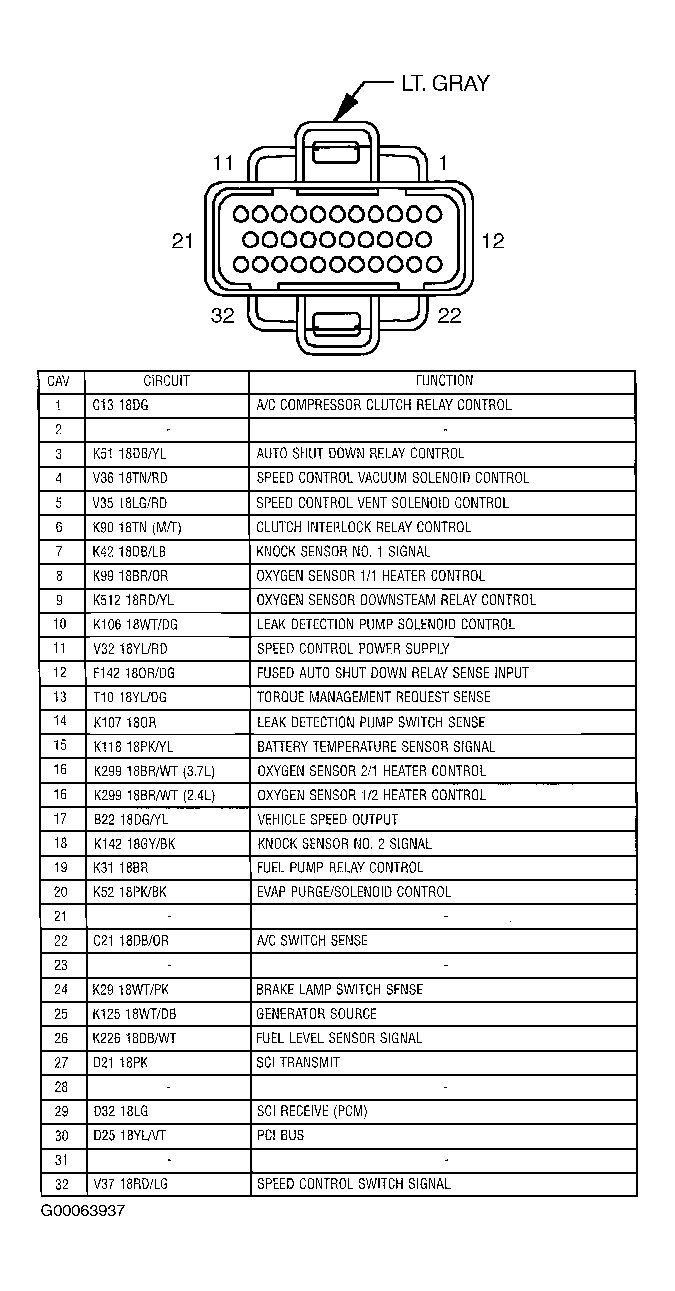

Fig 4: Identifying PCM C3 Harness Connector
G00063937Courtesy of DAIMLERCHRYSLER CORPORATION
