TP Sensor Harness Connector End View

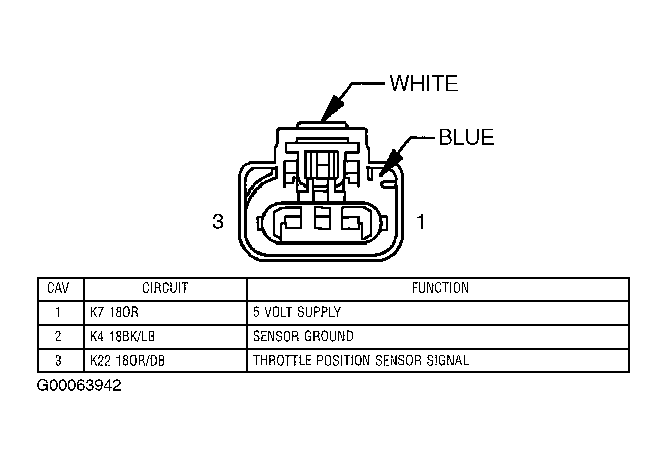

Fig 1: Identifying TP Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
