Fuel Tank Check Valve: Removal

The fuel tank check (control) valve is attached into the top section of the fuel pump module. See Fig 1. If replacement is necessary, the top section of the fuel pump module must be replaced. See FUEL PUMP MODULE .

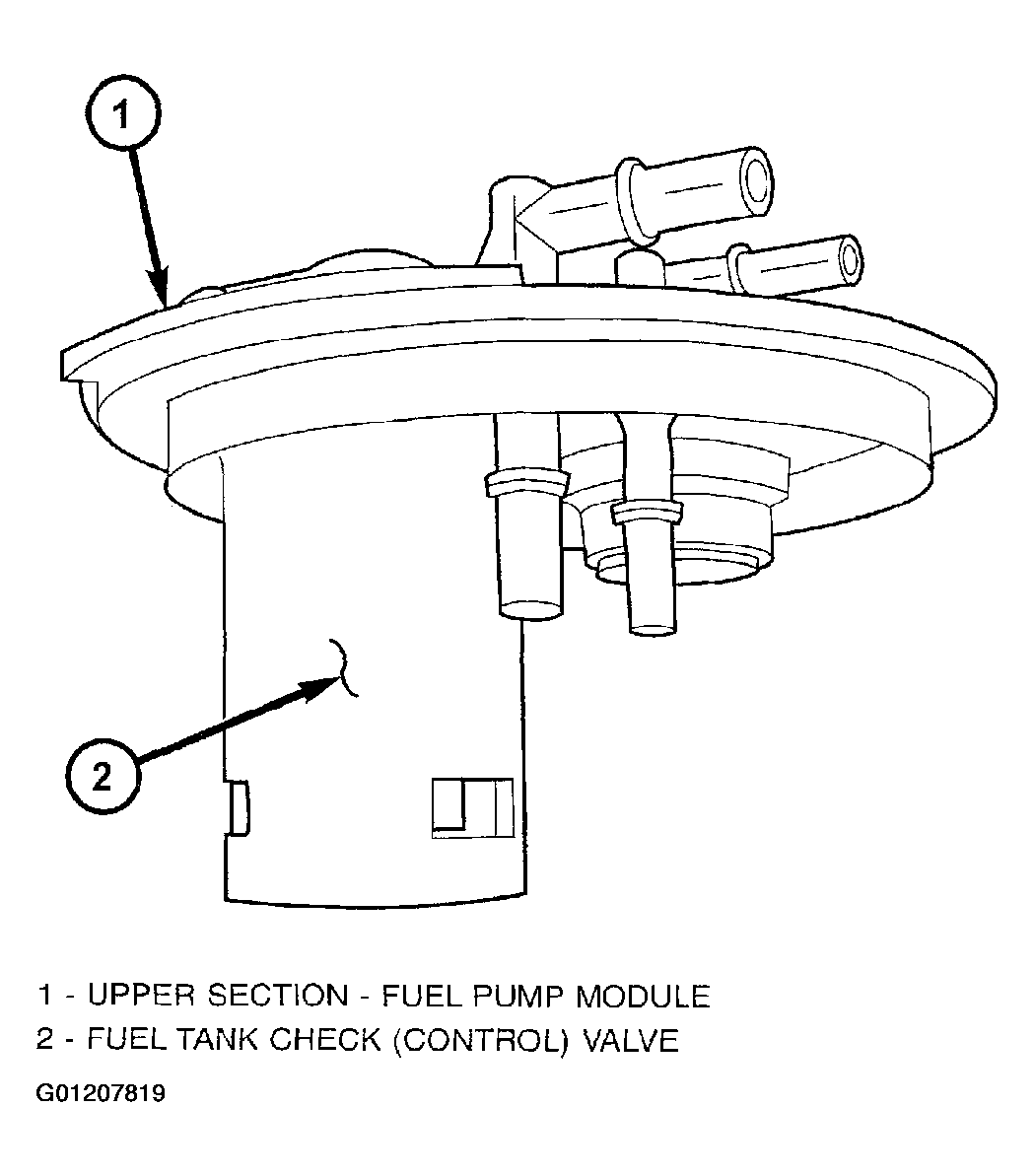

Fig 1: Removing Upper Section - Fuel Pump Module

Courtesy of DAIMLERCHRYSLER CORP.
