Component Locations

NOTE: See Fig 1 thru Fig 17 for component locations.

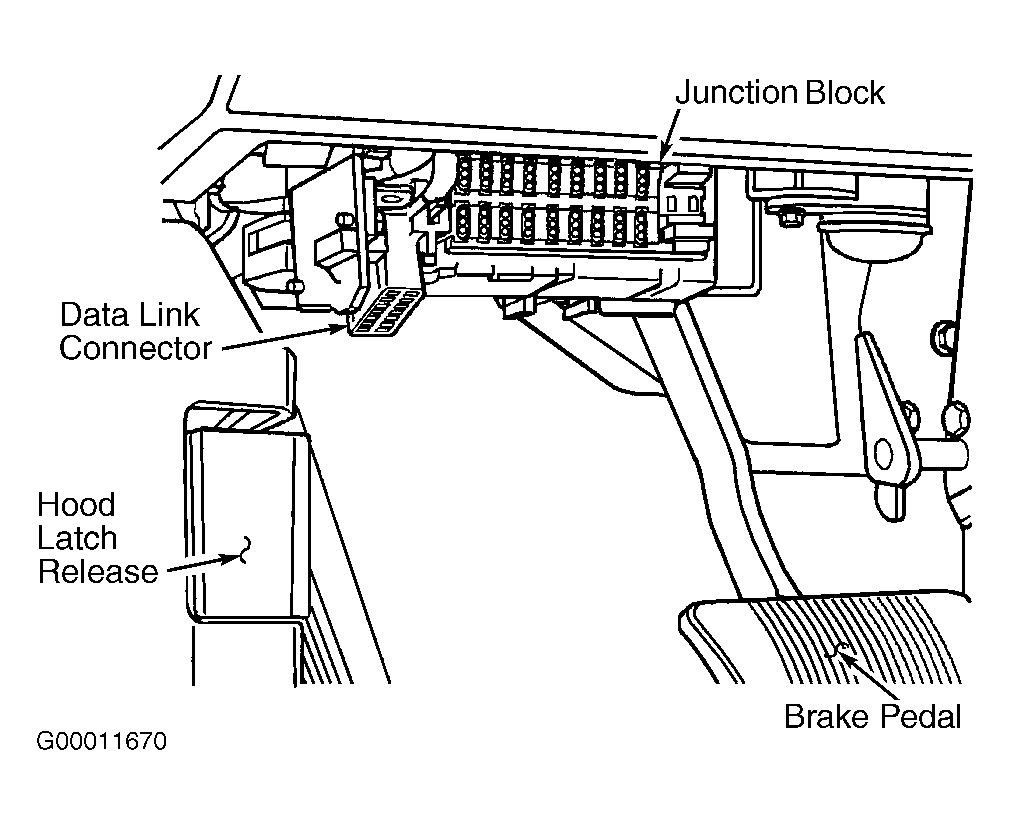

Fig 1: Locating Data Link Connector (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Locating Data Link Connector (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

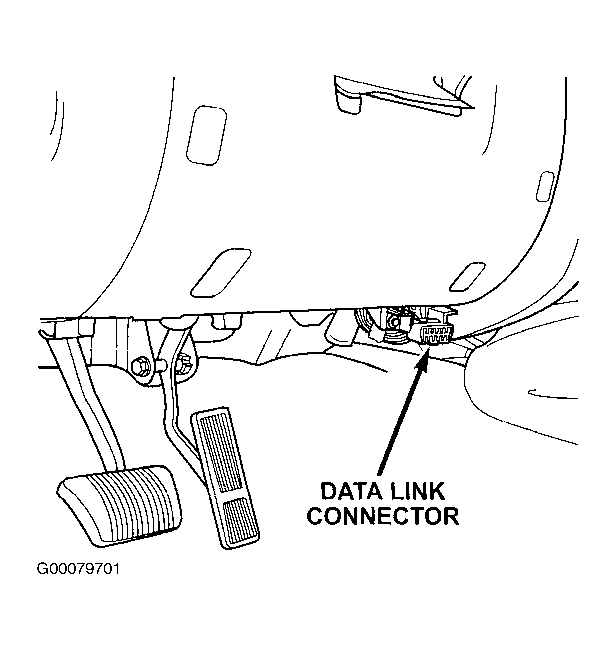

Fig 3: Locating Data Link Connector (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating ECT & MAP Sensors (Grand Cherokee - 4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

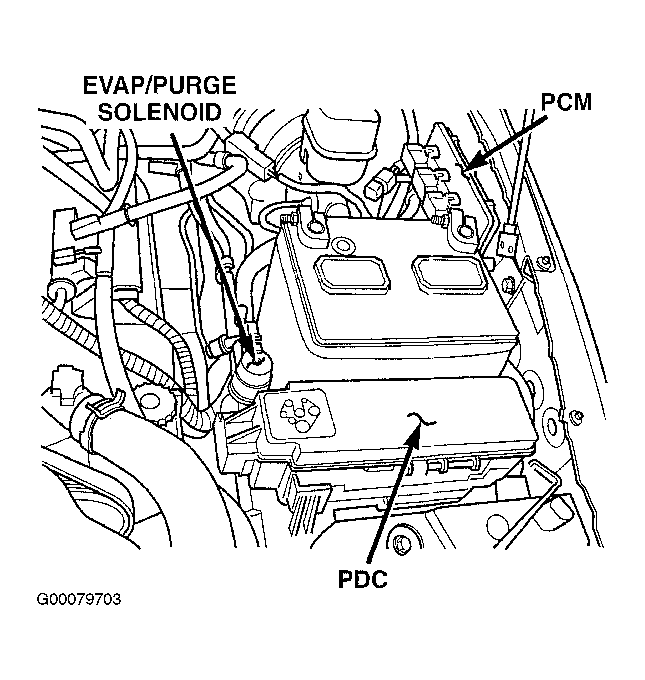

Fig 5: Locating EVAP Purge Solenoid, PCM & Power Distribution Center (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

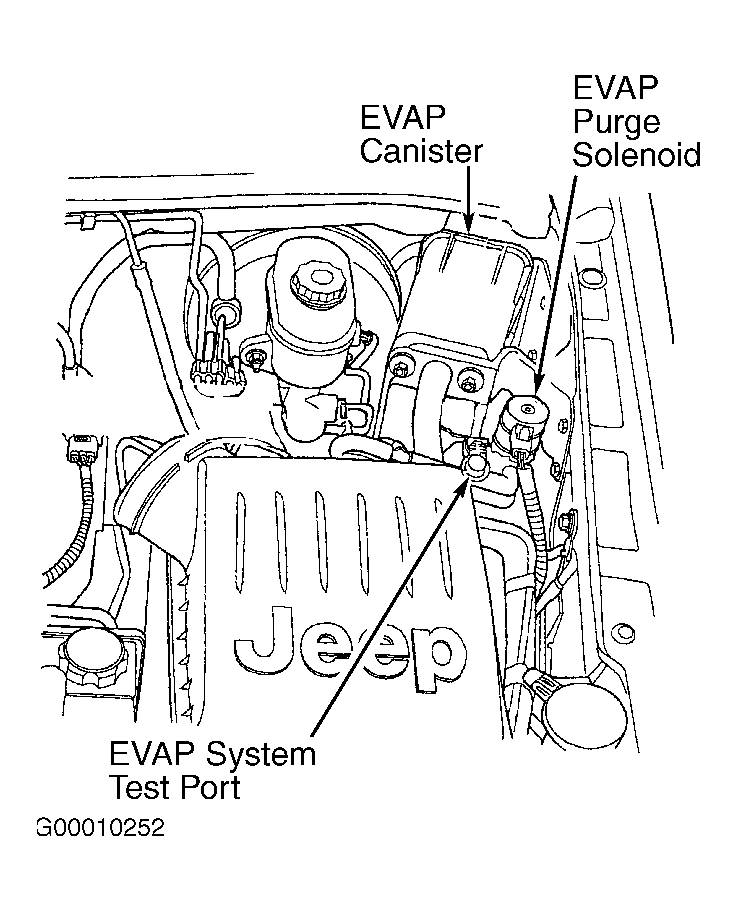

Fig 6: Locating EVAP System Components (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Locating EVAP System Components (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

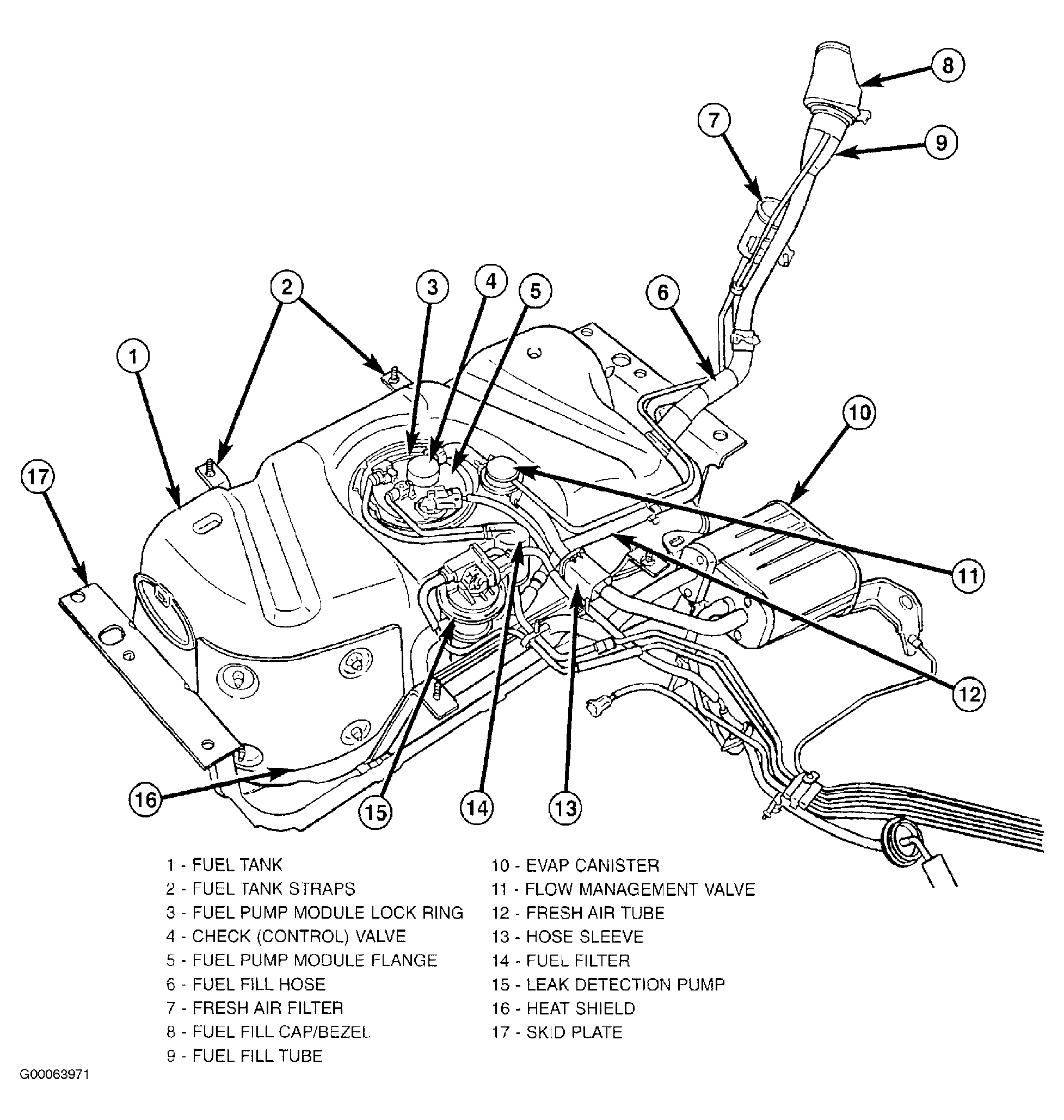

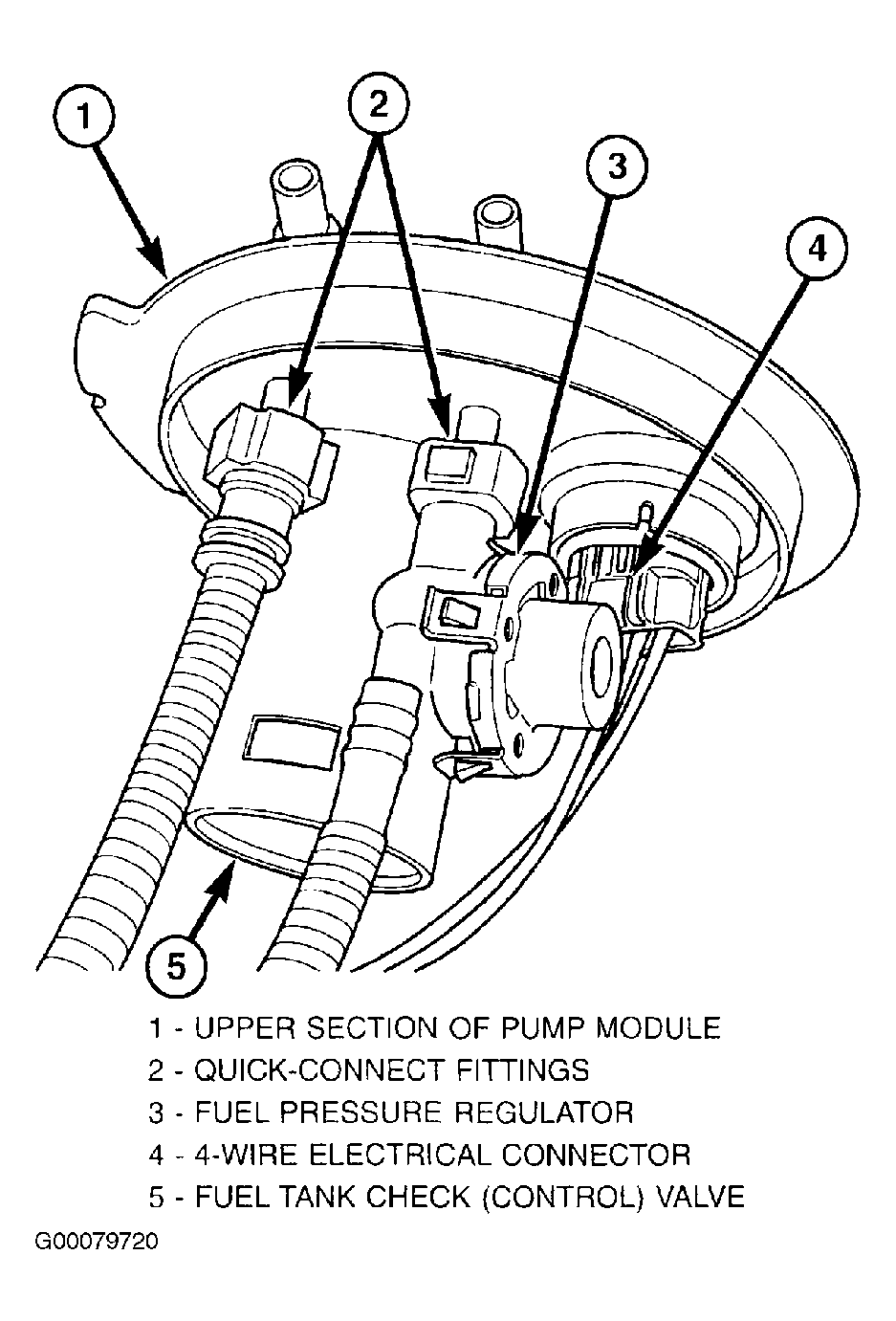

Fig 8: Locating Fuel Delivery Components At Fuel Tank (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Locating Fuel Filter/Pressure Regulator (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Fuel Pressure Regulator (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

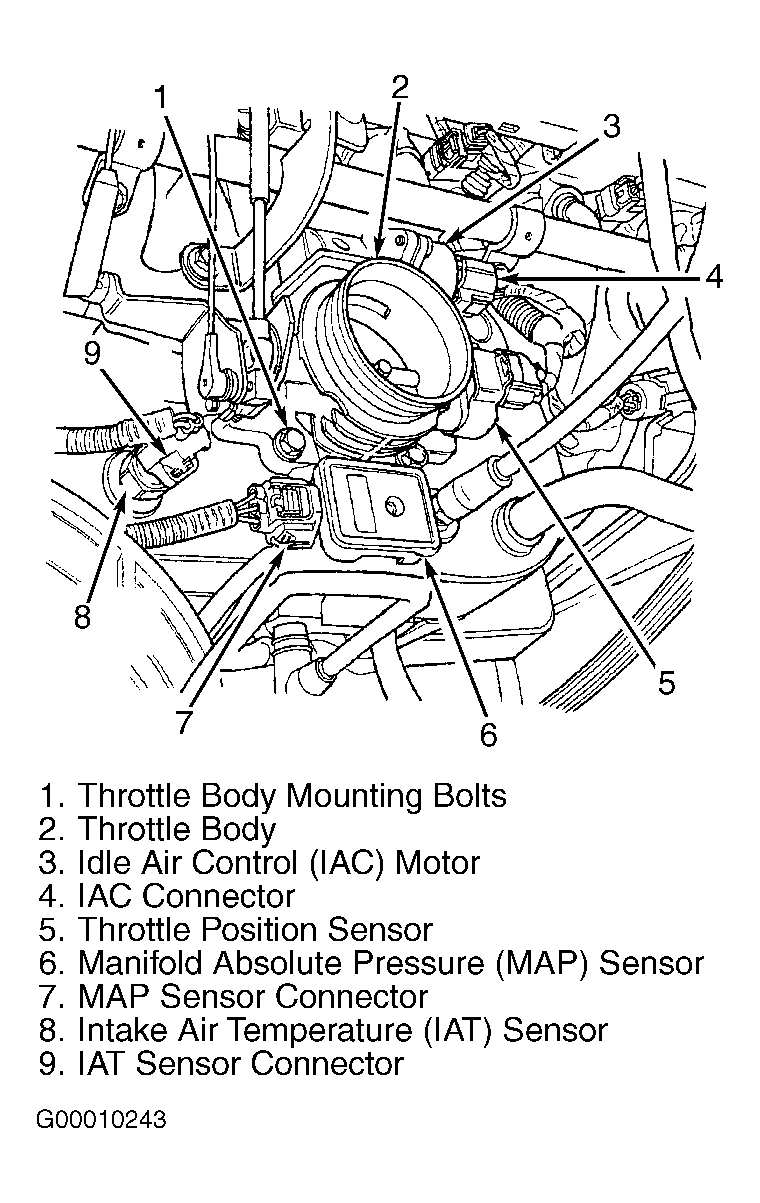

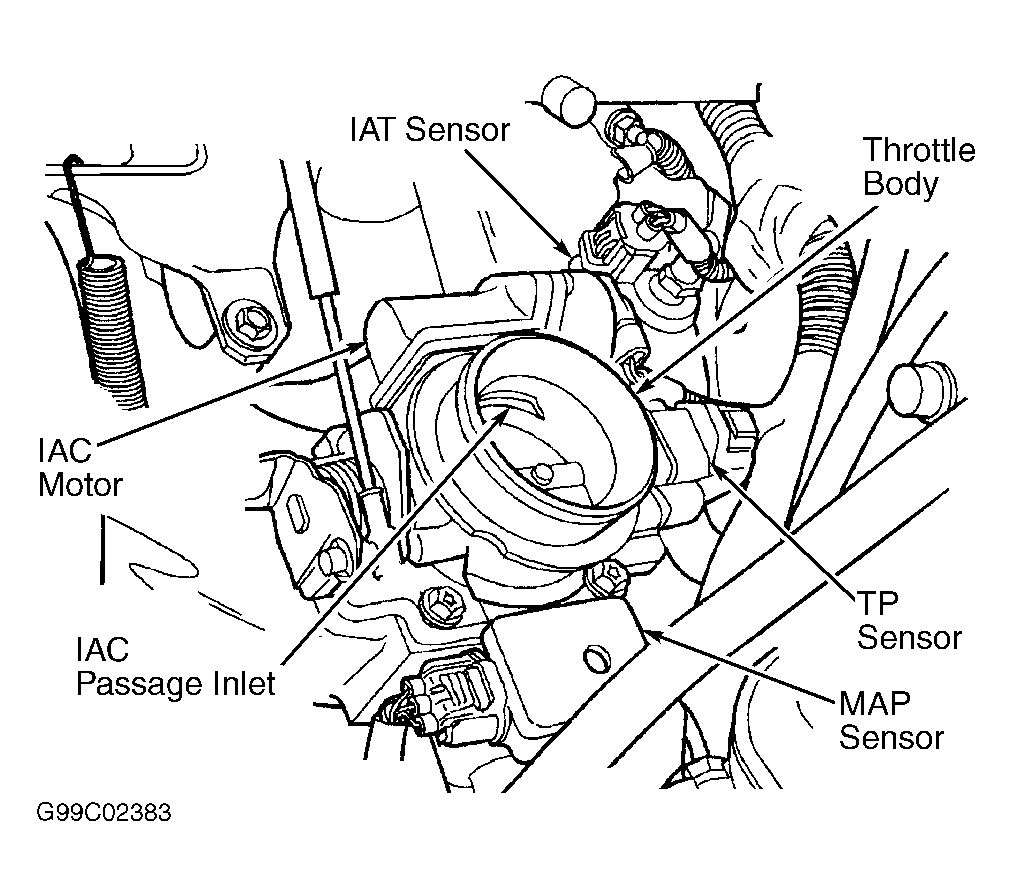

Fig 11: Locating IAT, MAP & TP Sensors, & IAC Motor (Grand Cherokee - 4.0L & Wrangler - 4.0L)

Courtesy of DAIMLERCHRYSLER CORPORATION

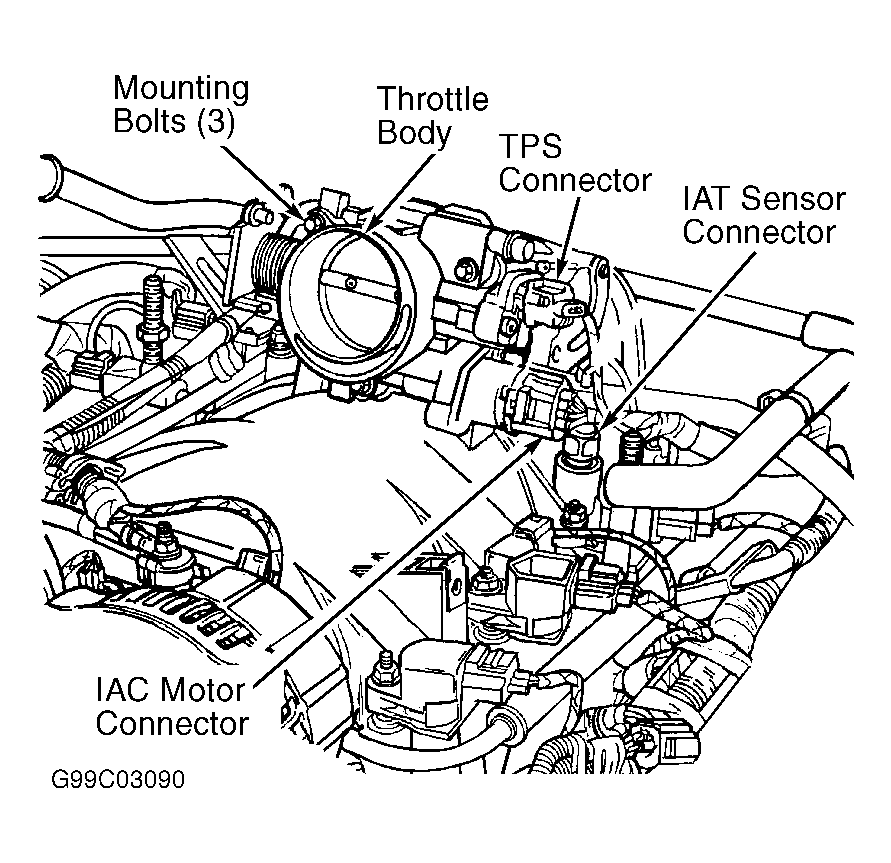

Fig 12: Locating IAT & TP Sensors, & IAC Motor (Grand Cherokee - 4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

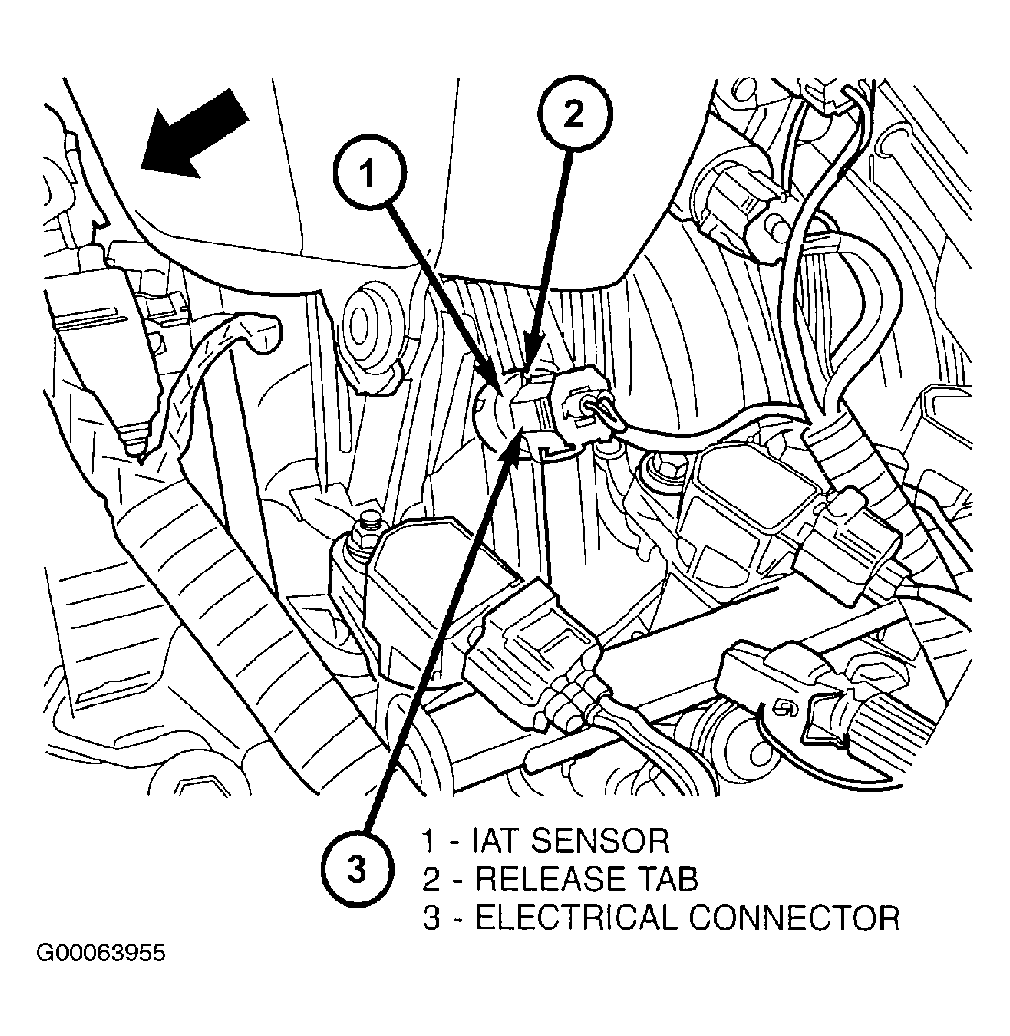

Fig 13: Locating IAT Sensor (Liberty - 2.4L)

Courtesy of DAIMLERCHRYSLER CORPORATION

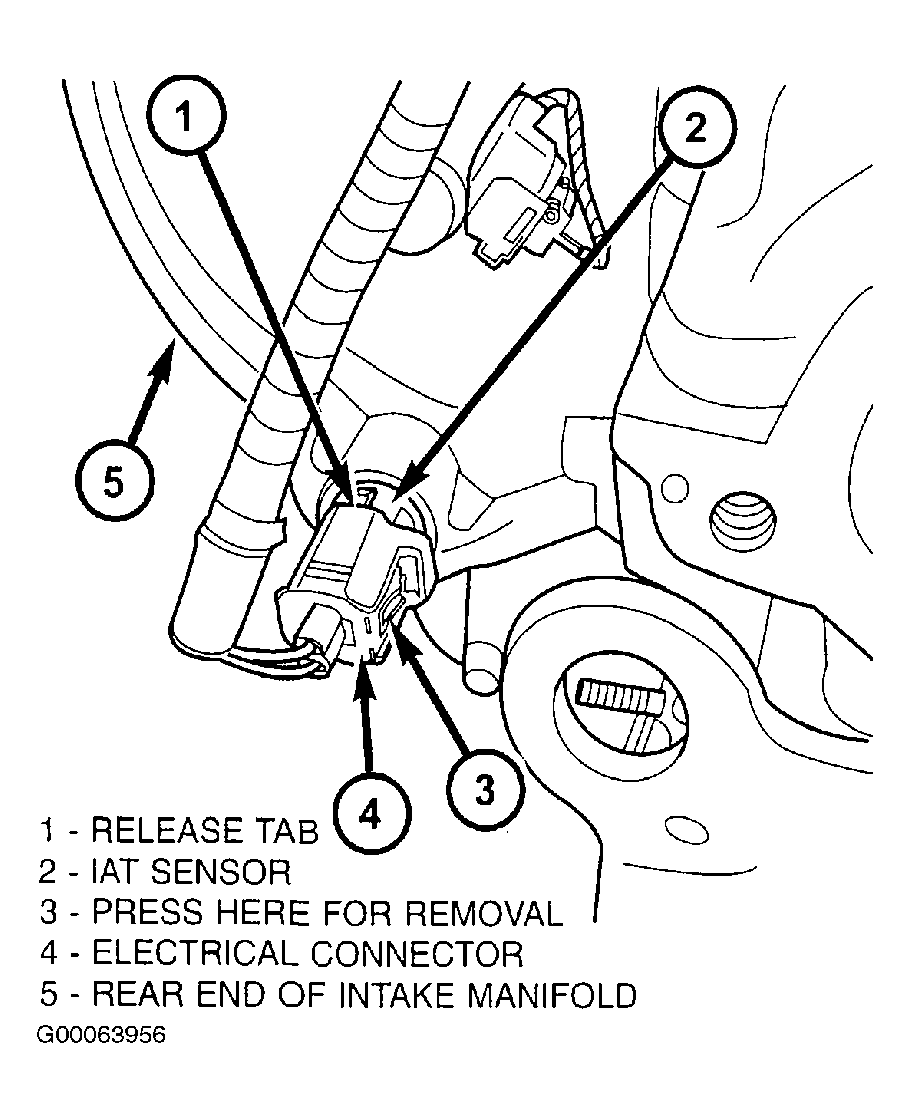

Fig 14: Locating IAT Sensor (Liberty - 3.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Locating IAT, MAP, & TP Sensors, & IAC Motor (Wrangler - 2.5L)

Courtesy of DAIMLERCHRYSLER CORPORATION

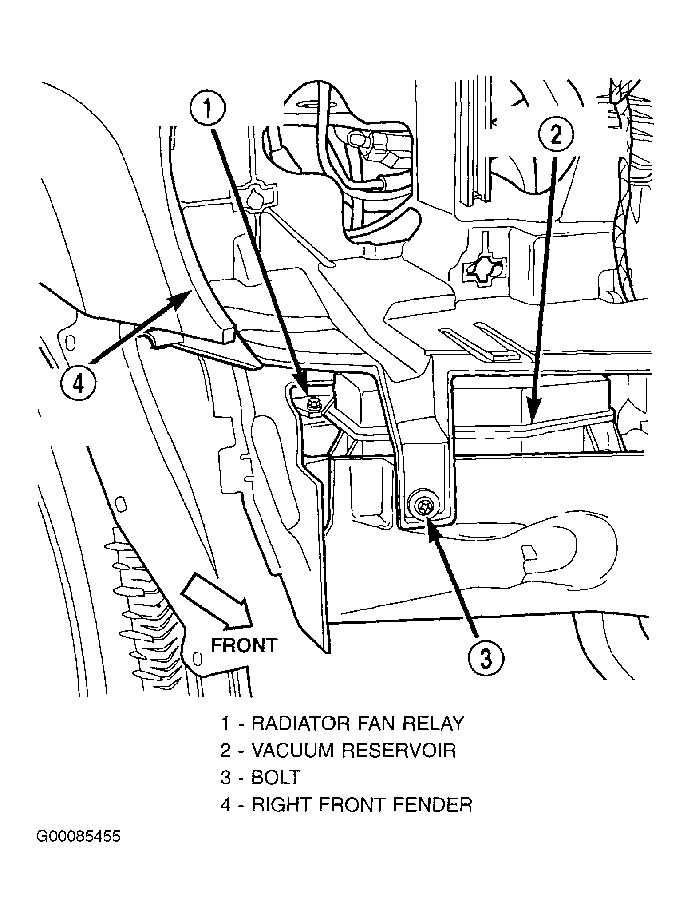

Fig 16: Locating Radiator Fan Relay (Grand Cherokee - 4.0L)

Courtesy of DAIMLERCHRYSLER CORPORATION

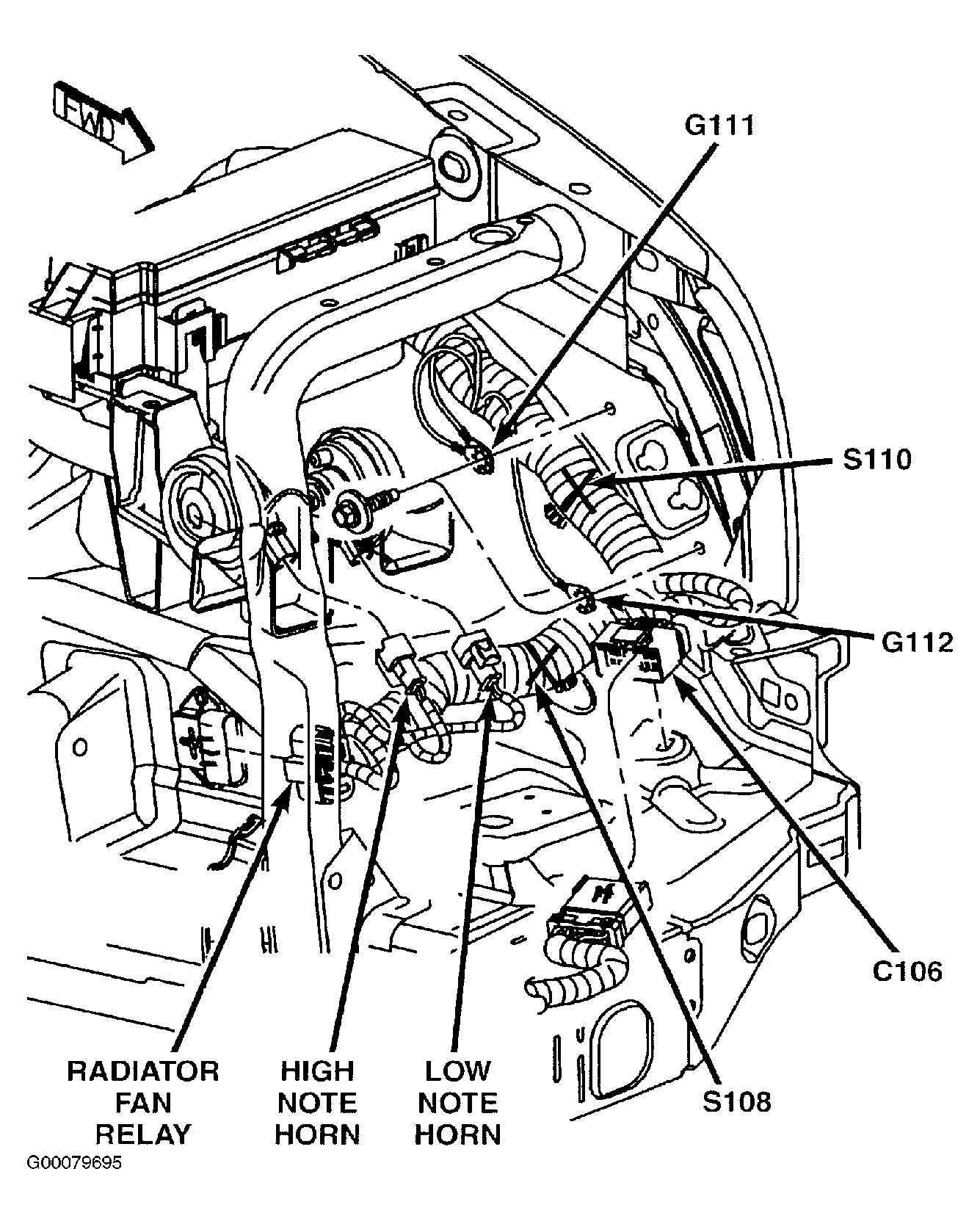

Fig 17: Locating Radiator Fan Relay & High/Low Note Horn Connectors & Grounds, Splices In Front Engine Compartment (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION
