Battery Temperature Sensor Harness CONNECTOR END VIEW

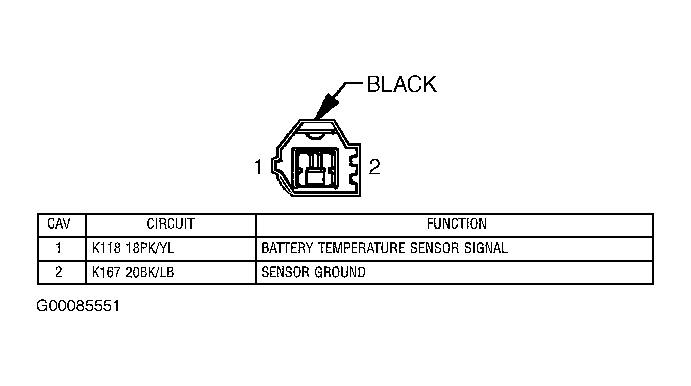

Fig 1: Identifying Battery Temperature Sensor Harness Connector
G00085551Courtesy of DAIMLERCHRYSLER CORPORATION
