Engine Oil Pressure Sensor Harness CONNECTOR END VIEW

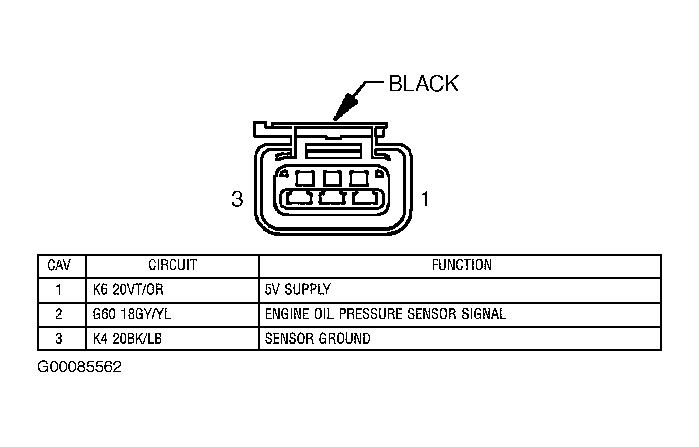

Fig 1: Identifying Engine Oil Pressure Sensor Harness Connector
G00085562Courtesy of DAIMLERCHRYSLER CORPORATION
