Connector Identification

NOTE: For terminal identification of body control system connectors, see Fig 1 -Fig 21 . Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.
Fig 1: Identifying Air Bag Control Module Connector
G00213739Courtesy of CHRYSLER CORP.

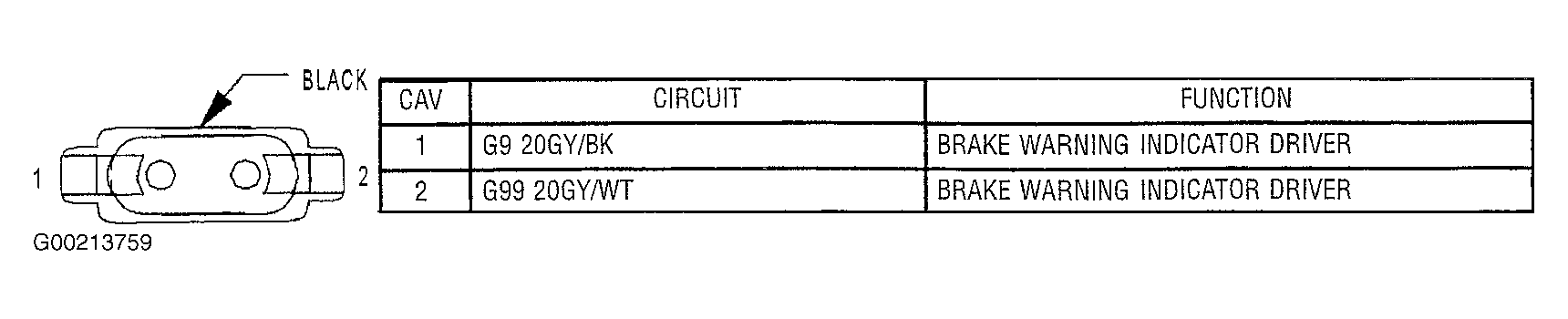

Fig 2: Identifying Brake Warning Indicator Switch Connector
G00213759Courtesy of CHRYSLER CORP.

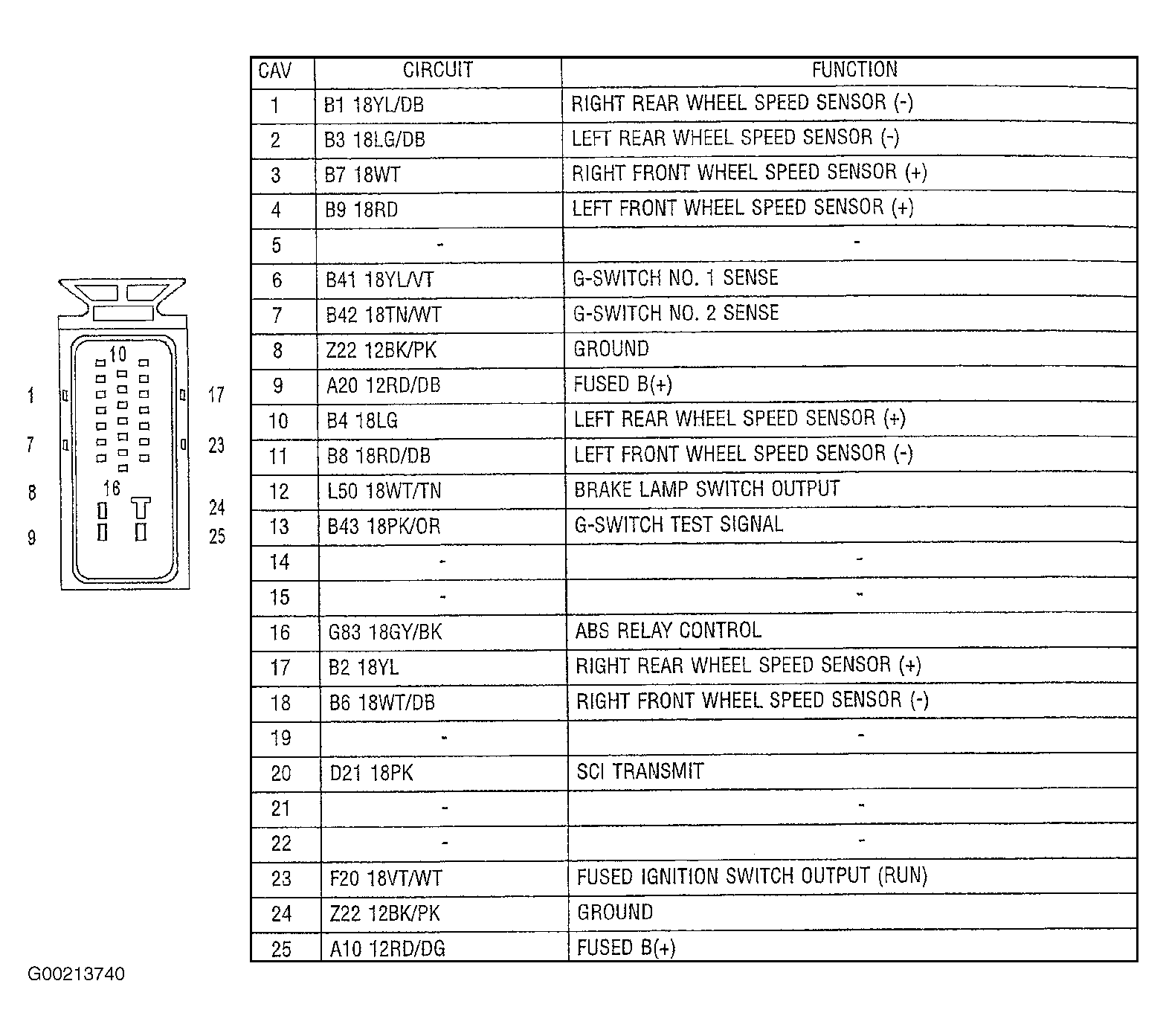

Fig 3: Identifying Controller Anti-Lock Brake Connector
G00213740Courtesy of CHRYSLER CORP.

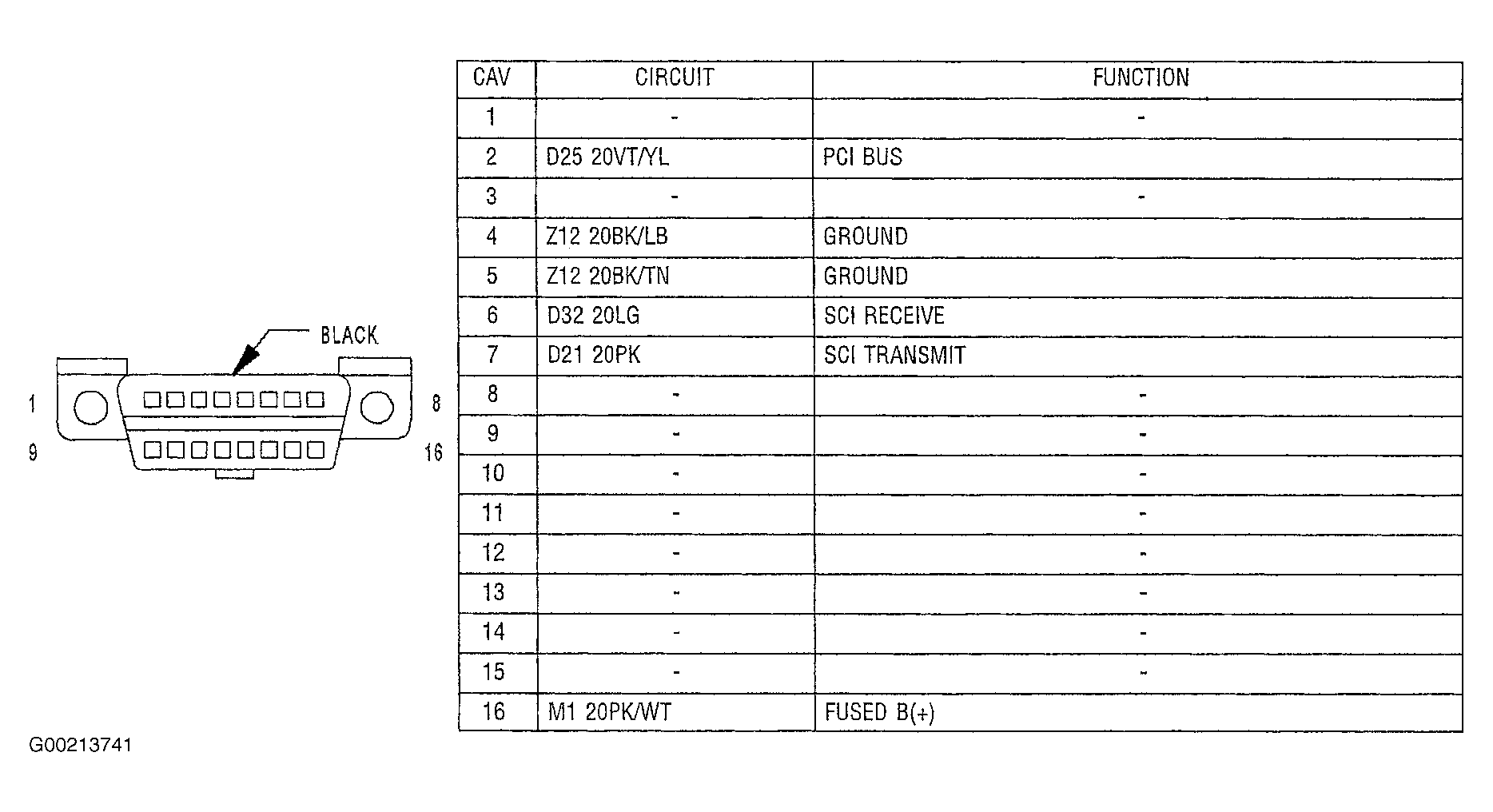

Fig 4: Identifying Data Link Connector
G00213741Courtesy of CHRYSLER CORP.

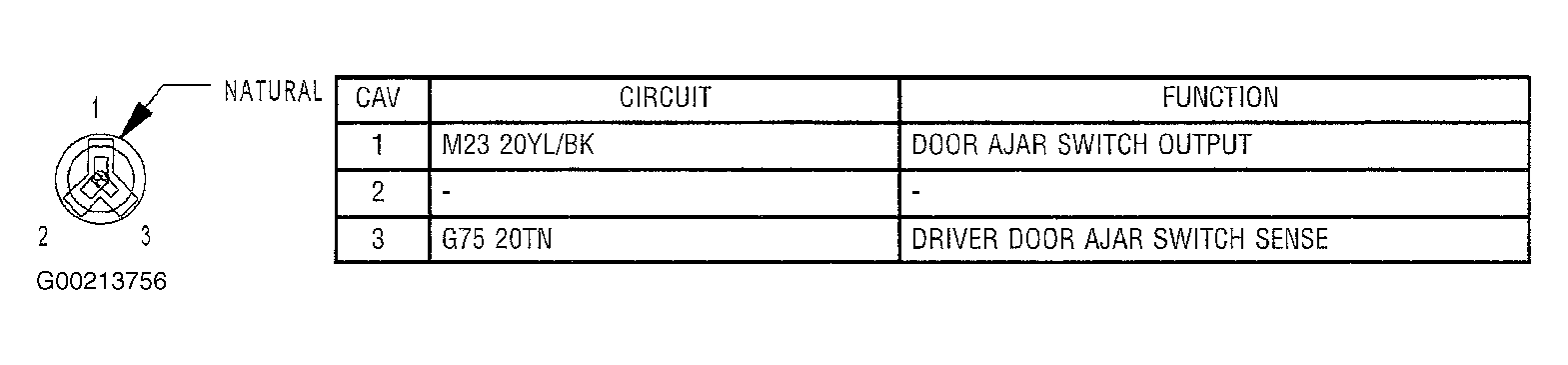

Fig 5: Identifying Driver Door Ajar Switch Connector
G00213756Courtesy of CHRYSLER CORP.

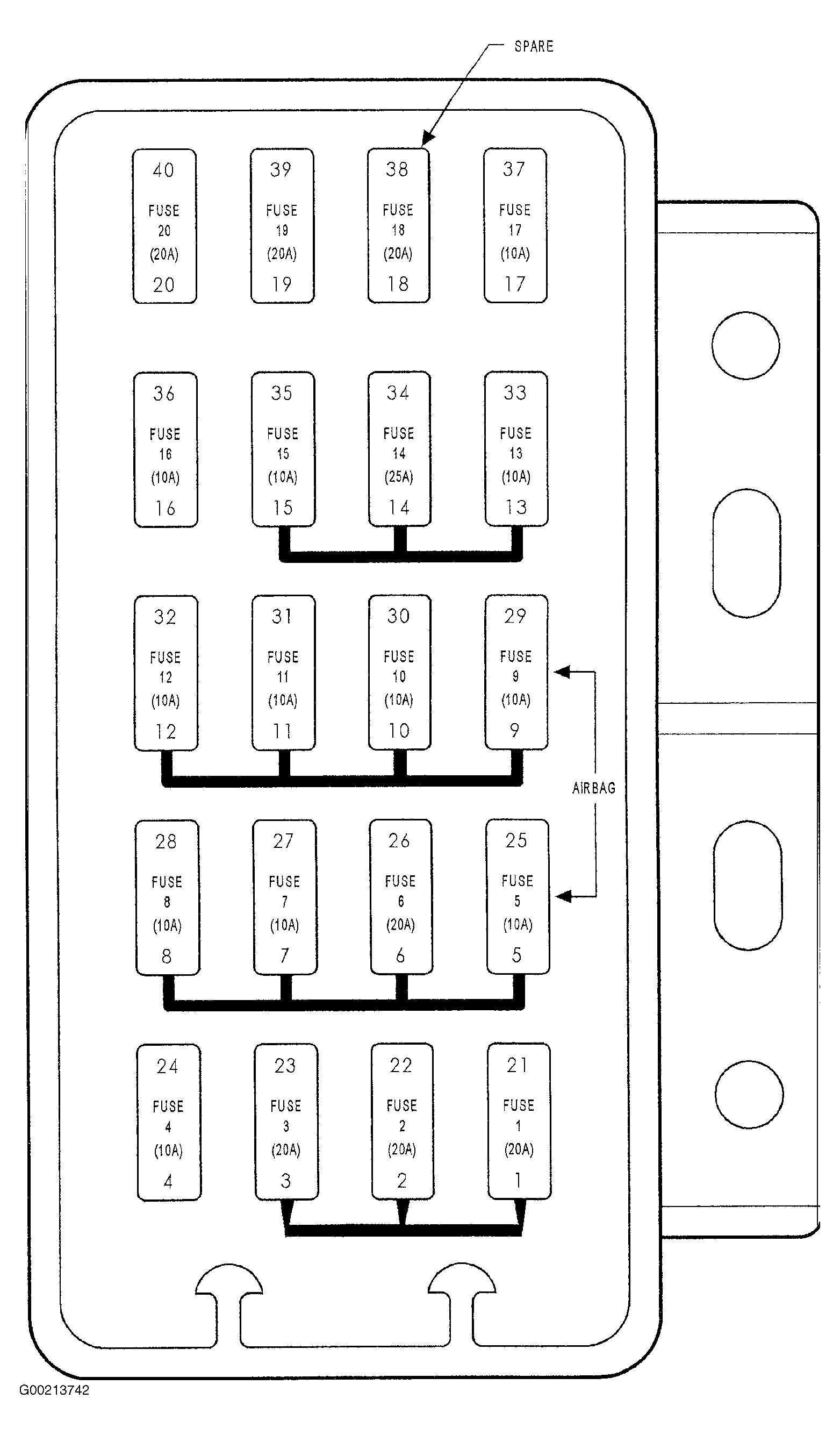

Fig 6: Identifying Fuse Block (front)
G00213742Courtesy of CHRYSLER CORP.

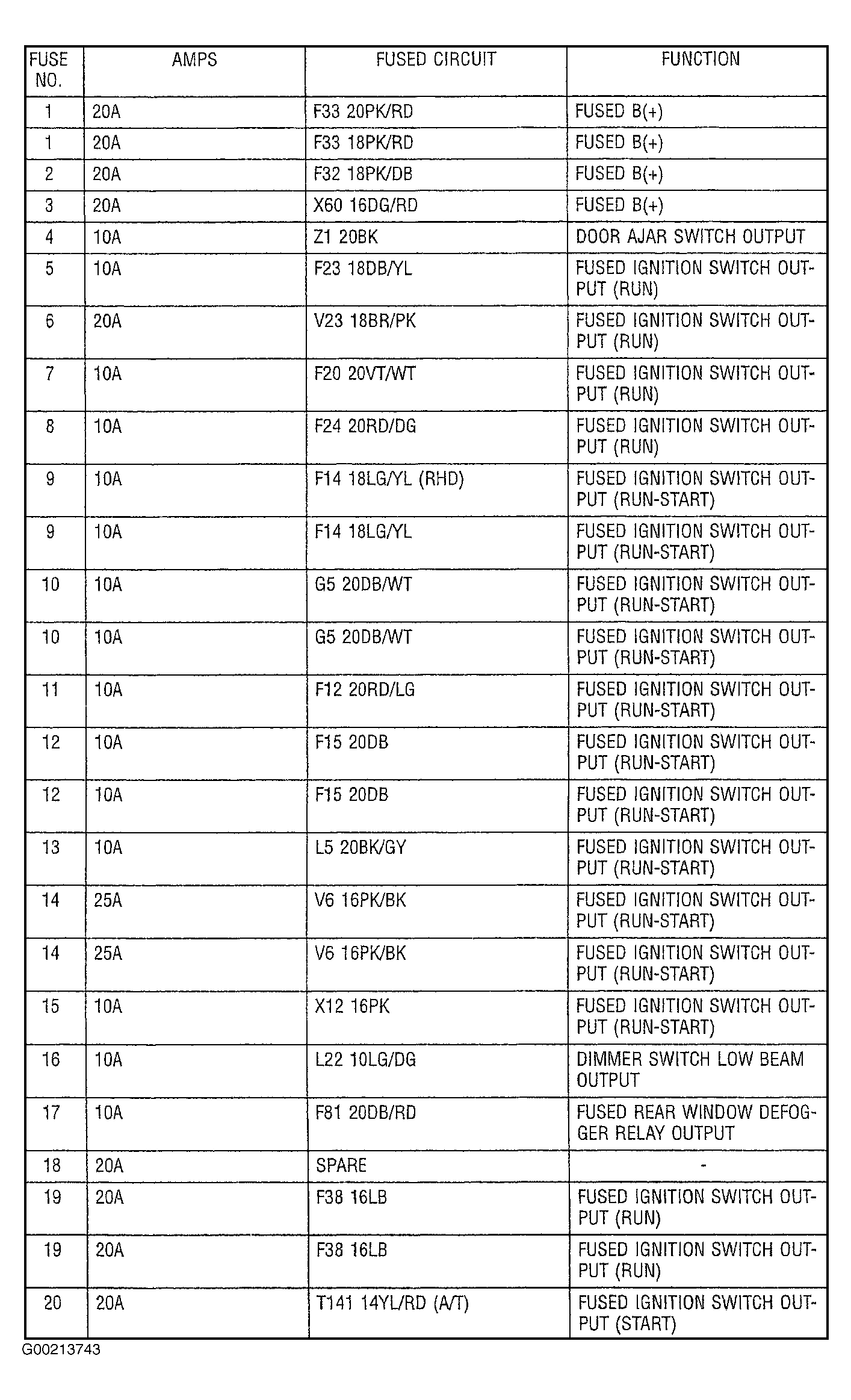

Fig 7: Identifying Fuse Block Fuses
G00213743Courtesy of CHRYSLER CORP.

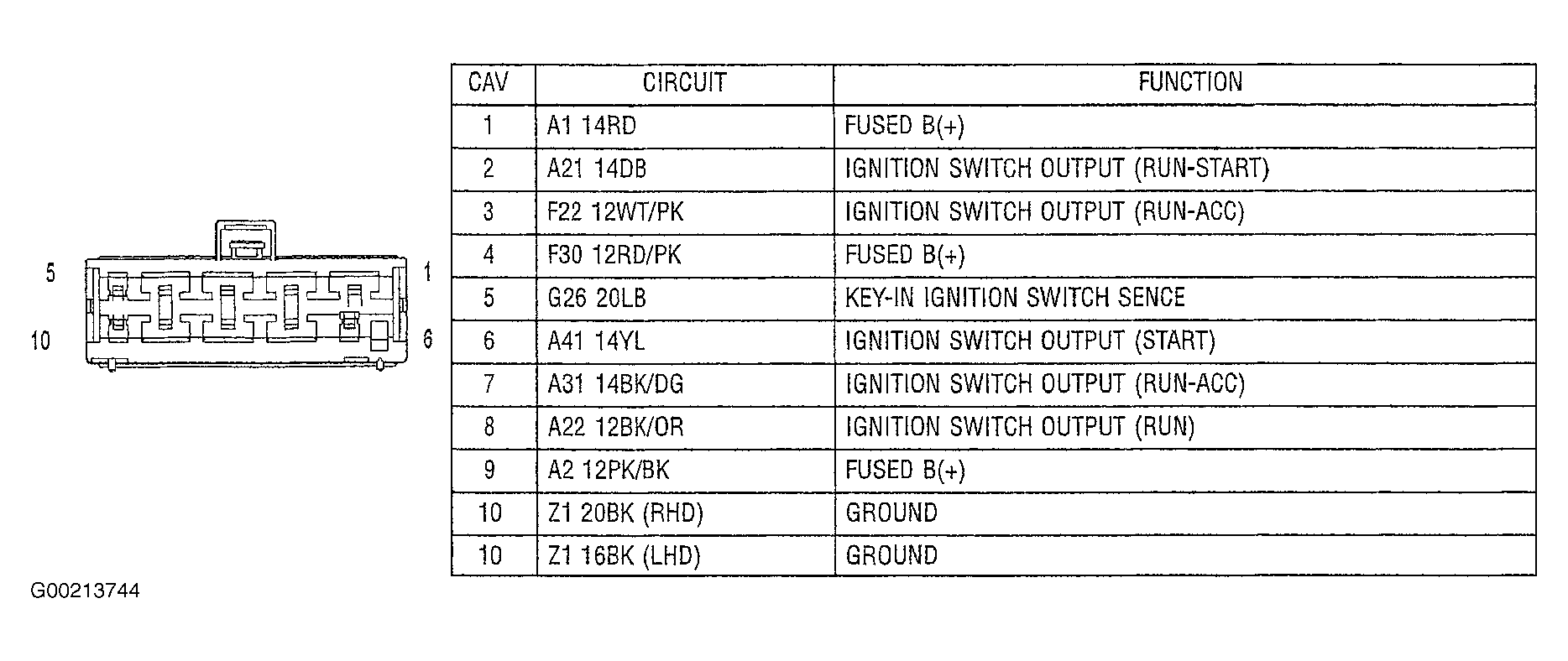

Fig 8: Identifying Ignition Switch Connector
G00213744Courtesy of CHRYSLER CORP.

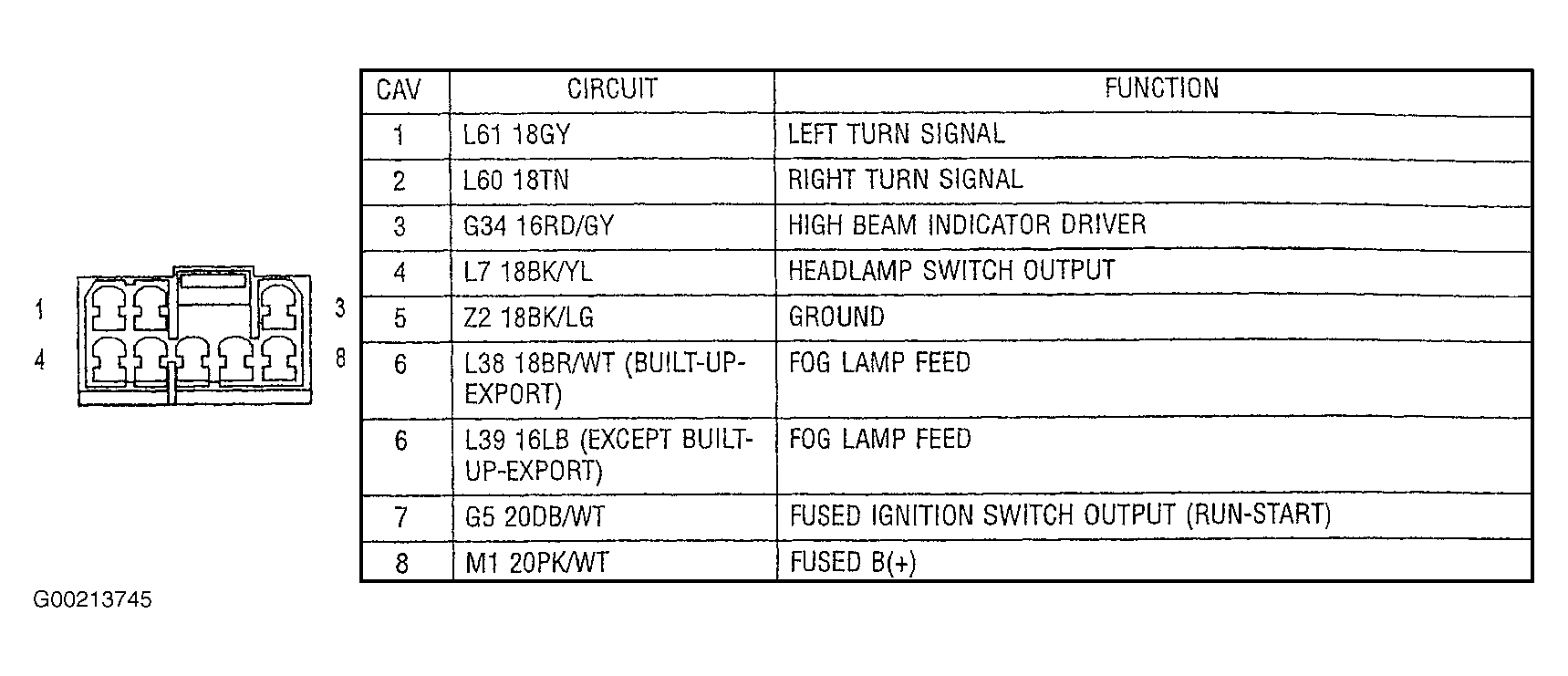

Fig 9: Identifying Instrument Cluster C1 Connector
G00213745Courtesy of CHRYSLER CORP.

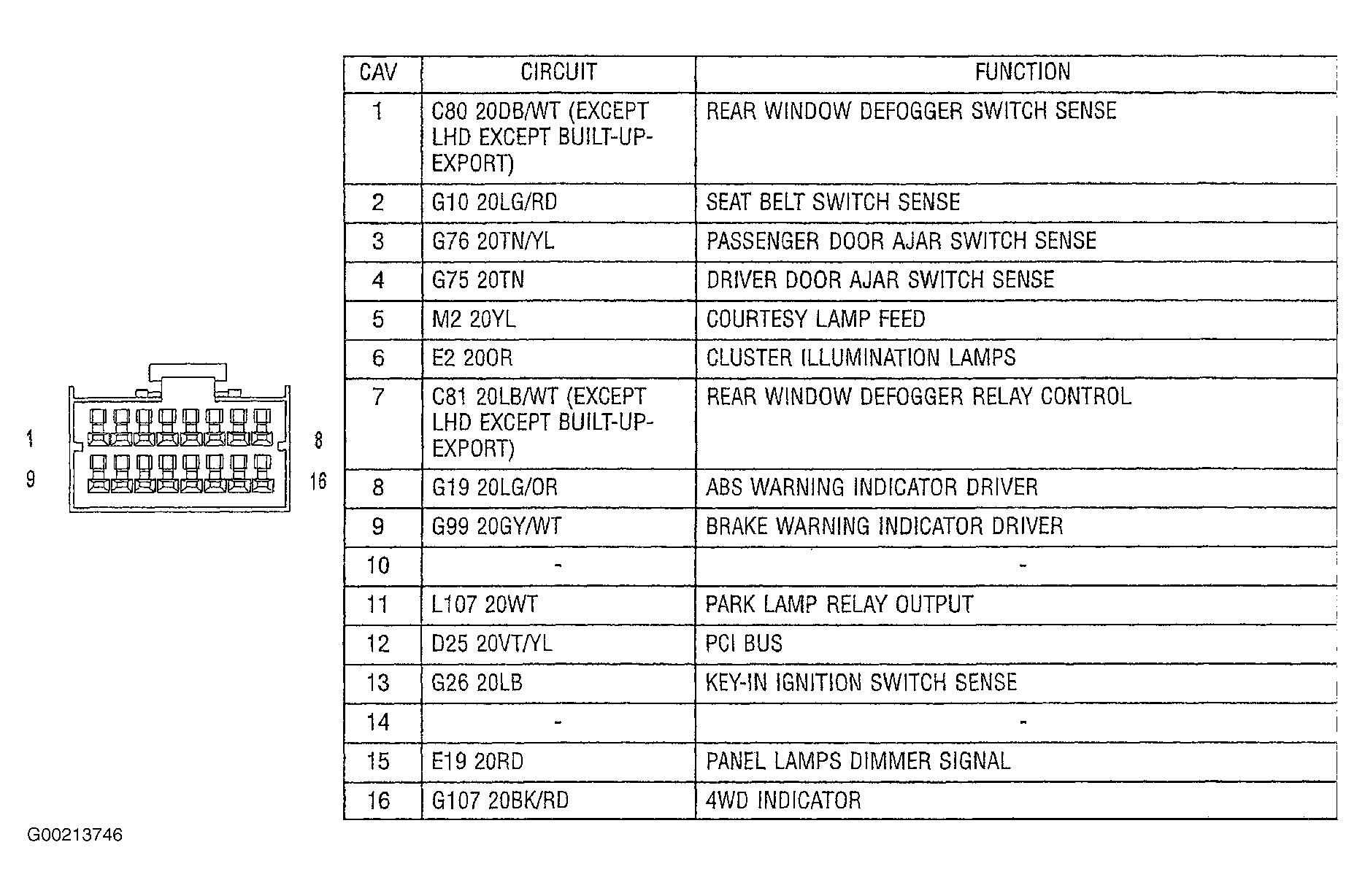

Fig 10: Identifying Instrument Cluster C2 Connector
G00213746Courtesy of CHRYSLER CORP.

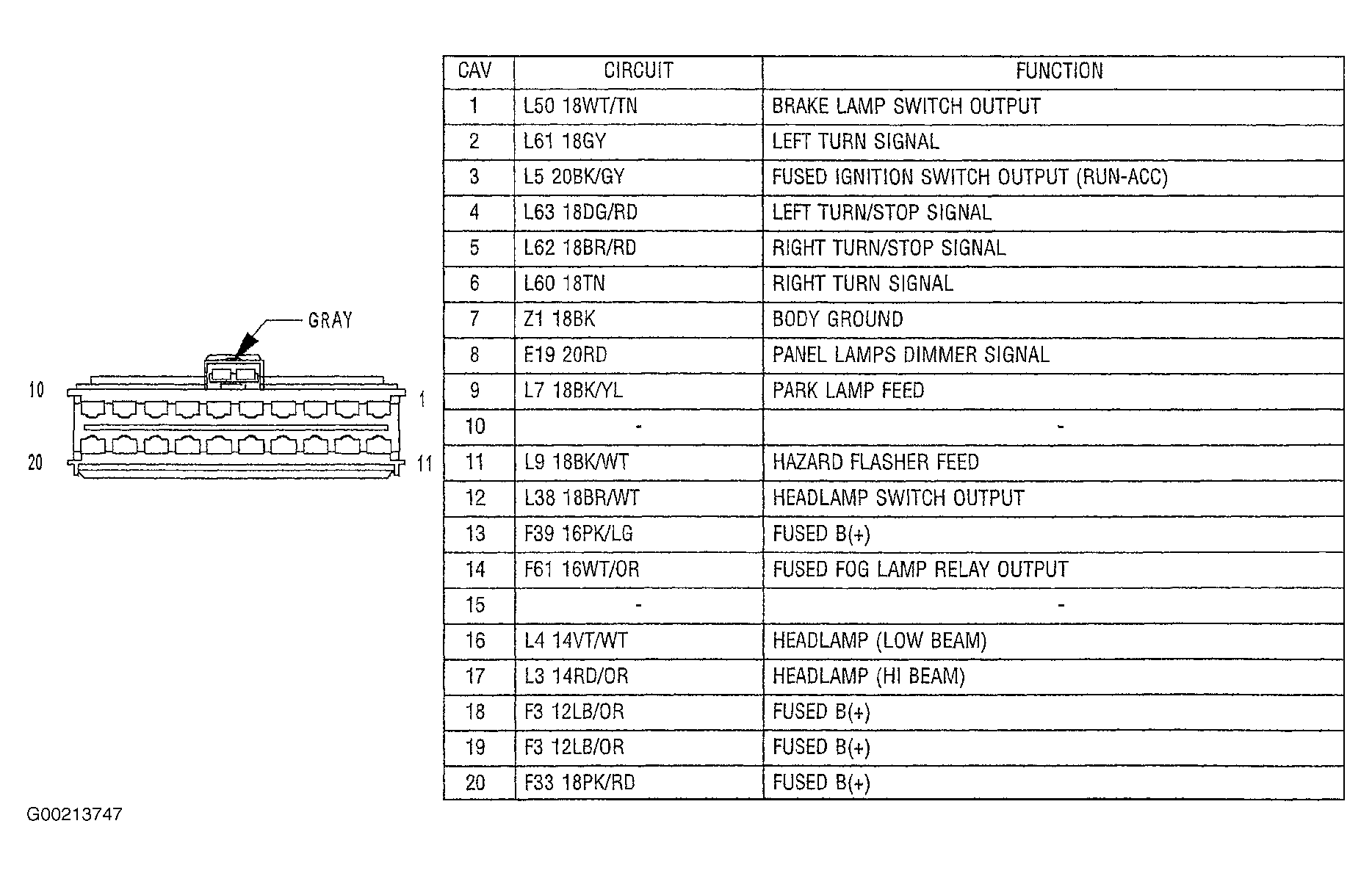

Fig 11: Identifying Multifunction Switch Connector
G00213747Courtesy of CHRYSLER CORP.

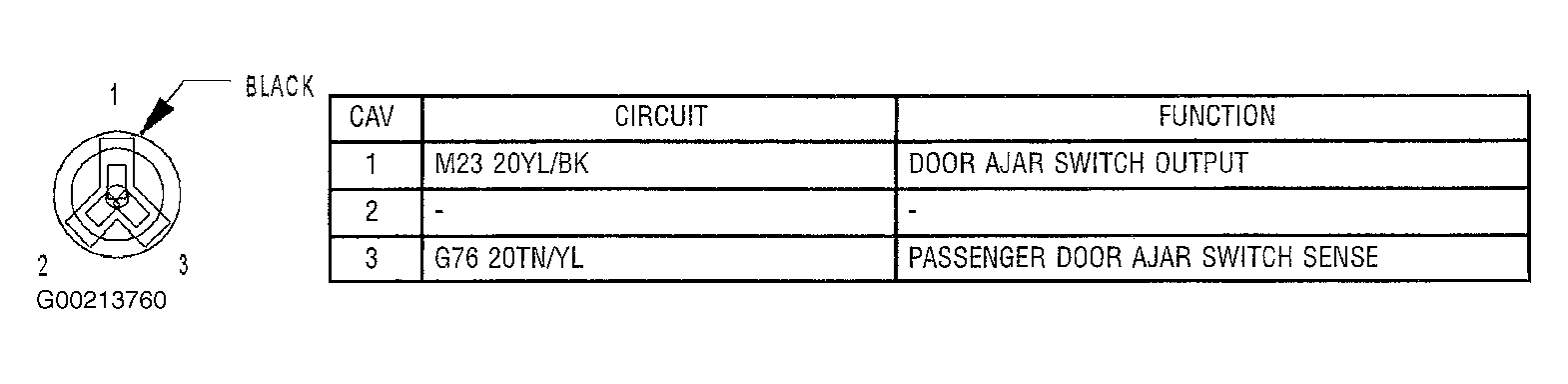

Fig 12: Identifying Passenger Door Ajar Switch Connector
G00213760Courtesy of CHRYSLER CORP.

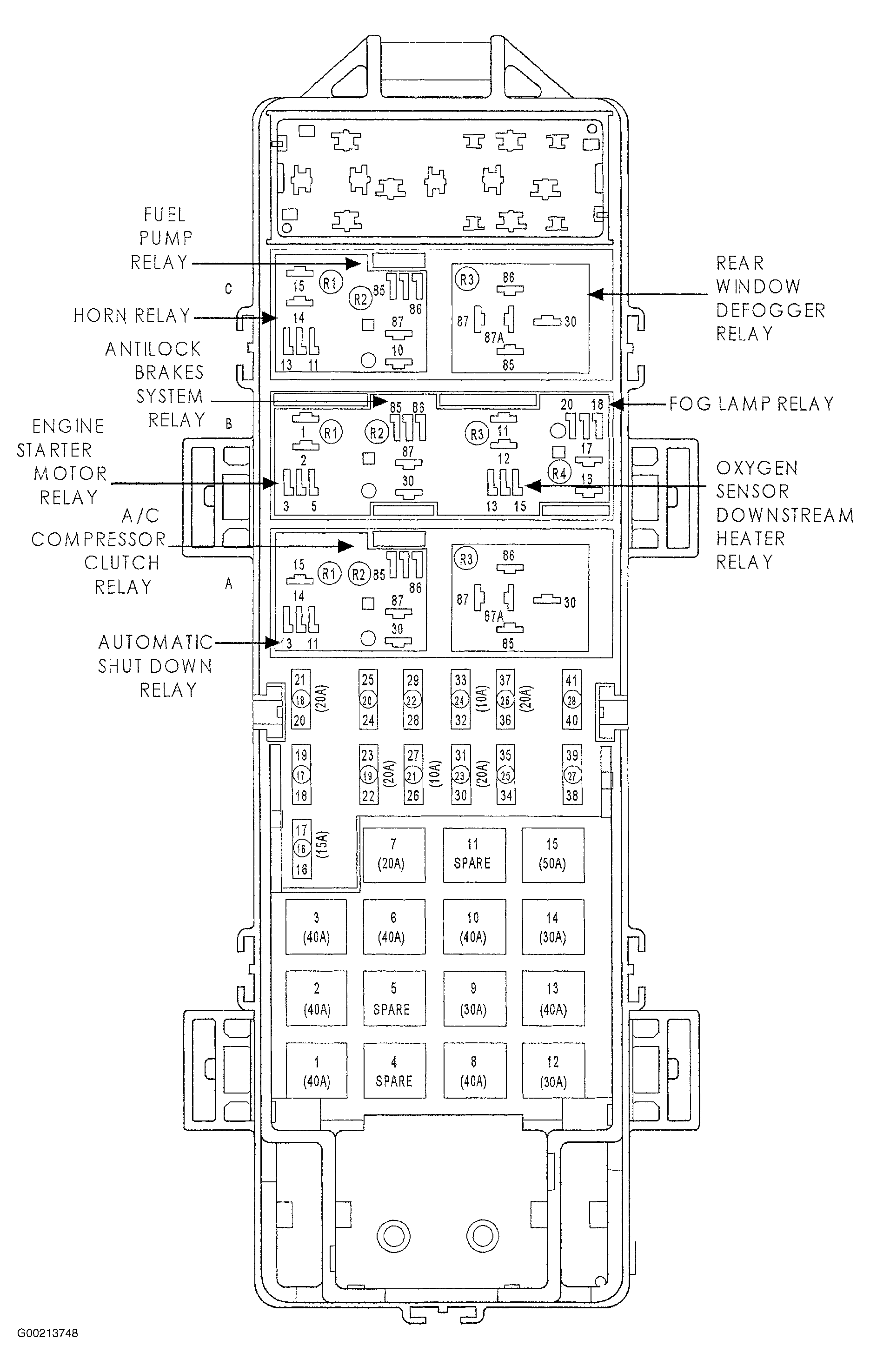

Fig 13: Identifying Power Distribution Center (Front)
G00213748Courtesy of CHRYSLER CORP.

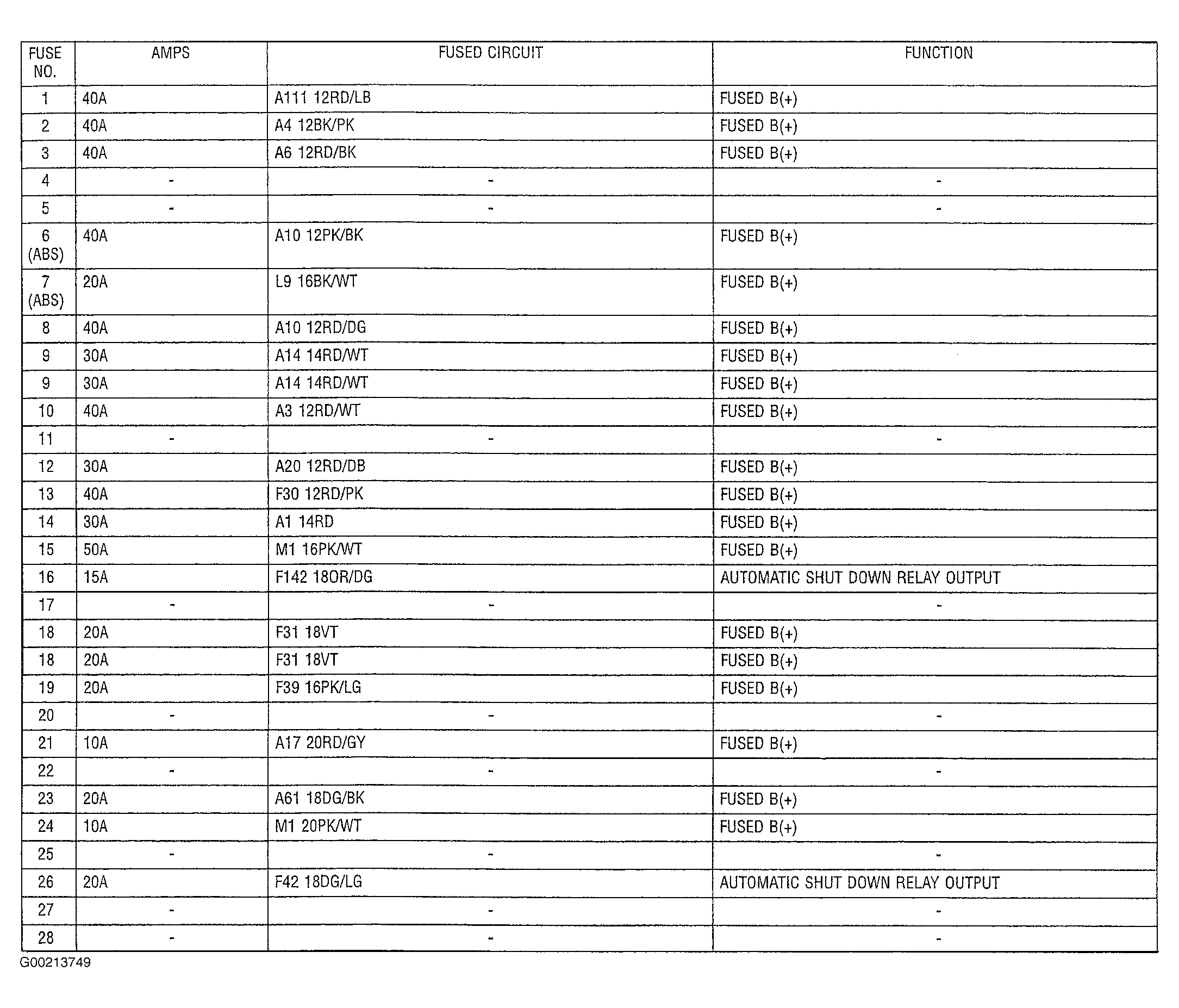

Fig 14: Identifying Power Distribution Center Fuses
G00213749Courtesy of CHRYSLER CORP.

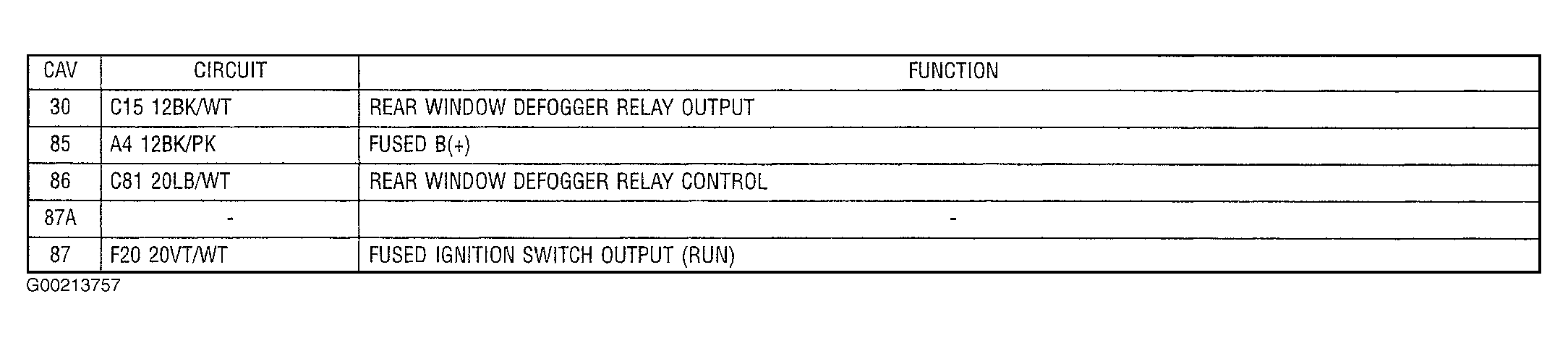

Fig 15: Identifying Power Distribution Center Rear Window Defogger Relay Connector
G00213757Courtesy of CHRYSLER CORP.
Fig 16: Identifying Powertrain Control Module C1 Connector
G00213750Courtesy of CHRYSLER CORP.

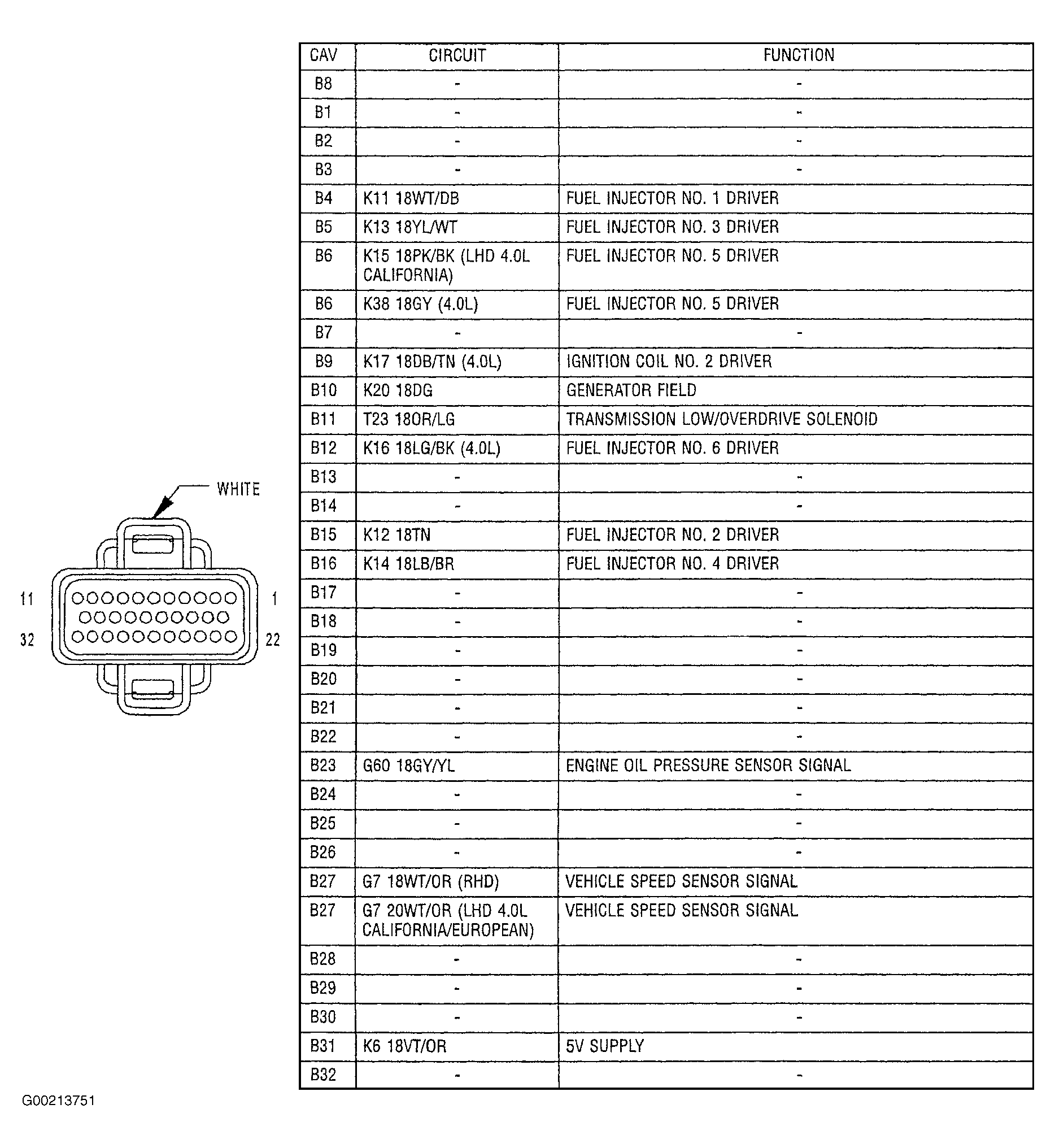

Fig 17: Identifying Powertrain Control Module C2 Connector
G00213751Courtesy of CHRYSLER CORP.
Fig 18: Identifying Powertrain Control Module C3 Connector
G00213752Courtesy of CHRYSLER CORP.

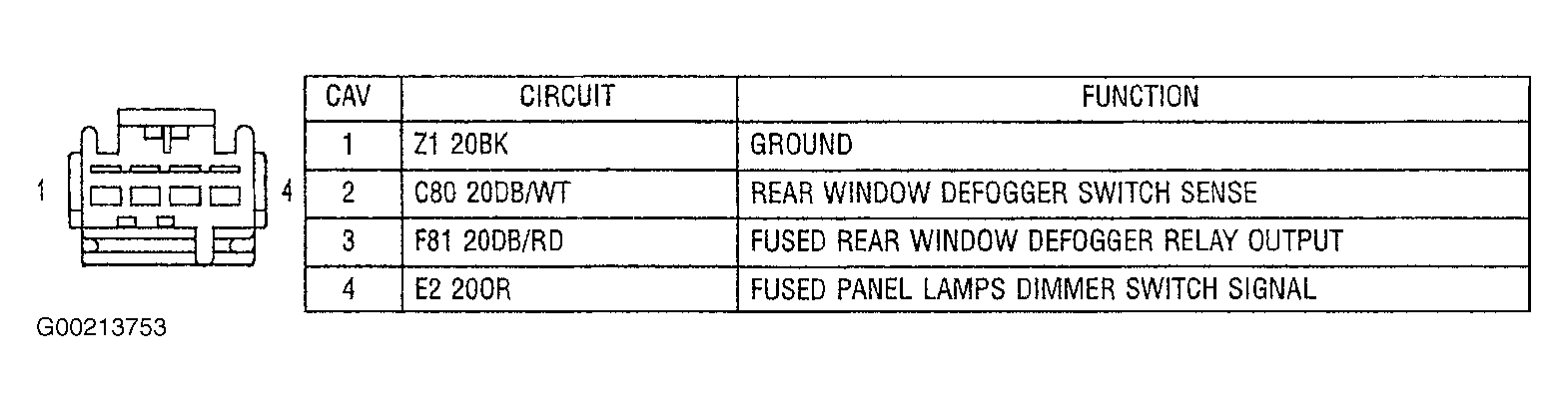

Fig 19: Identifying Rear Window Defogger Switch Connector (Hard Top)
G00213753Courtesy of CHRYSLER CORP.

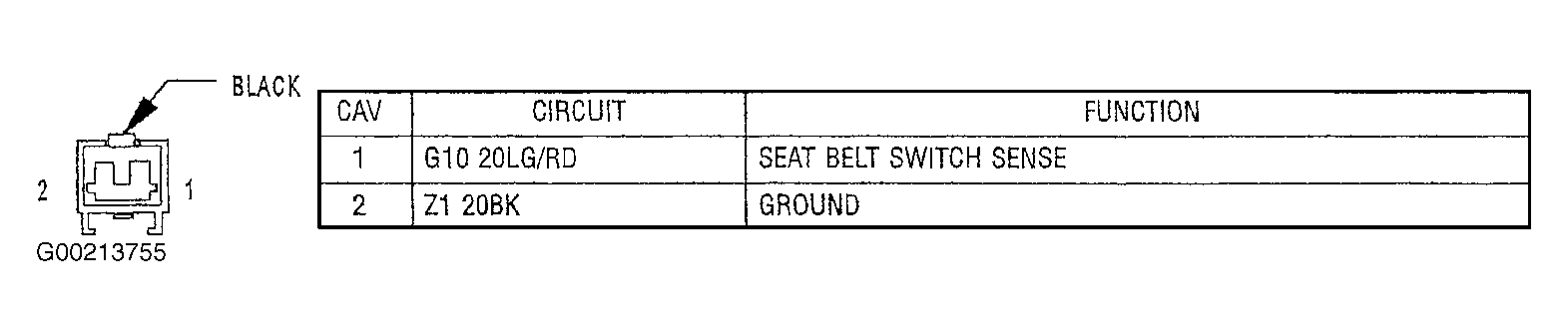

Fig 20: Identifying Seat Belt Switch Connector
G00213755Courtesy of CHRYSLER CORP.

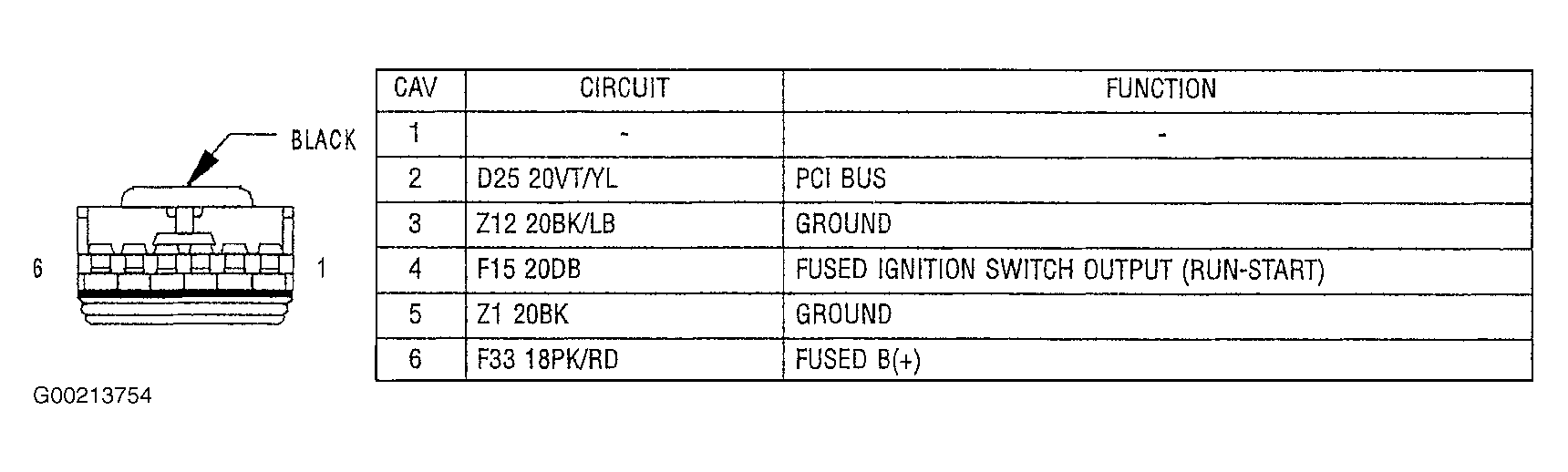

Fig 21: Identifying Sentry Key Immobilizer Module Connector
G00213754Courtesy of CHRYSLER CORP.

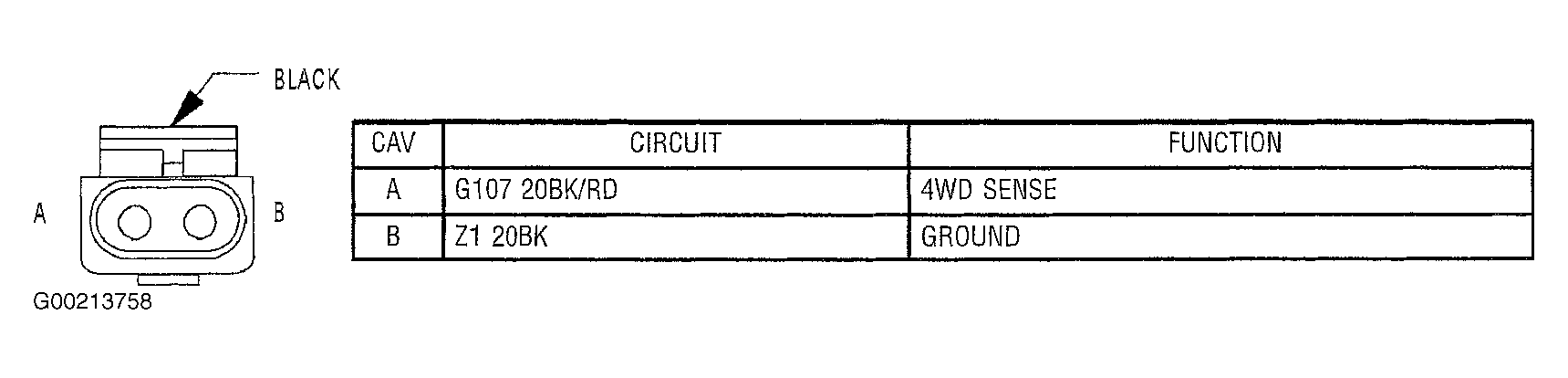

Fig 22: Identifying Transfer Case Switch Connector
G00213758Courtesy of CHRYSLER CORP.
