Connector Identification

NOTE: See Fig 1 thru Fig 19 for connector identification.

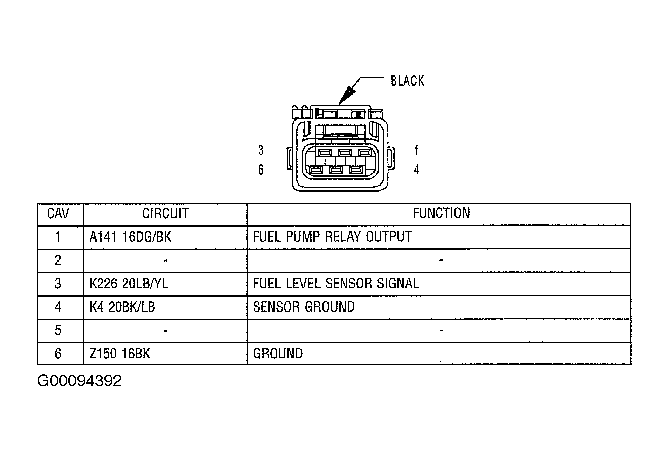

Fig 1: Identifying Fuel Pump Module Harness Connector (Grand Cherokee)
G00094392Courtesy of DAIMLERCHRYSLER CORPORATION

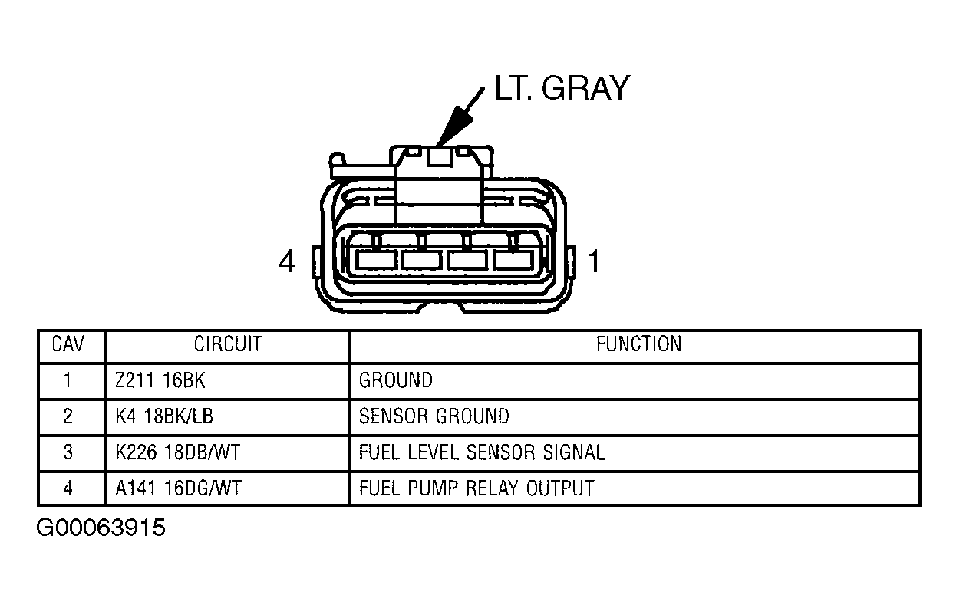

Fig 2: Identifying Fuel Pump Module Harness Connector (Liberty)
G00063915Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 3: Identifying Fuel Pump Module Harness Connector (Wrangler)
G00085574Courtesy of DAIMLERCHRYSLER CORPORATION

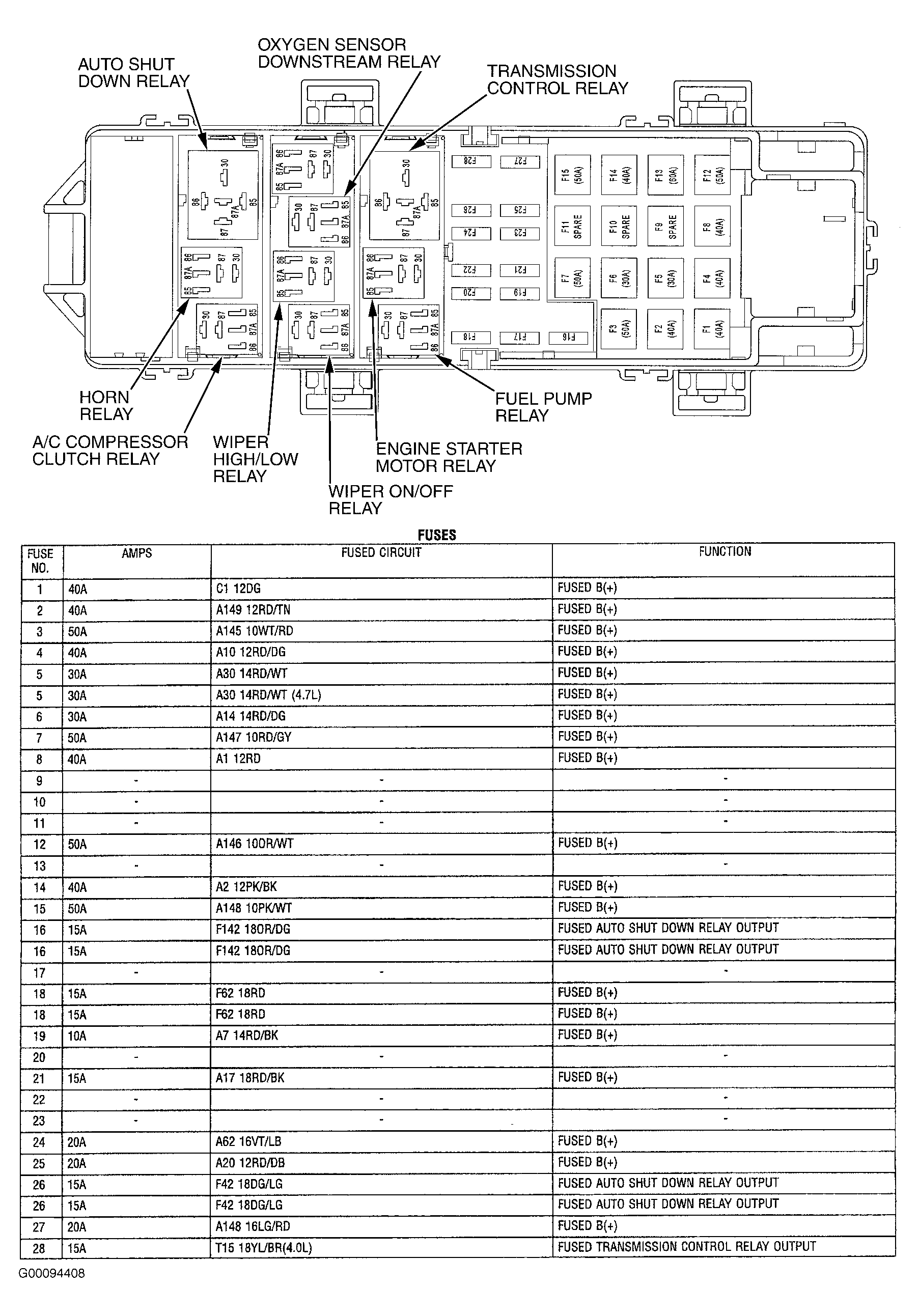

Fig 4: Identifying Power Distribution Center Fuses & Fuse Circuits (Grand Cherokee)
G00094408Courtesy of DAIMLERCHRYSLER CORPORATION

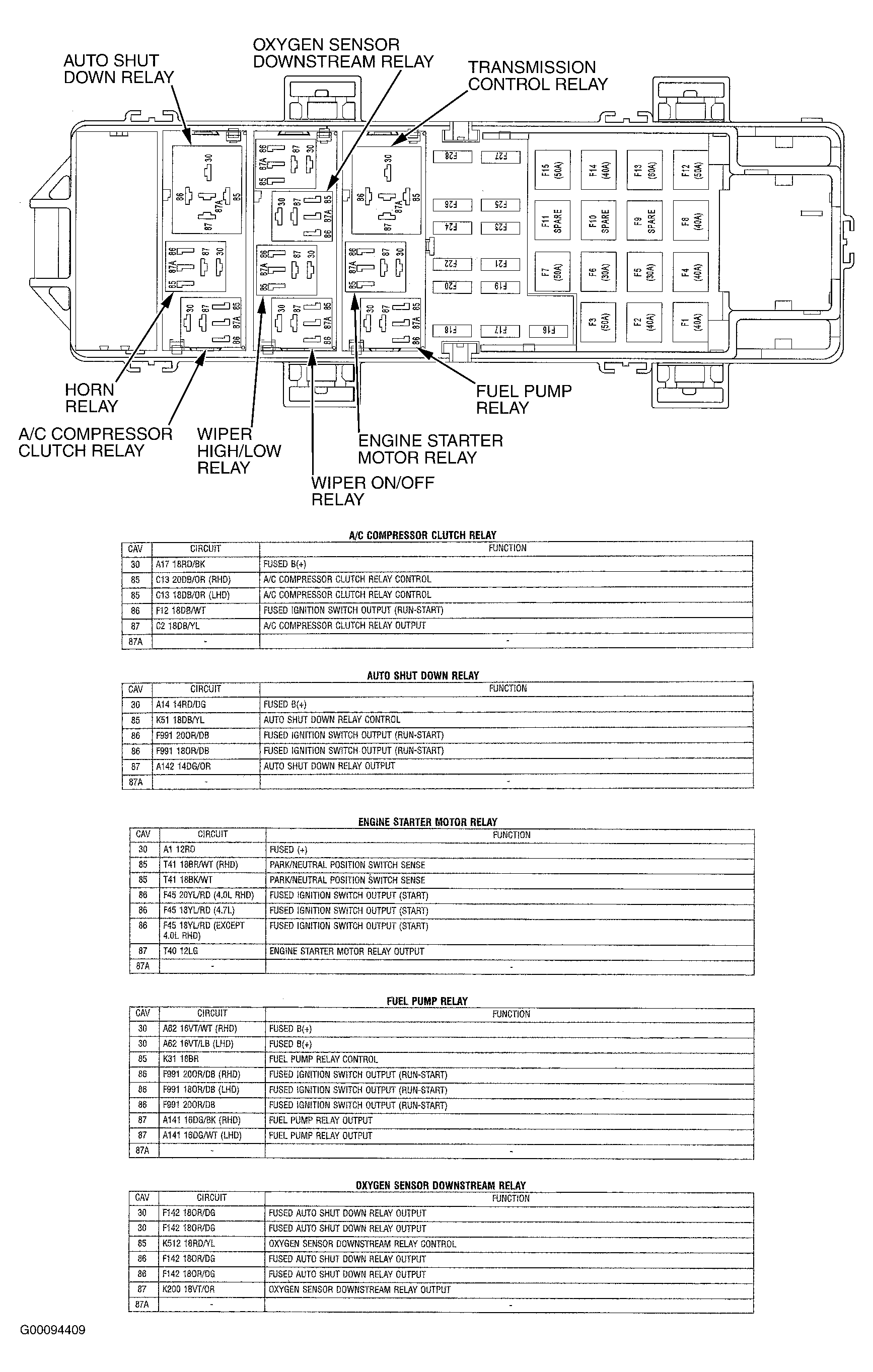

Fig 5: Identifying Power Distribution Center Relay Cavities & Circuits (Grand Cherokee)
G00094409Courtesy of DAIMLERCHRYSLER CORPORATION

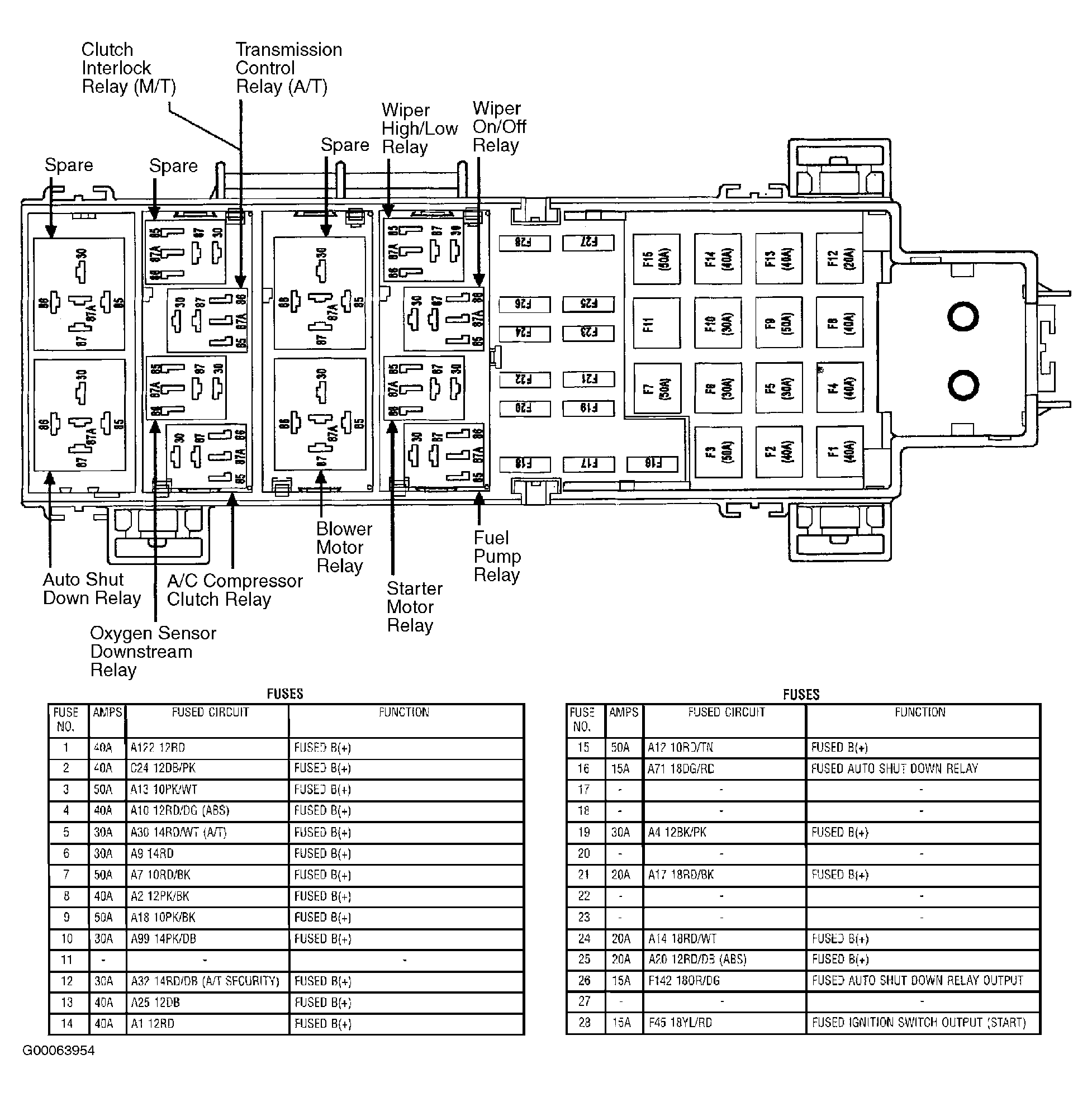

Fig 6: Identifying Power Distribution Center Fuses & Fuse Circuits (Liberty)
G00063954Courtesy of DAIMLERCHRYSLER CORPORATION

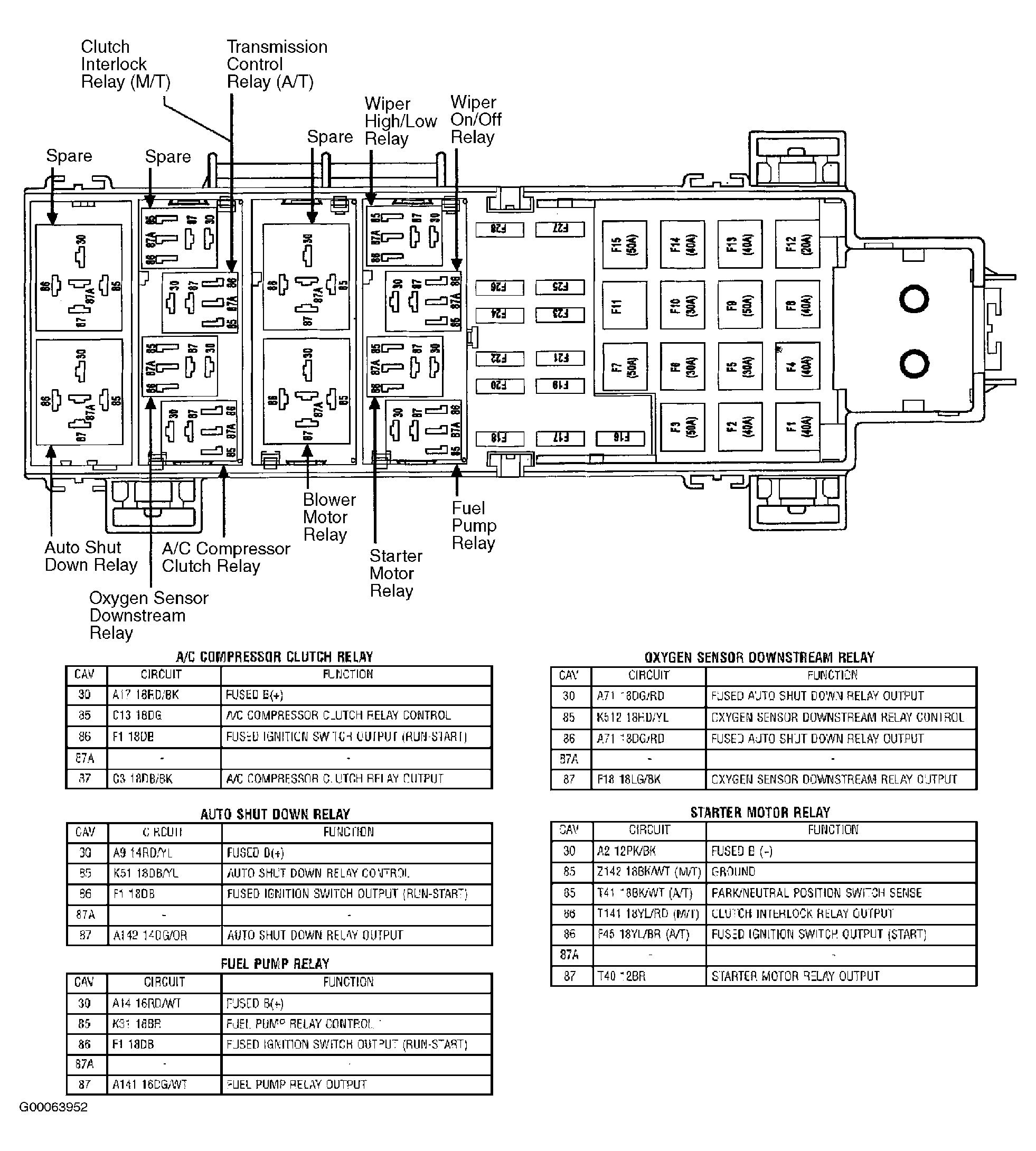

Fig 7: Identifying Power Distribution Center Relay Cavities & Circuits (Liberty)
G00063952Courtesy of DAIMLERCHRYSLER CORPORATION

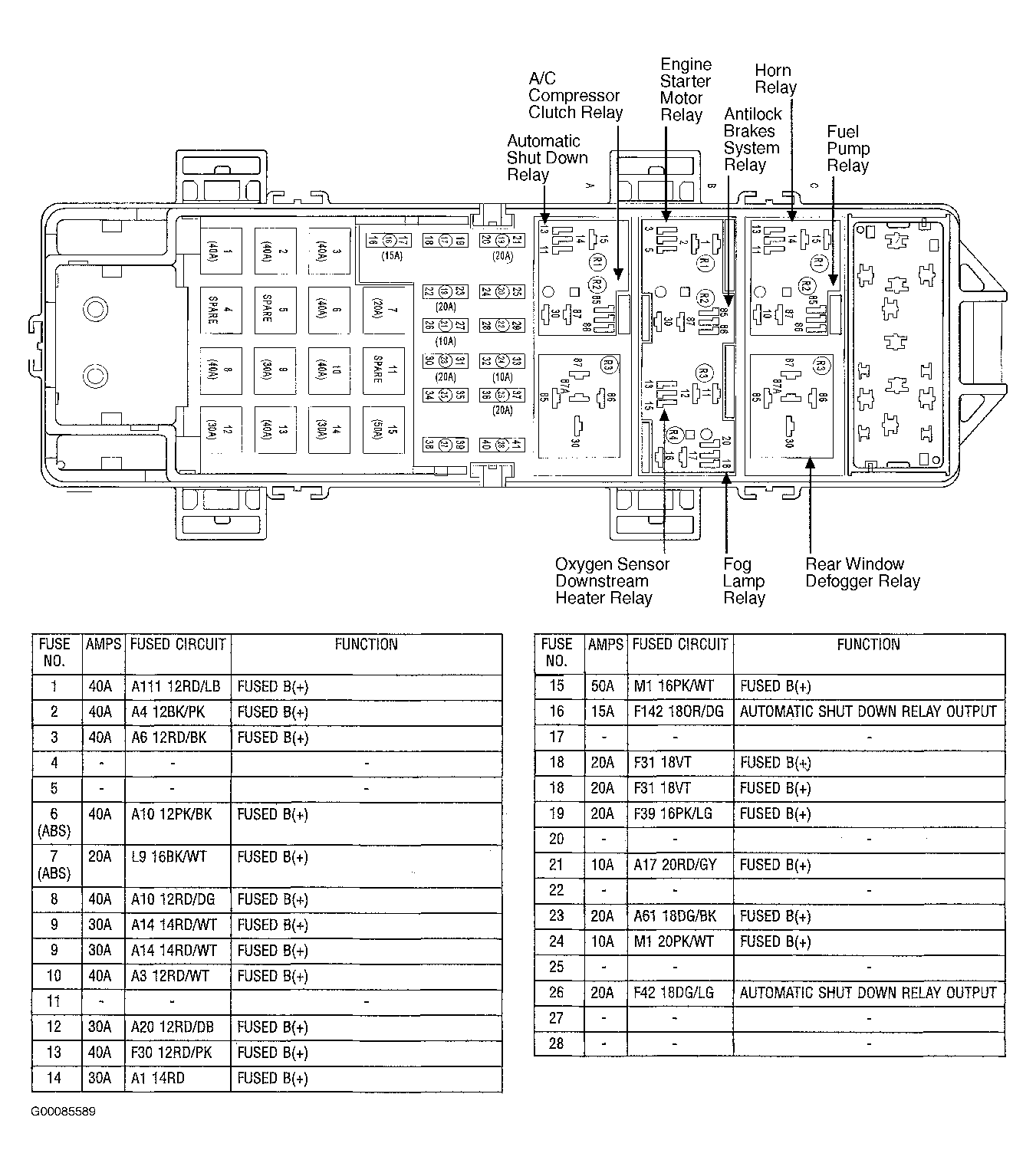

Fig 8: Identifying Power Distribution Center Fuses & Fuse Circuits (Wrangler)
G00085589Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 9: Identifying Power Distribution Center Relay Cavities & Circuits (Wrangler)
G00085590Courtesy of DAIMLERCHRYSLER CORPORATION

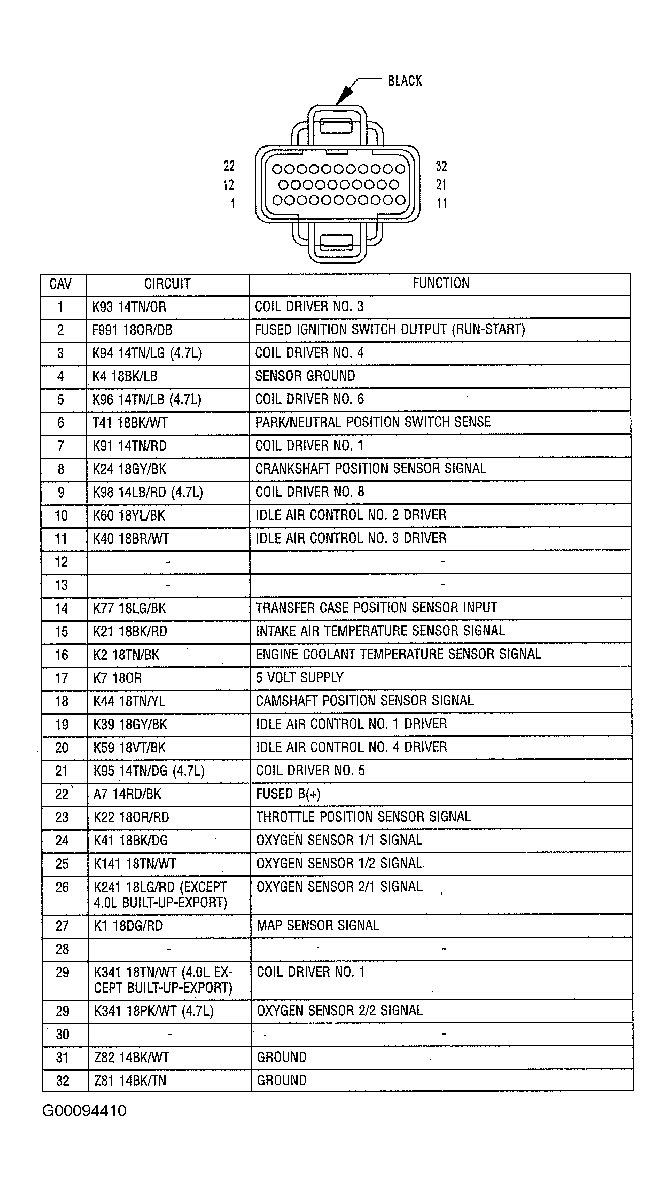

Fig 10: Identifying PCM C1 Harness Connector (Grand Cherokee)
G00094410Courtesy of DAIMLERCHRYSLER CORPORATION

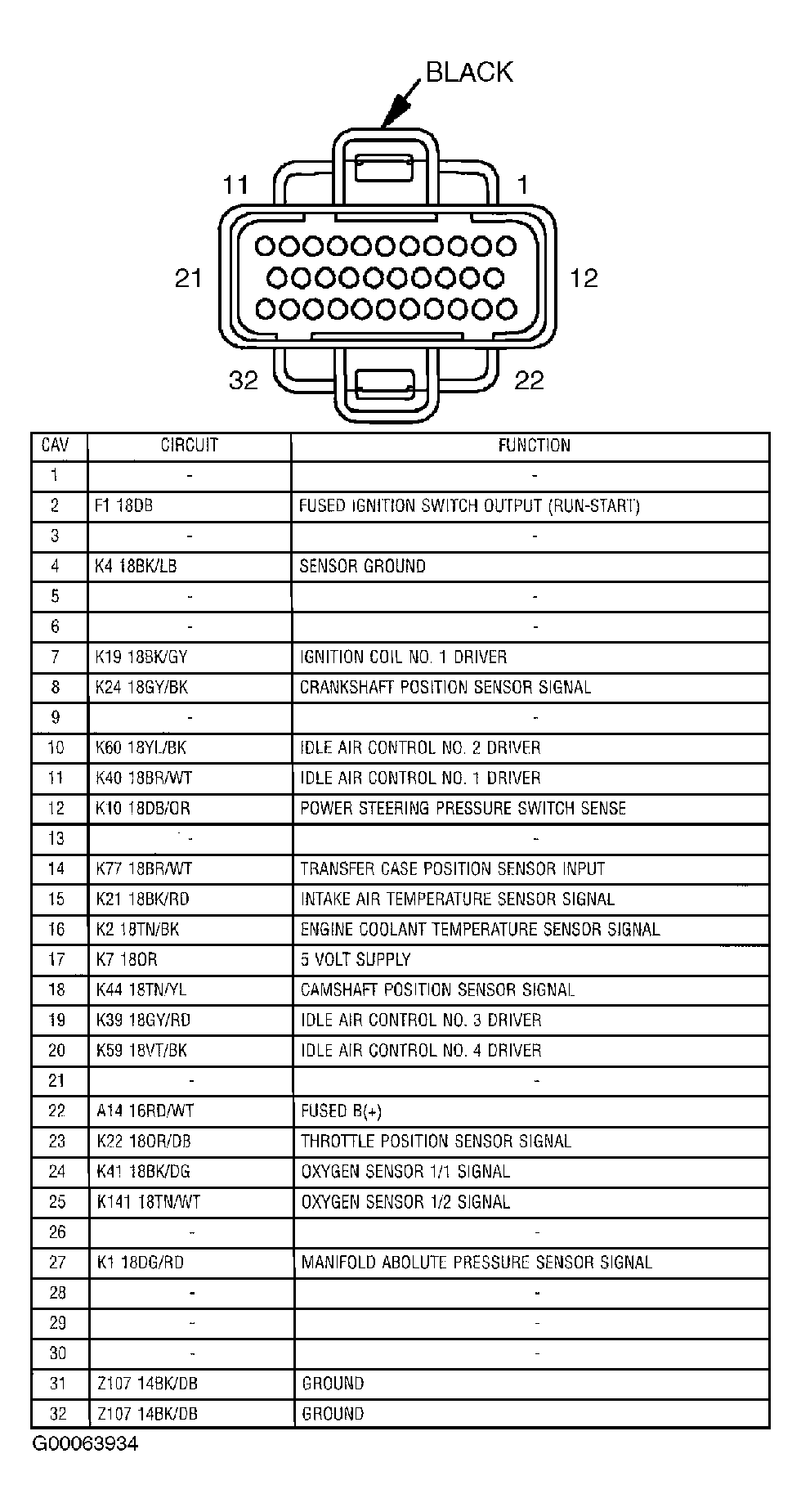

Fig 11: Identifying PCM C1 Harness Connector (Liberty - 2.4L)
G00063934Courtesy of DAIMLERCHRYSLER CORPORATION

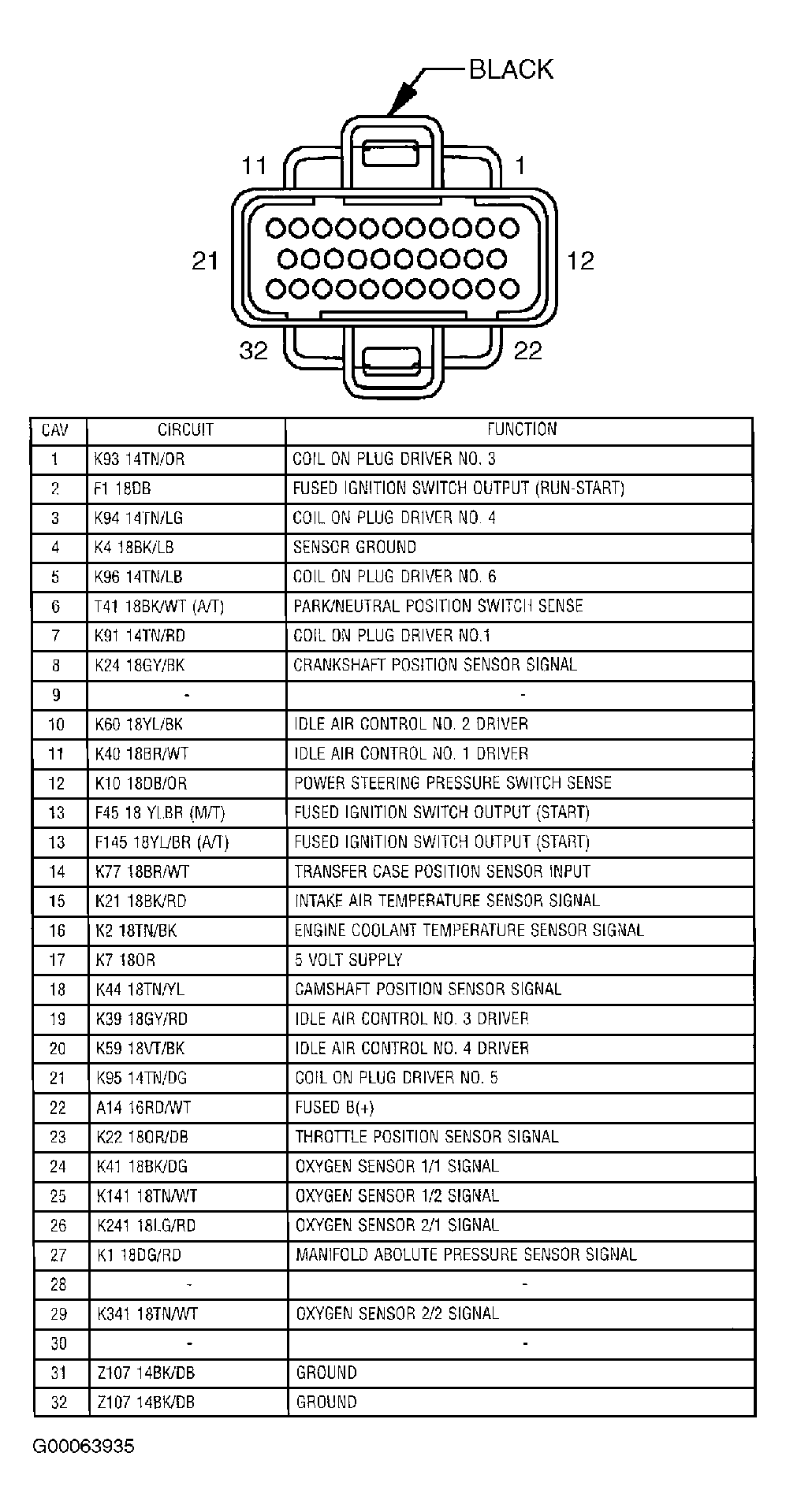

Fig 12: Identifying PCM C1 Harness Connector (Liberty - 3.7L)
G00063935Courtesy of DAIMLERCHRYSLER CORPORATION

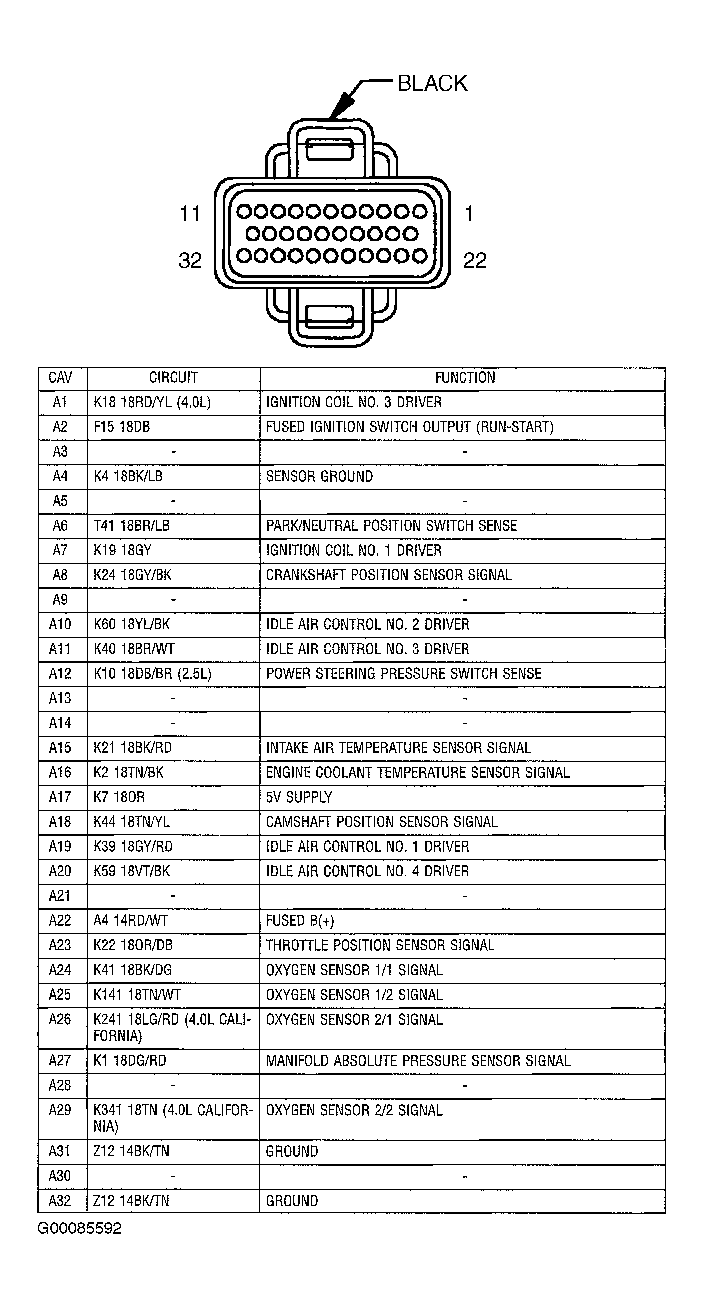

Fig 13: Identifying PCM C1 Harness Connector (Wrangler)
G00085592Courtesy of DAIMLERCHRYSLER CORPORATION

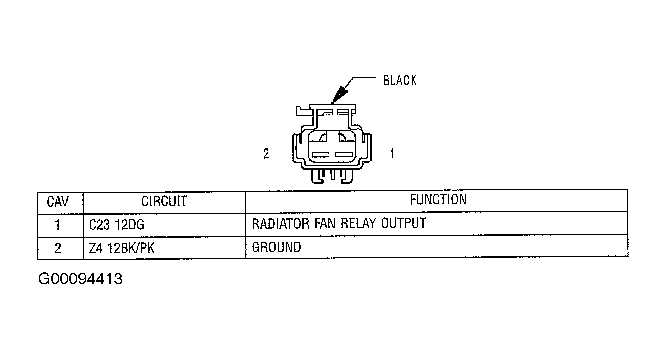

Fig 14: Identifying Radiator Fan Motor Harness Connector (Grand Cherokee)
G00094413Courtesy of DAIMLERCHRYSLER CORPORATION

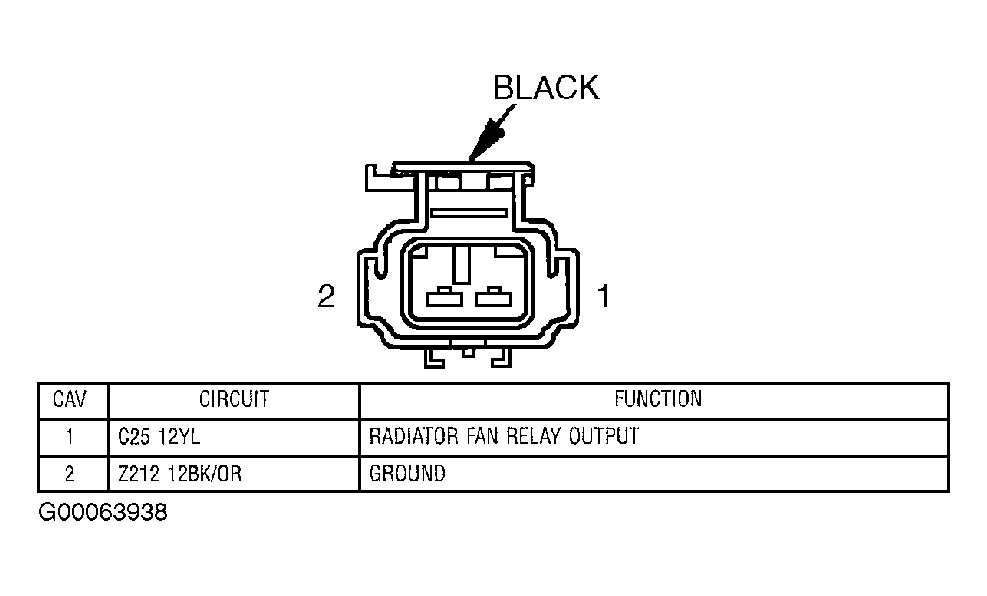

Fig 15: Identifying Radiator Fan Motor Harness Connector (Liberty)
G00063938Courtesy of DAIMLERCHRYSLER CORPORATION

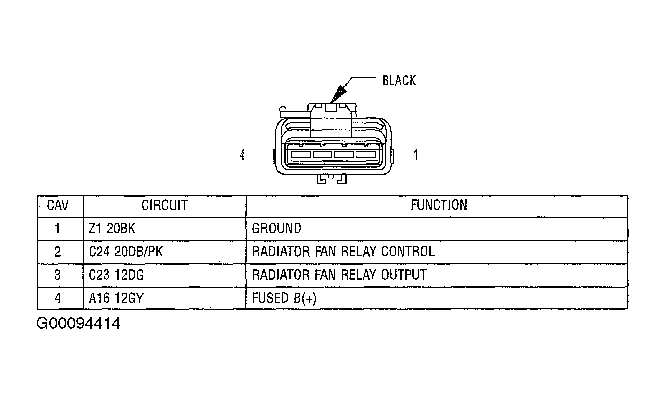

Fig 16: Identifying Radiator Fan Relay Harness Connector (Grand Cherokee)
G00094414Courtesy of DAIMLERCHRYSLER CORPORATION

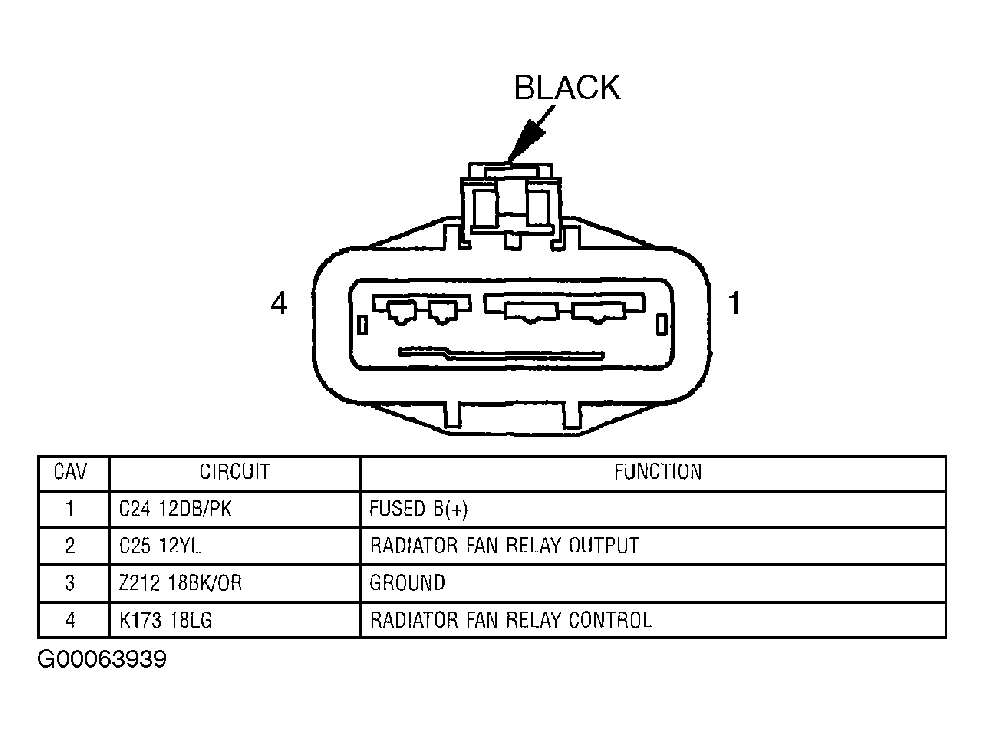

Fig 17: Identifying Radiator Fan Relay Harness Connector (Liberty)
G00063939Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 18: Identifying Relay Terminals - Type 1 Relay
G00079694Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 19: Identifying Relay Terminals - Type 2 Relay
G97E28302Courtesy of DAIMLERCHRYSLER CORPORATION
