EVAP System Component Locations

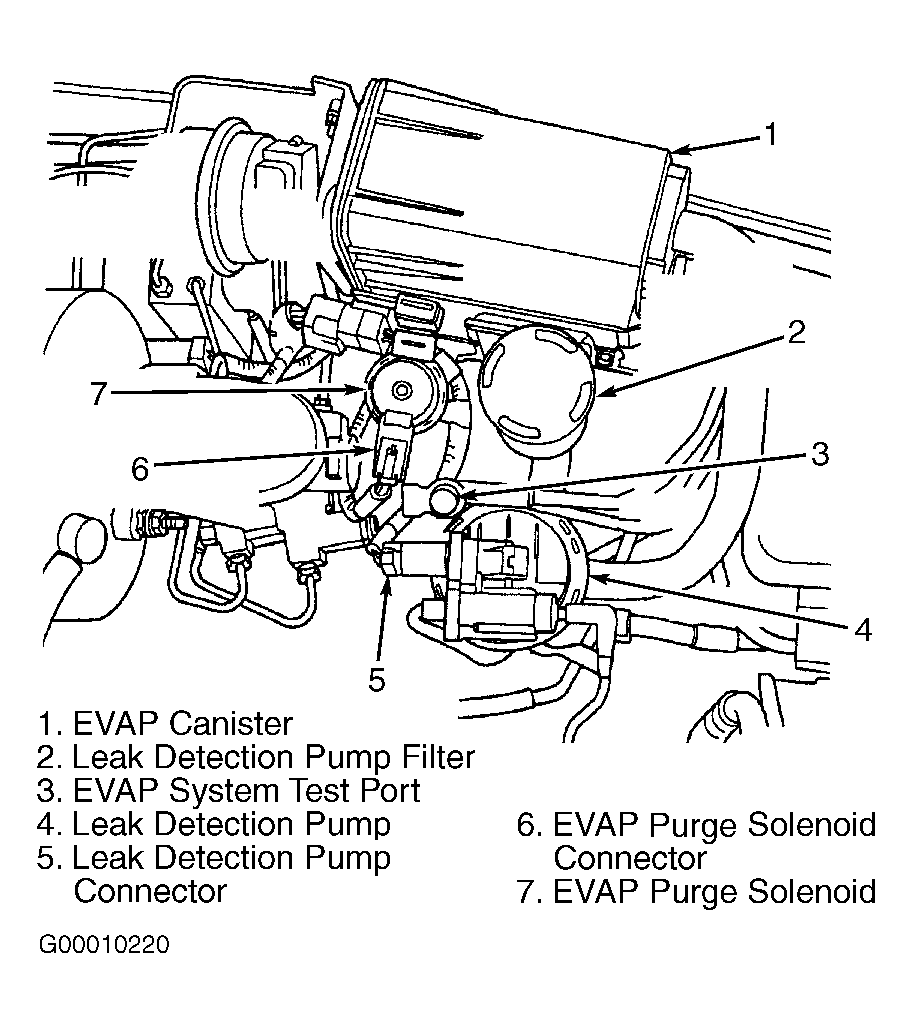

Fig 1: Locating EVAP System Components
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
