O2 Sensor Locations (4.0L)

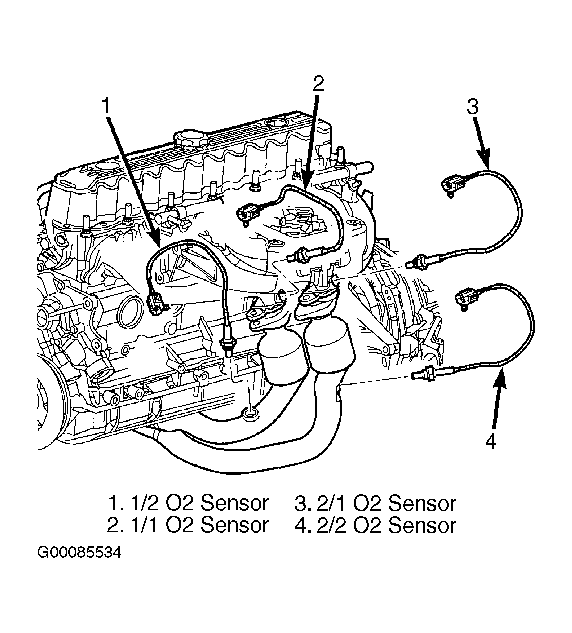

Fig 1: Locating O2 Sensors (4.0L With Calif. Emissions)
G00085534Courtesy of DAIMLERCHRYSLER CORPORATION

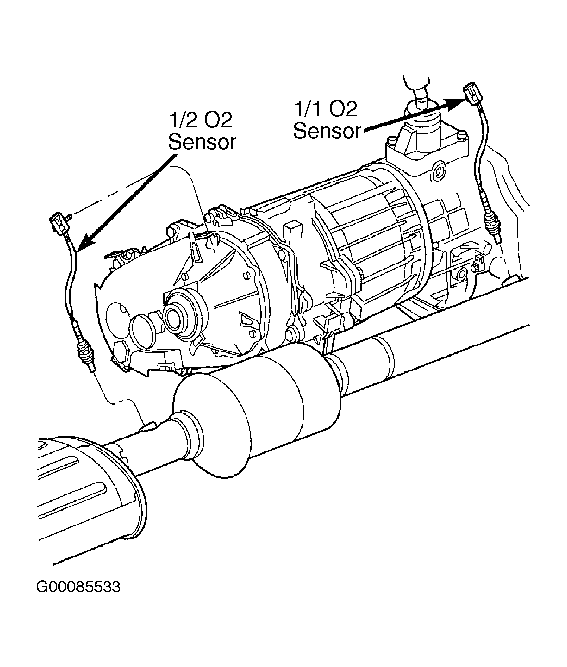

Fig 2: Locating O2 Sensors (4.0L With Federal Emissions)
G00085533Courtesy of DAIMLERCHRYSLER CORPORATION
