Powertrain Control Module Harness Connector End View

Fig 1: Identifying Powertrain Control Module C1 Harness Connector
G00085592Courtesy of DAIMLERCHRYSLER CORPORATION

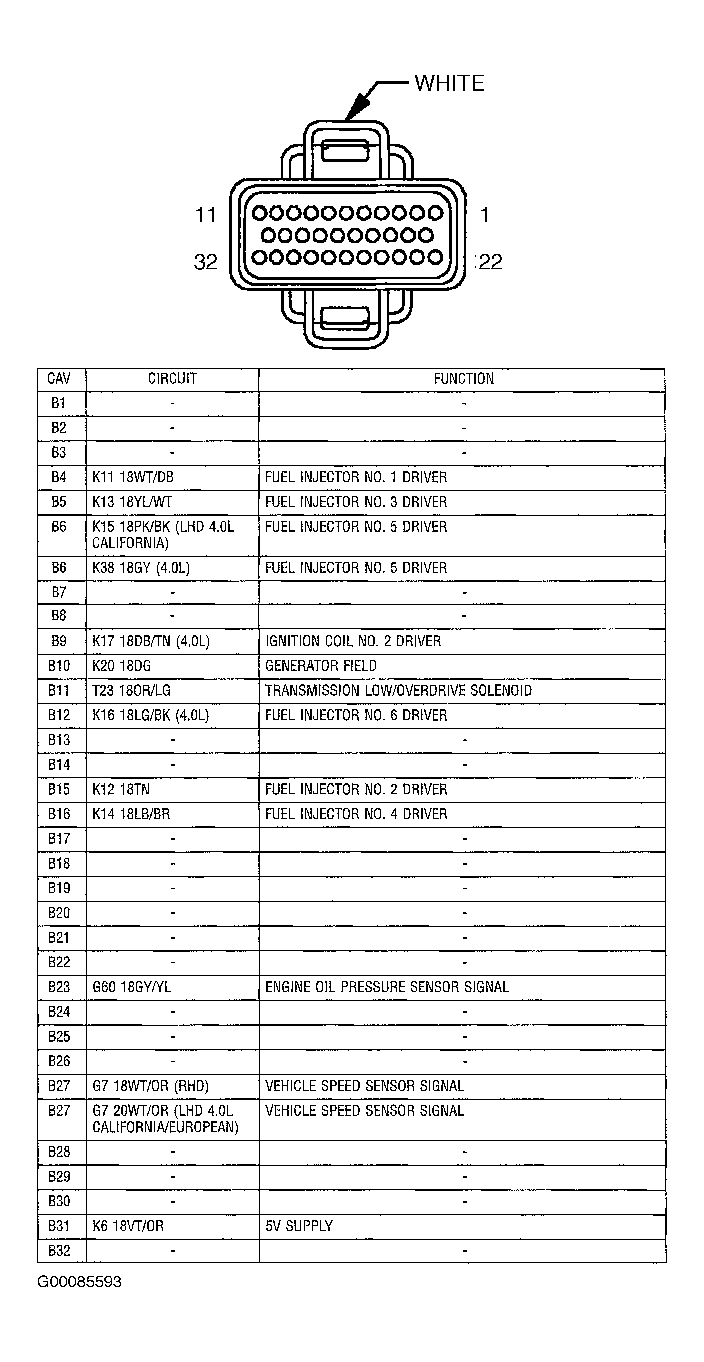

Fig 2: Identifying Powertrain Control Module C2 Harness Connector
G00085593Courtesy of DAIMLERCHRYSLER CORPORATION

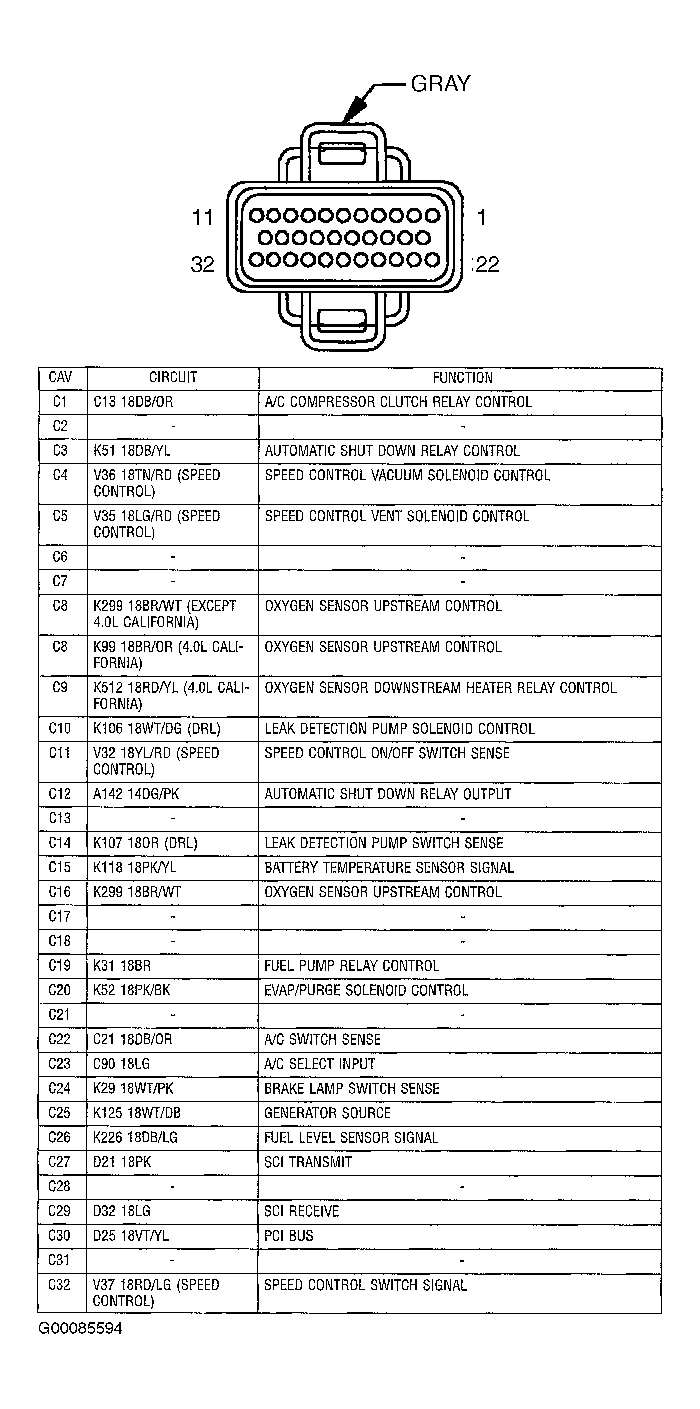

Fig 3: Identifying Powertrain Control Module C3 Harness Connector
G00085594Courtesy of DAIMLERCHRYSLER CORPORATION
