Fuel Delivery Components At Fuel Tank Location

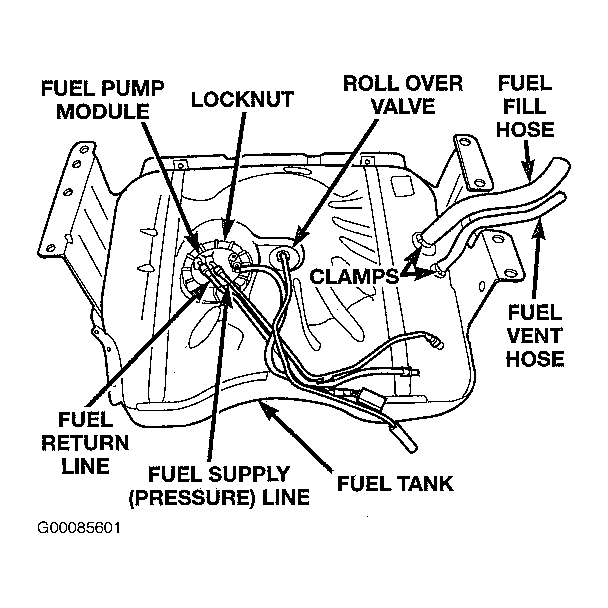

Fig 1: Locating Fuel Delivery Components At Fuel Tank
G00085601Courtesy of DAIMLERCHRYSLER CORPORATION
