Electronic Speed Control Servo Harness Connector End View

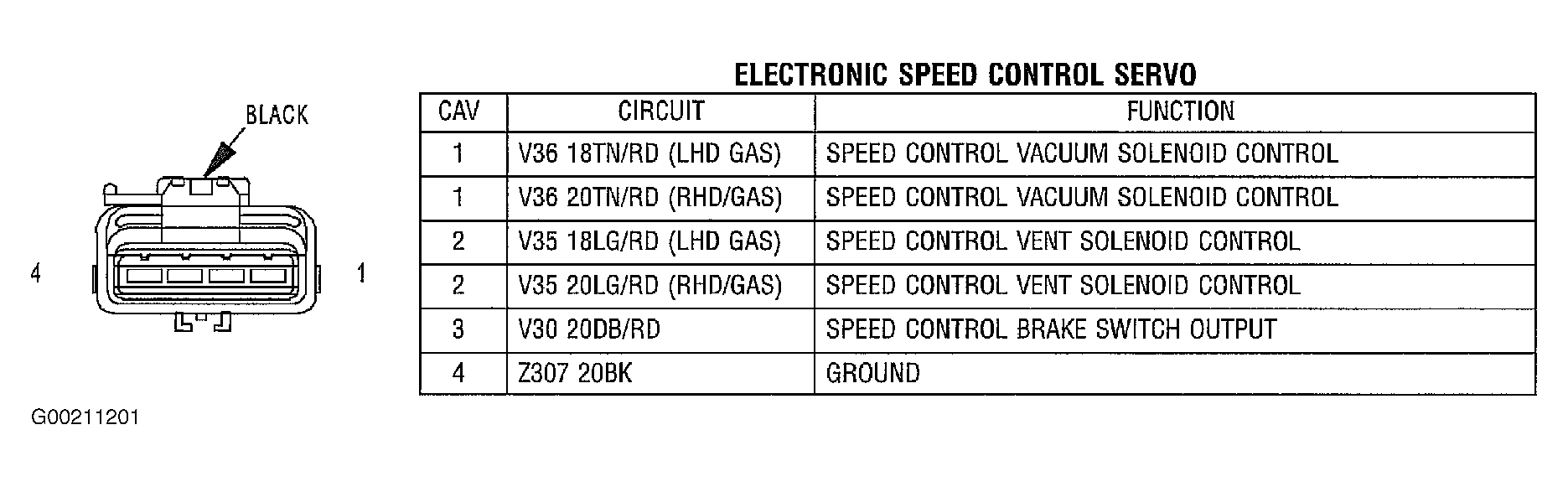

Fig 1: Identifying Electronic Speed Control Servo Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
