Hydraulic Cooling Module Harness Connector End View

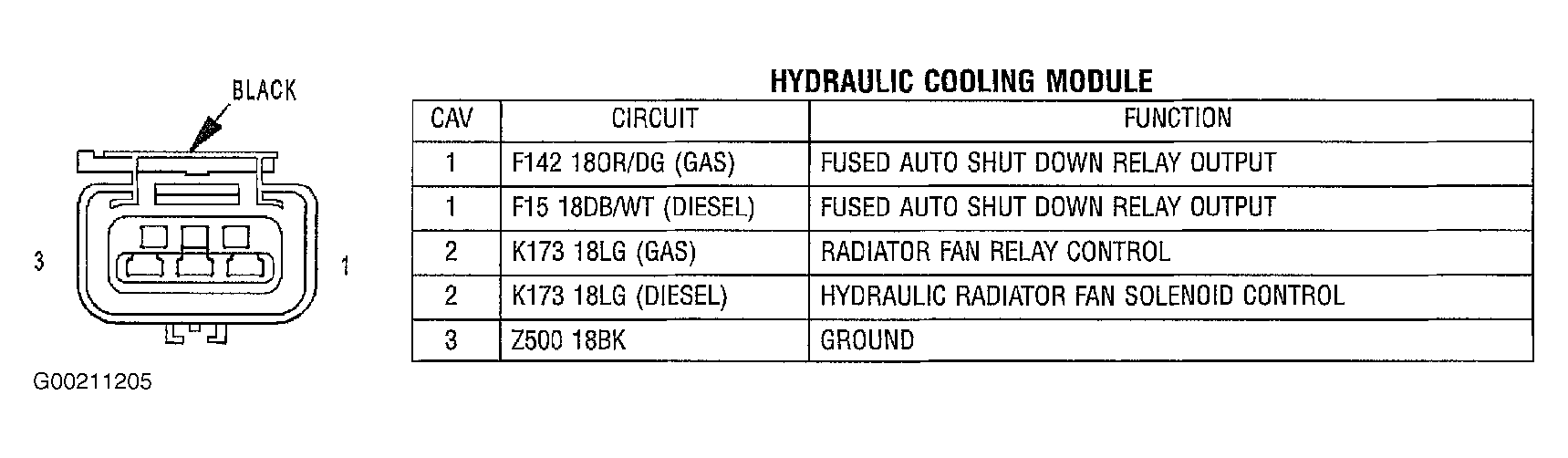

Fig 1: Identifying Hydraulic Cooling Module Harness Connector
G00211205Courtesy of CHRYSLER CORP.
