Map Sensor Harness Connector End View (4.0L)

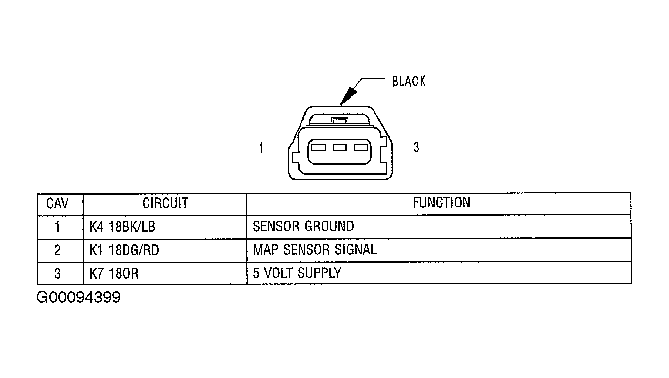

Fig 1: Identifying MAP Sensor Harness Connector (4.0L)
G00094399Courtesy of DAIMLERCHRYSLER CORPORATION
