TP Sensor Harness Commentary End View (4.7L)

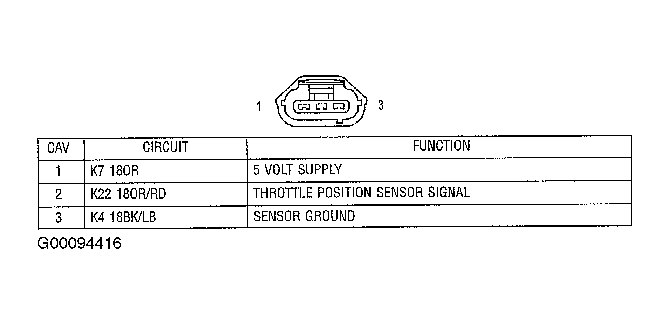

Fig 1: Identifying TP Sensor Harness Connector (white, 4.7L)
G00094416Courtesy of DAIMLERCHRYSLER CORPORATION
