Trailer Left Turn Relay Harness Commentary End View

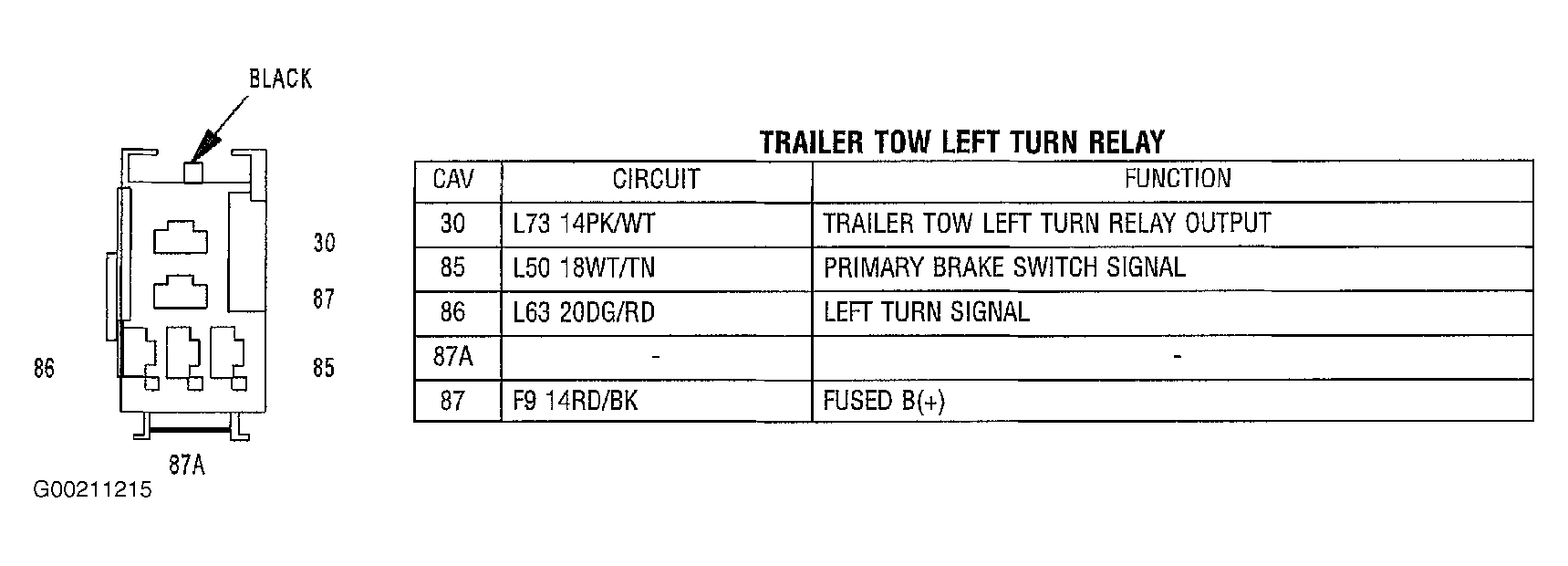

Fig 1: Identifying Trailer Left Turn Relay Harness Connector
G00211215Courtesy of CHRYSLER CORP.

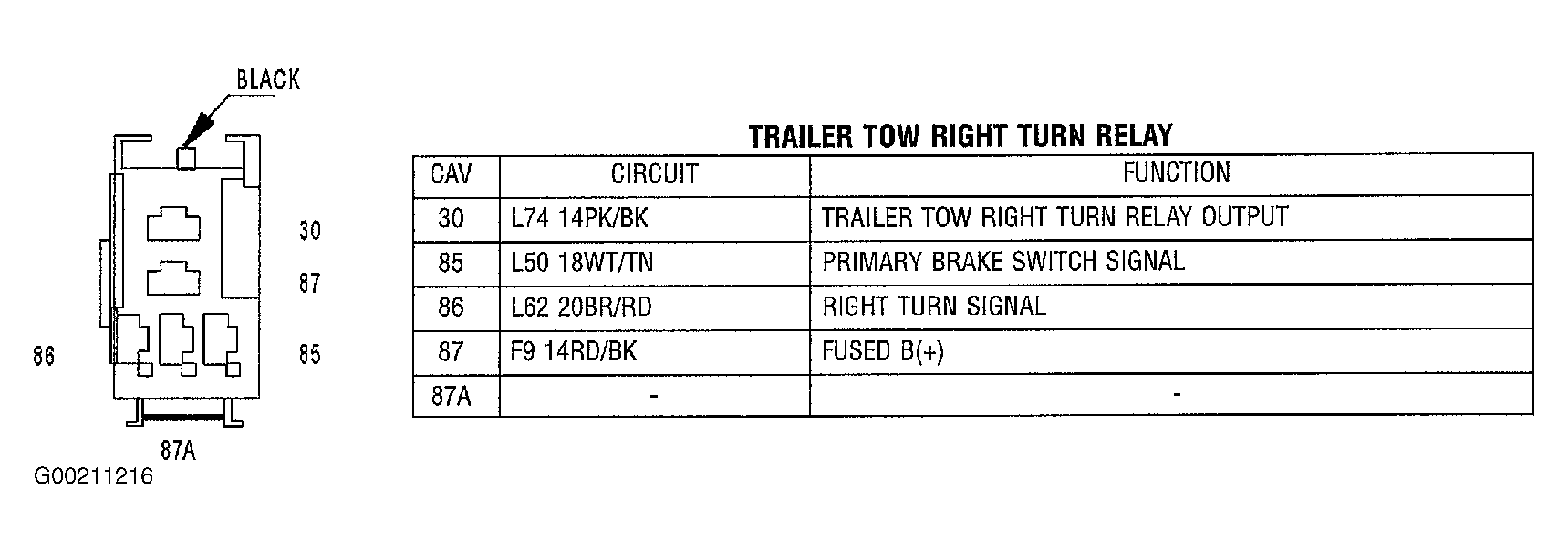

Fig 2: Identifying Trailer Right Turn Relay Harness Connector
G00211216Courtesy of CHRYSLER CORP.
