Intake Air Temperature Sensor Harness Connector End View

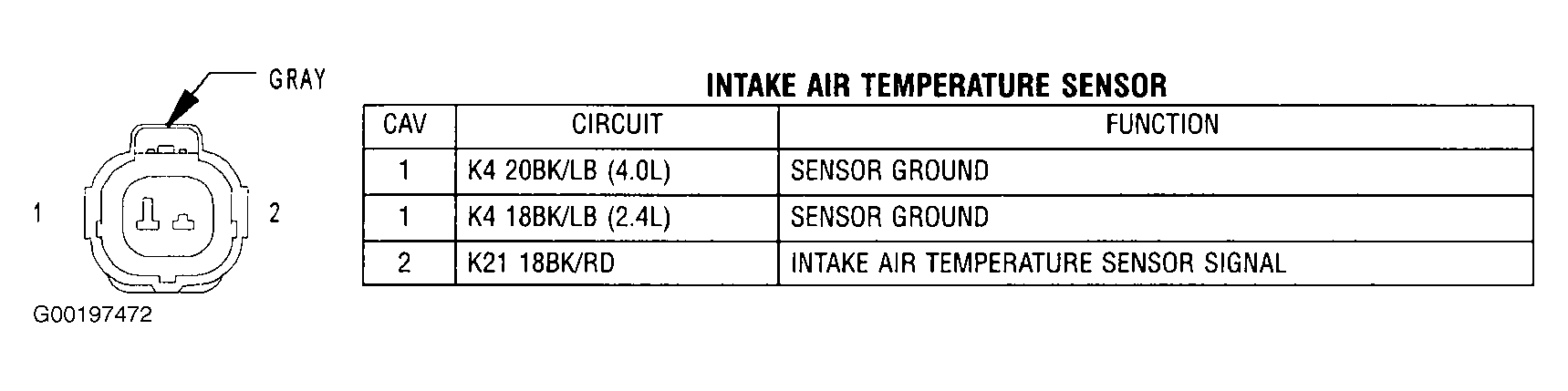

Fig 1: Identifying Intake Air Temperature Sensor Harness Connector
G00197472Courtesy of CHRYSLER CORP.
