Power Distribution Center Fuses & Fuse Circuit Identification

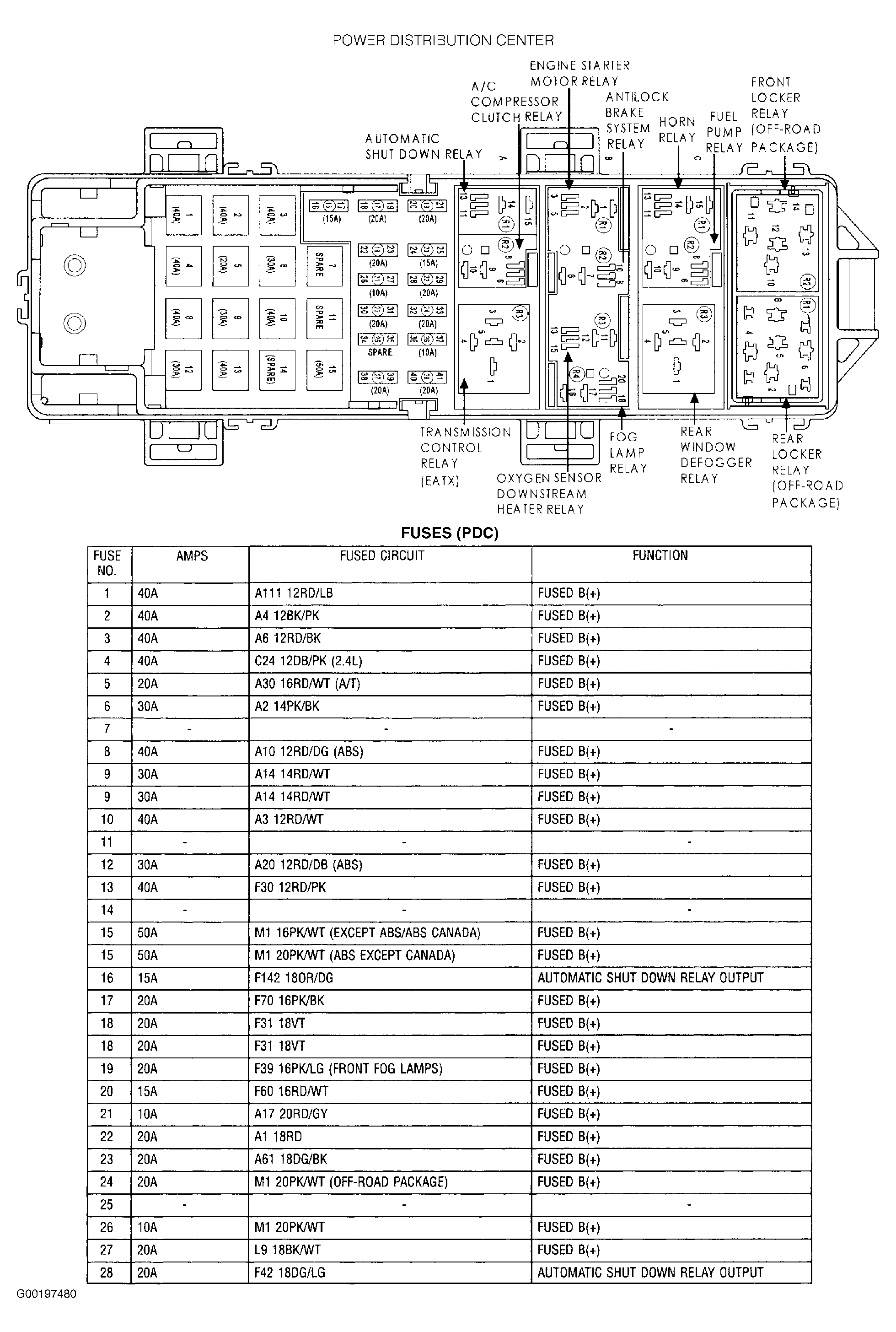

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits
G00197480Courtesy of CHRYSLER CORP.
