Fuse/Relay Box Fuses & Circuit Identification

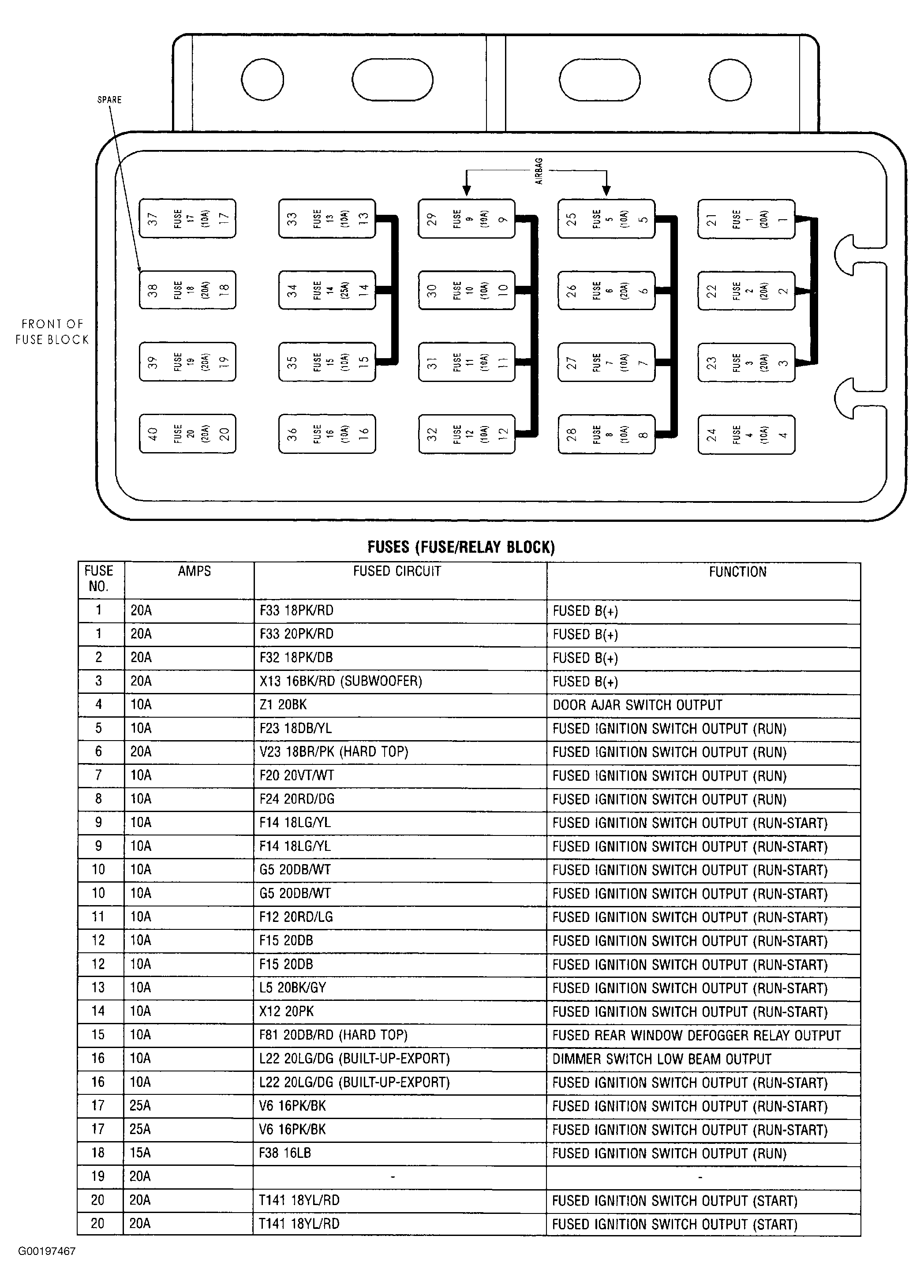

Fig 1: Identifying Fuse/Relay Box Fuses & Circuits
G00197467Courtesy of DAIMLERCHRYSLER CORPORATION
