Idle Air Control Motor Harness Connector End View

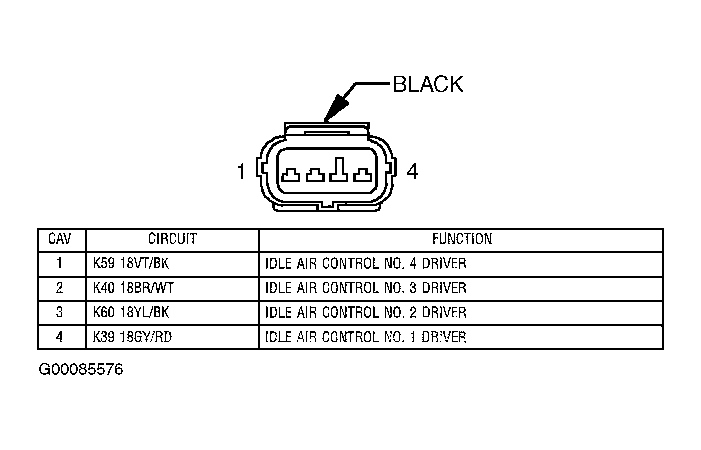

Fig 1: Identifying Idle Air Control Motor Harness Connector
G00085576Courtesy of DAIMLERCHRYSLER CORPORATION
