Fuel Tank/Fuel Pump Module Component Locations (Top View)

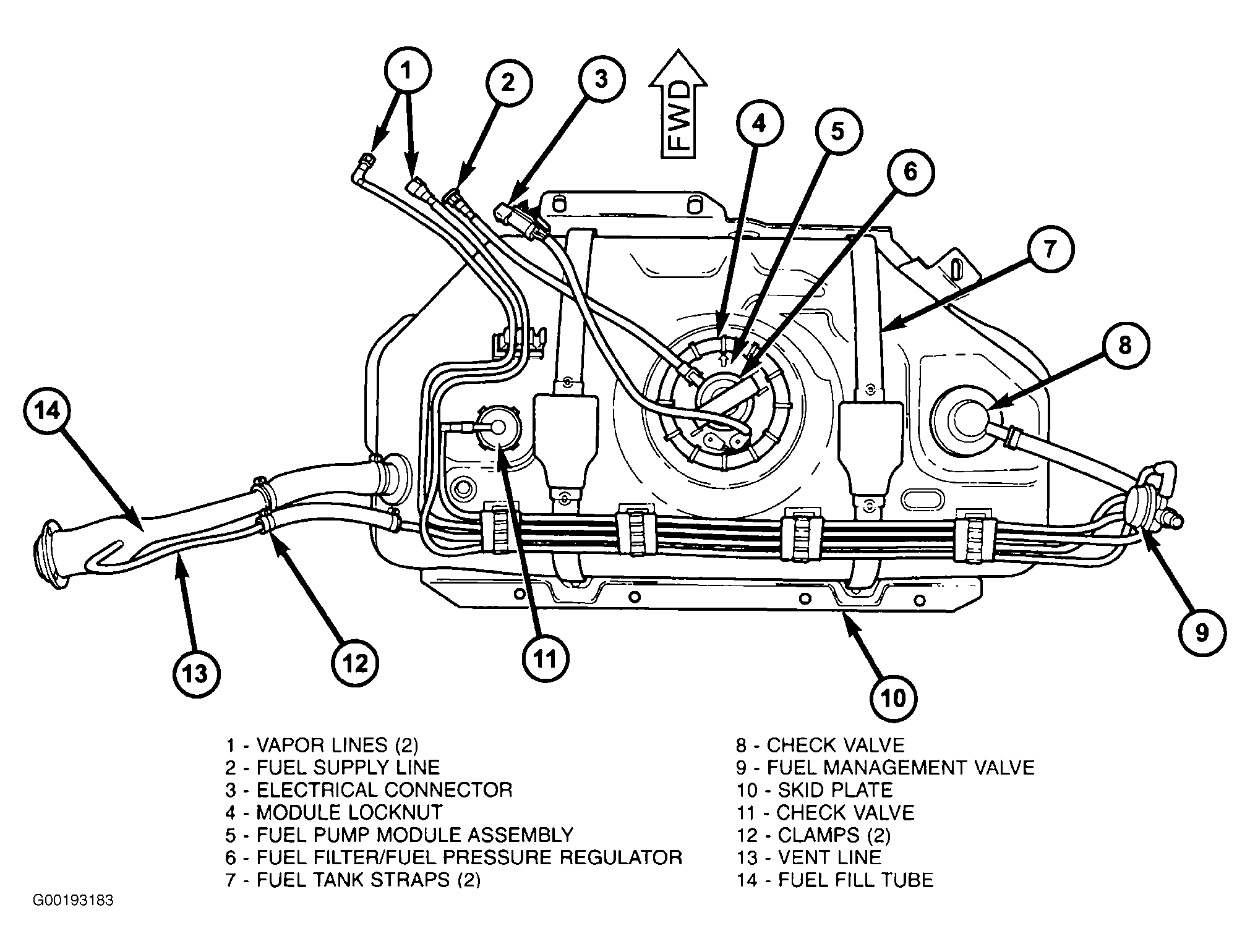

Fig 1: Identifying Fuel Tank/Fuel Pump Module Components (Top View)
G00193183Courtesy of CHRYSLER CORP.
