CLOCKSPRING Connector End View

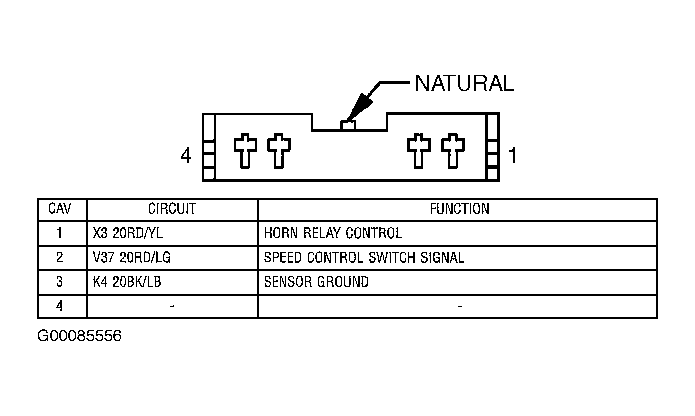

Fig 1: Identifying Clockspring C1 Harness Connector
G00085556Courtesy of DAIMLERCHRYSLER CORPORATION

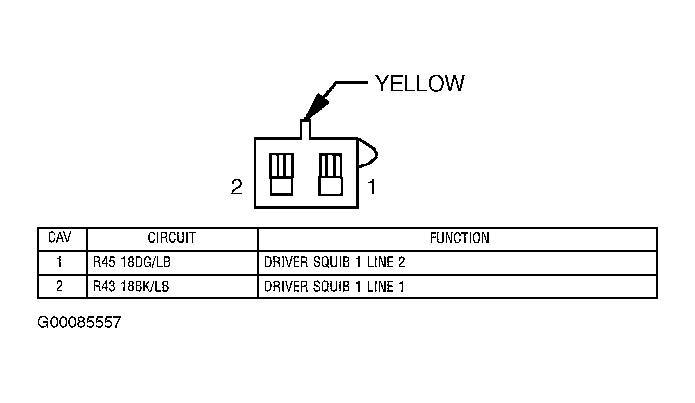

Fig 2: Identifying Clockspring C2 Harness Connector
G00085557Courtesy of DAIMLERCHRYSLER CORPORATION
