Powertrain Control Module CONNECTOR END VIEW

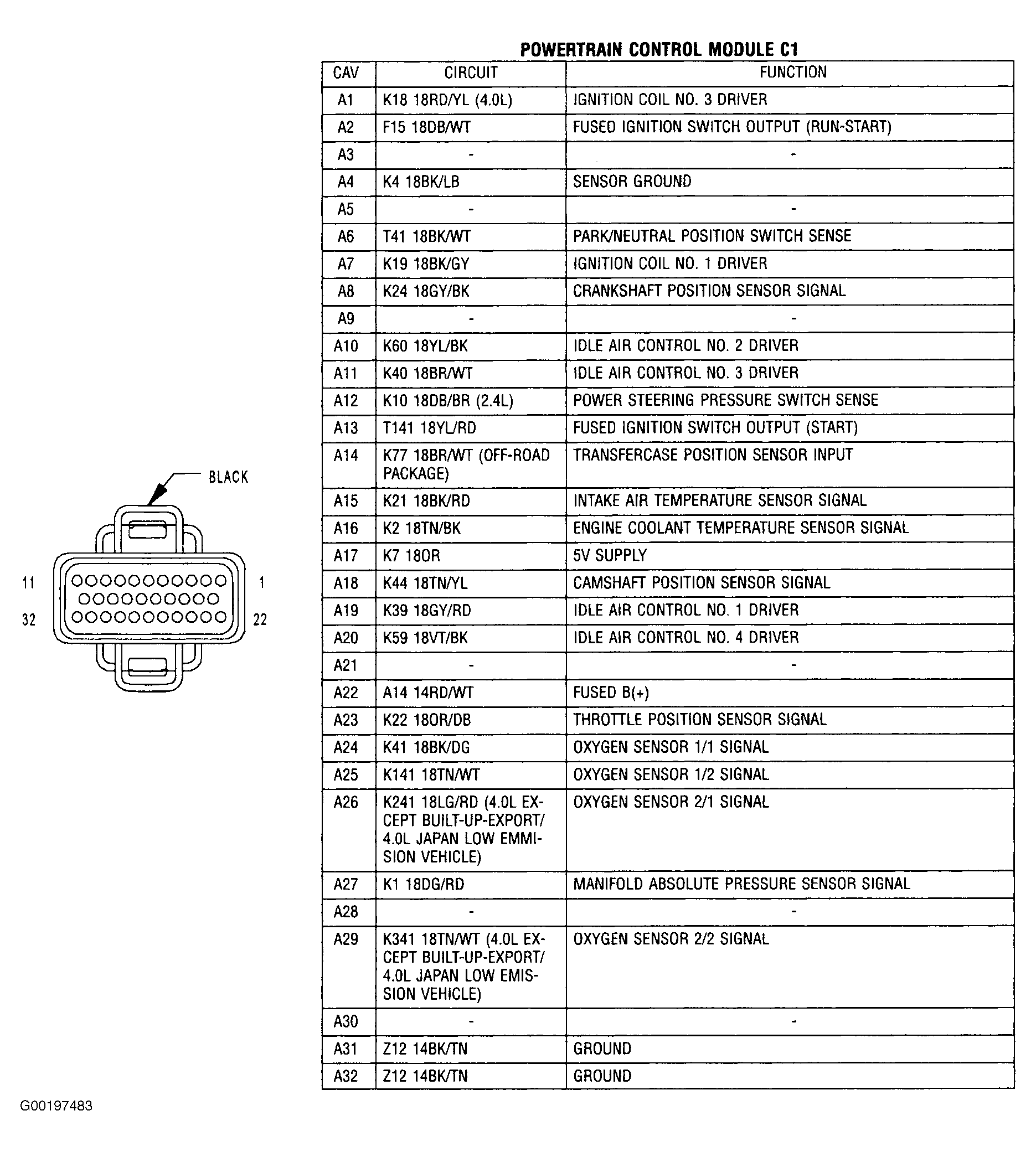

Fig 1: Identifying Powertrain Control Module C1 Harness Connector
G00197483Courtesy of CHRYSLER CORP.

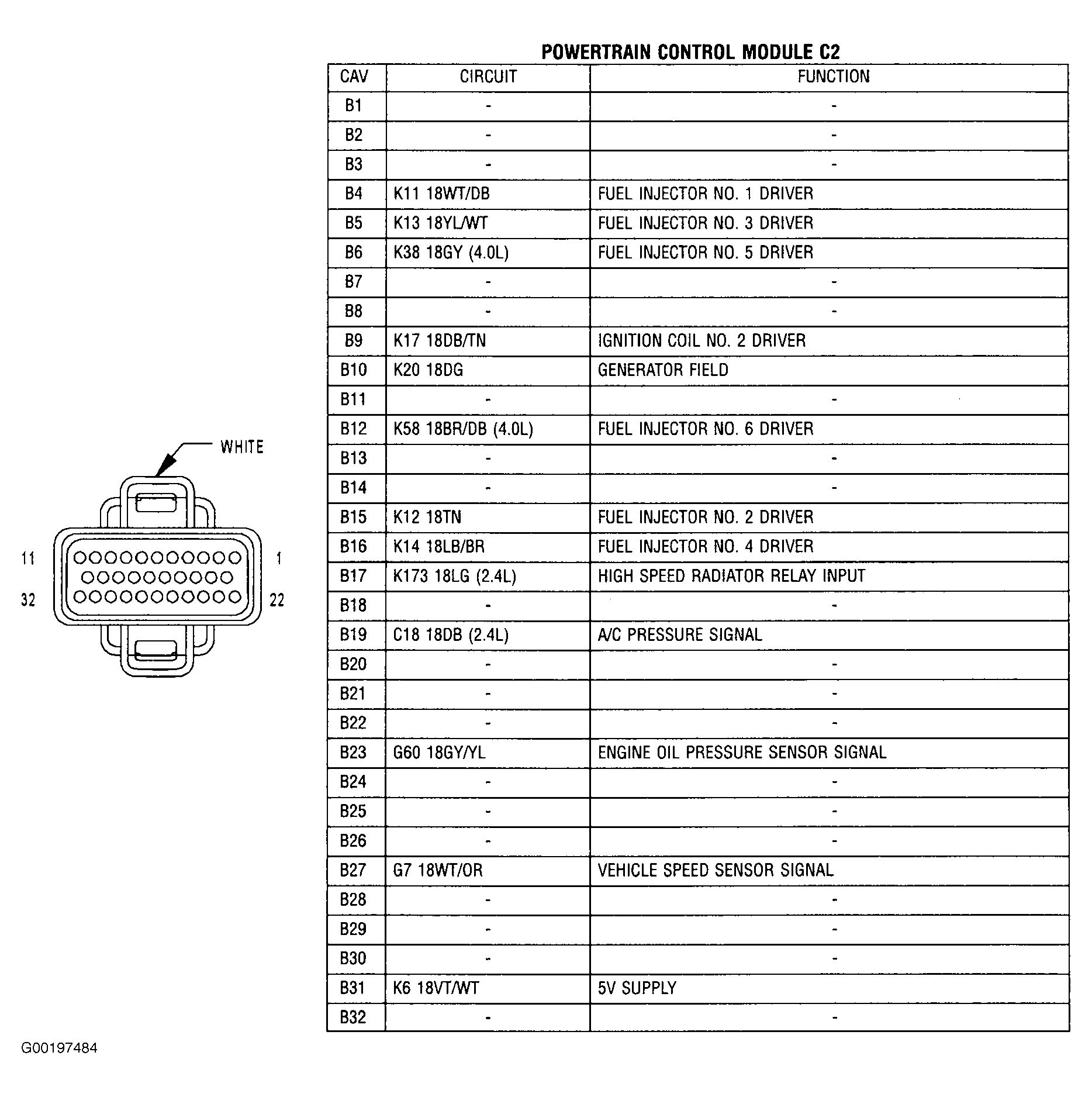

Fig 2: Identifying Powertrain Control Module C2 Harness Connector
G00197484Courtesy of CHRYSLER CORP.

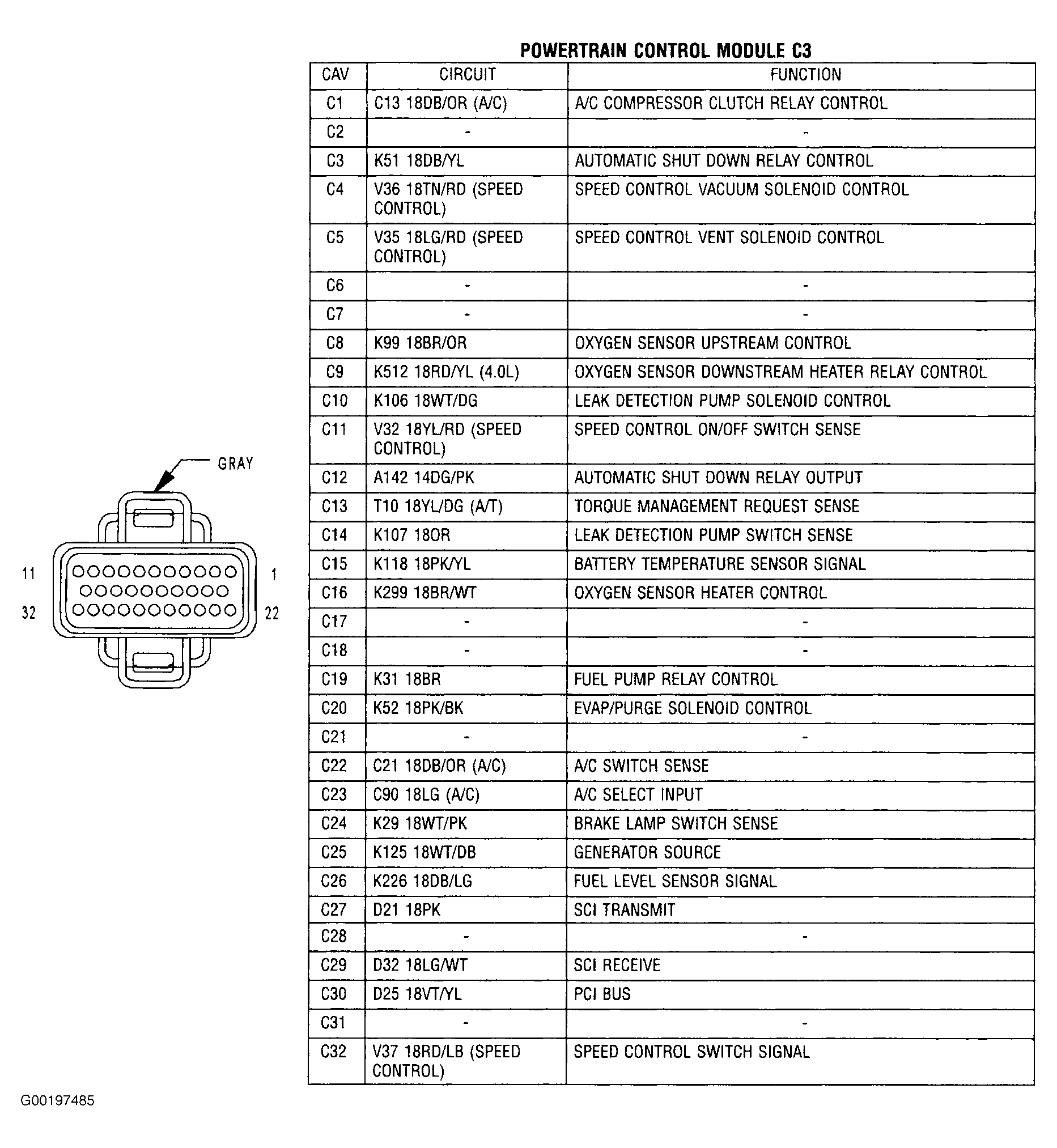

Fig 3: Identifying Powertrain Control Module C3 Harness Connector
G00197485Courtesy of CHRYSLER CORP.
