Camshaft Position Sensor: Removal: 2.4L

The Camshaft Position Sensor (CMP) on the 2.4L 4-cylinder engine is bolted to the right-front side of the cylinder head. Sensor position (depth) is adjustable.

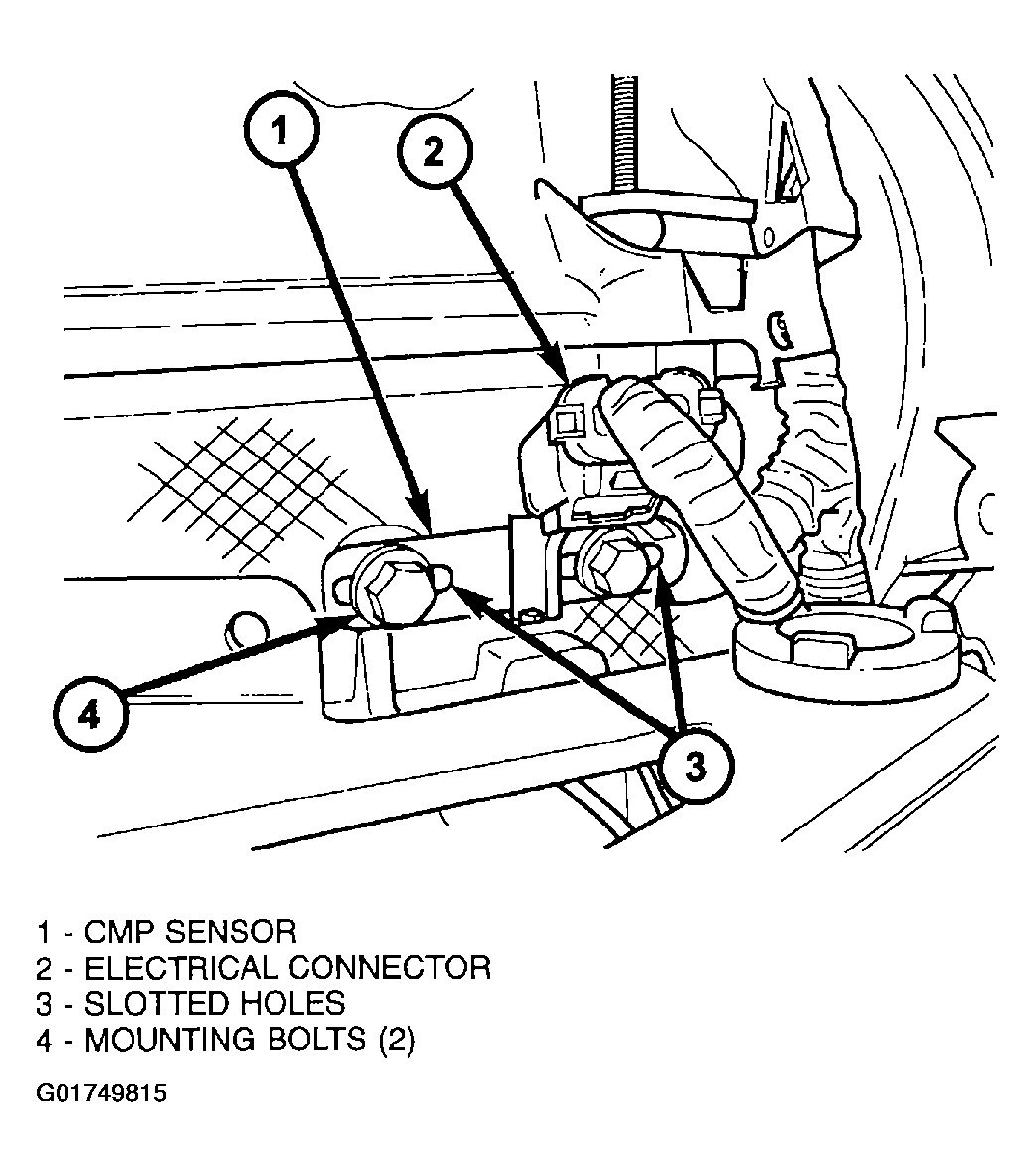

Fig 1: Locating CMP - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector at CMP sensor.
2. Remove 2 sensor mounting bolts.
3. Remove sensor from cylinder head by sliding towards rear of engine.
