Spark Plug Cable Resistance - 2.4L

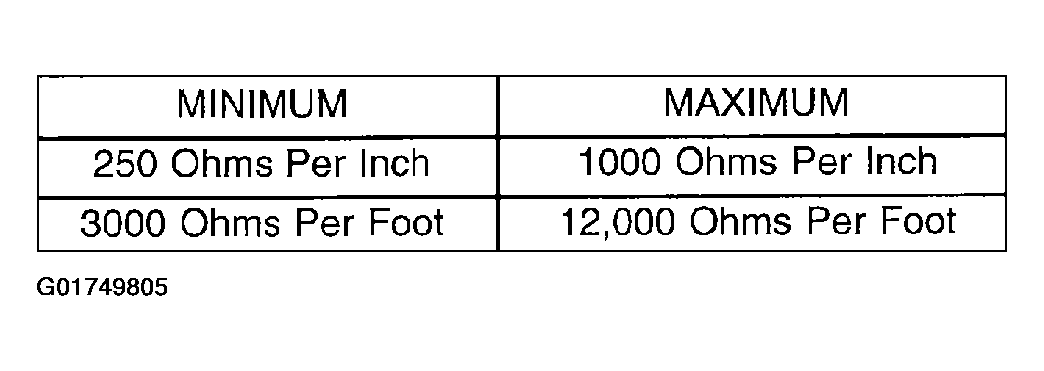

Fig 1: Identifying Spark Plug Cable Resistance - 2.4L
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
