EVAP/Purge Solenoid: Removal

The duty cycle EVAP canister purge solenoid (DCP) is located in the engine compartment. It is attached to a bracket located between the battery and the Power Distribution Center (PDC). The EVAP system test port is located near the solenoid.

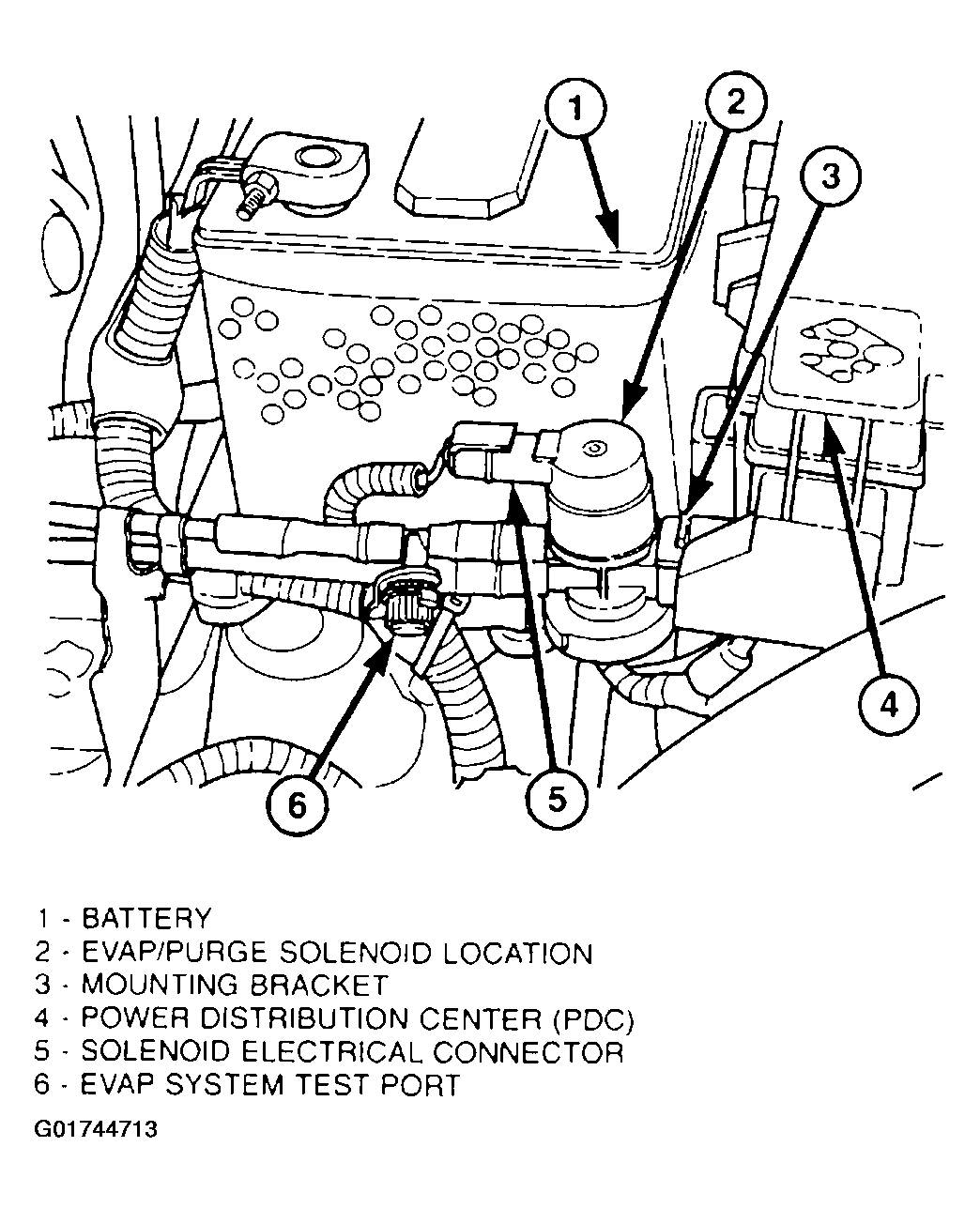

Fig 1: Locating EVAP/Purge Solenoid

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical wiring connector at solenoid.
2. Disconnect vacuum harness at solenoid.
3. Remove solenoid and its support bracket (pull straight up).
