Camshaft Position Sensor: Description: Description-3.7L

The Camshaft Position Sensor (CMP) on the 3.7L 6-cylinder engine is bolted to the right-front side of the right cylinder head.

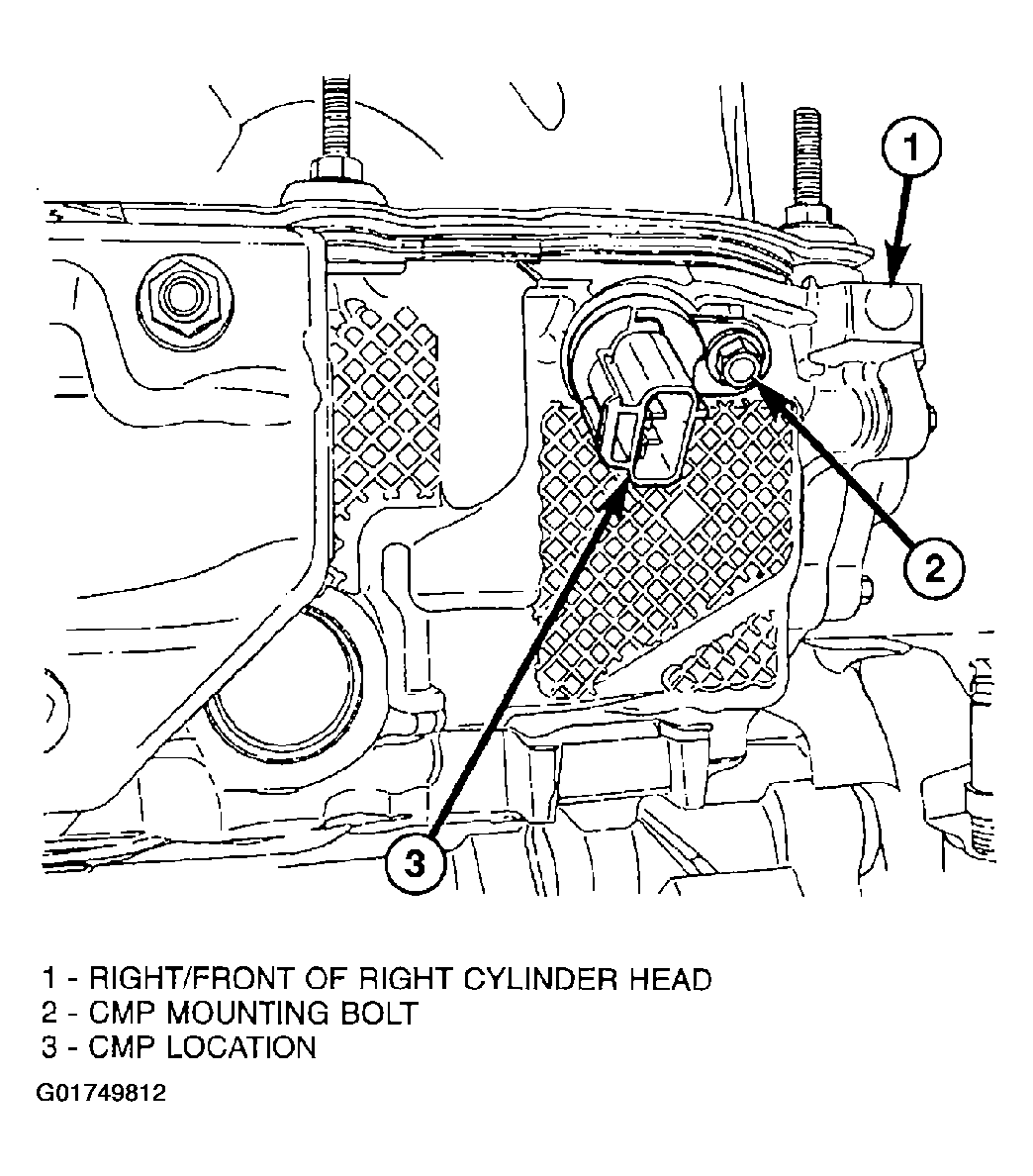

Fig 1: Identifying Camshaft Position Sensor - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.
