Ignition Coil: Description: 3.7L

The 3.7L V-6 engine uses 6 dedicated, and individually fired coil for each spark plug. Each coil is mounted directly into the cylinder head and onto the top of each spark plug.

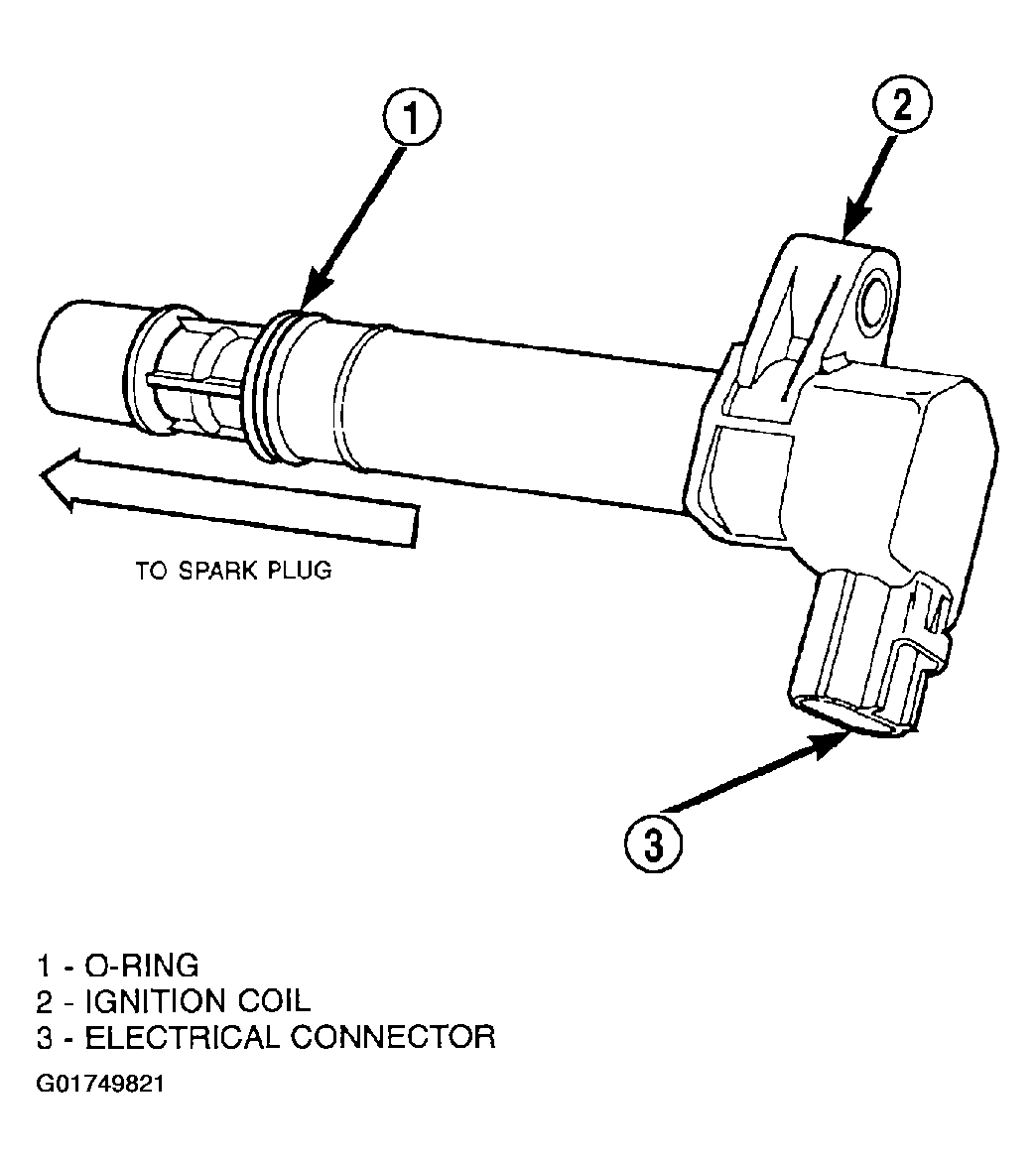

Fig 1: Identifying Ignition Coil - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

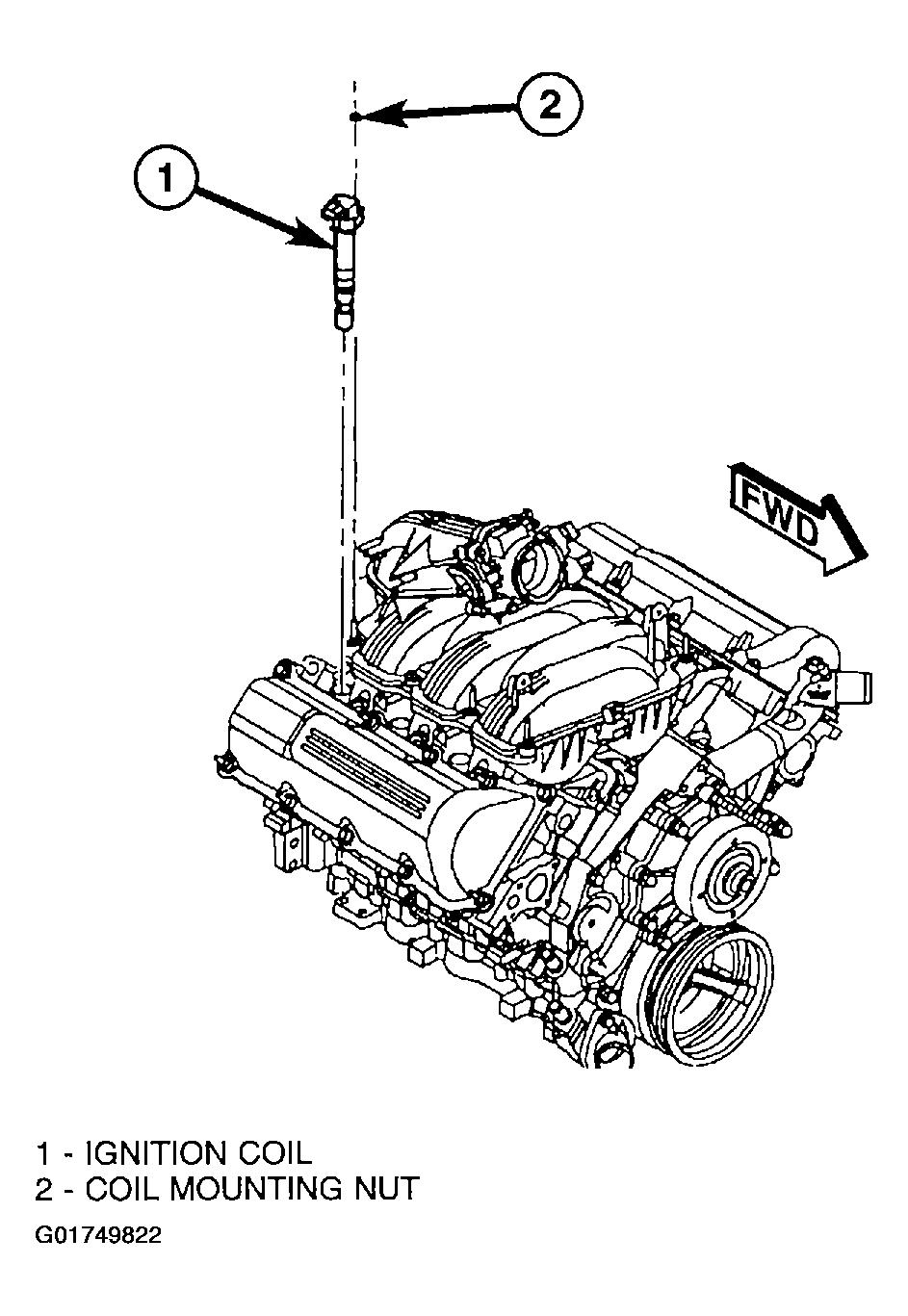

Fig 2: Locating Ignition Coil - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.
