Vapor Canister: Removal

The EVAP canister is located near front of fuel tank and next to left/rear spring.

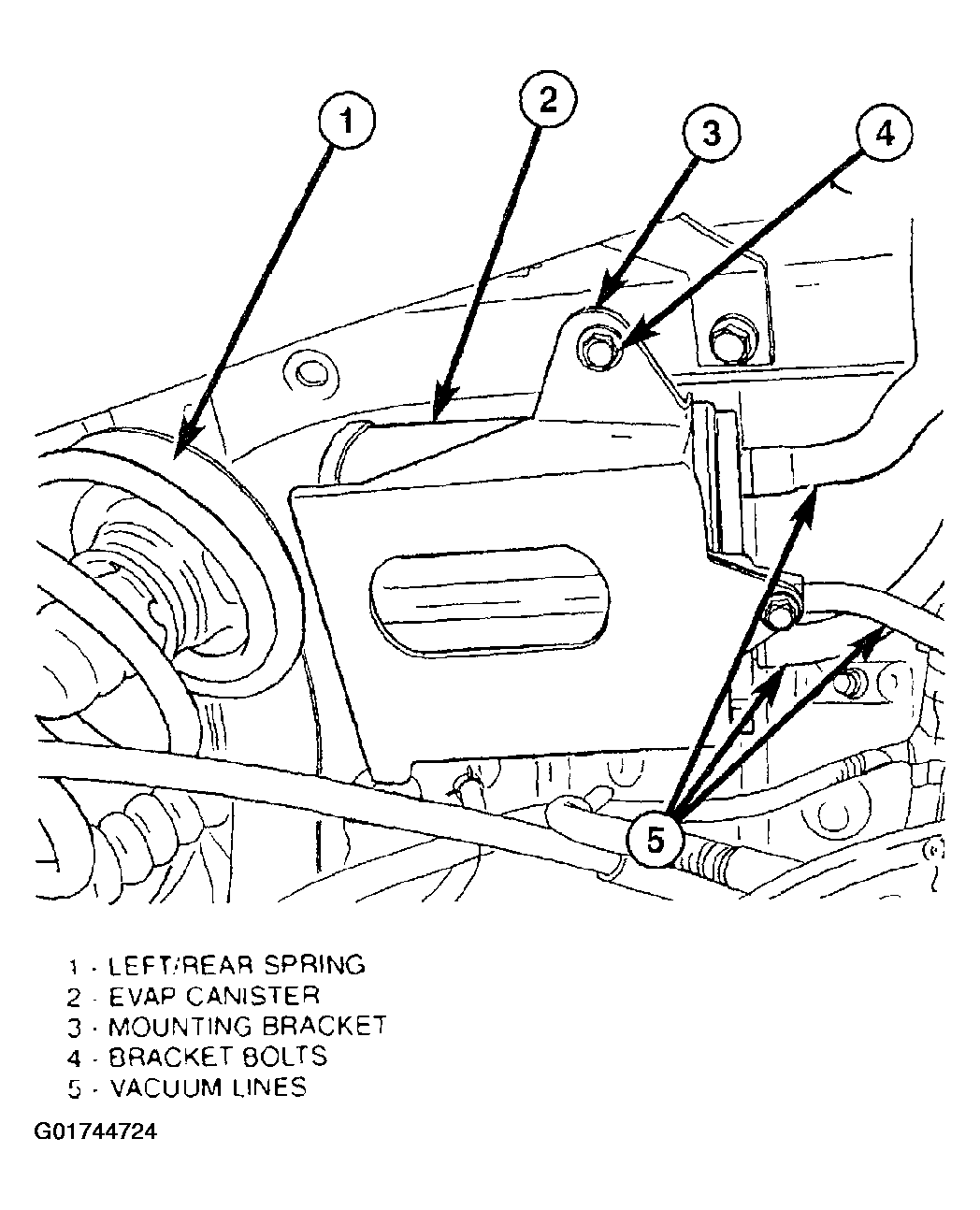

Fig 1: Locating EVAP Canister

Courtesy of DAIMLERCHRYSLER CORP.

1. Raise vehicle.
2. Disconnect vacuum hoses/lines at EVAP canister. Note location of lines before removal.
3. Remove EVAP canister and mounting bracket assembly from body (2 bolts).
4. Remove canister-to-mounting bracket bolt.
5. Slide 2 canister mounting pins from mounting bracket.

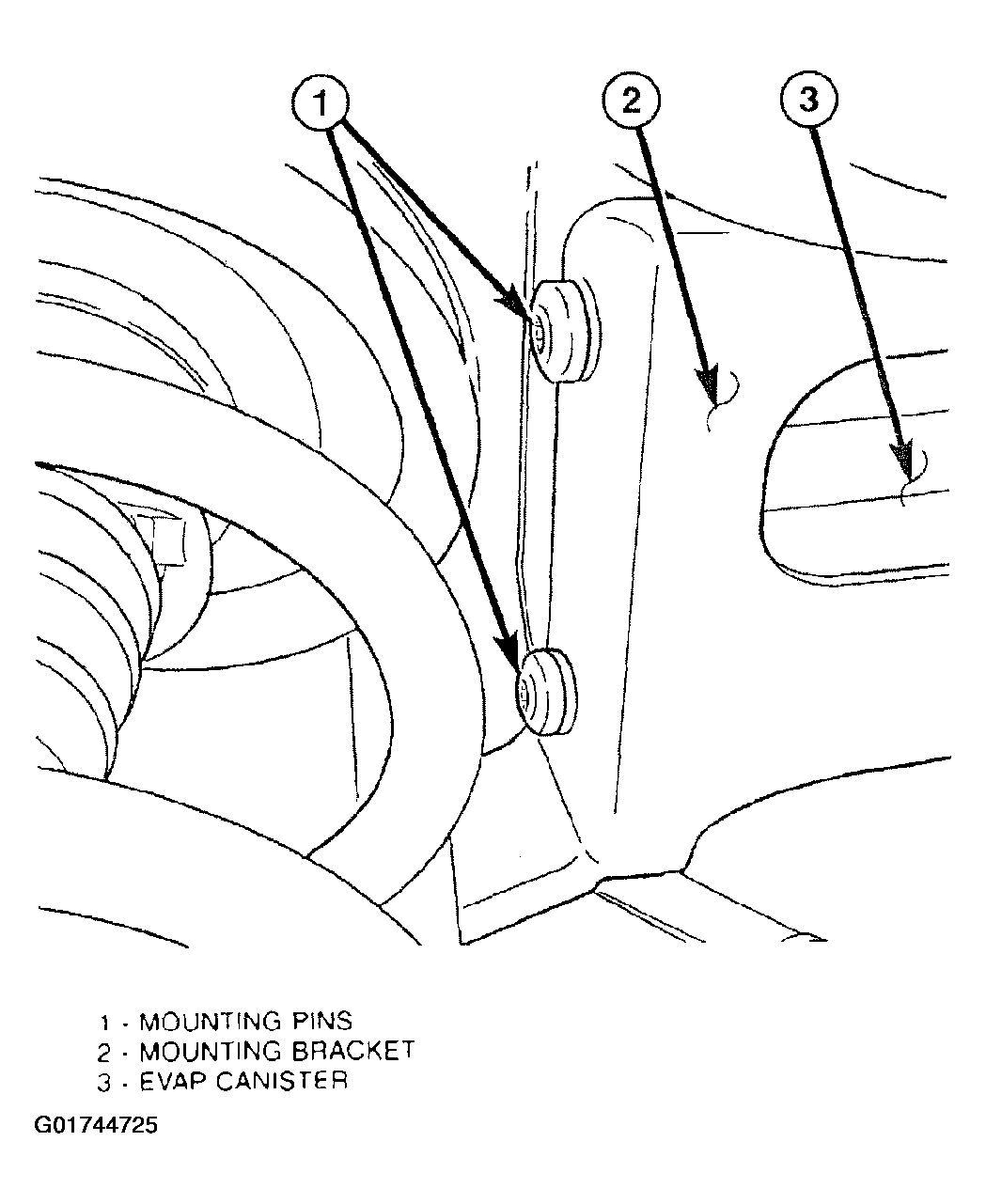

   Fig 2: Identifying EVAP Canister Mounting Pins

   Courtesy of DAIMLERCHRYSLER CORP.
