Connector Pin Outs

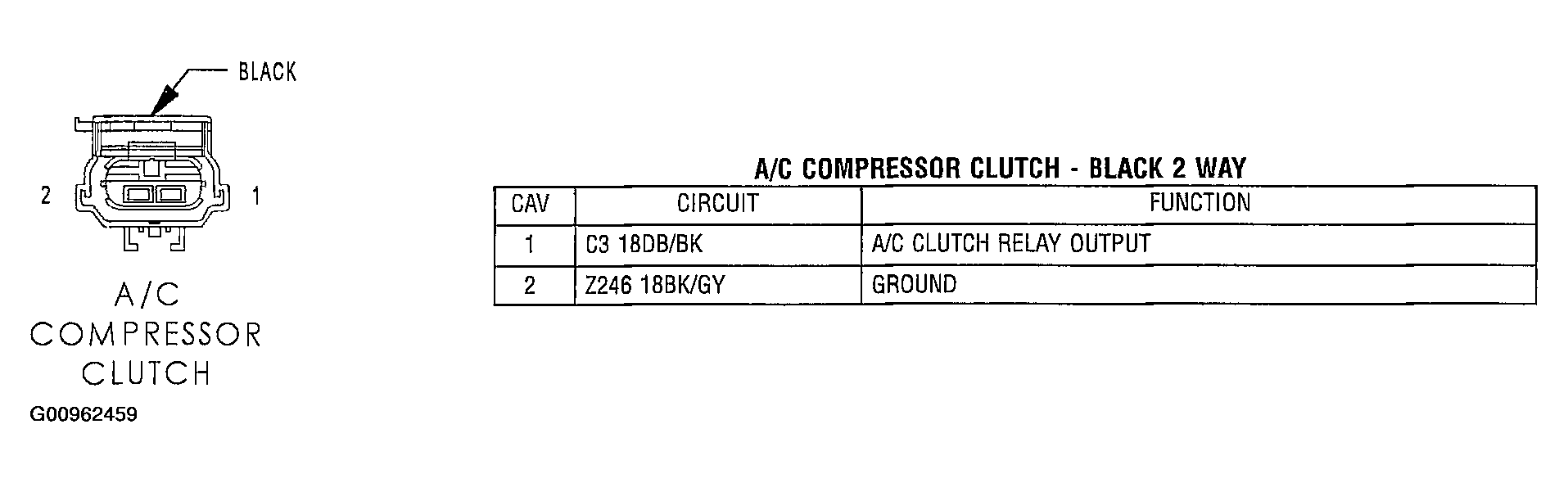

Fig 1: Identifying A/C Compressor Clutch - Black 2 Way Connector

G00962459

Courtesy of DAIMLERCHRYSLER CORP.

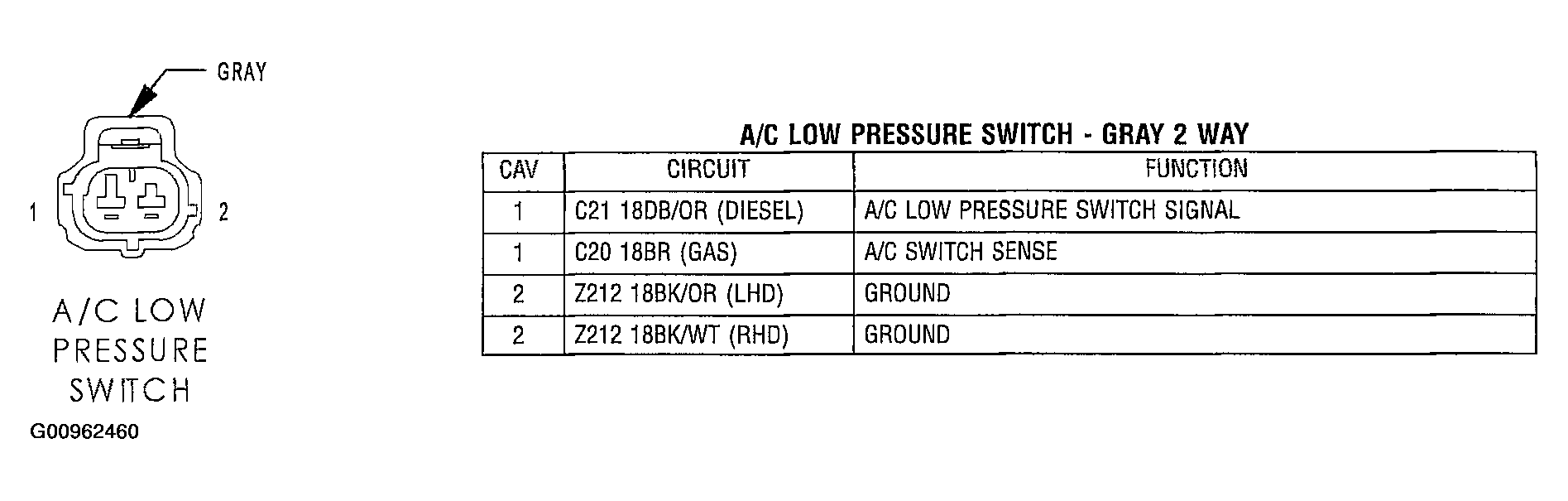

Fig 2: Identifying A/C Low Pressure Switch - Gray 2 Way Connector

G00962460

Courtesy of DAIMLERCHRYSLER CORP.

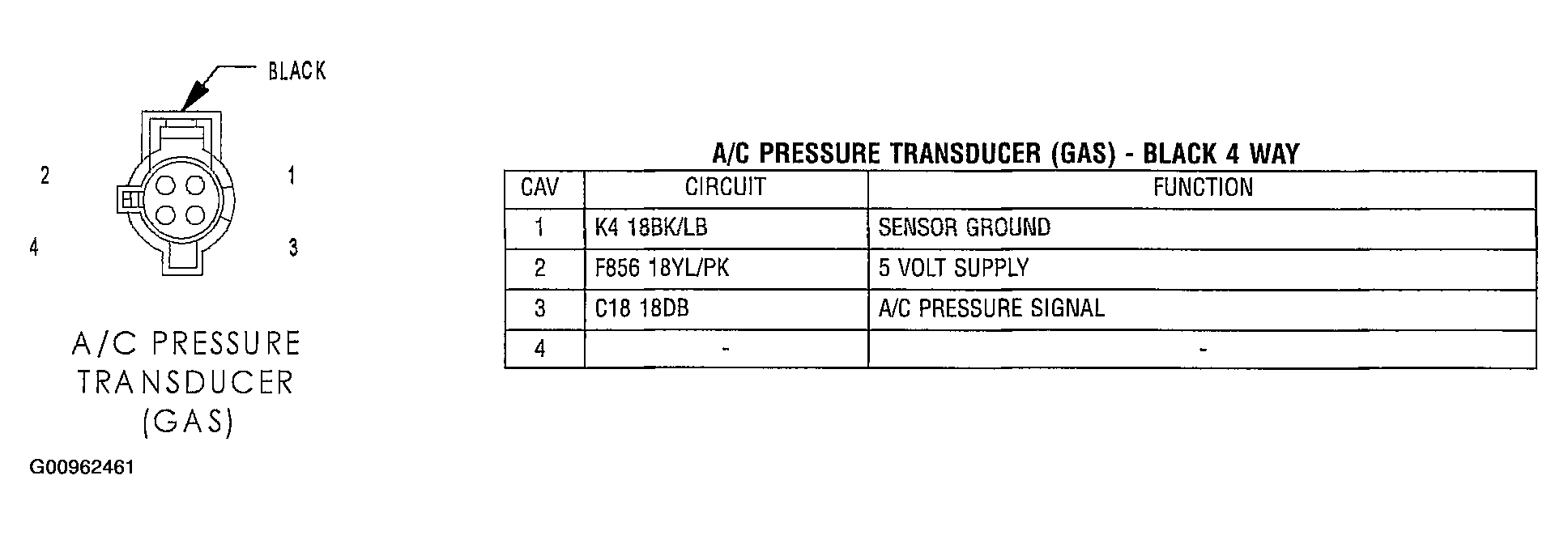

Fig 3: Identifying A/C Pressure Transducer (Gas) - Black 4 Way Connector

G00962461

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Ambient Temperature Sensor - Black 2 Way Connector

G00962462

Courtesy of DAIMLERCHRYSLER CORP.

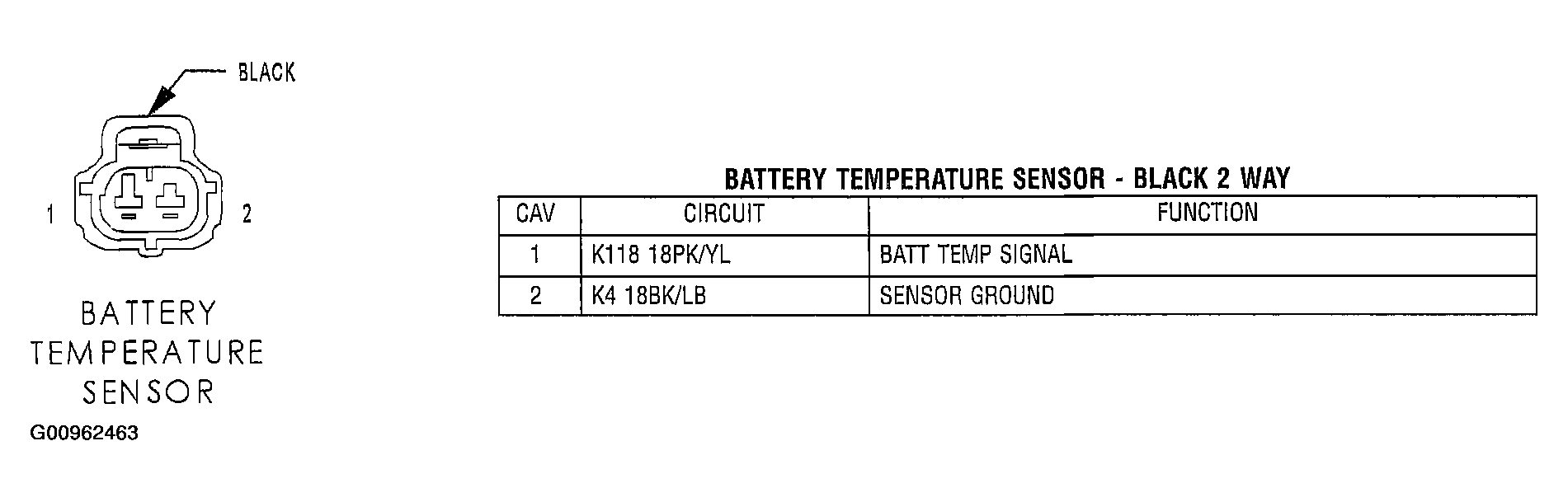

Fig 5: Identifying Battery Temperature Sensor - Black 2 Way Connector

G00962463

Courtesy of DAIMLERCHRYSLER CORP.

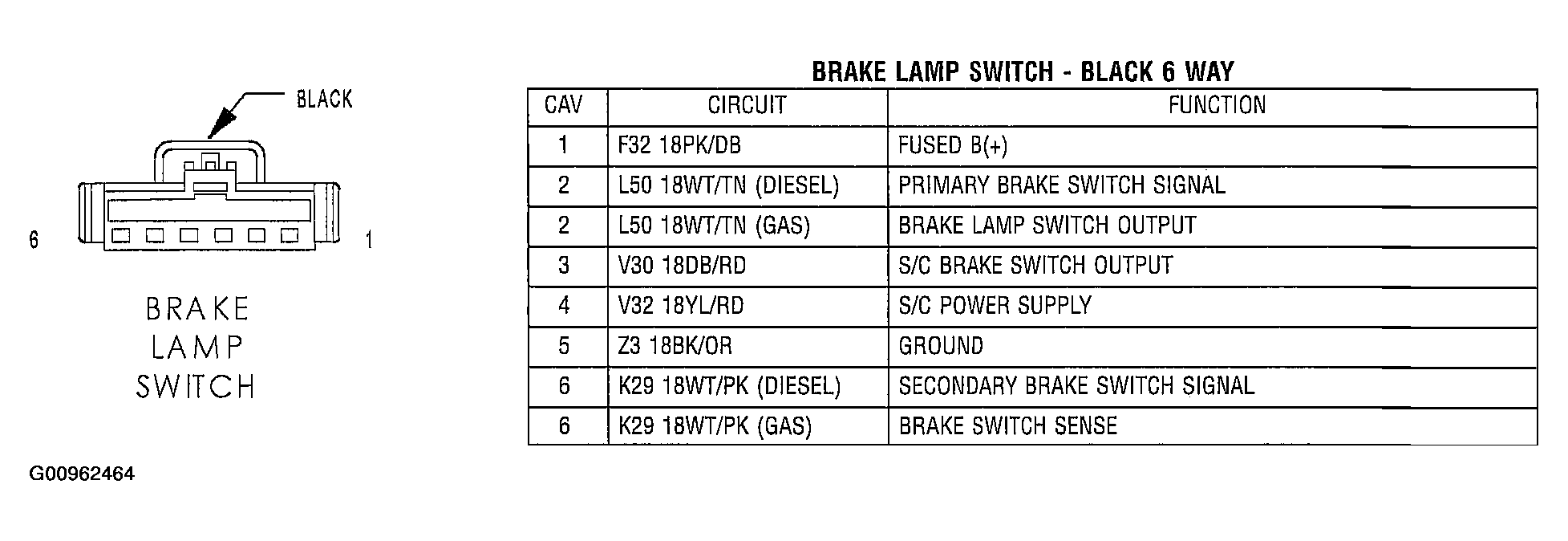

Fig 6: Identifying Brake Lamp Switch - Black 6 Way Connector

G00962464

Courtesy of DAIMLERCHRYSLER CORP.

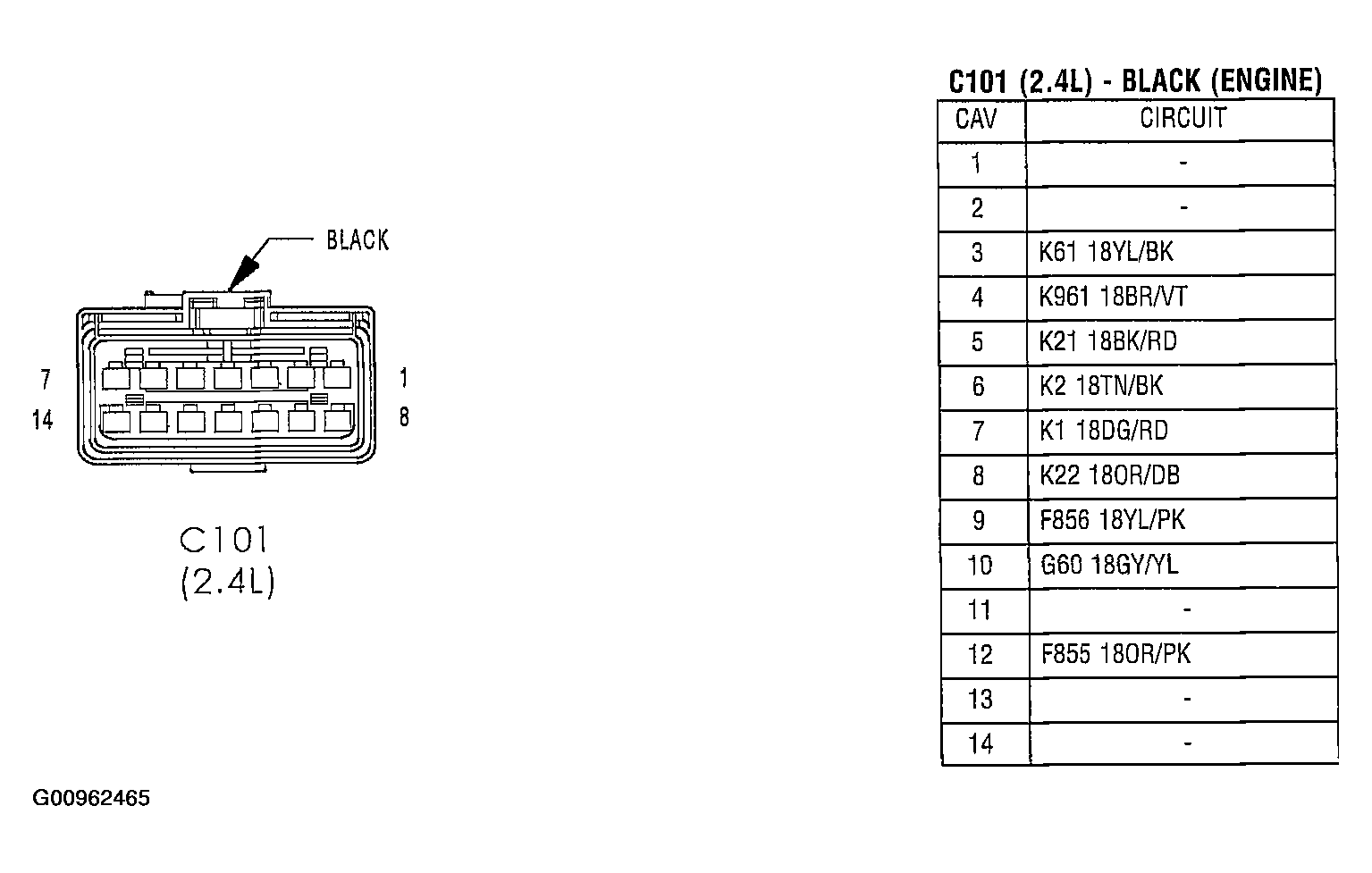

Fig 7: Identifying C101 (2.4L) - Black (Engine) Connector

G00962465

Courtesy of DAIMLERCHRYSLER CORP.

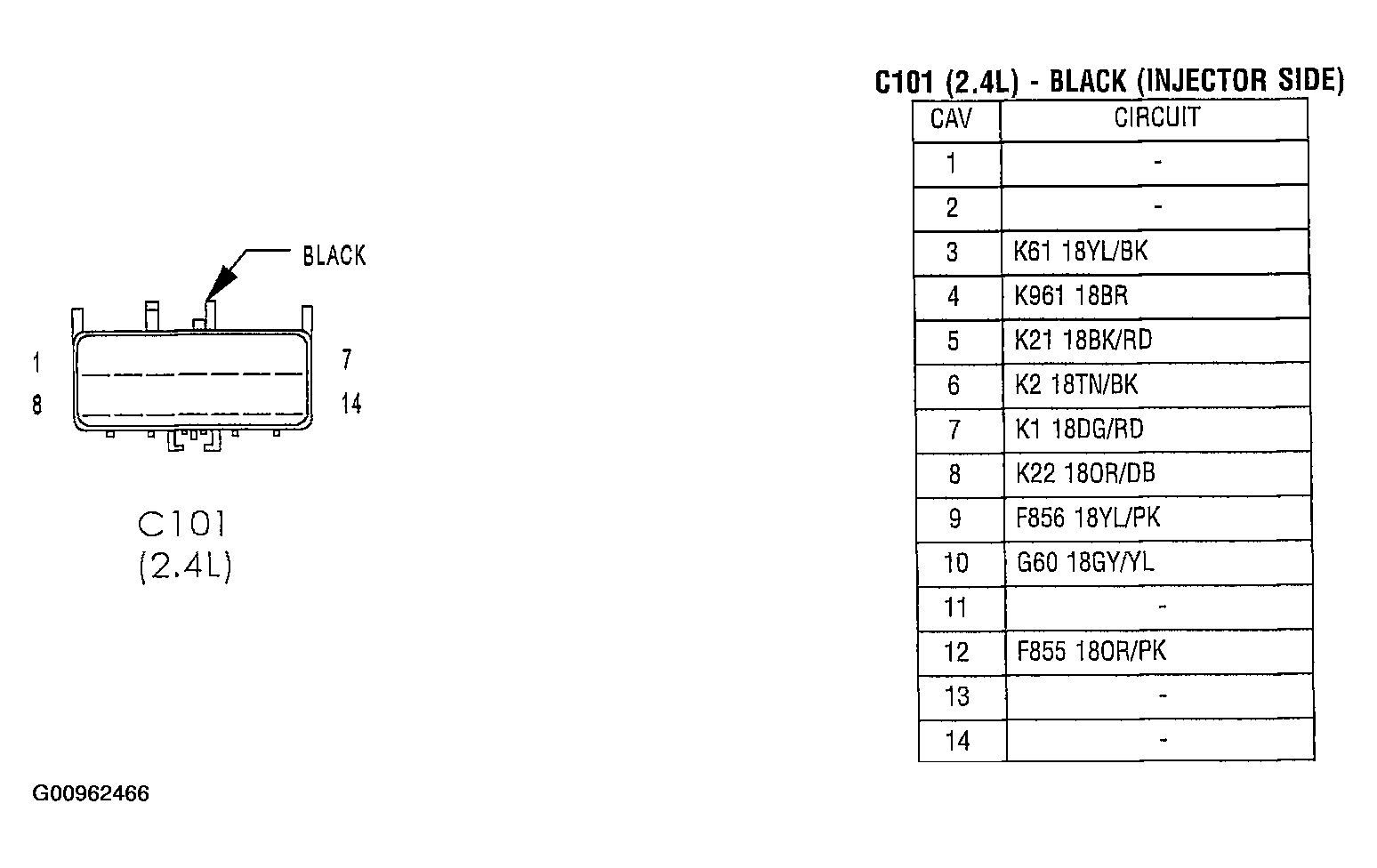

Fig 8: Identifying C101 (2.4L) - Black (Injector Side) Connector

G00962466

Courtesy of DAIMLERCHRYSLER CORP.

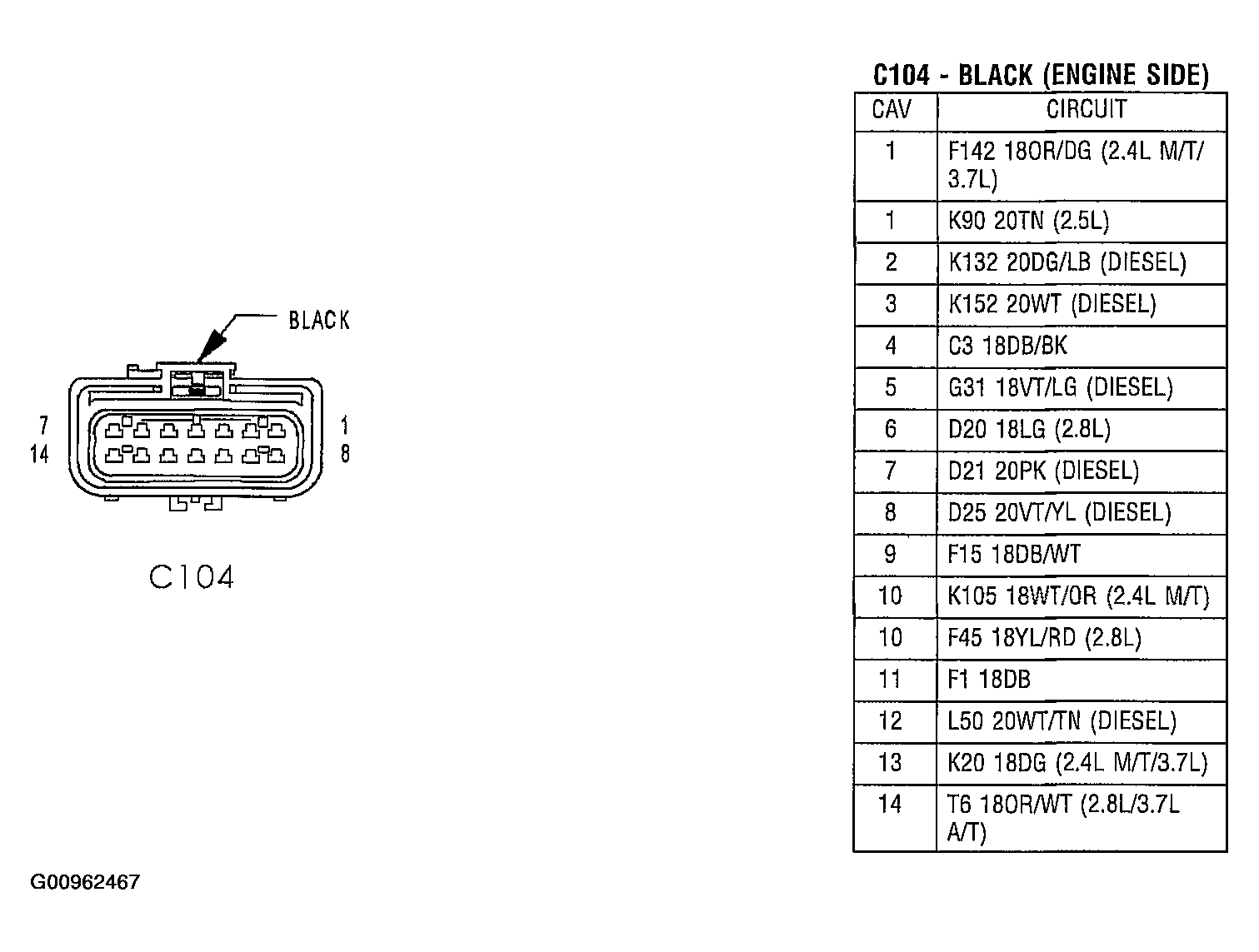

Fig 9: Identifying C104 - Black (Engine Side) Connector

G00962467

Courtesy of DAIMLERCHRYSLER CORP.

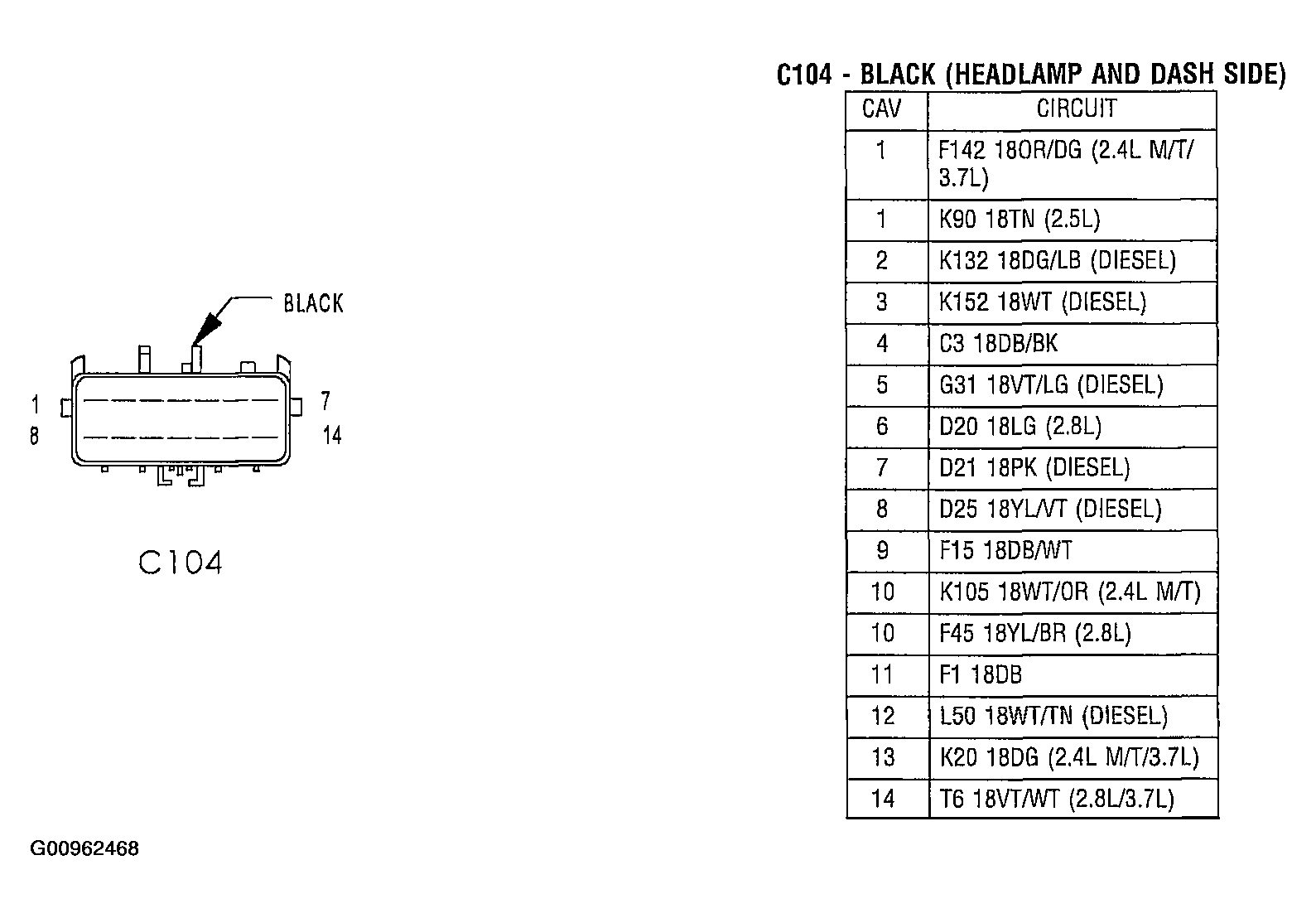

Fig 10: Identifying C104 - Black (Headlamp And Dash Side) Connector

G00962468

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying C105 - Black (Engine Side) Connector

G00962469

Courtesy of DAIMLERCHRYSLER CORP.

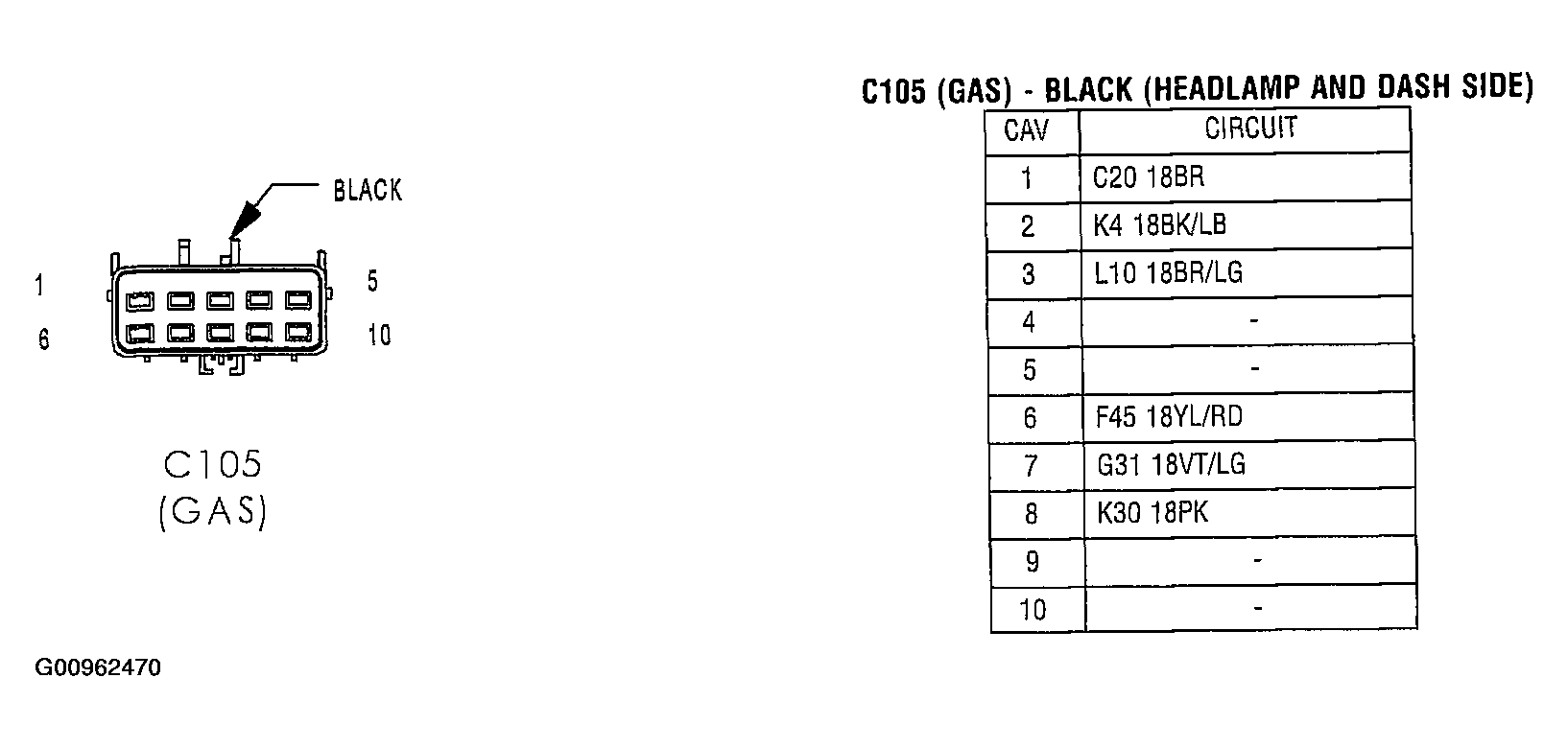

Fig 12: Identifying C105 (Gas) - Black (Headlamp And Dash Side) Connector

G00962470

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying C106 - Black (GOR Side) Connector

G00962471

Courtesy of DAIMLERCHRYSLER CORP.

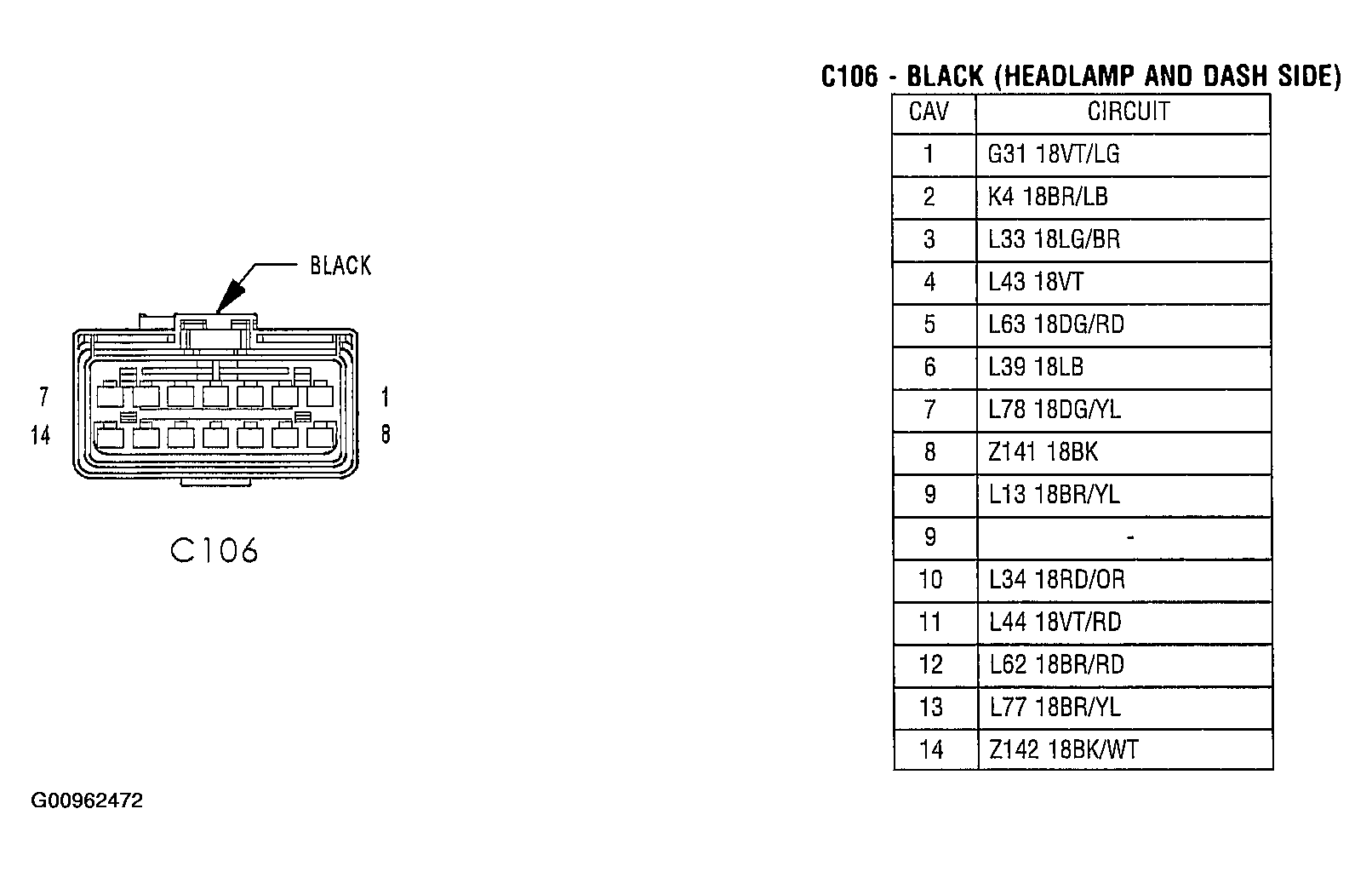

Fig 14: Identifying - C106 - Black (Headlamp And Dash Side) Connector

G00962472

Courtesy of DAIMLERCHRYSLER CORP.

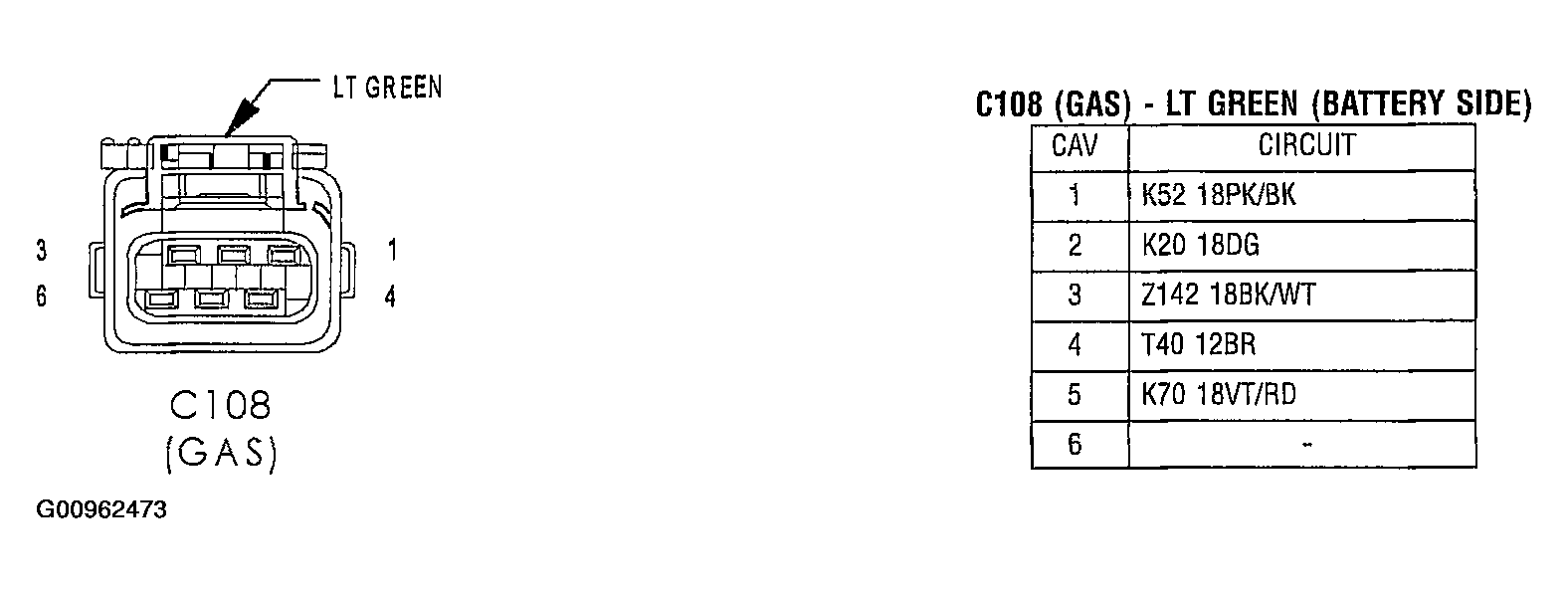

Fig 15: Identifying C108 (Gas) - Lt Green (Battery Side) Connector

G00962473

Courtesy of DAIMLERCHRYSLER CORP.

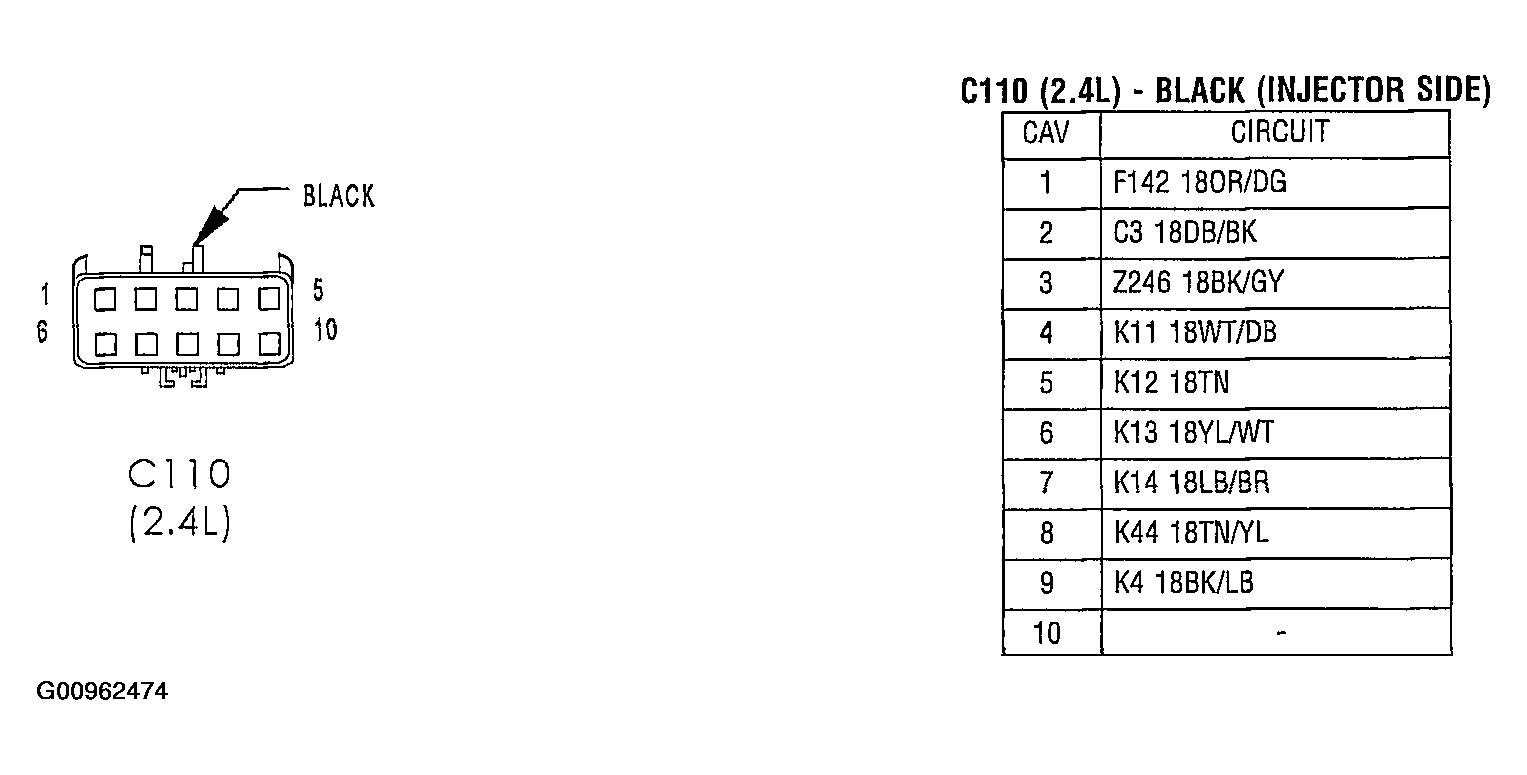

Fig 16: Identifying C110 (2.4L) - Black (Injector Side) Connector

G00962474

Courtesy of DAIMLERCHRYSLER CORP.

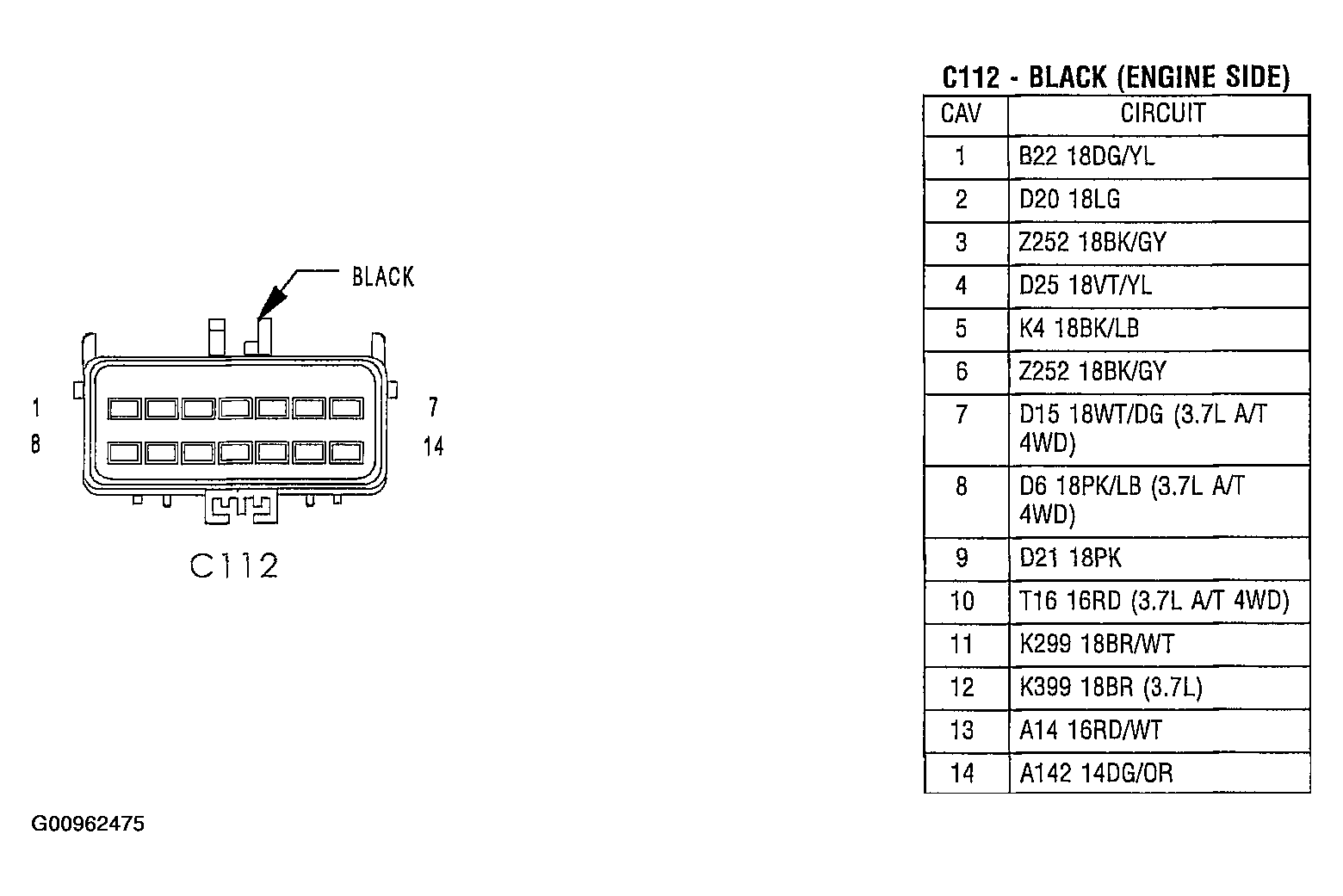

Fig 17: Identifying C112 - Black (Engine Side) Connector

G00962475

Courtesy of DAIMLERCHRYSLER CORP.

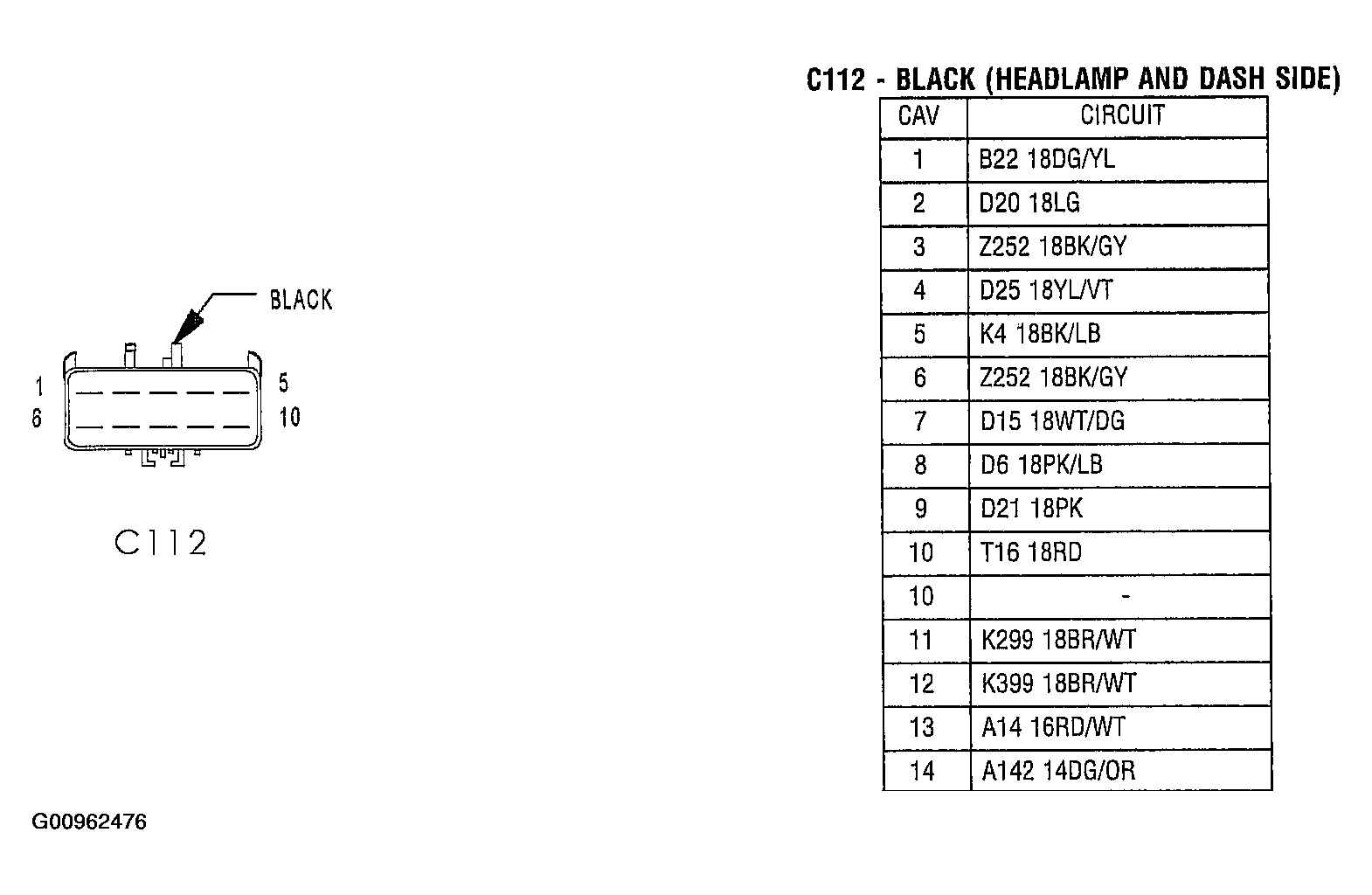

Fig 18: Identifying C112 - Black (Headlamp And Dash Side) Connector

G00962476

Courtesy of DAIMLERCHRYSLER CORP.

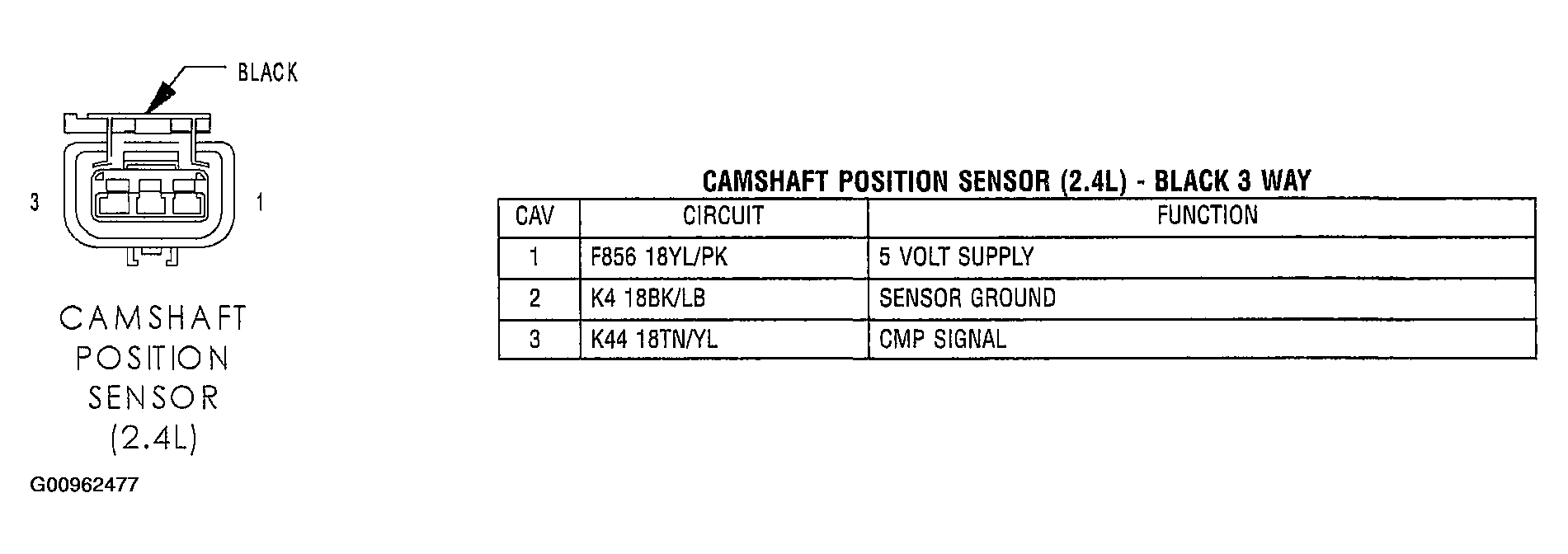

Fig 19: Identifying Camshaft Position Sensor (2.4L) - Black 3 Way Connector

G00962477

Courtesy of DAIMLERCHRYSLER CORP.

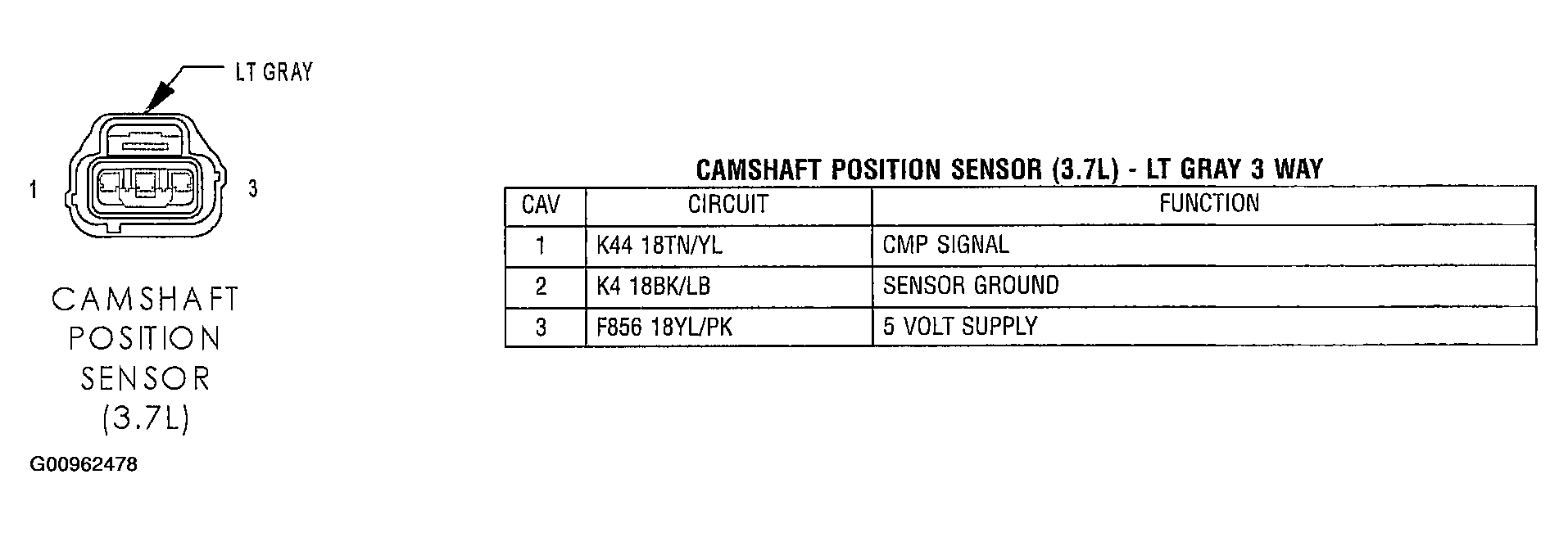

Fig 20: Identifying Camshaft Position Sensor (3.7L) - Lt Gray 3 Way Connector

G00962478

Courtesy of DAIMLERCHRYSLER CORP.

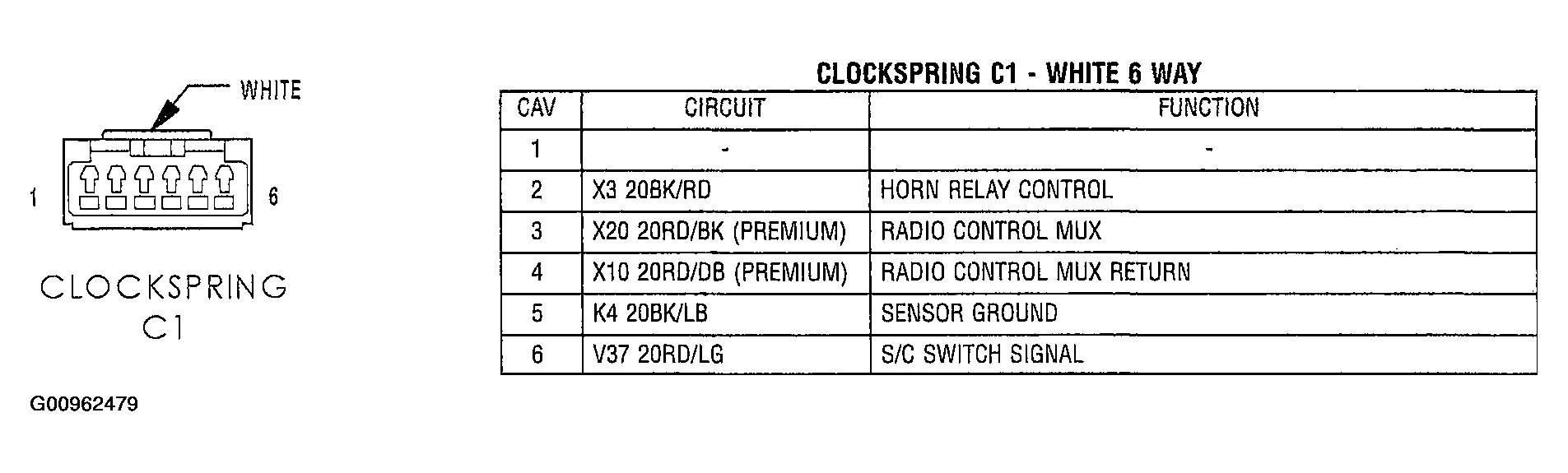

Fig 21: Identifying Clockspring C1 - White 6 Way Connector

G00962479

Courtesy of DAIMLERCHRYSLER CORP.

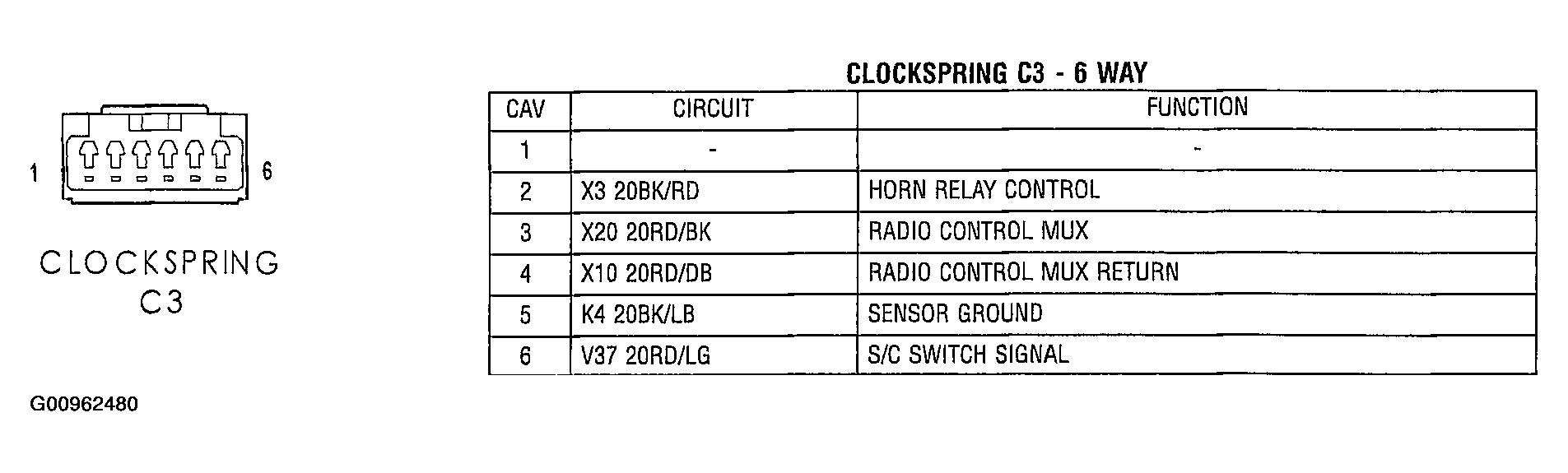

Fig 22: Identifying Clockspring C3 - 6 Way Connector

G00962480

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Identifying Coil On Plug No. 1 (3.7L) - Black 3 Way Connector

G00962481

Courtesy of DAIMLERCHRYSLER CORP.

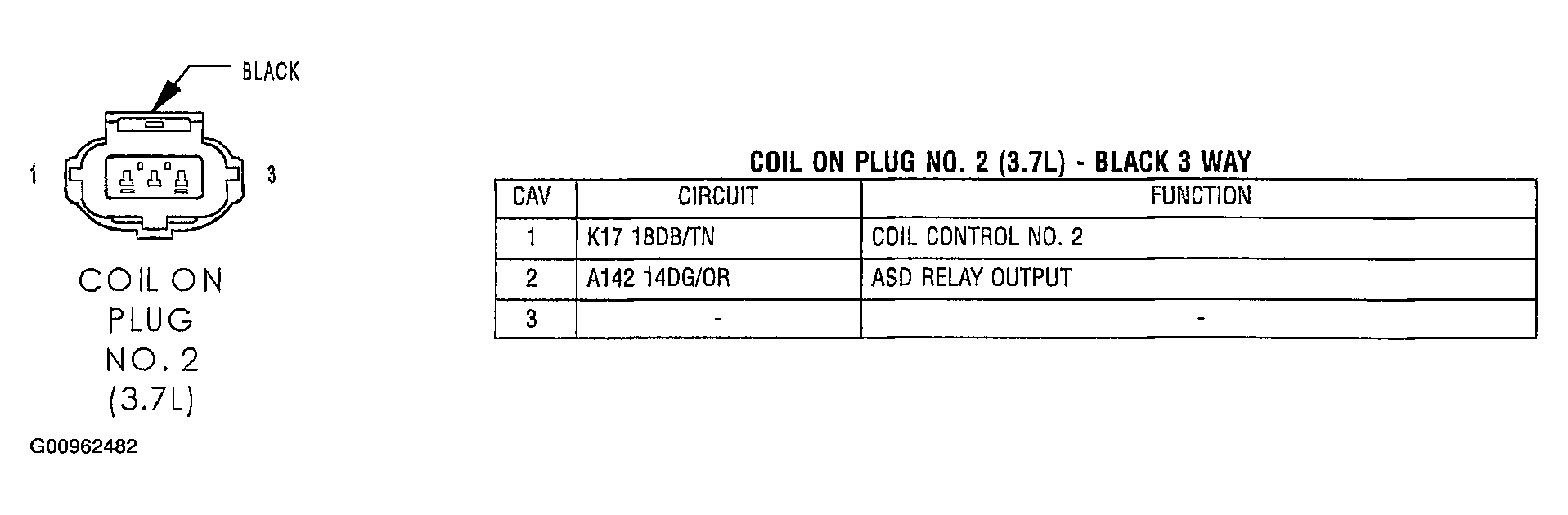

Fig 24: Identifying Coil On Plug 2 (3.7L) - Black 3 Way Connector

G00962482

Courtesy of DAIMLERCHRYSLER CORP.

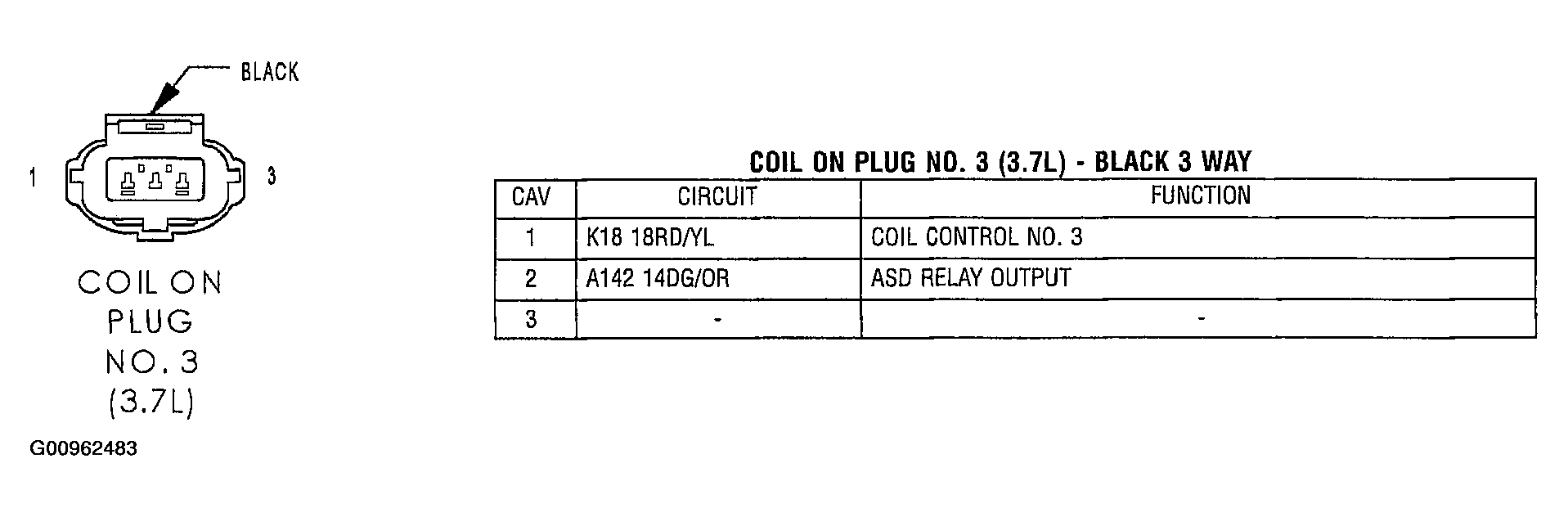

Fig 25: Identifying Coil On Plug No. 3 (3.7L) - Black 3 Way Connector

G00962483

Courtesy of DAIMLERCHRYSLER CORP.

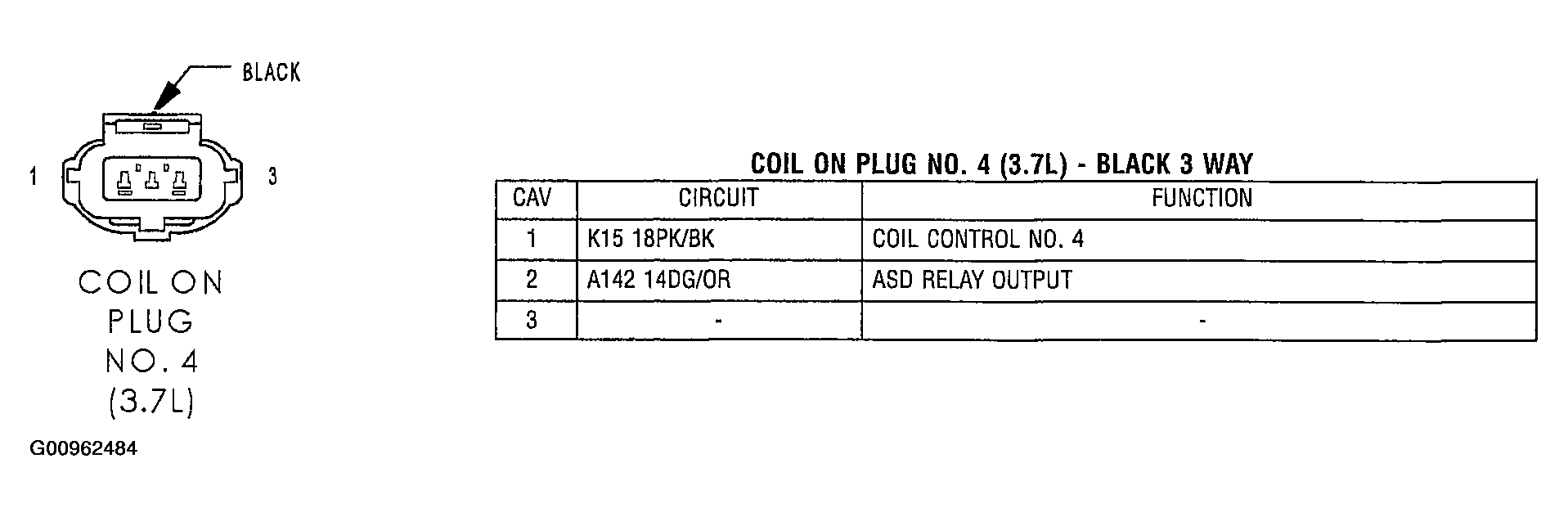

Fig 26: Identifying Coil On Plug No. 4 (3.7L) - Black 3 Way Connector

G00962484

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Identifying Coil On Plug No. 5 (3.7L) - Black 3 Way Connector

G00962485

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Identifying Coil On Plug No. 6 (3.7L) - Black 3 Way Connector

G00962486

Courtesy of DAIMLERCHRYSLER CORP.

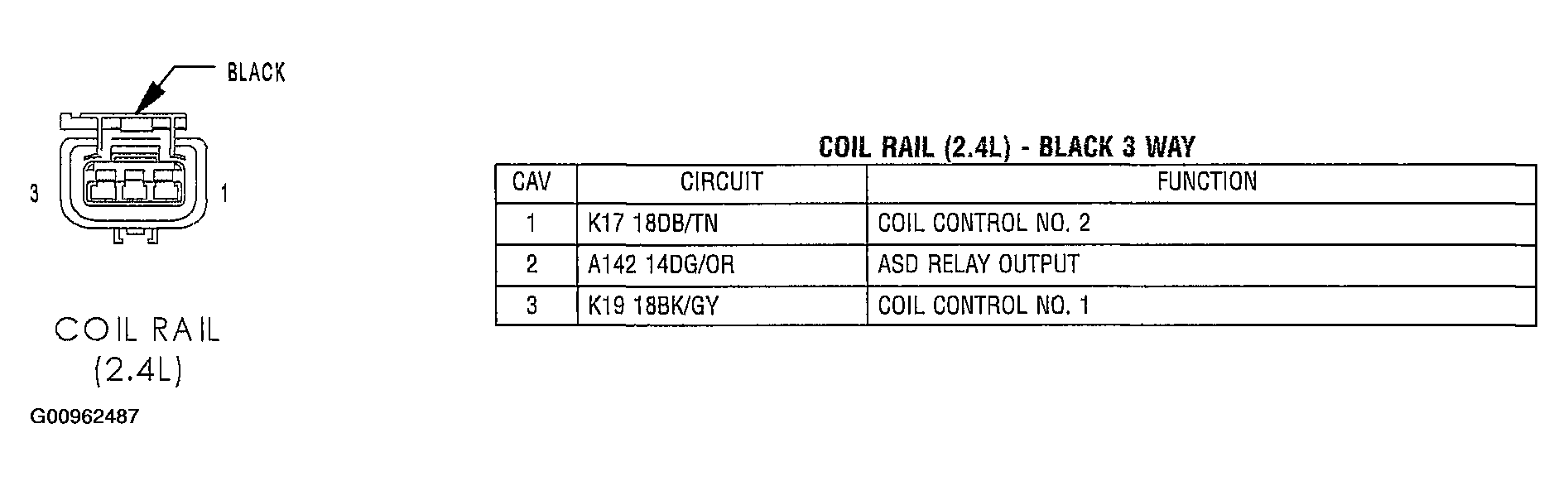

Fig 29: Identifying Coil Rail (2.4L) - Black 3 Way Connector

G00962487

Courtesy of DAIMLERCHRYSLER CORP.

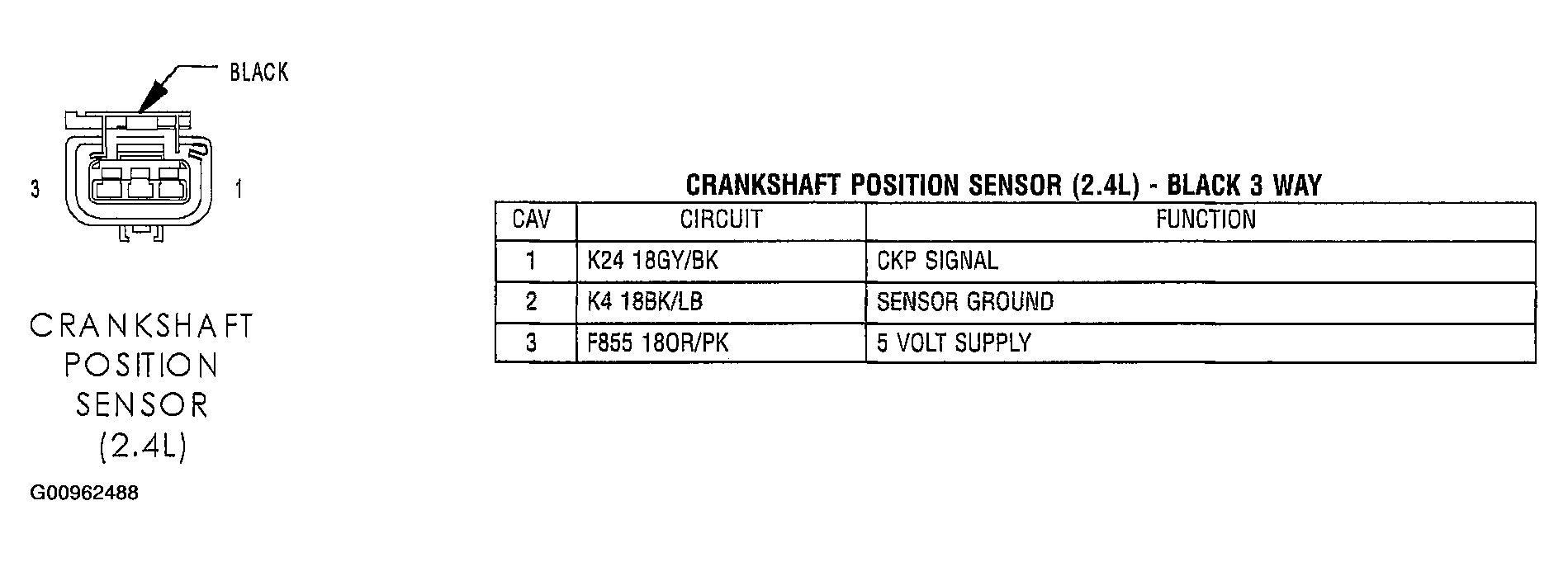

Fig 30: Identifying Crankshaft Position Sensor (2.4L) - Black 3 Way Connector

G00962488

Courtesy of DAIMLERCHRYSLER CORP.

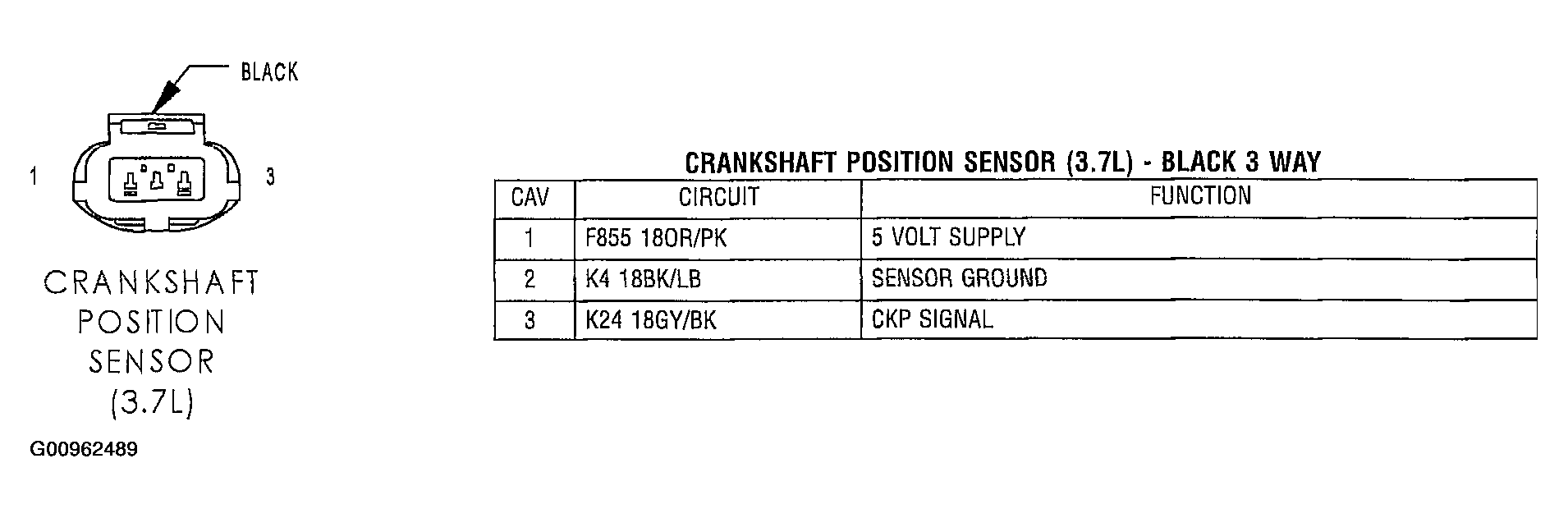

Fig 31: Identifying Crankshaft Position Sensor (3.7L) - Black 3 Way Connector

G00962489

Courtesy of DAIMLERCHRYSLER CORP.

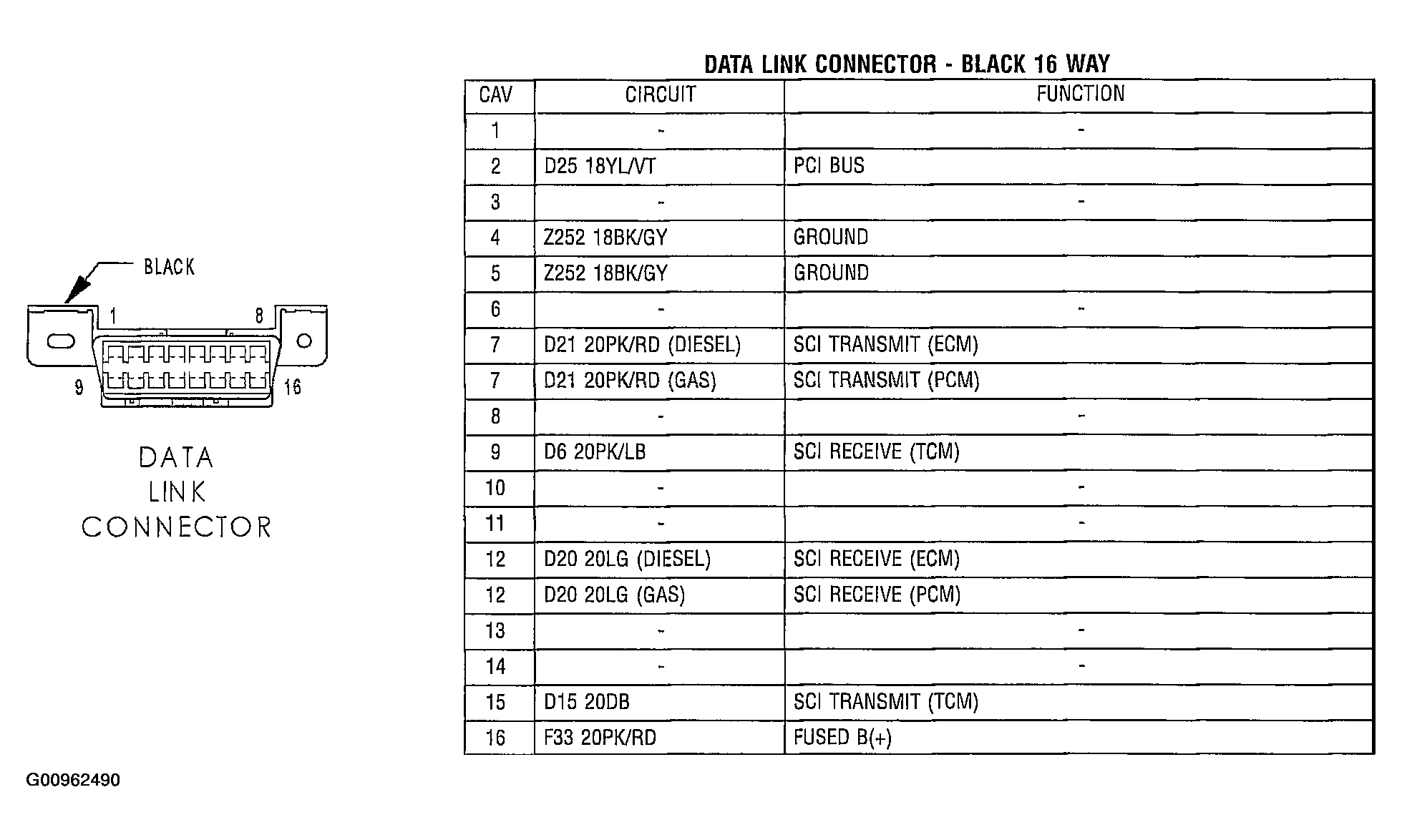

Fig 32: Identifying Data Link Connector - Black 16 Way Connector

G00962490

Courtesy of DAIMLERCHRYSLER CORP.

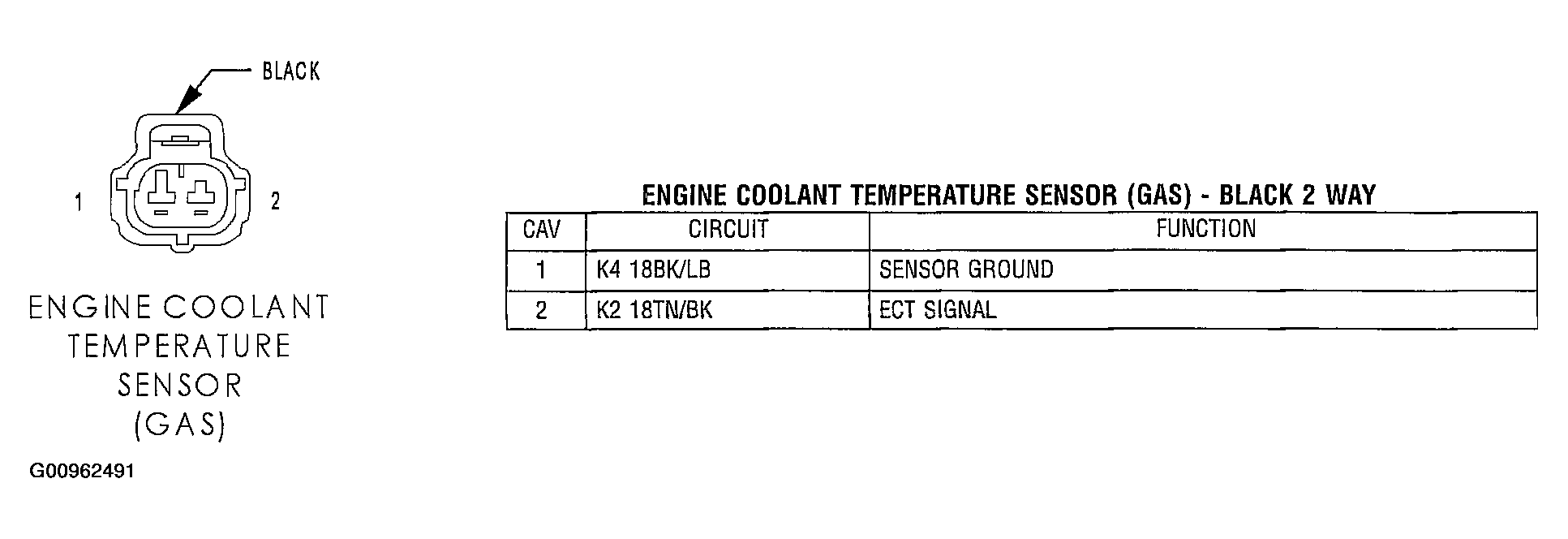

Fig 33: Identifying Engine Coolant Temperature Sensor (Gas) - Black 2 Way Connector

G00962491

Courtesy of DAIMLERCHRYSLER CORP.

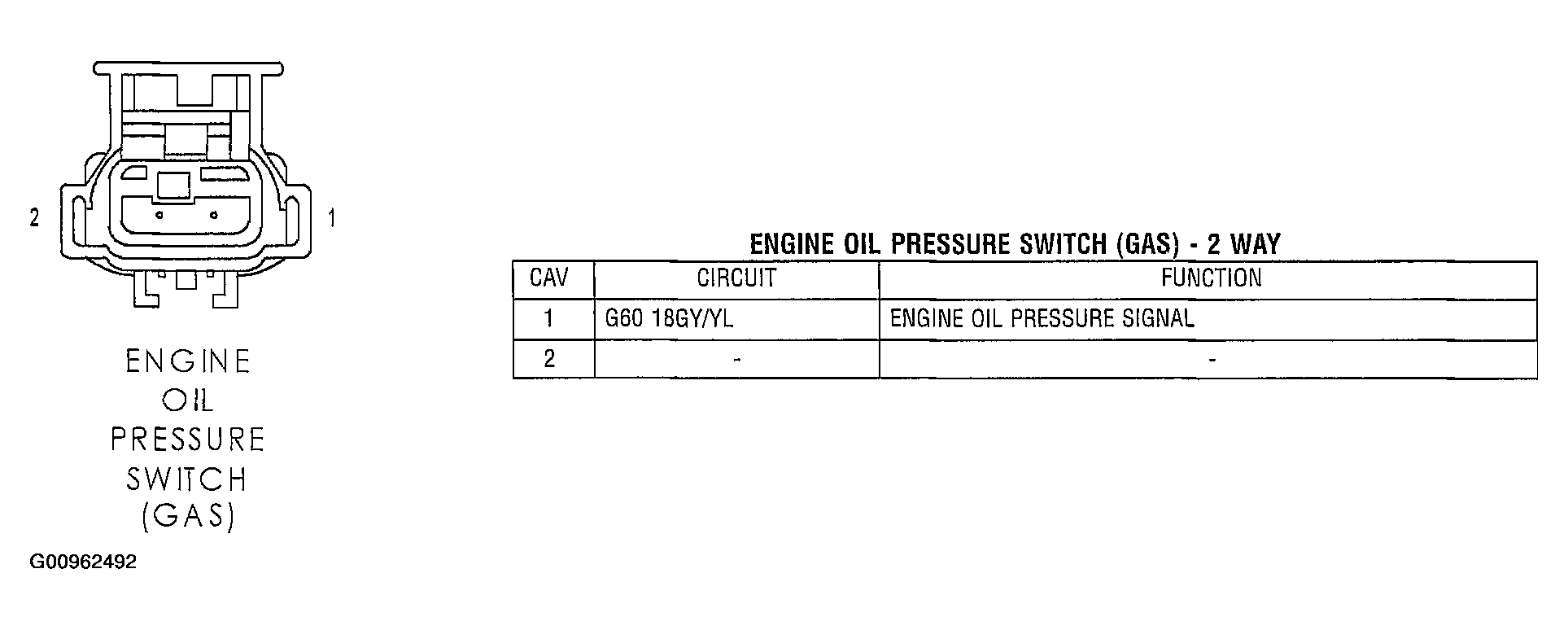

Fig 34: Identifying Engine Oil Pressure Switch (Gas) - 2 Way Connector

G00962492

Courtesy of DAIMLERCHRYSLER CORP.

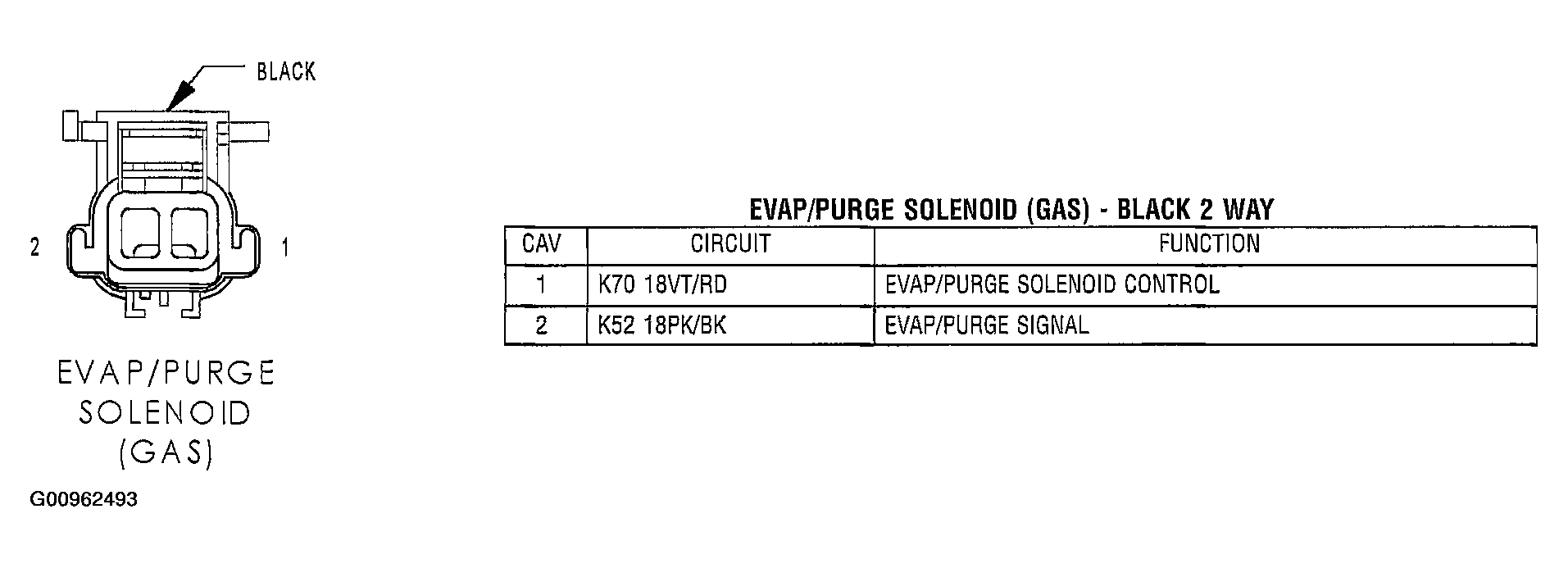

Fig 35: Identifying EVAP/Purge Solenoid (Gas) - Black 2 Way Connector

G00962493

Courtesy of DAIMLERCHRYSLER CORP.

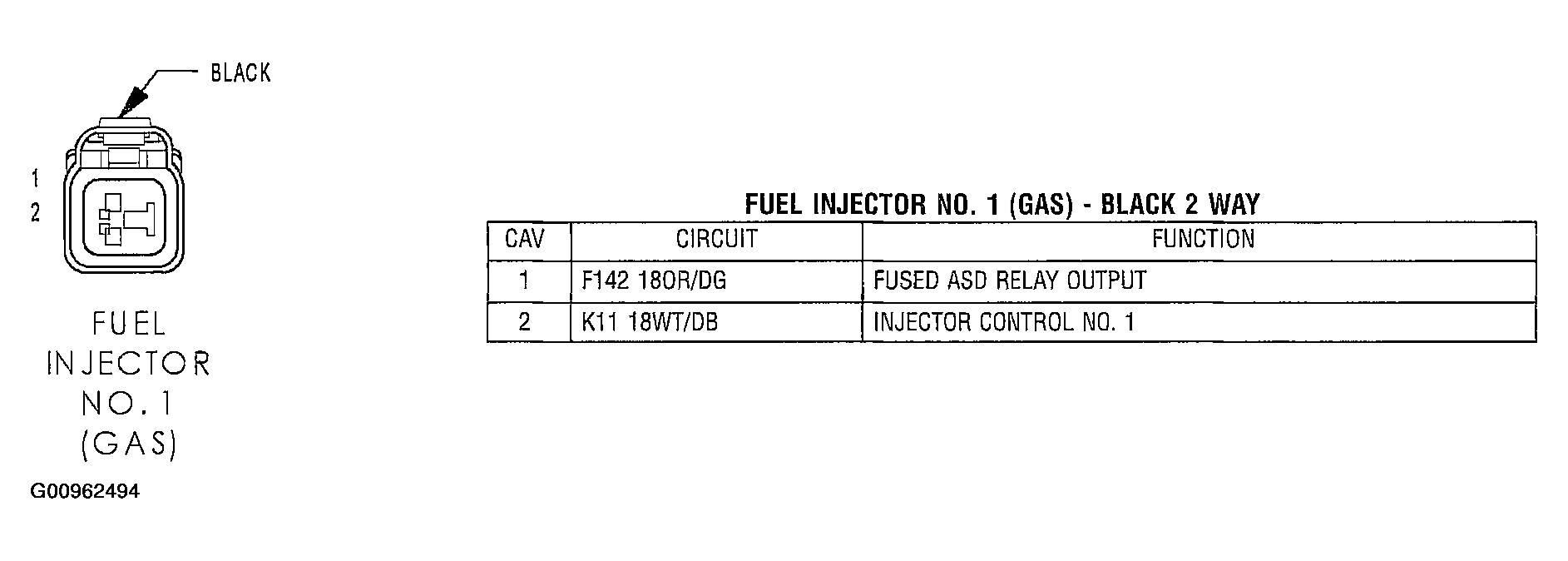

Fig 36: Identifying Fuel Injector No. 1 (Gas) - Black 2 Way Connector

G00962494

Courtesy of DAIMLERCHRYSLER CORP.

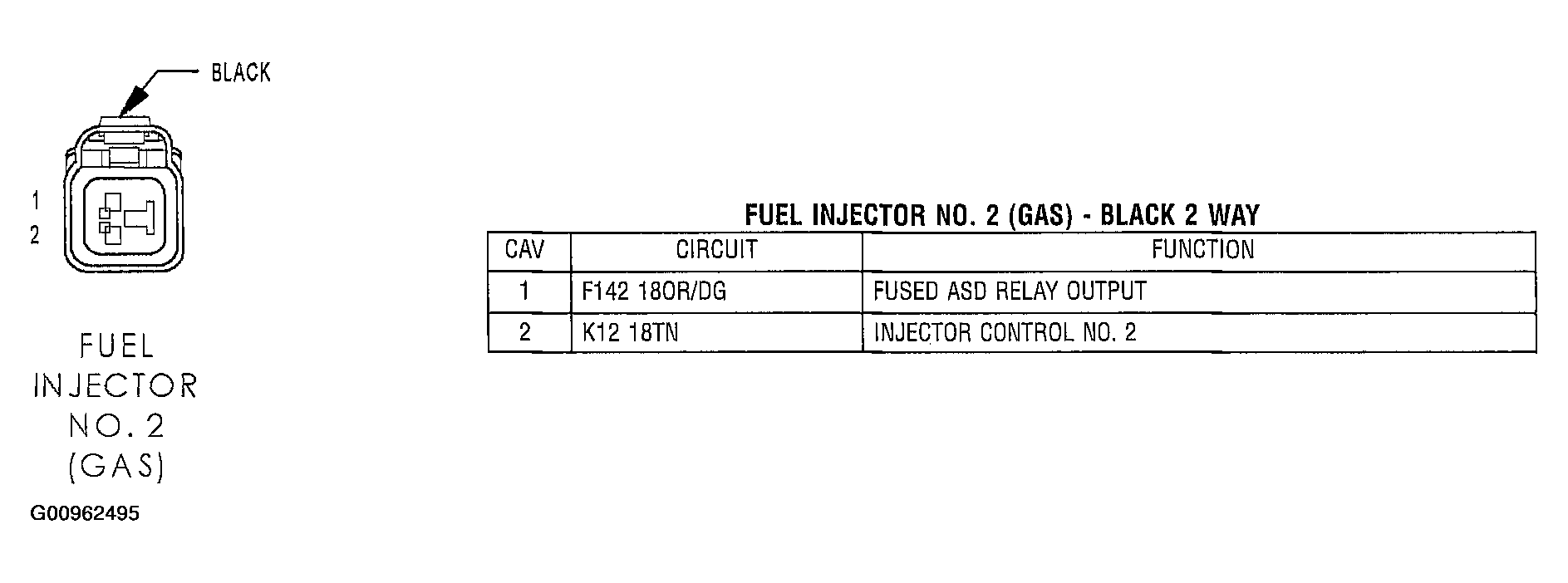

Fig 37: Identifying Fuel Injector No. 2 (Gas) - Black 2 Way Connector

G00962495

Courtesy of DAIMLERCHRYSLER CORP.

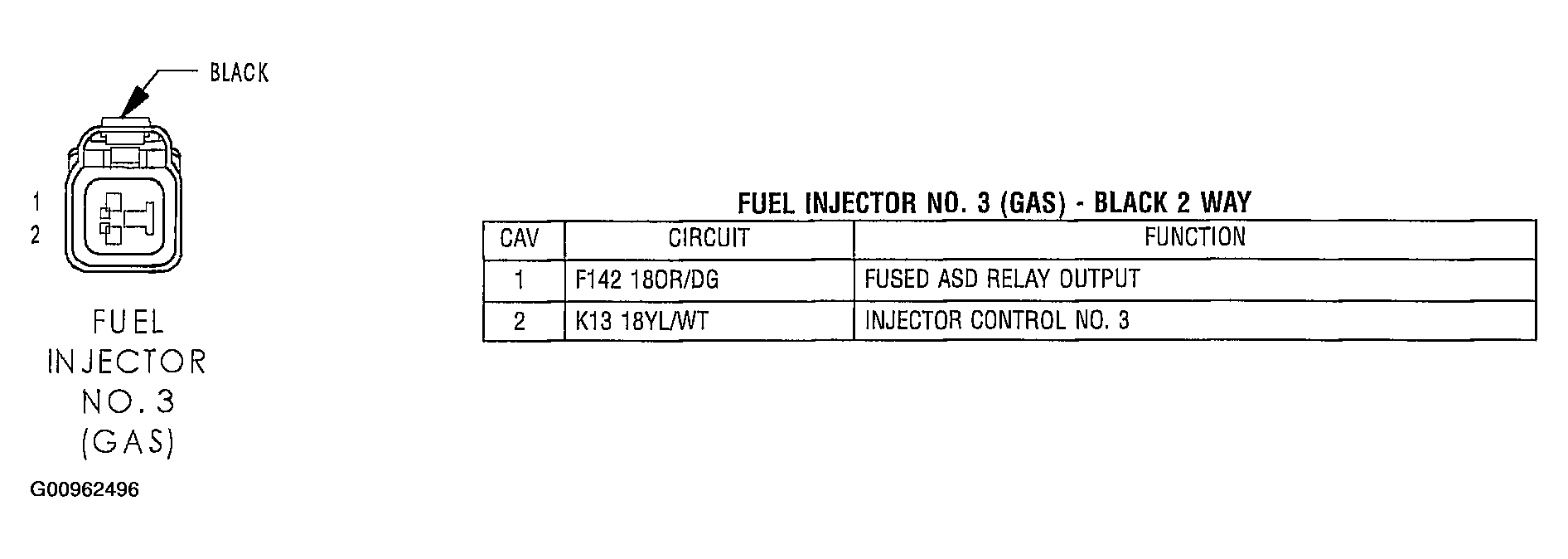

Fig 38: Identifying Fuel Injector No. 3 (Gas) - Black 2 Way Connector

G00962496

Courtesy of DAIMLERCHRYSLER CORP.

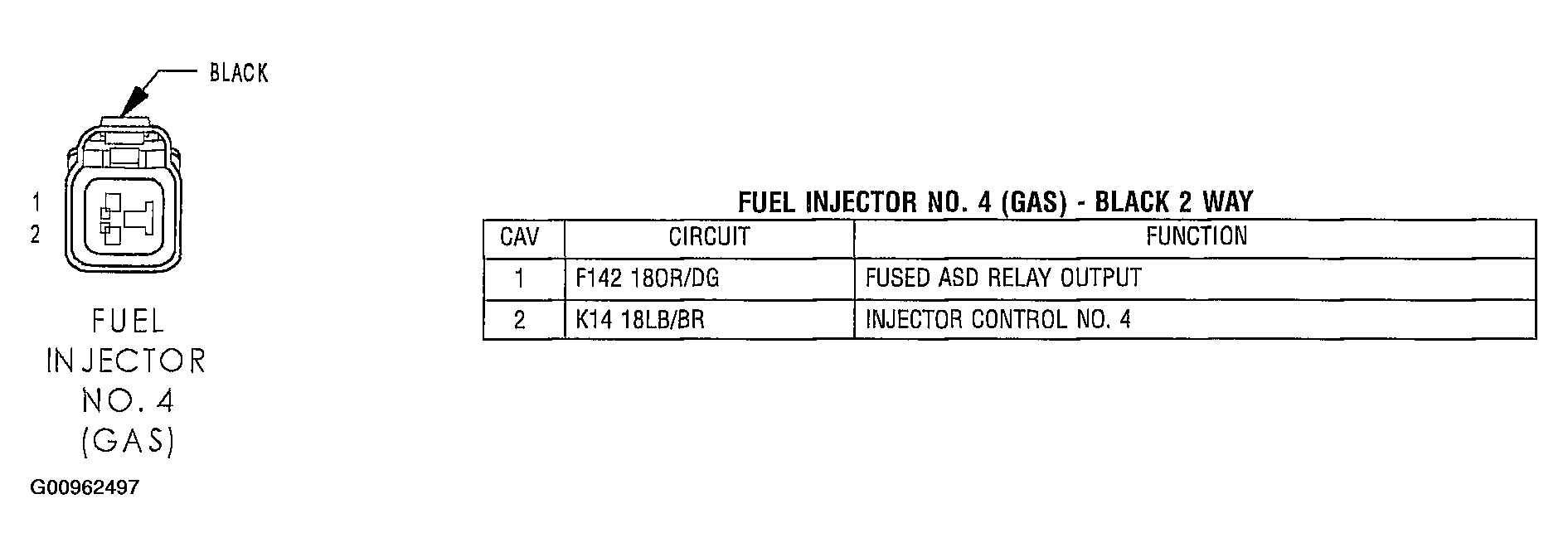

Fig 39: Identifying Fuel Injector No. 4 (Gas) - Black 2 Way Connector

G00962497

Courtesy of DAIMLERCHRYSLER CORP.

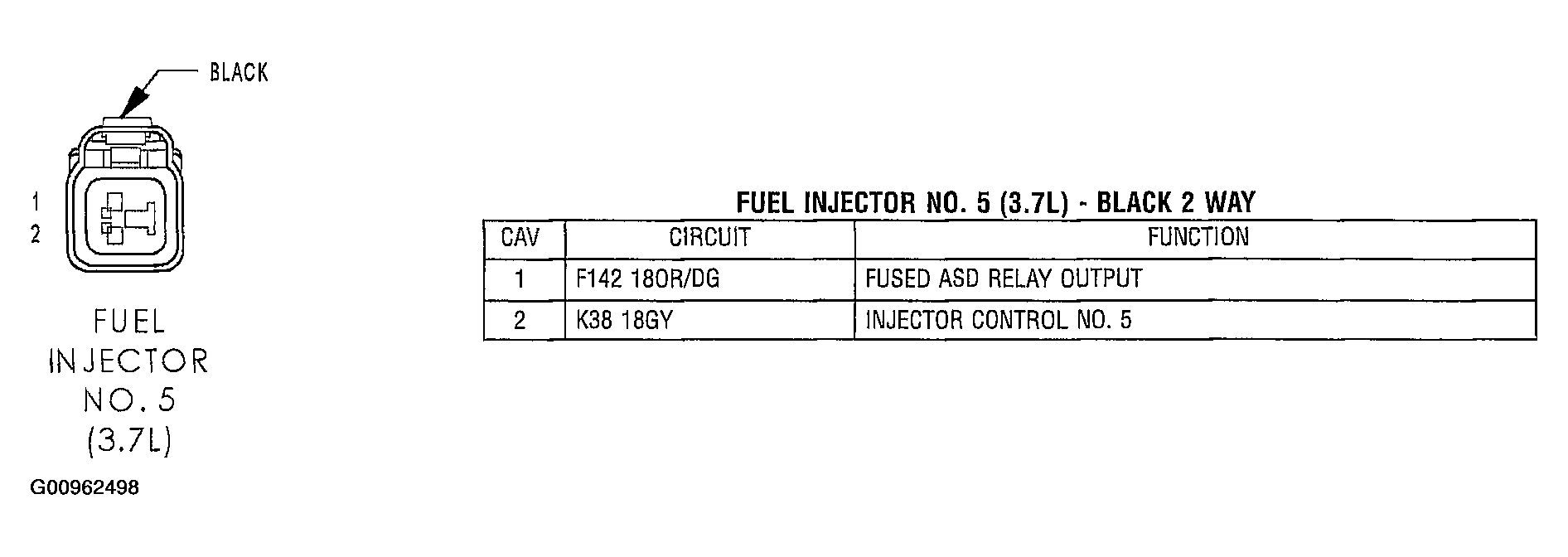

Fig 40: Identifying Fuel Injector No. 5 (3.7L) - Black 2 Way Connector

G00962498

Courtesy of DAIMLERCHRYSLER CORP.

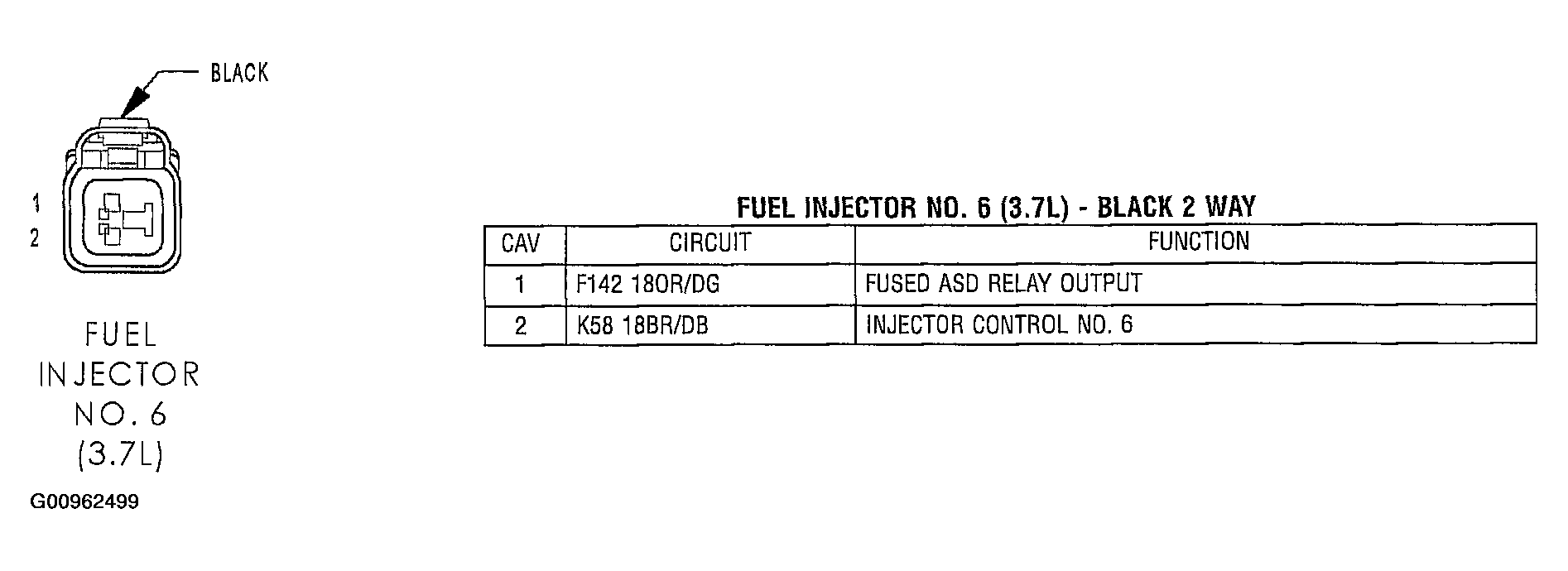

Fig 41: Identifying Fuel Injector No. 6 (3.7L) - Black 2 Way Connector

G00962499

Courtesy of DAIMLERCHRYSLER CORP.

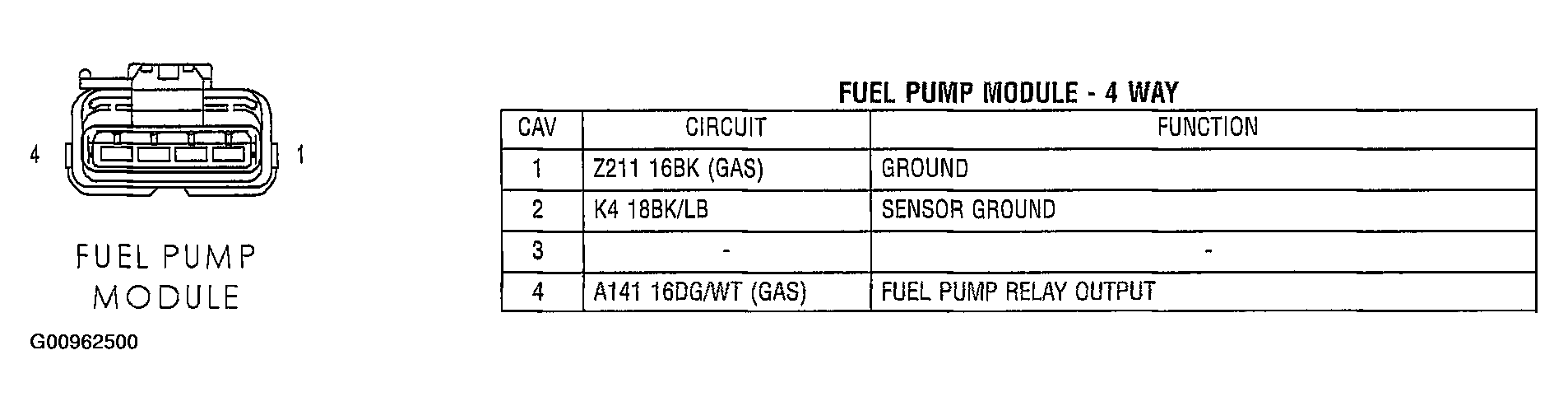

Fig 42: Identifying Fuel Pump Module - 4 Way Connector

G00962500

Courtesy of DAIMLERCHRYSLER CORP.

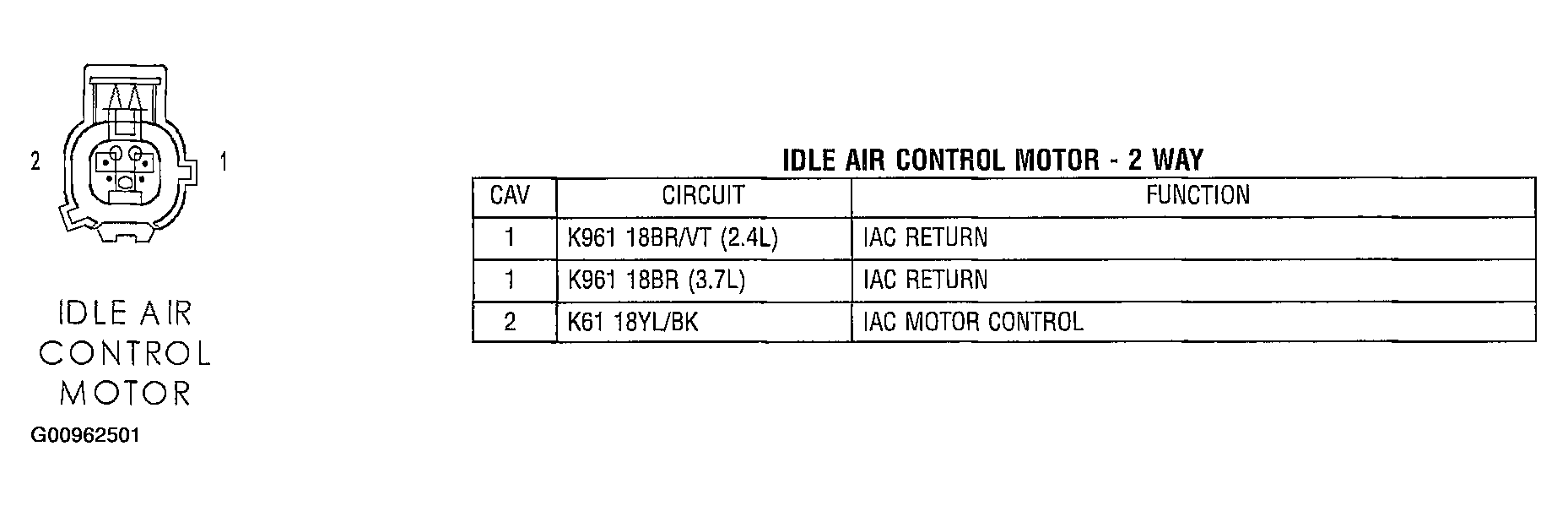

Fig 43: Identifying Idle Air Control Motor - 2 Way Connector

G00962501

Courtesy of DAIMLERCHRYSLER CORP.

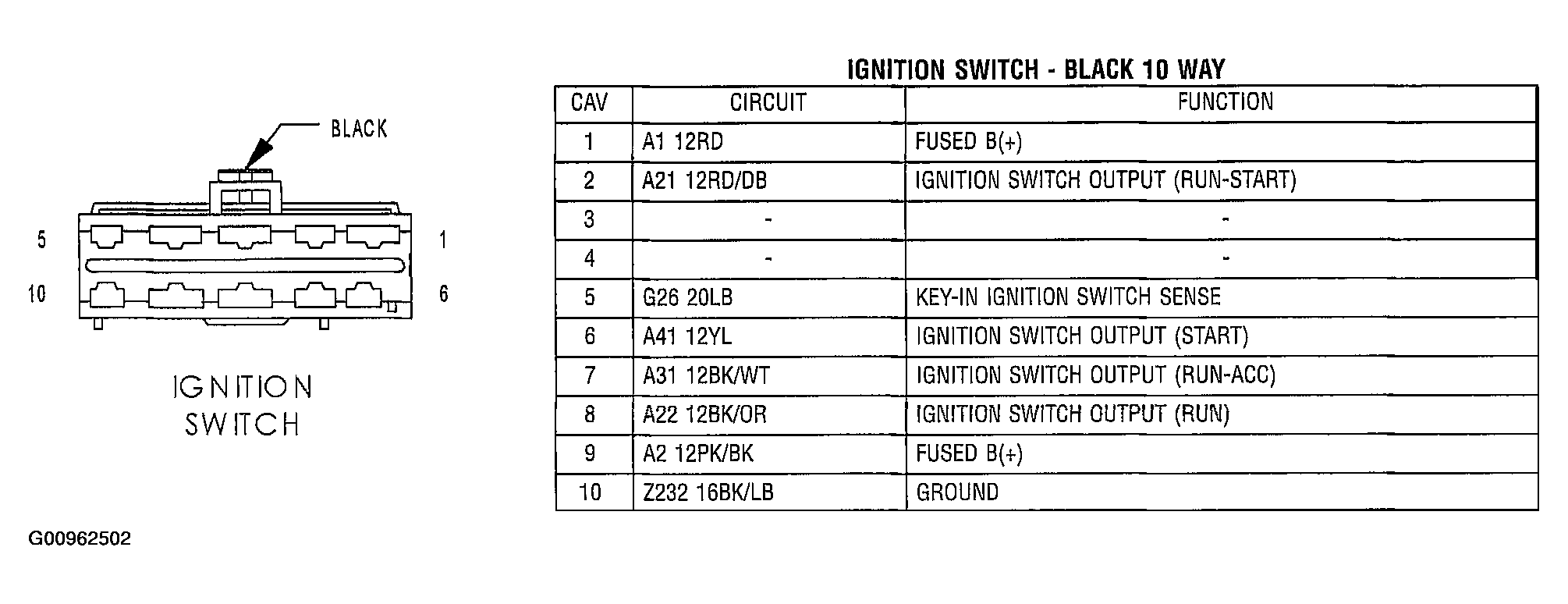

Fig 44: Identifying Ignition Switch - Black 10 Way Connector

G00962502

Courtesy of DAIMLERCHRYSLER CORP.

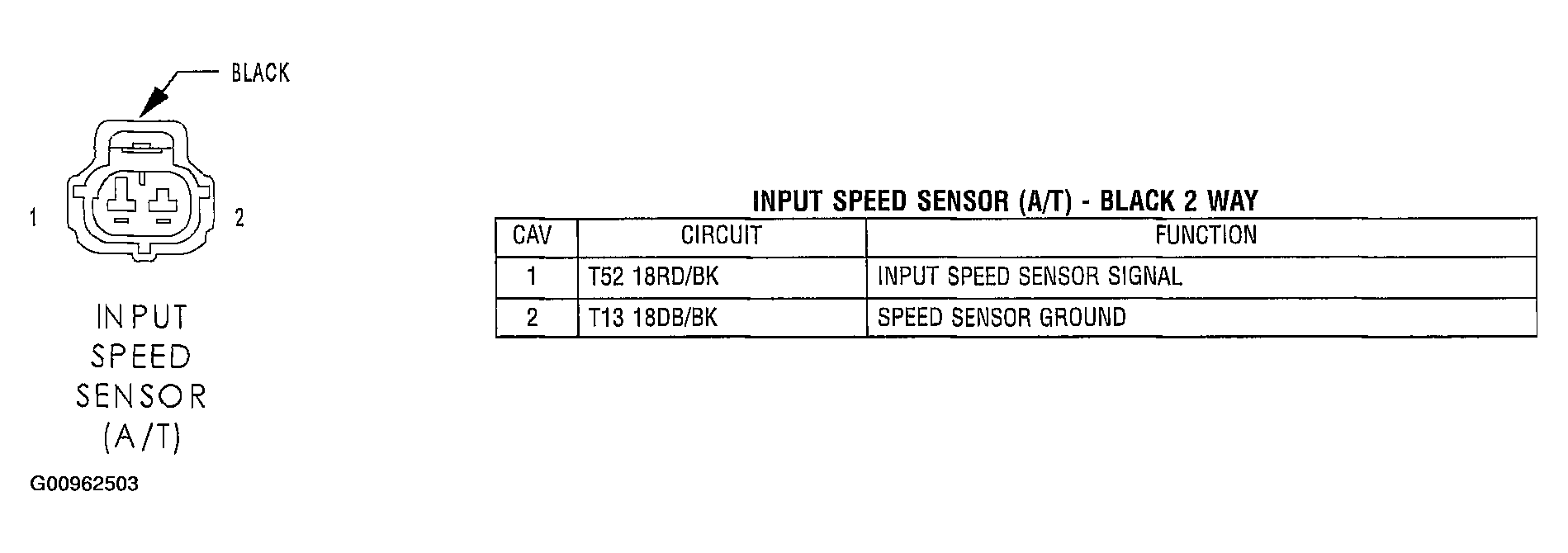

Fig 45: Identifying Input Speed Sensor (A/T) - Black 2 Way Connector

G00962503

Courtesy of DAIMLERCHRYSLER CORP.

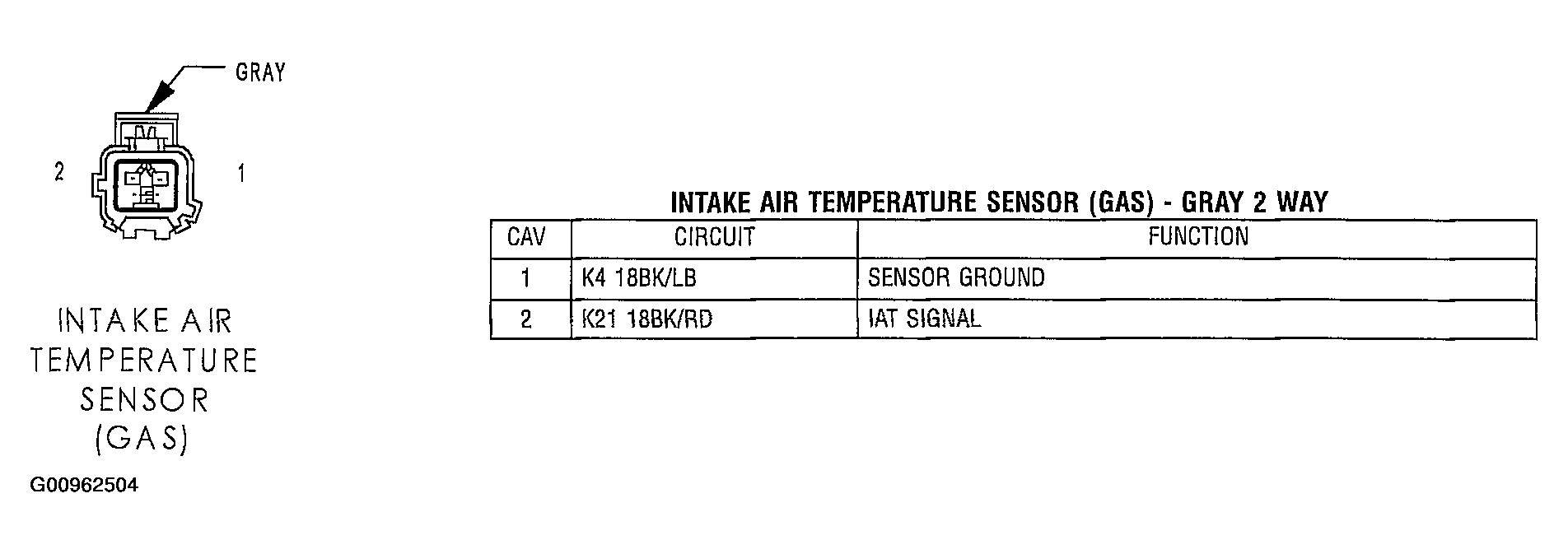

Fig 46: Identifying Intake Air Temperature Sensor (Gas) - Gray 2 Way Connector

G00962504

Courtesy of DAIMLERCHRYSLER CORP.

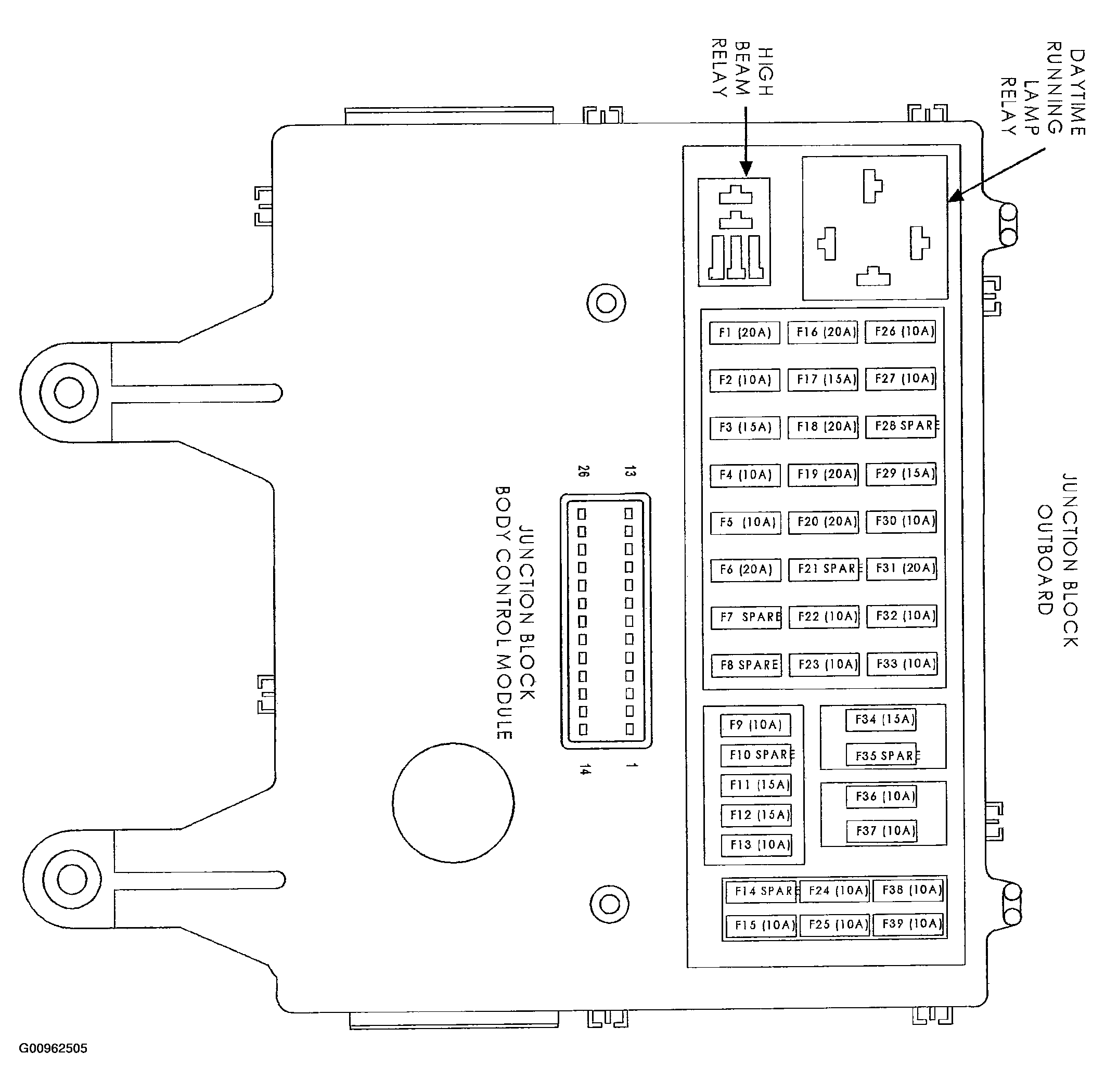

Fig 47: Identifying Junction Block (Outboard)

G00962505

Courtesy of DAIMLERCHRYSLER CORP.

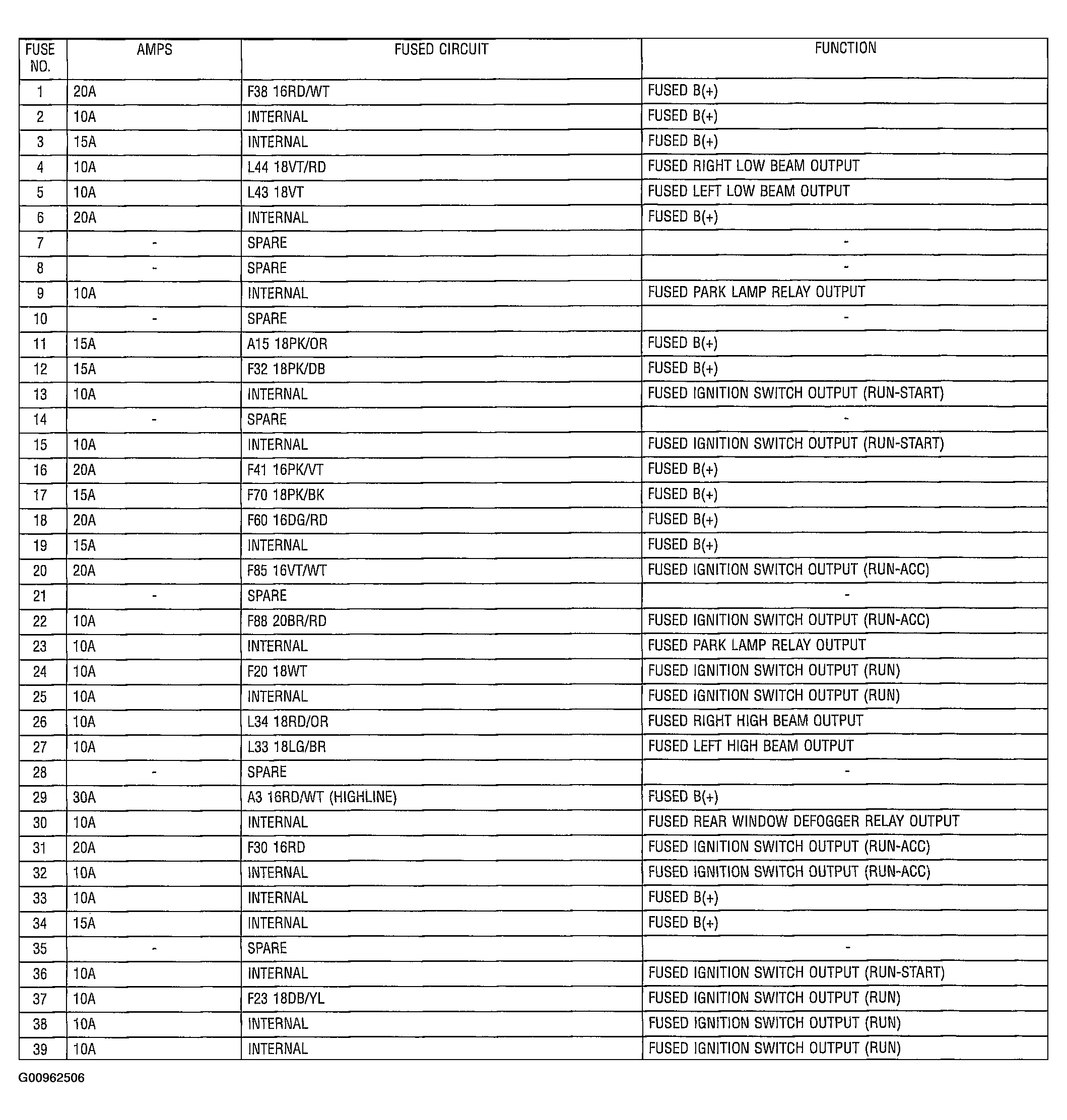

Fig 48: Identifying Junction Block (Outboard) Terminals

G00962506

Courtesy of DAIMLERCHRYSLER CORP.

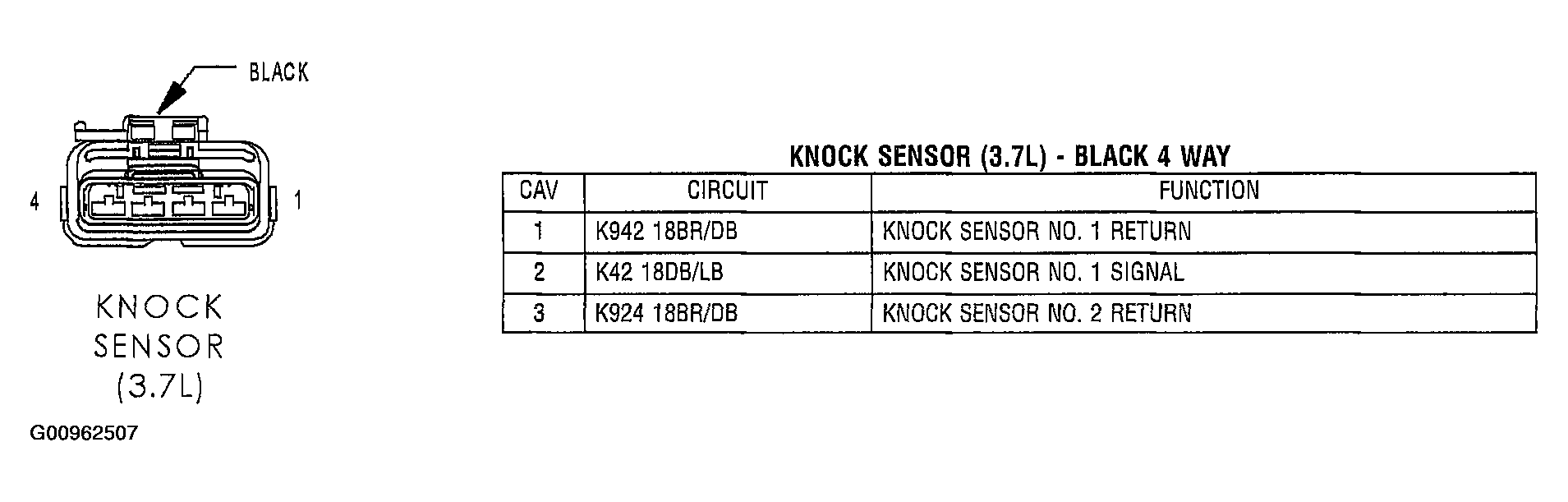

Fig 49: Identifying Knock Sensor (3.7L) - Black 4 Way Connector

G00962507

Courtesy of DAIMLERCHRYSLER CORP.

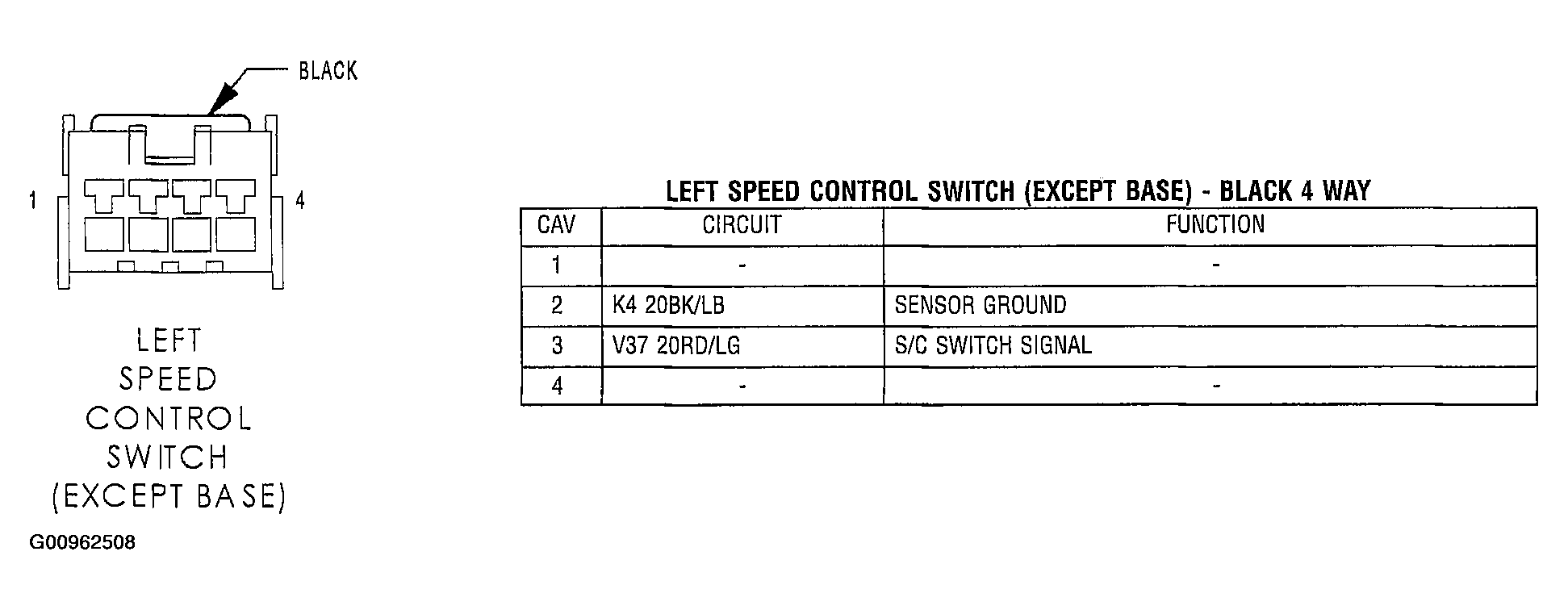

Fig 50: Identifying Left Speed Control Switch (Except Base) - Black 4 Way Connector

G00962508

Courtesy of DAIMLERCHRYSLER CORP.

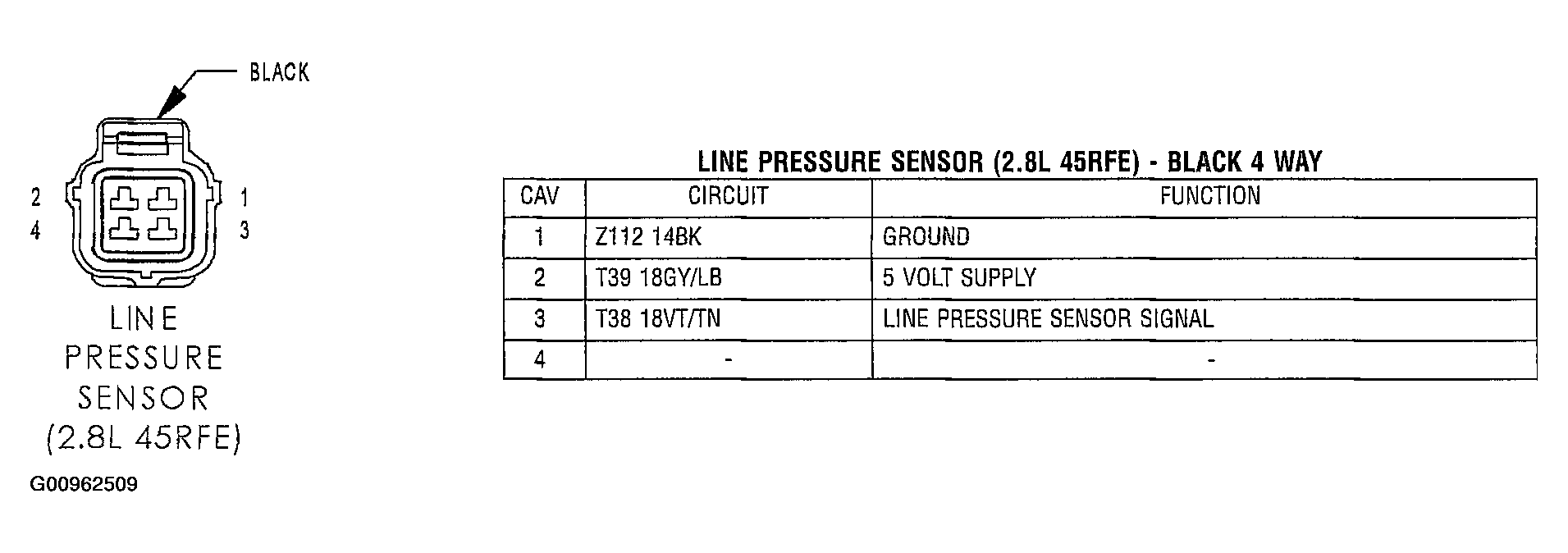

Fig 51: Identifying Line Pressure Sensor (2.8L 45RFE) - Black 4 Way Connector

G00962509

Courtesy of DAIMLERCHRYSLER CORP.

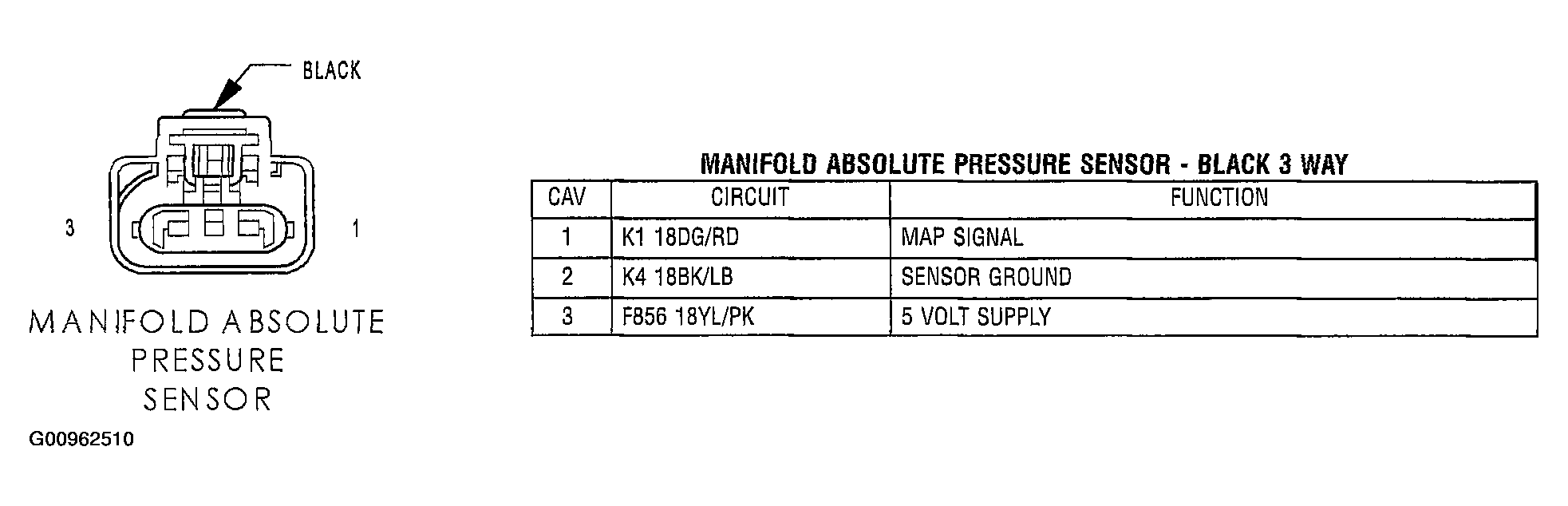

Fig 52: Identifying Manifold Absolute Pressure Sensor - Black 3 Way Connector

G00962510

Courtesy of DAIMLERCHRYSLER CORP.

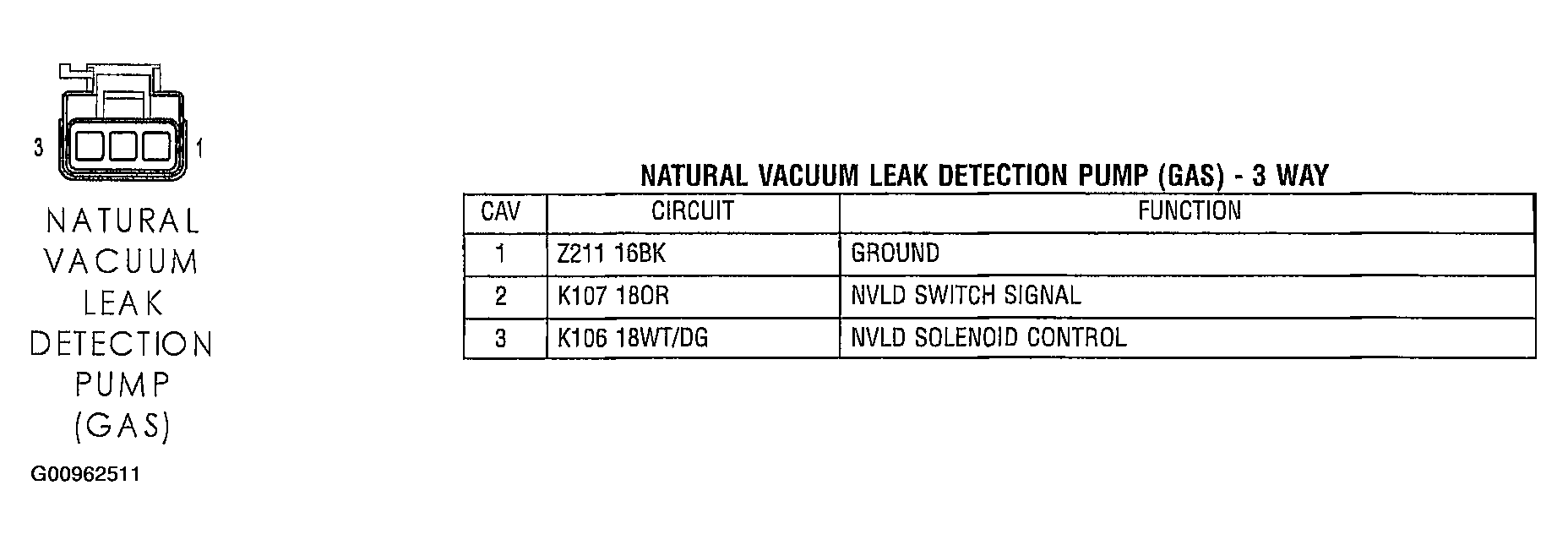

Fig 53: Identifying Natural Vacuum Leak Detection Pump (Gas) - 3 Way Connector

G00962511

Courtesy of DAIMLERCHRYSLER CORP.

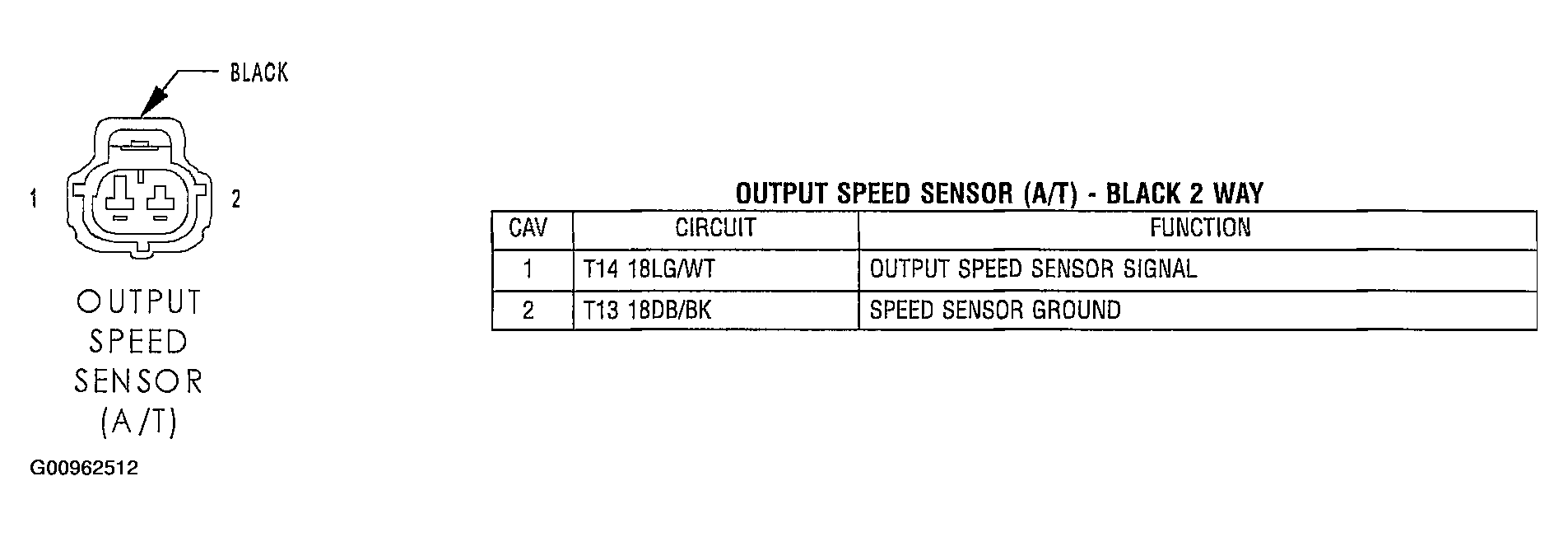

Fig 54: Identifying Output Speed Sensor (A/T) - Black 2 Way Connector

G00962512

Courtesy of DAIMLERCHRYSLER CORP.

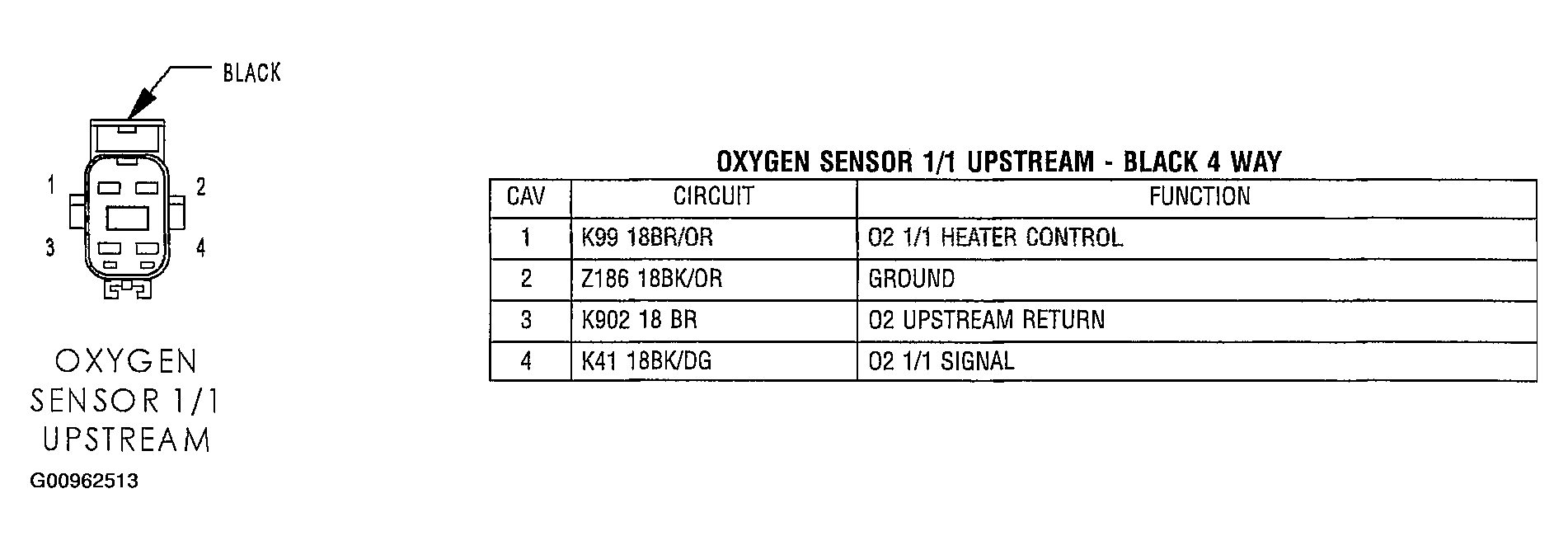

Fig 55: Identifying Oxygen Sensor 1/1 Upstream - Black 4 Way Connector

G00962513

Courtesy of DAIMLERCHRYSLER CORP.

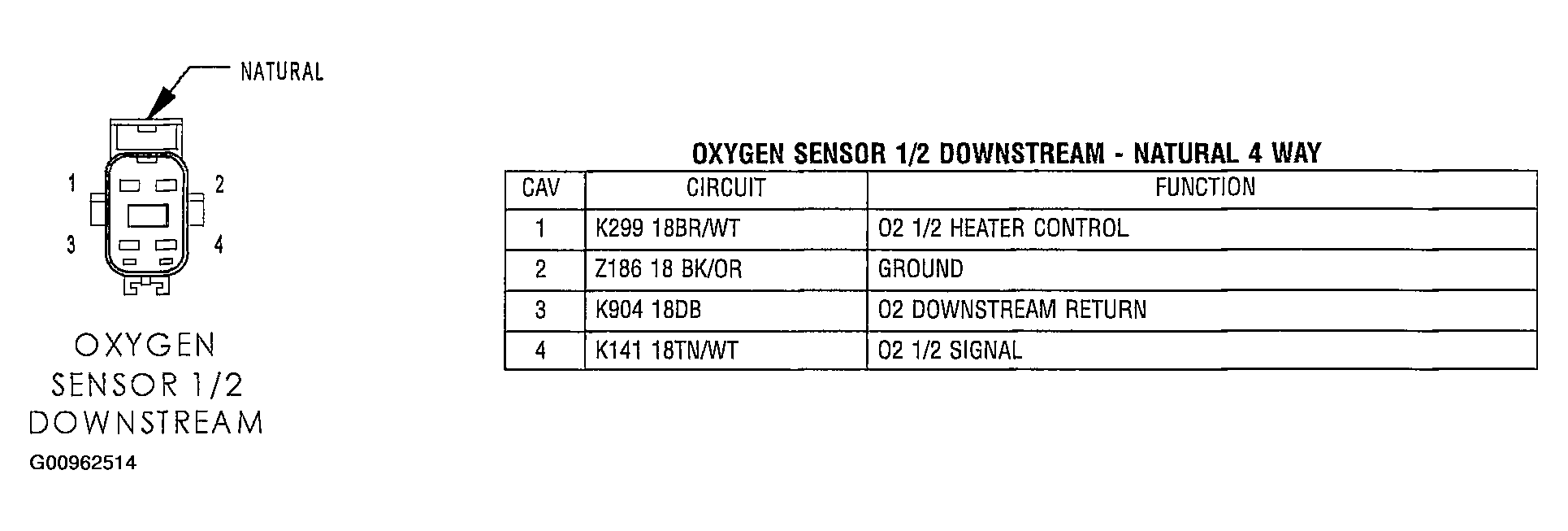

Fig 56: Identifying Oxygen Sensor 1/2 Downstream - Natural 4 Way Connector

G00962514

Courtesy of DAIMLERCHRYSLER CORP.

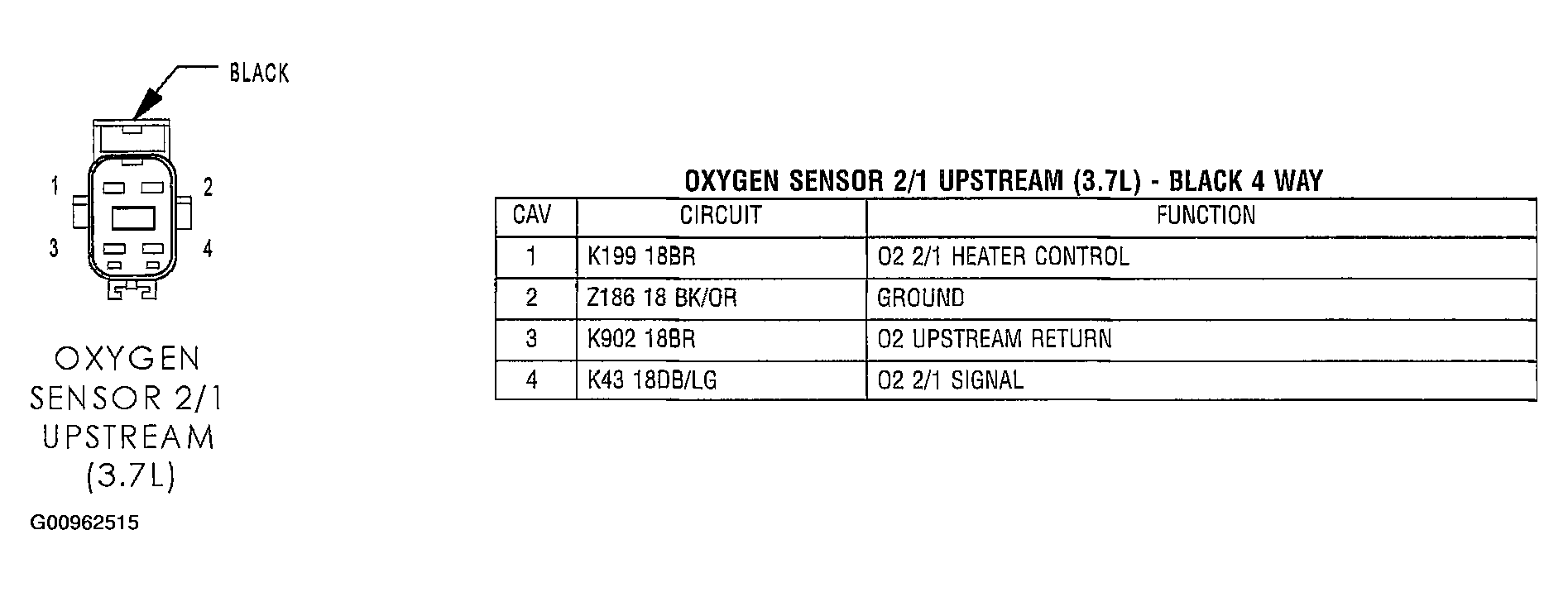

Fig 57: Identifying Oxygen Sensor 2/1 Upstream (3.7L) - Black 4 Way Connector

G00962515

Courtesy of DAIMLERCHRYSLER CORP.

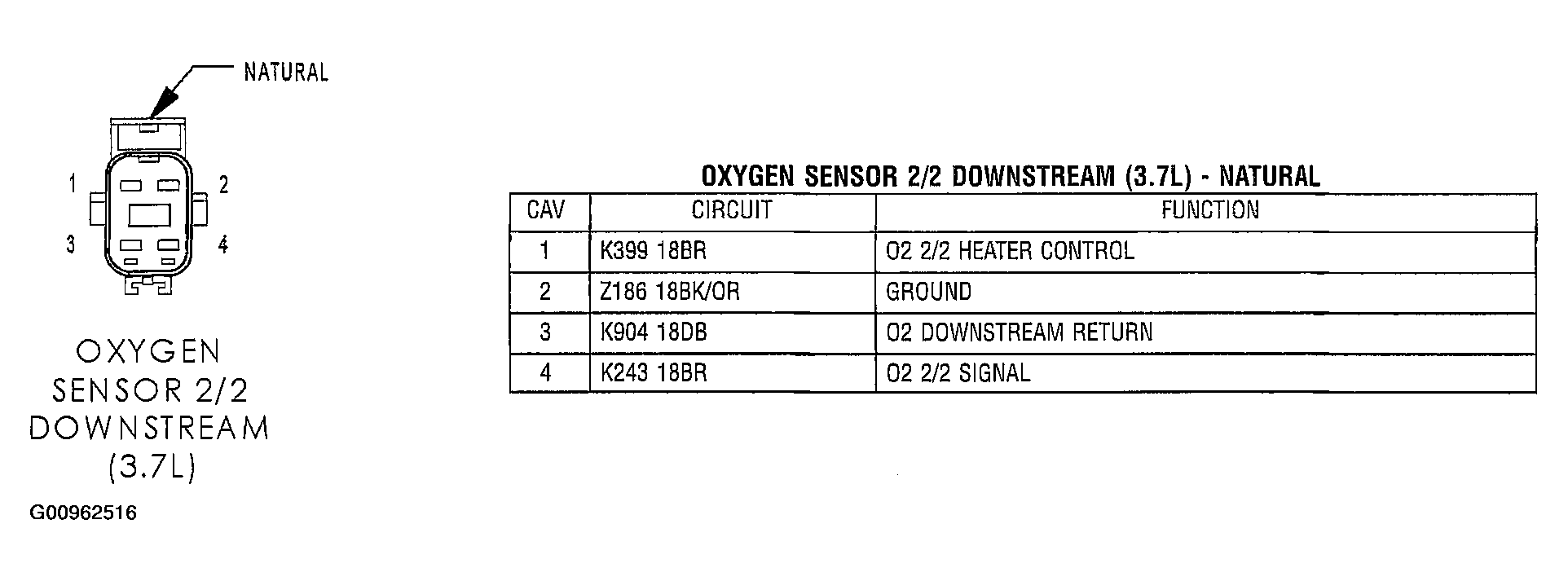

Fig 58: Identifying Oxygen Sensor 2/2 Downstream (3.7L) - Natural Connector

G00962516

Courtesy of DAIMLERCHRYSLER CORP.

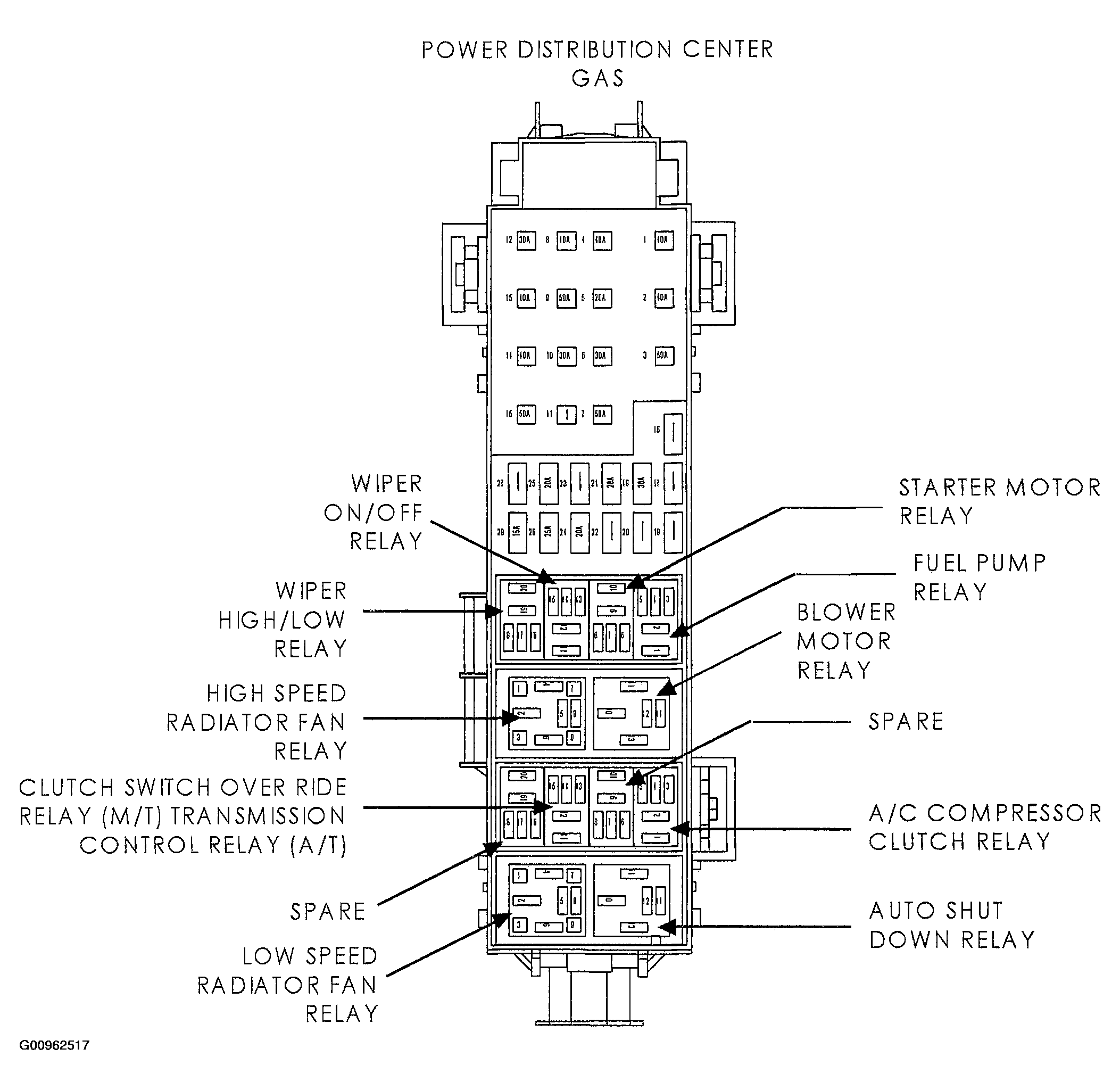

Fig 59: Identifying Power Distribution Center

G00962517

Courtesy of DAIMLERCHRYSLER CORP.

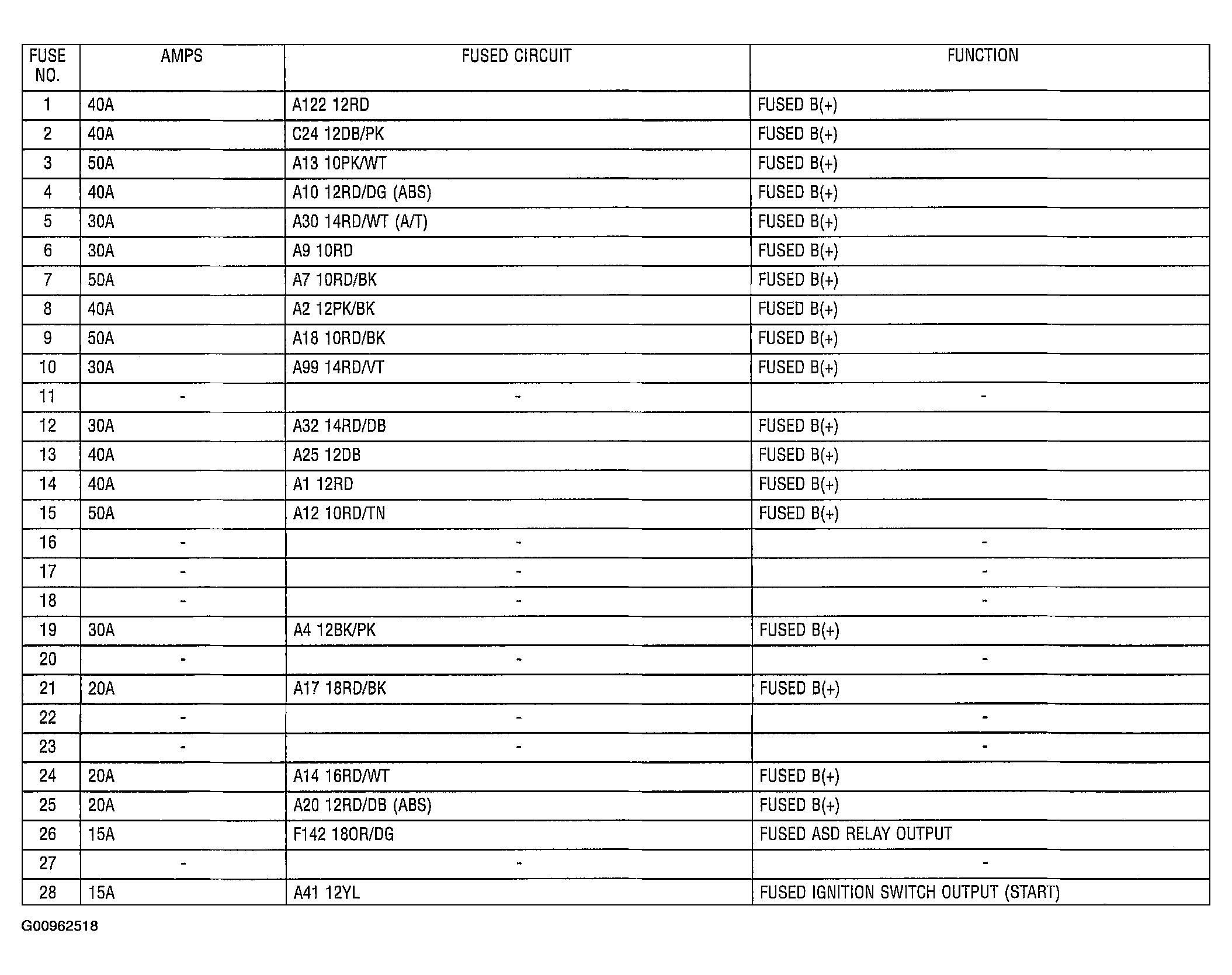

Fig 60: Identifying Power Distribution Center Fuses (Gas)

G00962518

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying Power Distribution Center Auto Shut Down Relay

G00962519

Courtesy of DAIMLERCHRYSLER CORP.

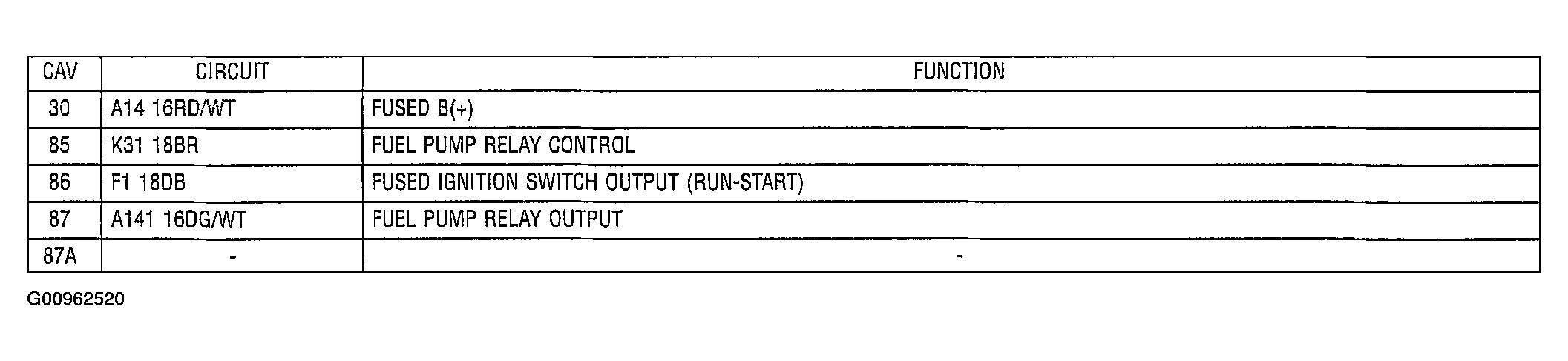

Fig 62: Identifying Power Distribution Center Fuel Pump Relay (Gas)

G00962520

Courtesy of DAIMLERCHRYSLER CORP.

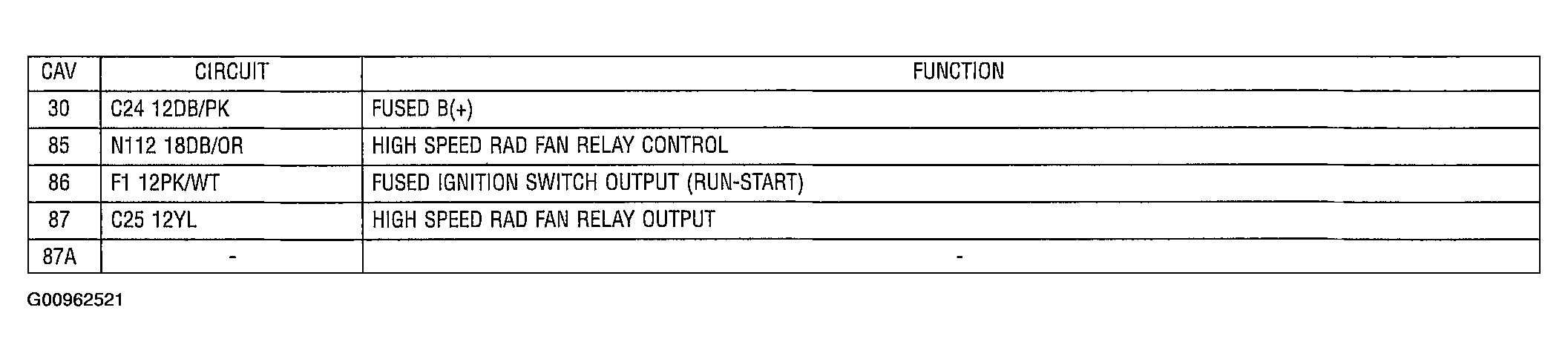

Fig 63: Identifying High Speed Radiator Fan Relay (Gas)

G00962521

Courtesy of DAIMLERCHRYSLER CORP.

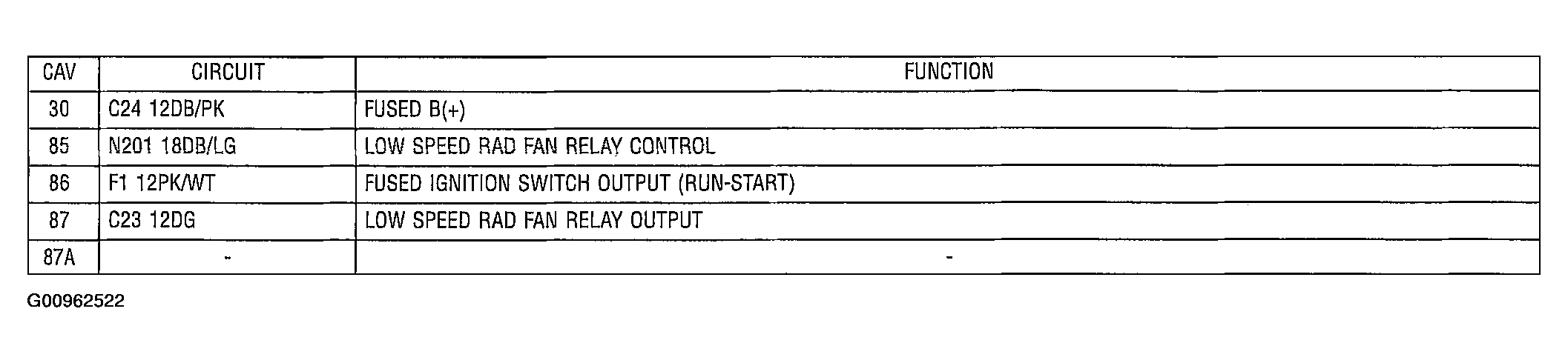

Fig 64: Identifying Power Distribution Center Low Speed Radiator Fan Relay (Gas)

G00962522

Courtesy of DAIMLERCHRYSLER CORP.

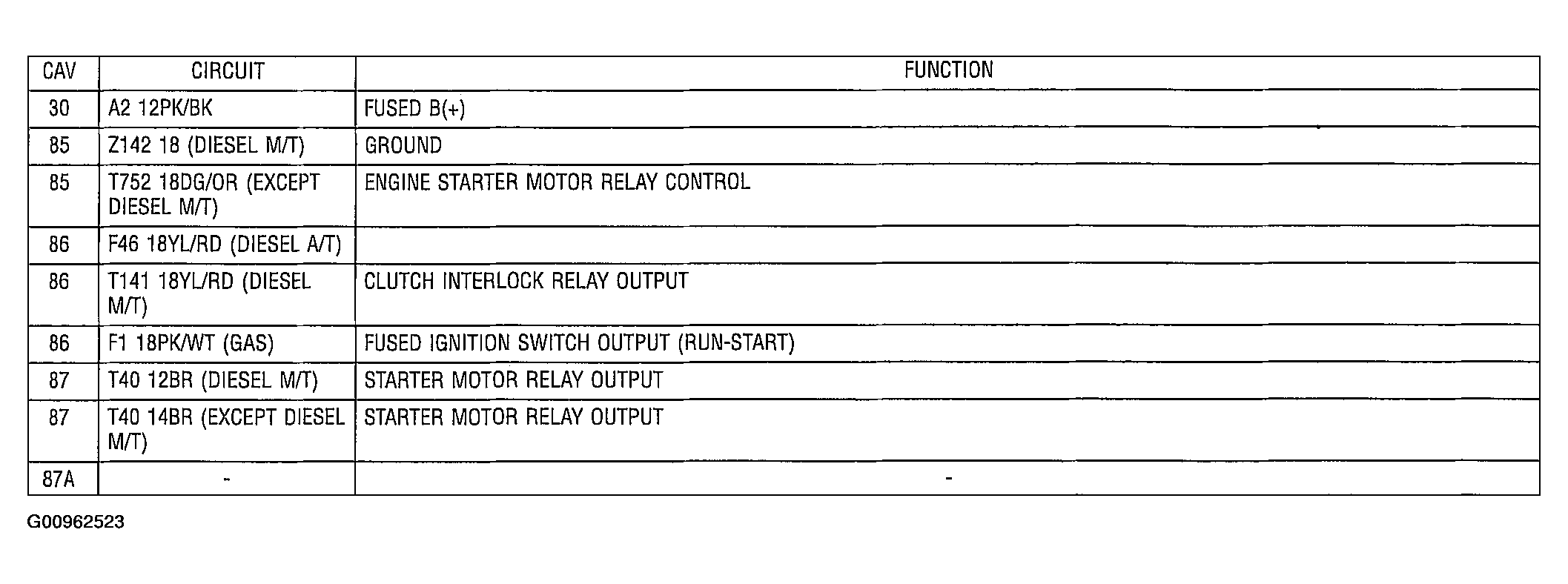

Fig 65: Identifying Power Distribution Center Starter Motor Relay

G00962523

Courtesy of DAIMLERCHRYSLER CORP.

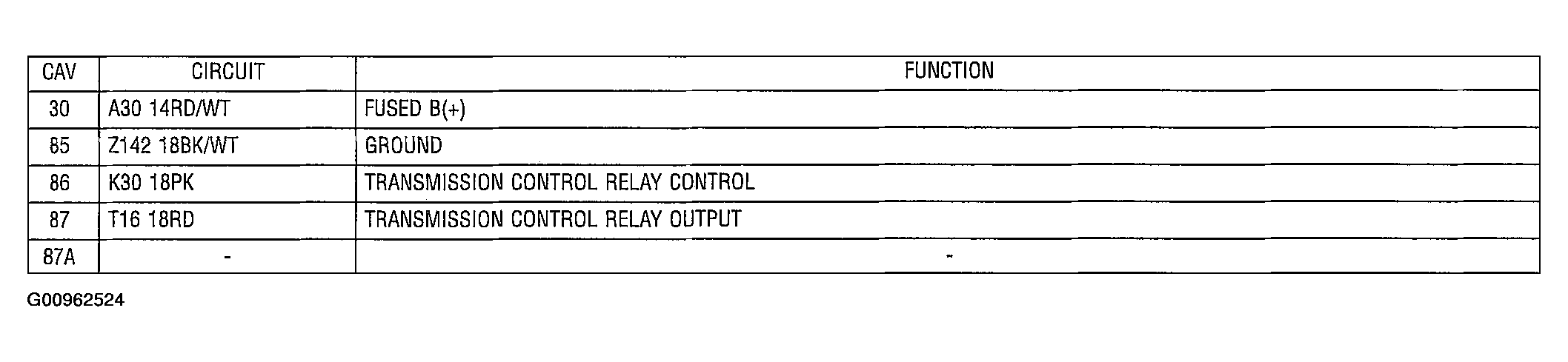

Fig 66: Identifying Power Distribution Center Transmission Control Relay (A/T)

G00962524

Courtesy of DAIMLERCHRYSLER CORP.

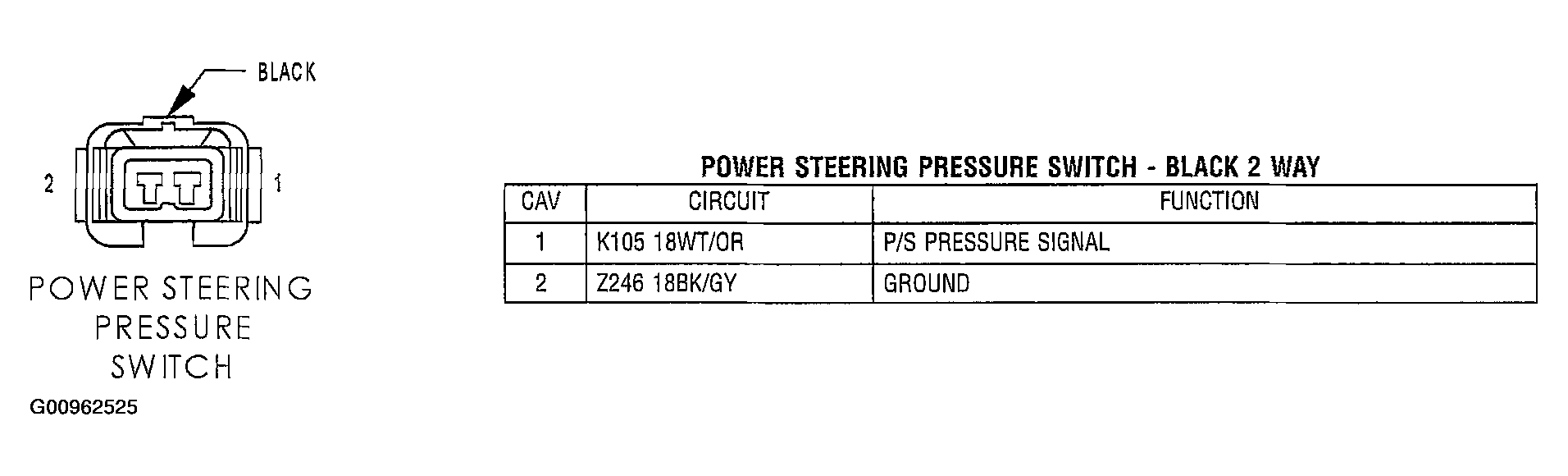

Fig 67: Identifying Power Steering Pressure Switch - Black 2 Way Connector

G00962525

Courtesy of DAIMLERCHRYSLER CORP.

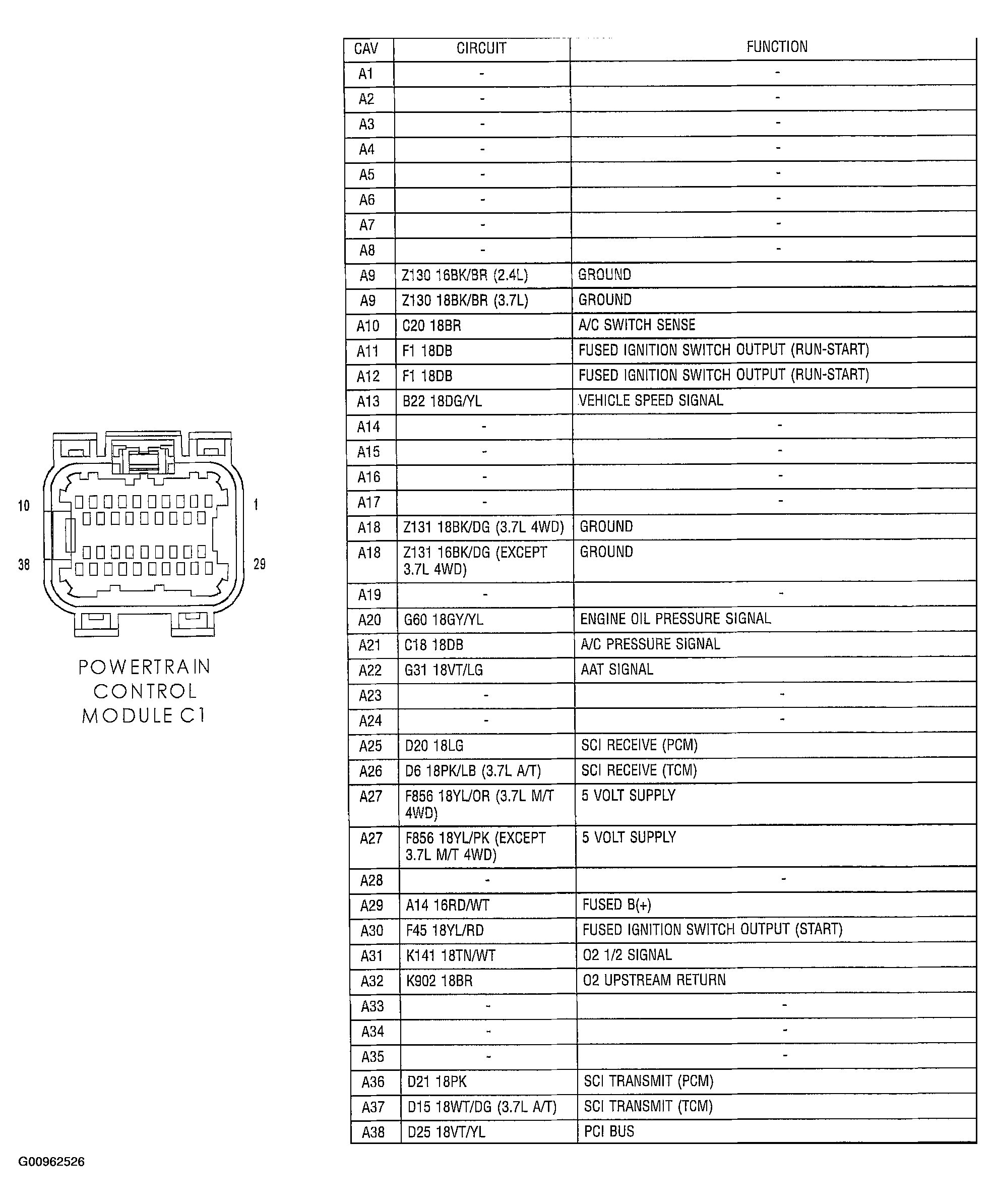

Fig 68: Identifying Powertrain Control Module C1 - 38 Way Connector

G00962526

Courtesy of DAIMLERCHRYSLER CORP.

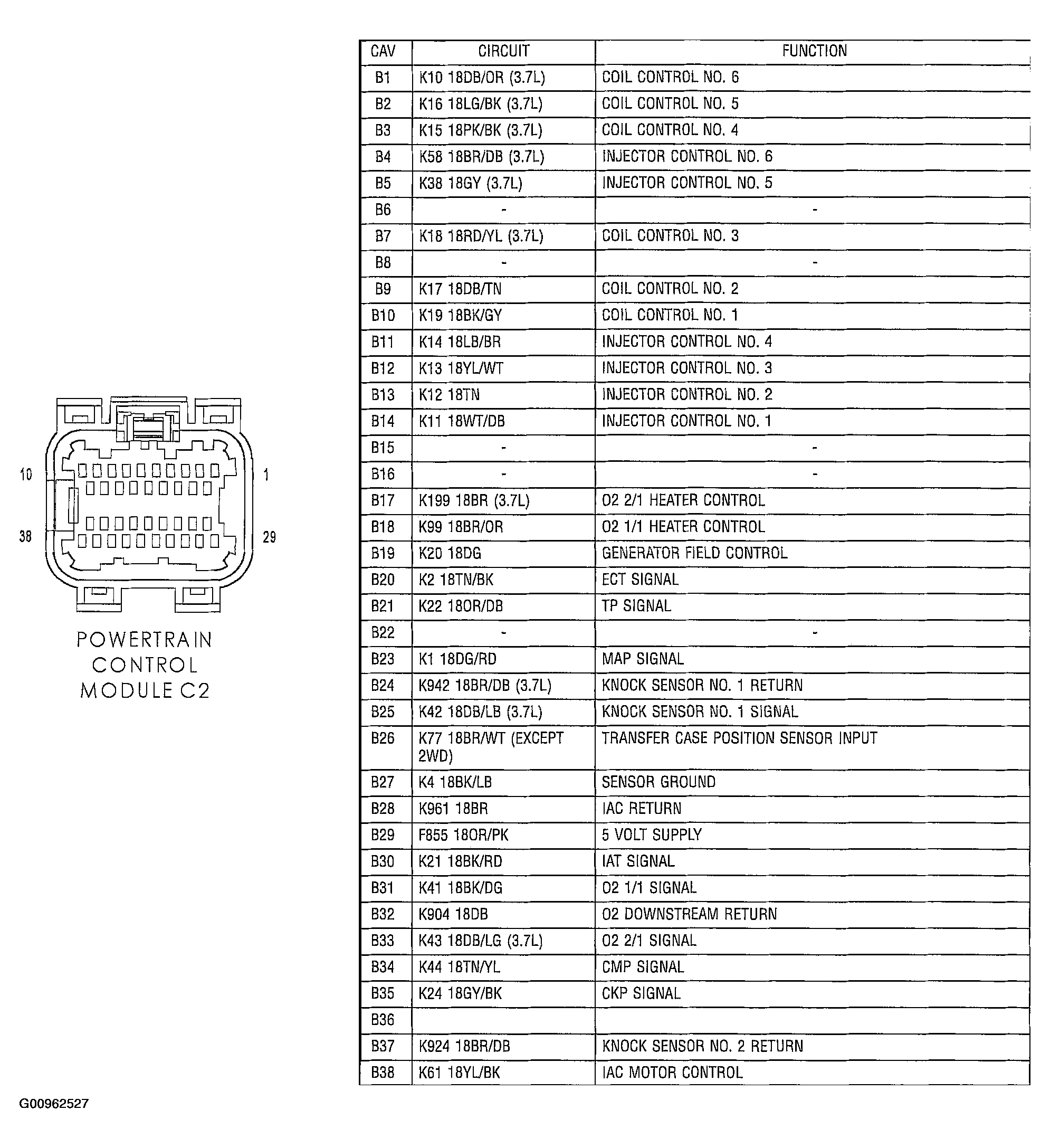

Fig 69: Identifying Powertrain Control Module C2 - 38 Way Connector

G00962527

Courtesy of DAIMLERCHRYSLER CORP.

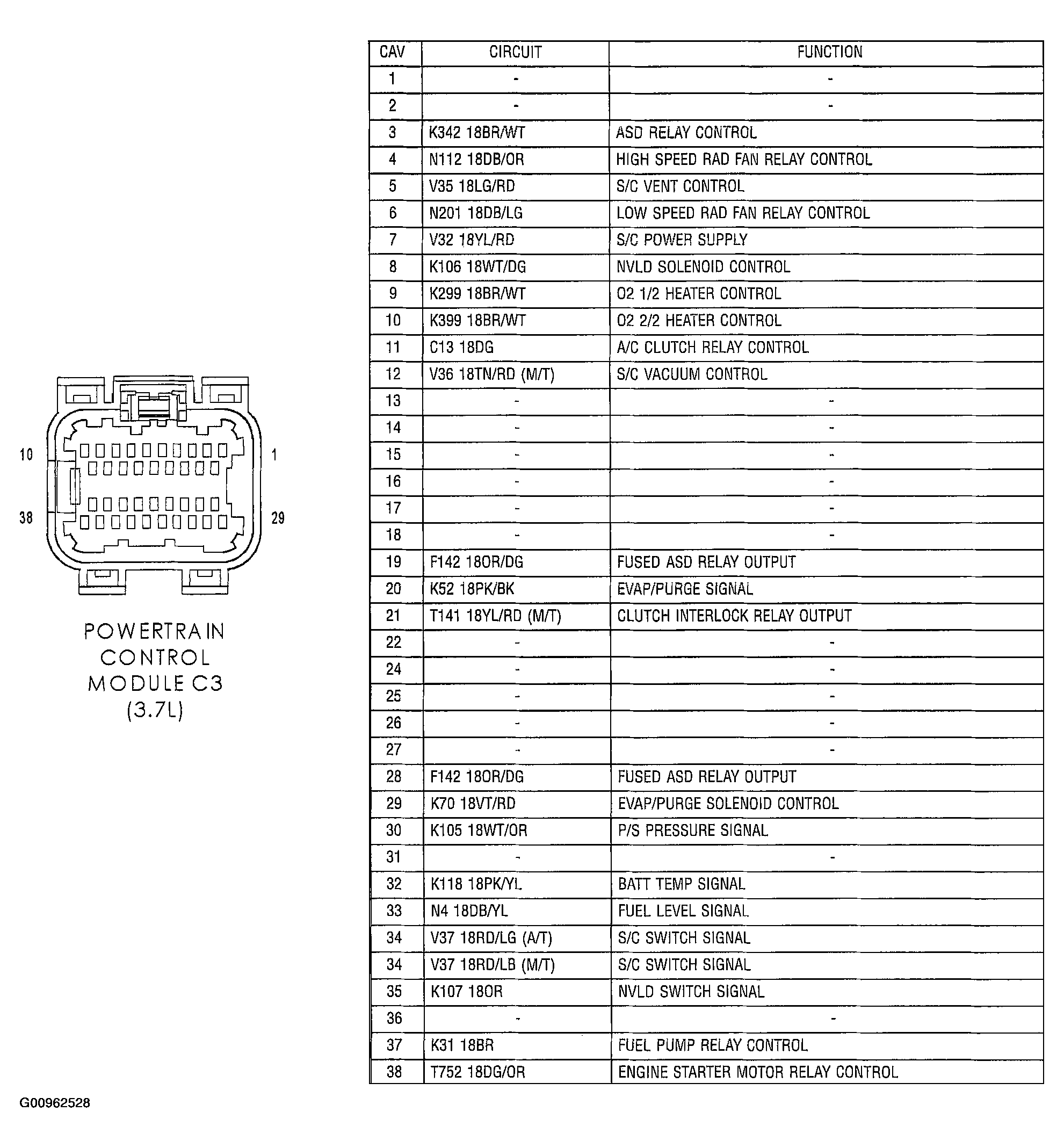

Fig 70: Identifying Powertrain Control Module C3 (3.7L) - 38 Way Connector

G00962528

Courtesy of DAIMLERCHRYSLER CORP.

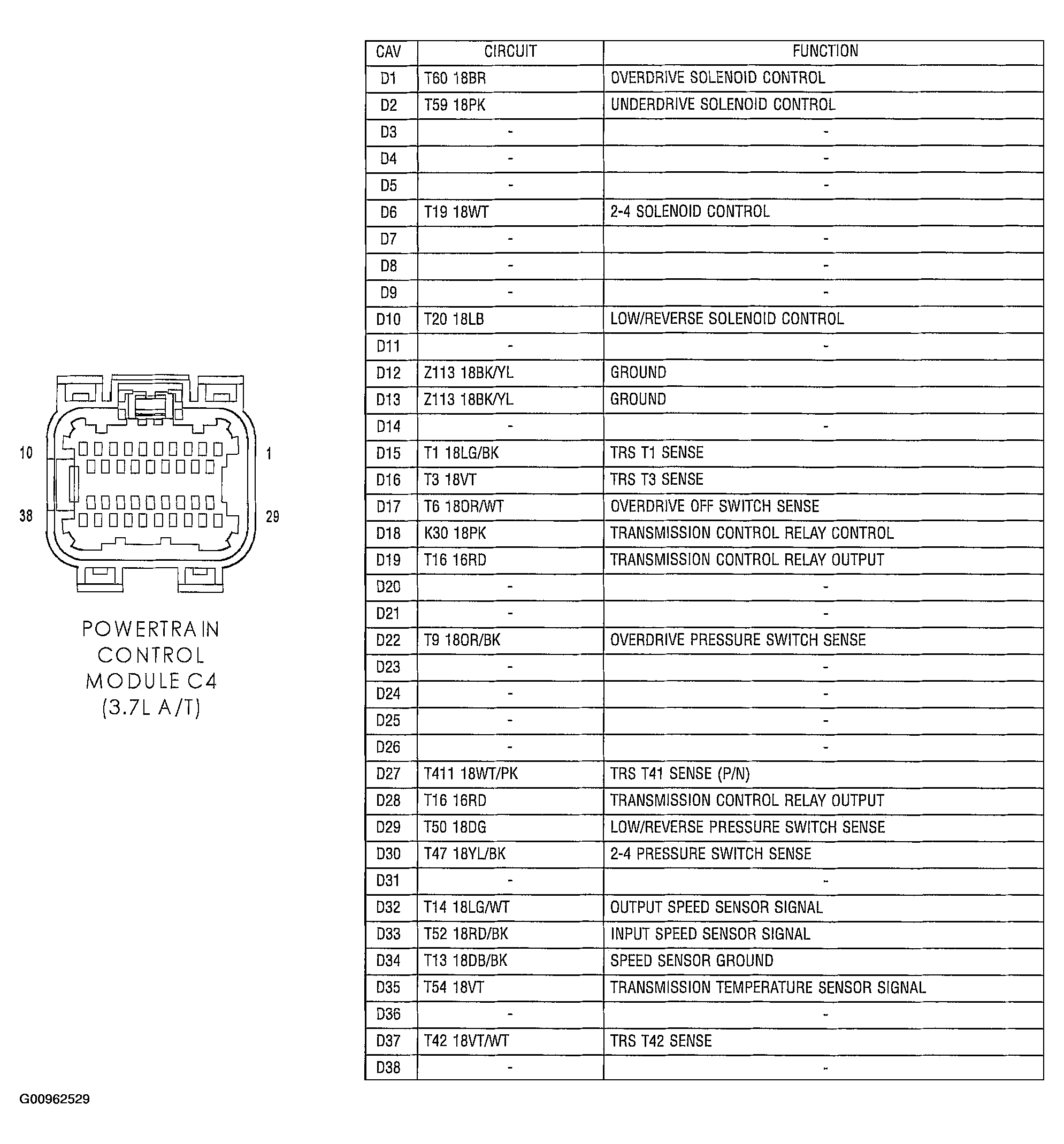

Fig 71: Identifying Powertrain Control Module C4 (3.7L A/T) - 38 Way Connector

G00962529

Courtesy of DAIMLERCHRYSLER CORP.

Fig 72: Identifying Radiator Fan Motor - 3 Way Connector

G00962530

Courtesy of DAIMLERCHRYSLER CORP.

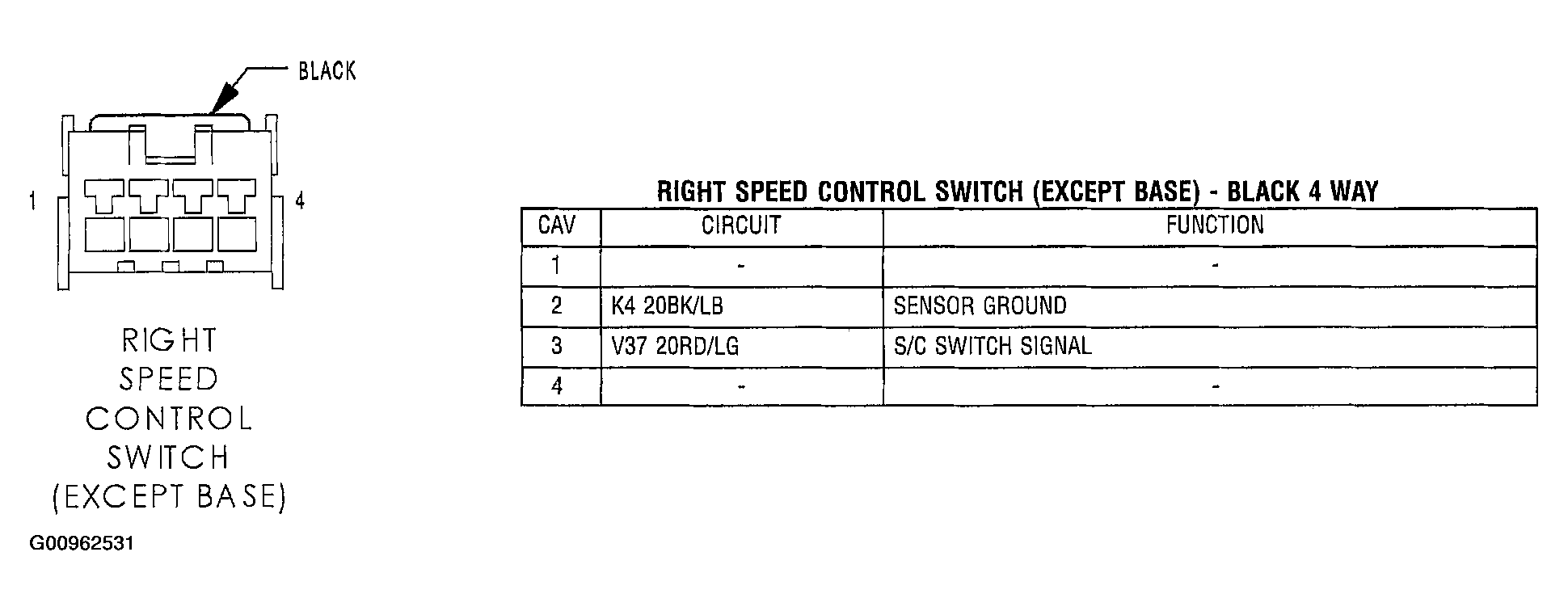

Fig 73: Identifying Right Speed Control Switch (Except Base) - Black 4 Way Connector

G00962531

Courtesy of DAIMLERCHRYSLER CORP.

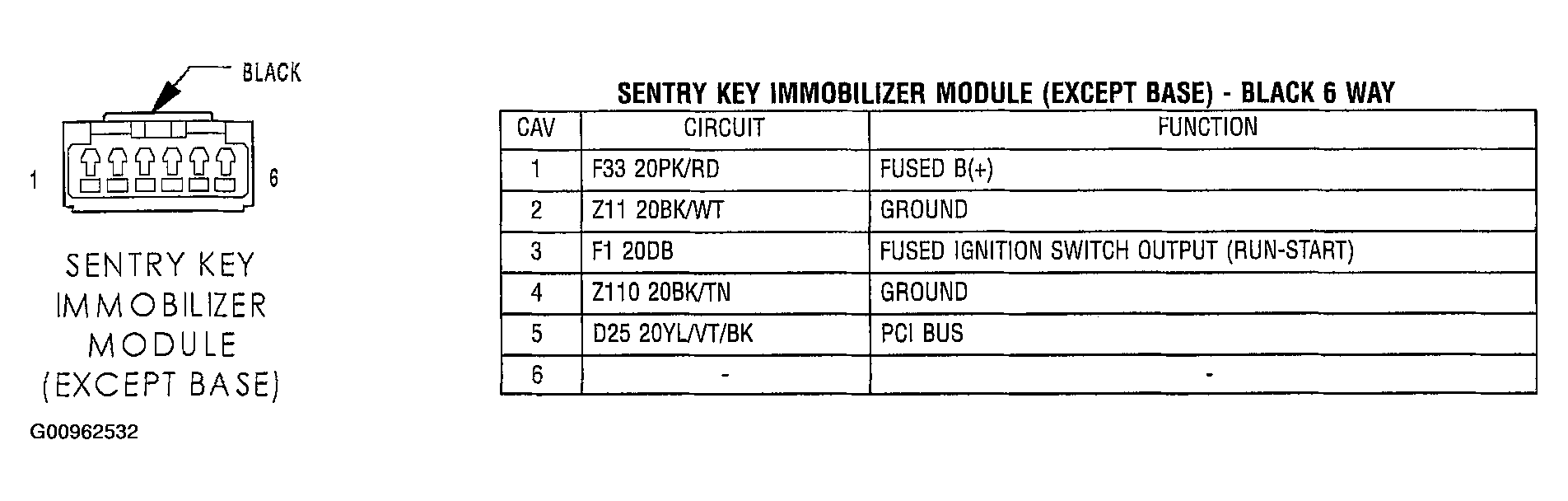

Fig 74: Identifying Sentry Key Immobilizer Module (Except Base) - Black 6 Way Connector

G00962532

Courtesy of DAIMLERCHRYSLER CORP.

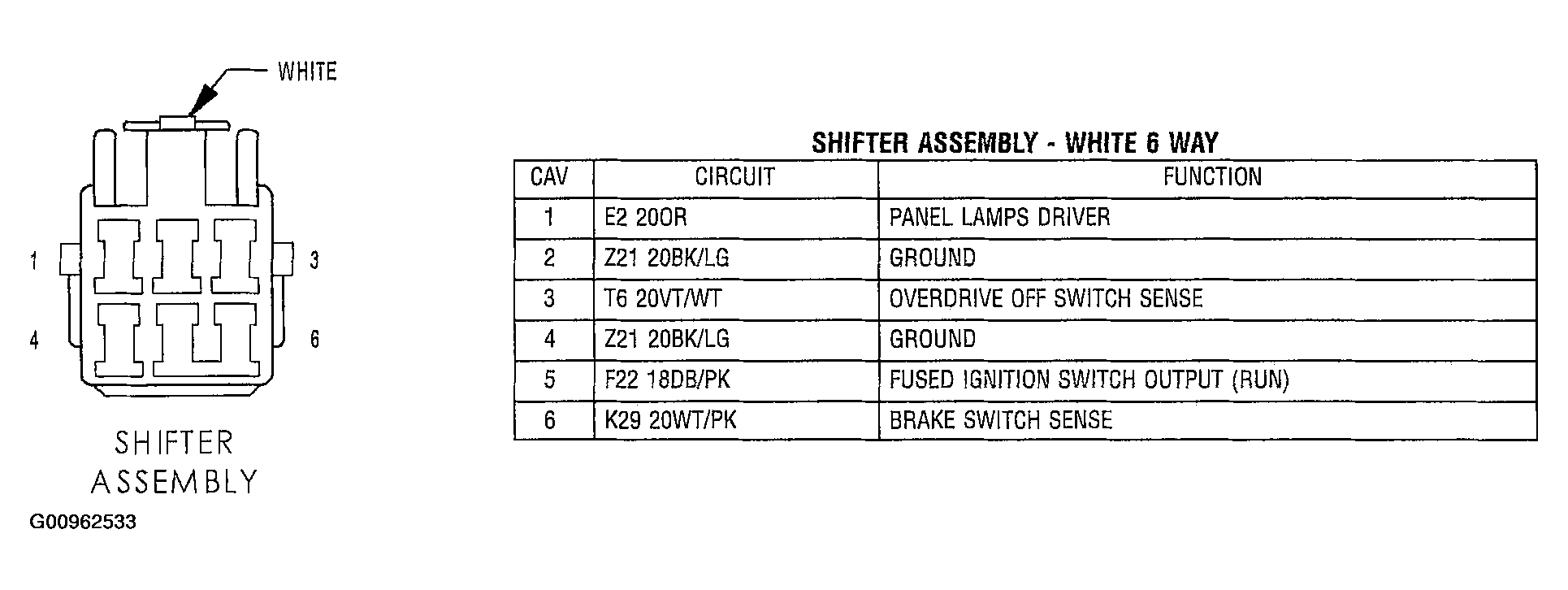

Fig 75: Identifying Shifter Assembly - White 6 Way Connector

G00962533

Courtesy of DAIMLERCHRYSLER CORP.

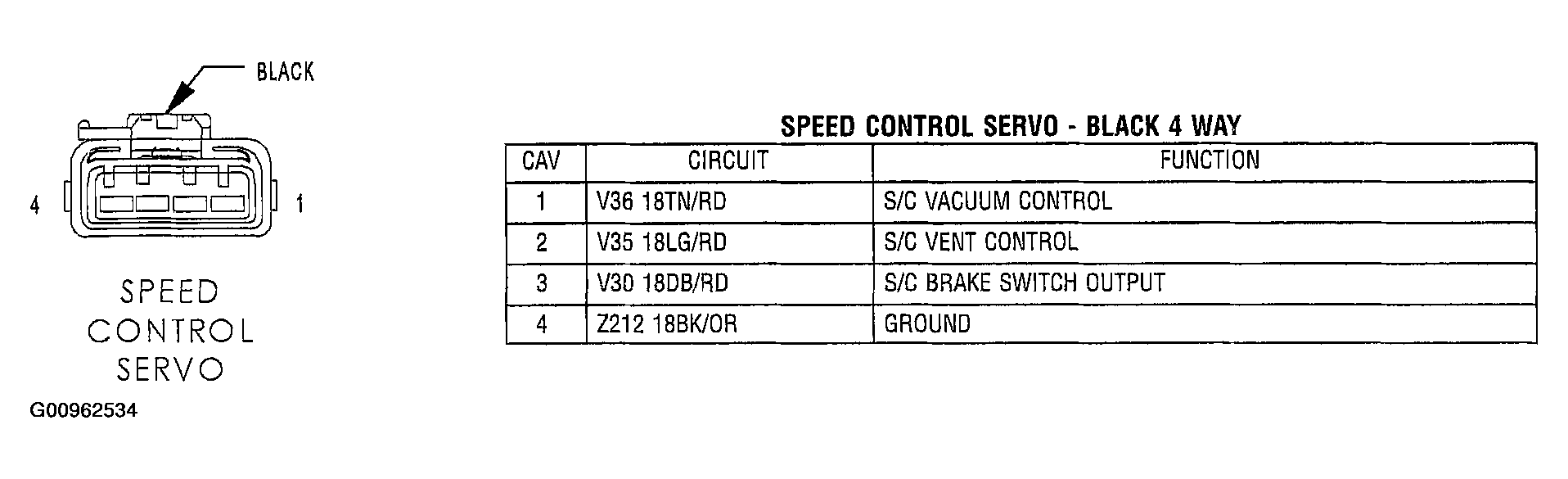

Fig 76: Identifying Speed Control Servo - Black 4 Way Connector

G00962534

Courtesy of DAIMLERCHRYSLER CORP.

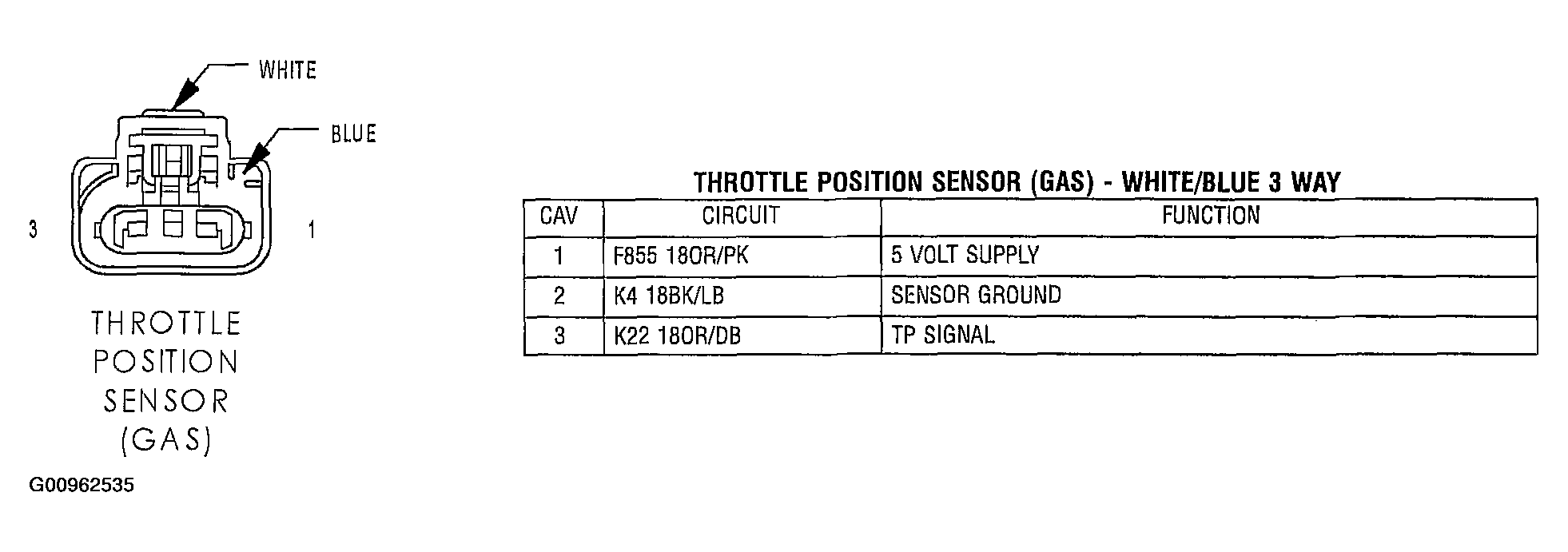

Fig 77: Identifying Throttle Position Sensor (Gas) - White/Blue 3 Way Connector

G00962535

Courtesy of DAIMLERCHRYSLER CORP.

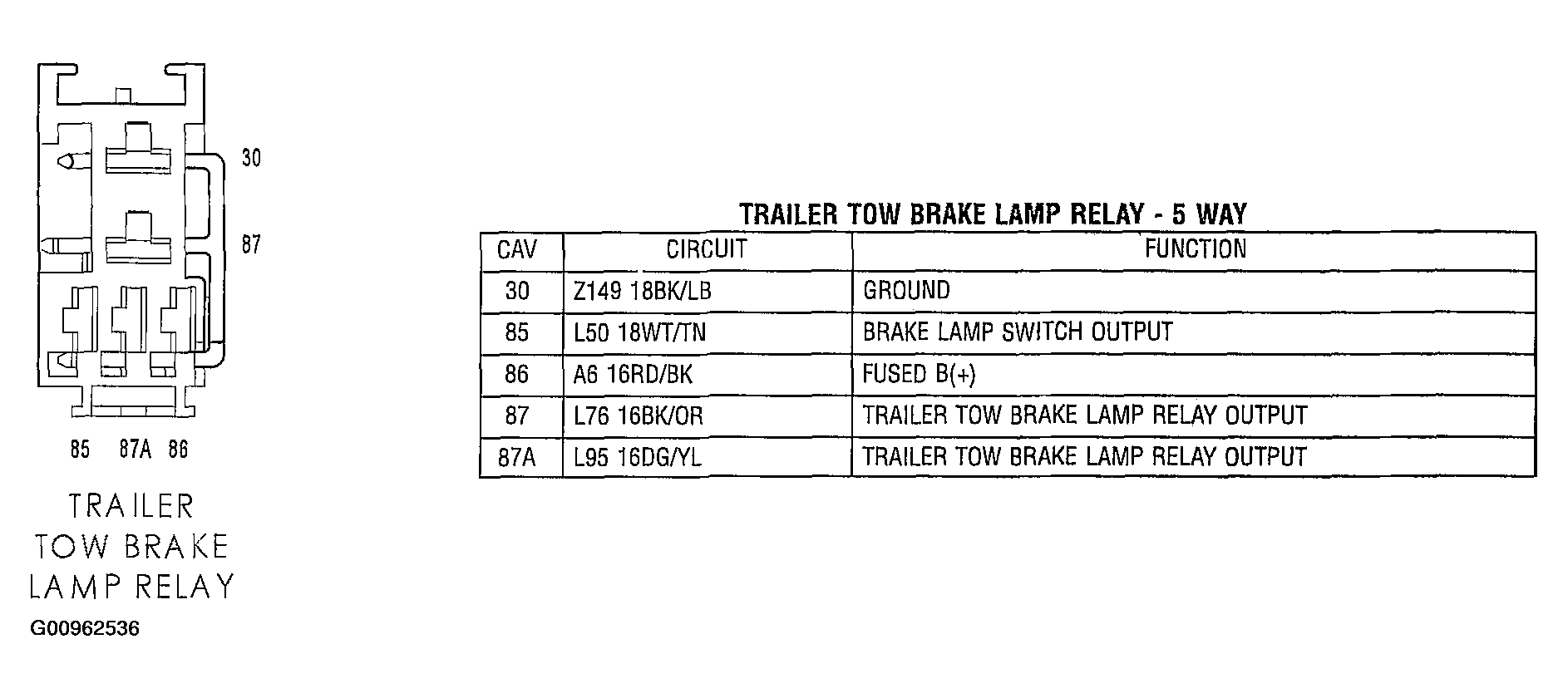

Fig 78: Identifying Trailer Tow Base Lamp Relay - 5 Way Connector

G00962536

Courtesy of DAIMLERCHRYSLER CORP.

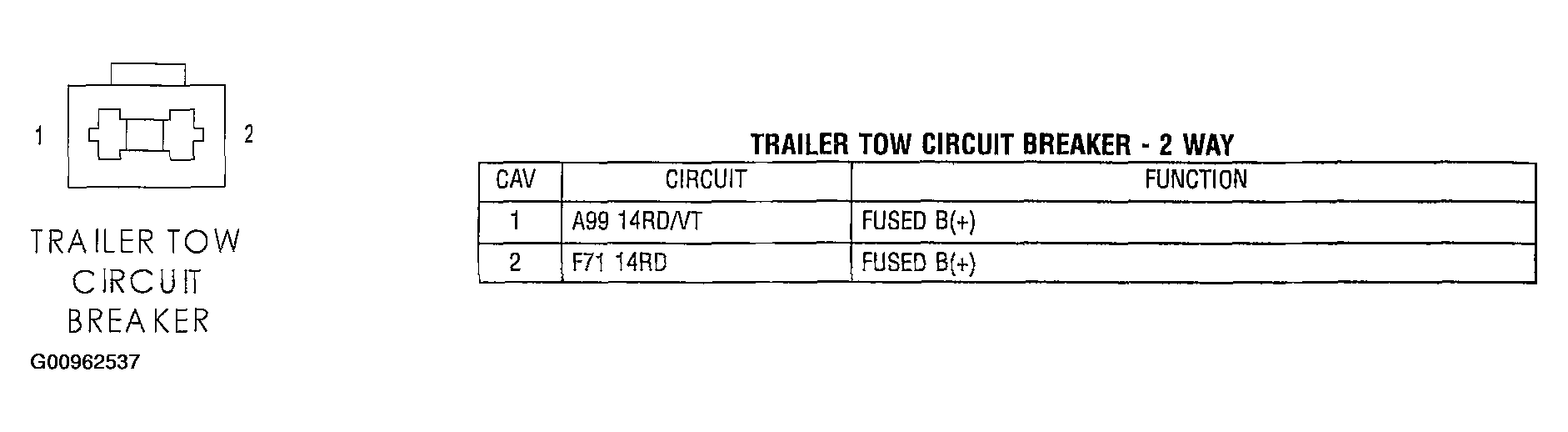

Fig 79: Identifying Trailer Tow Circuit Breaker - 2 Way Connector

G00962537

Courtesy of DAIMLERCHRYSLER CORP.

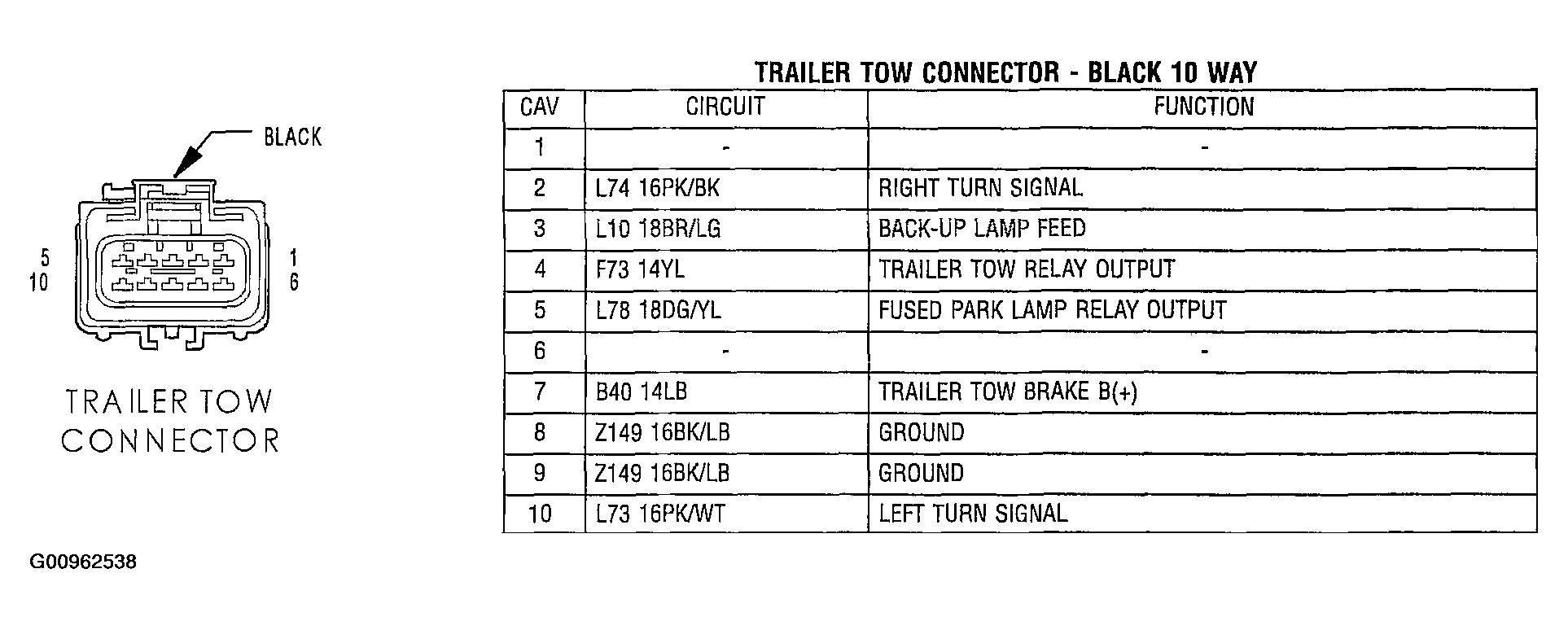

Fig 80: Identifying Trailer Tow Connector - Black 10 Way Connector

G00962538

Courtesy of DAIMLERCHRYSLER CORP.

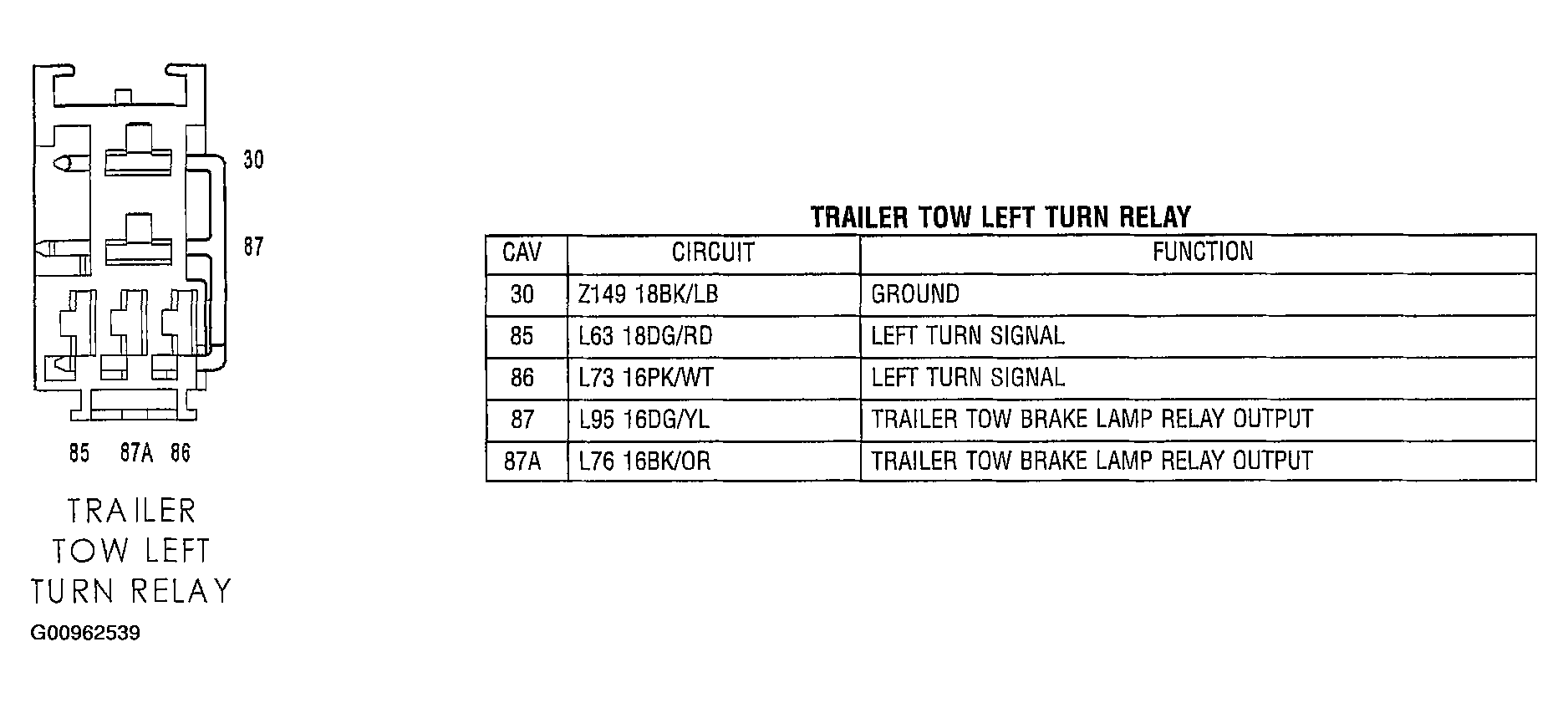

Fig 81: Identifying Trailer Tow Left Turn Relay

G00962539

Courtesy of DAIMLERCHRYSLER CORP.

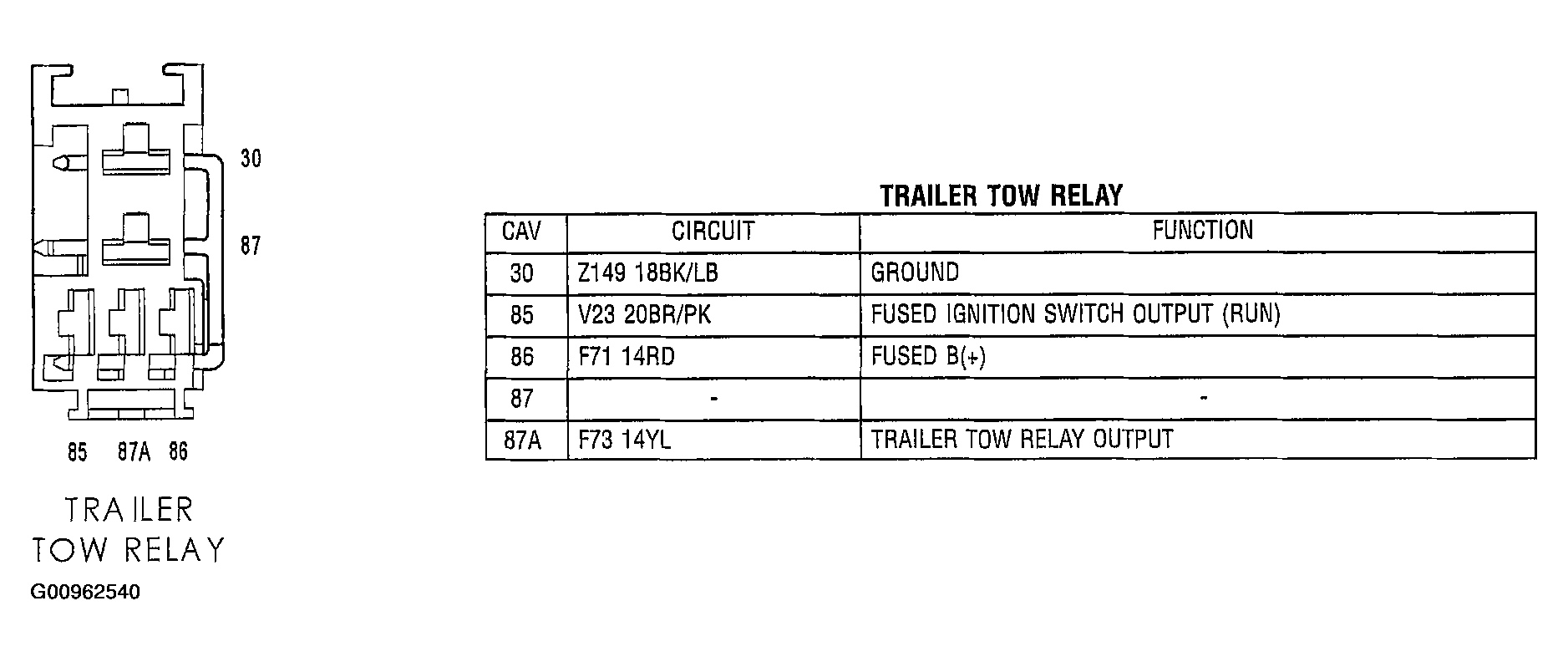

Fig 82: Identifying Trailer Tow Relay

G00962540

Courtesy of DAIMLERCHRYSLER CORP.

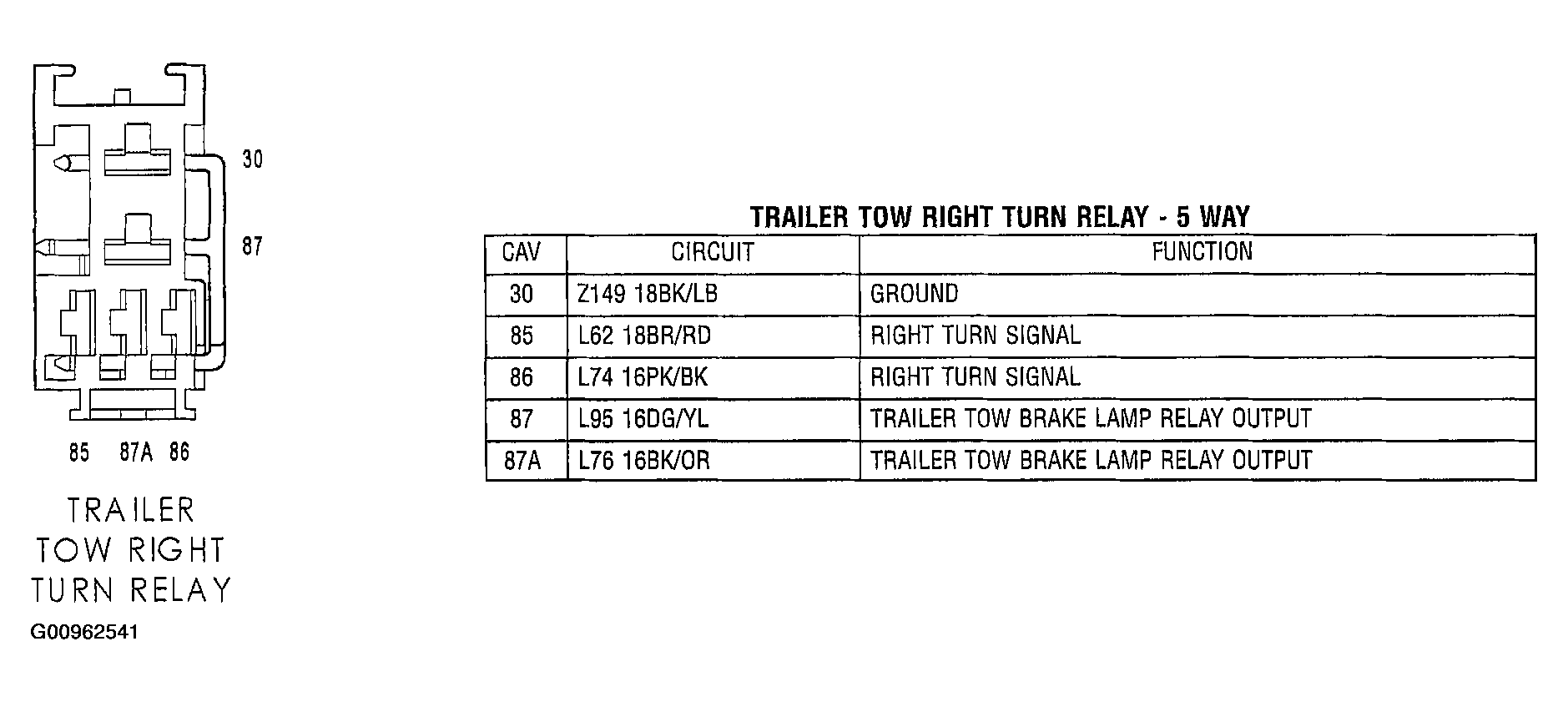

Fig 83: Identifying Trailer Tow Right Turn Relay - 5 Way Connector

G00962541

Courtesy of DAIMLERCHRYSLER CORP.

Fig 84: Identifying Transfer Case Position Sensor - Black 2 Way Connector

G00962542

Courtesy of DAIMLERCHRYSLER CORP.

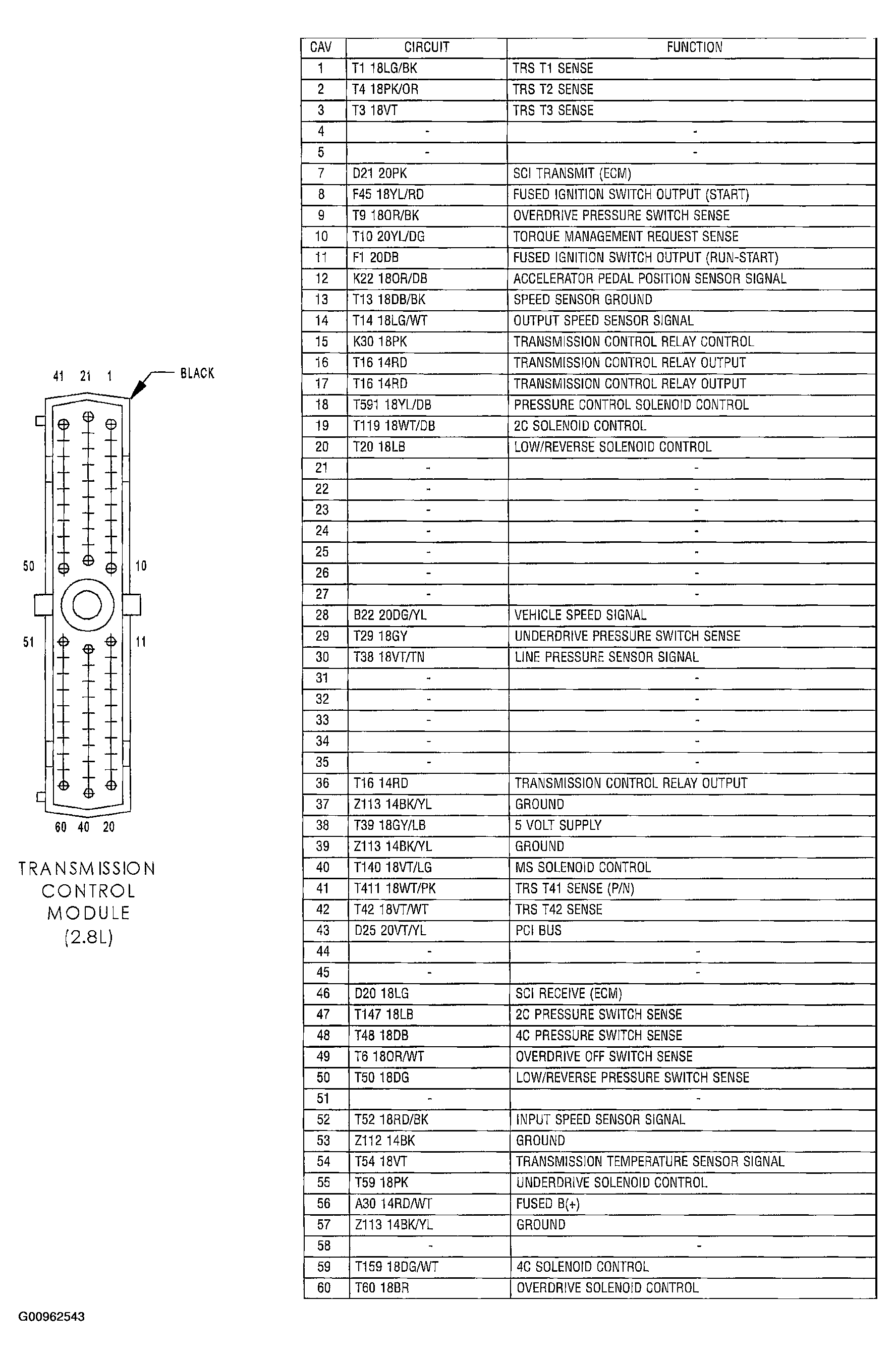

Fig 85: Identifying Transmission Control Module (2.8L) - Black 60 Way Connector

G00962543

Courtesy of DAIMLERCHRYSLER CORP.

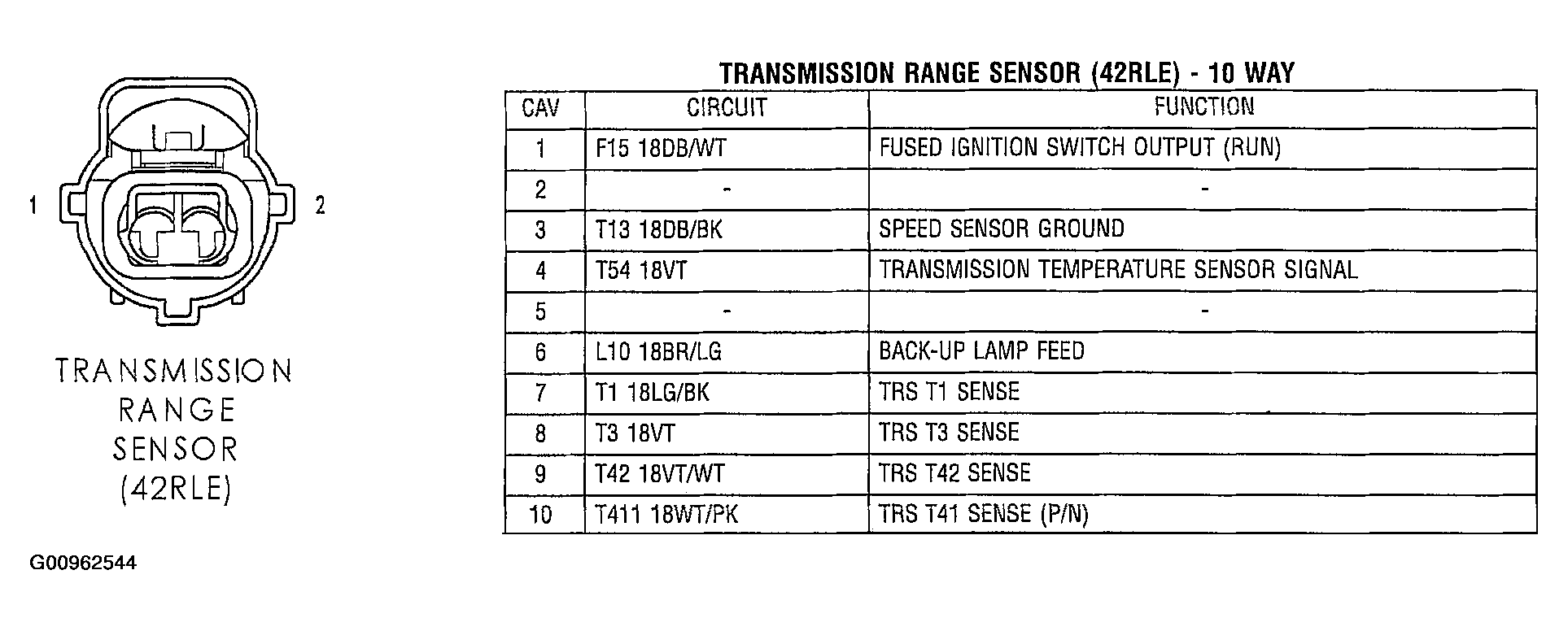

Fig 86: Identifying Transmission Range Sensor (42RLE) - 10 Way Connector

G00962544

Courtesy of DAIMLERCHRYSLER CORP.

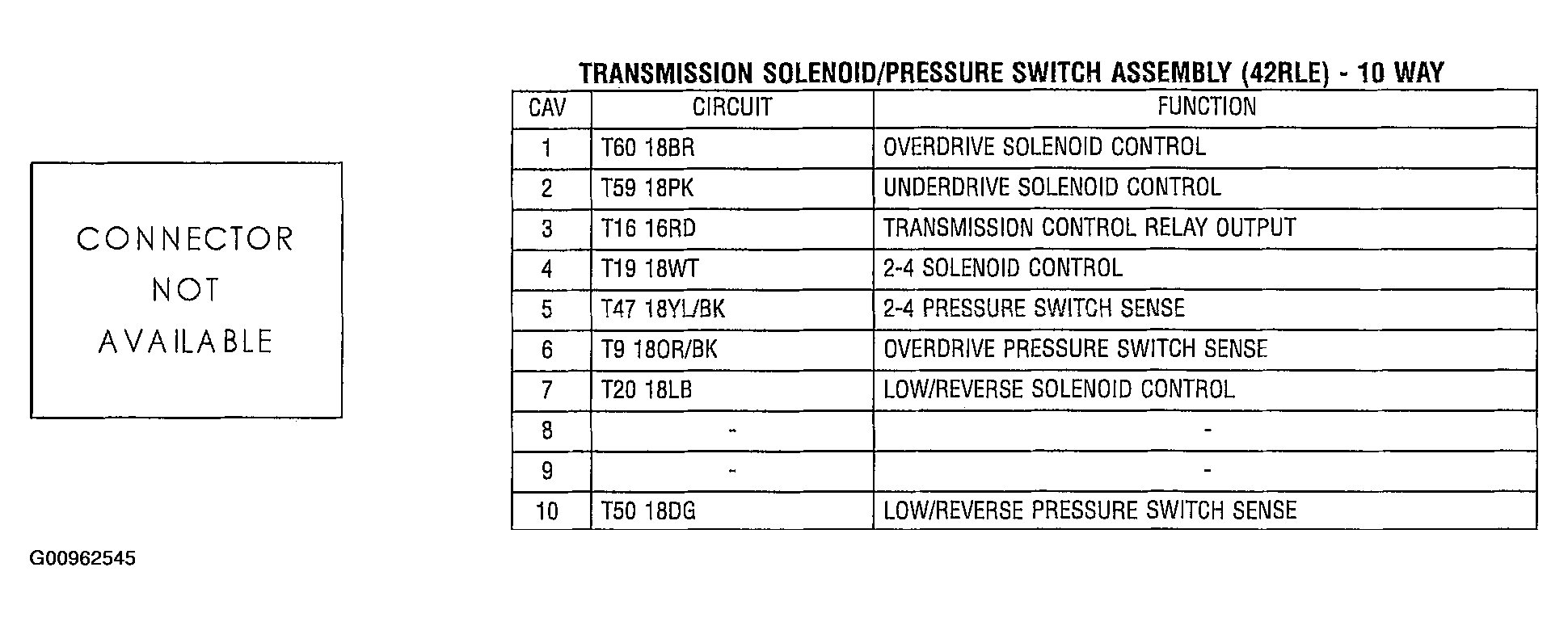

Fig 87: Identifying Transmission Solenoid/Pressure Switch Assembly (42RLE) - 10 Way Connector

G00962545

Courtesy of DAIMLERCHRYSLER CORP.

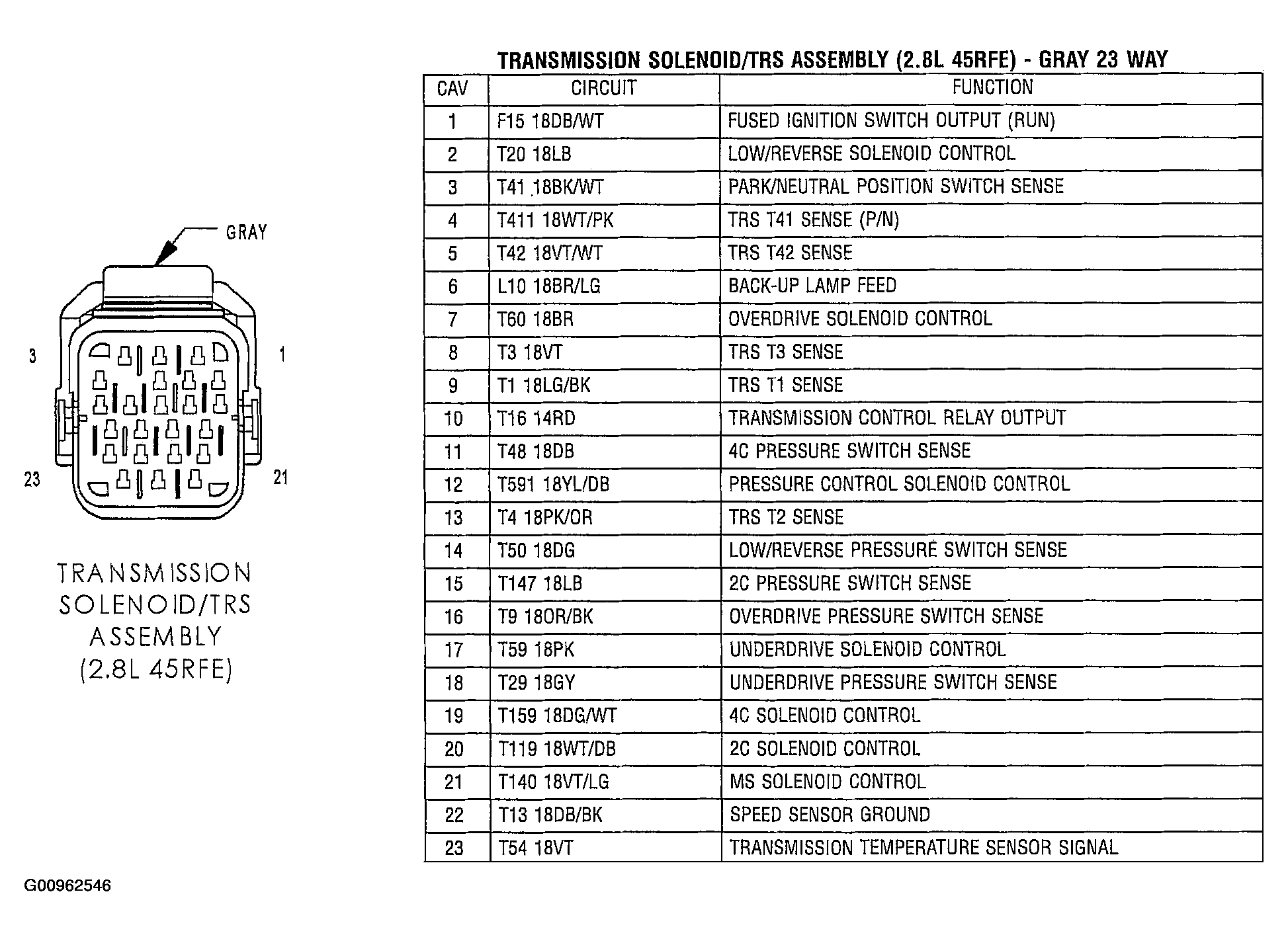

Fig 88: Identifying Transmission Solenoid/TRS Assembly (2.8L 45RFE) - Gray 23 Way Connector

G00962546

Courtesy of DAIMLERCHRYSLER CORP.
