Powertrain Verification Test VER-2

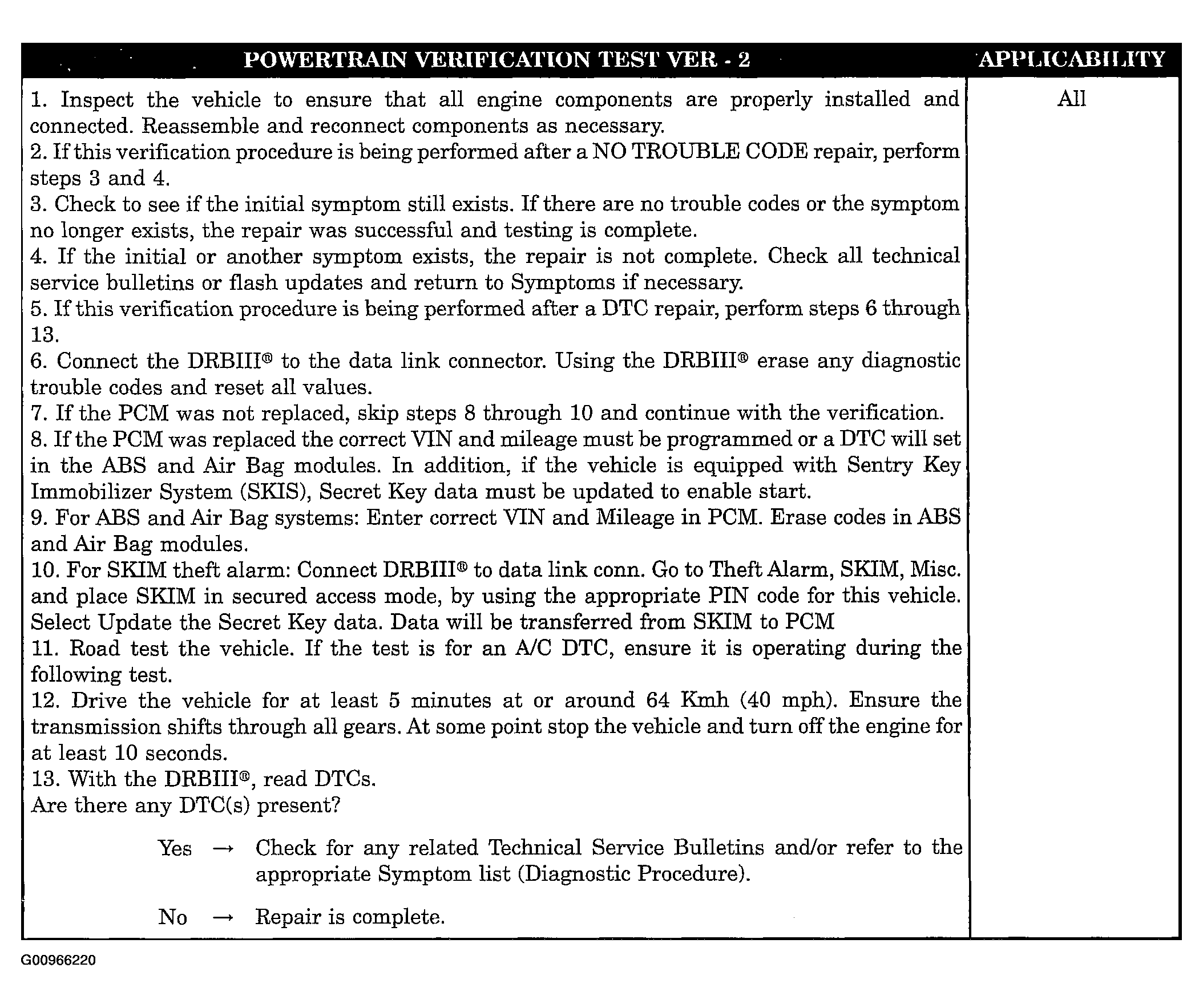

Fig 1: Powertrain Verification Test VER-2
G00966220Courtesy of DAIMLERCHRYSLER CORP.

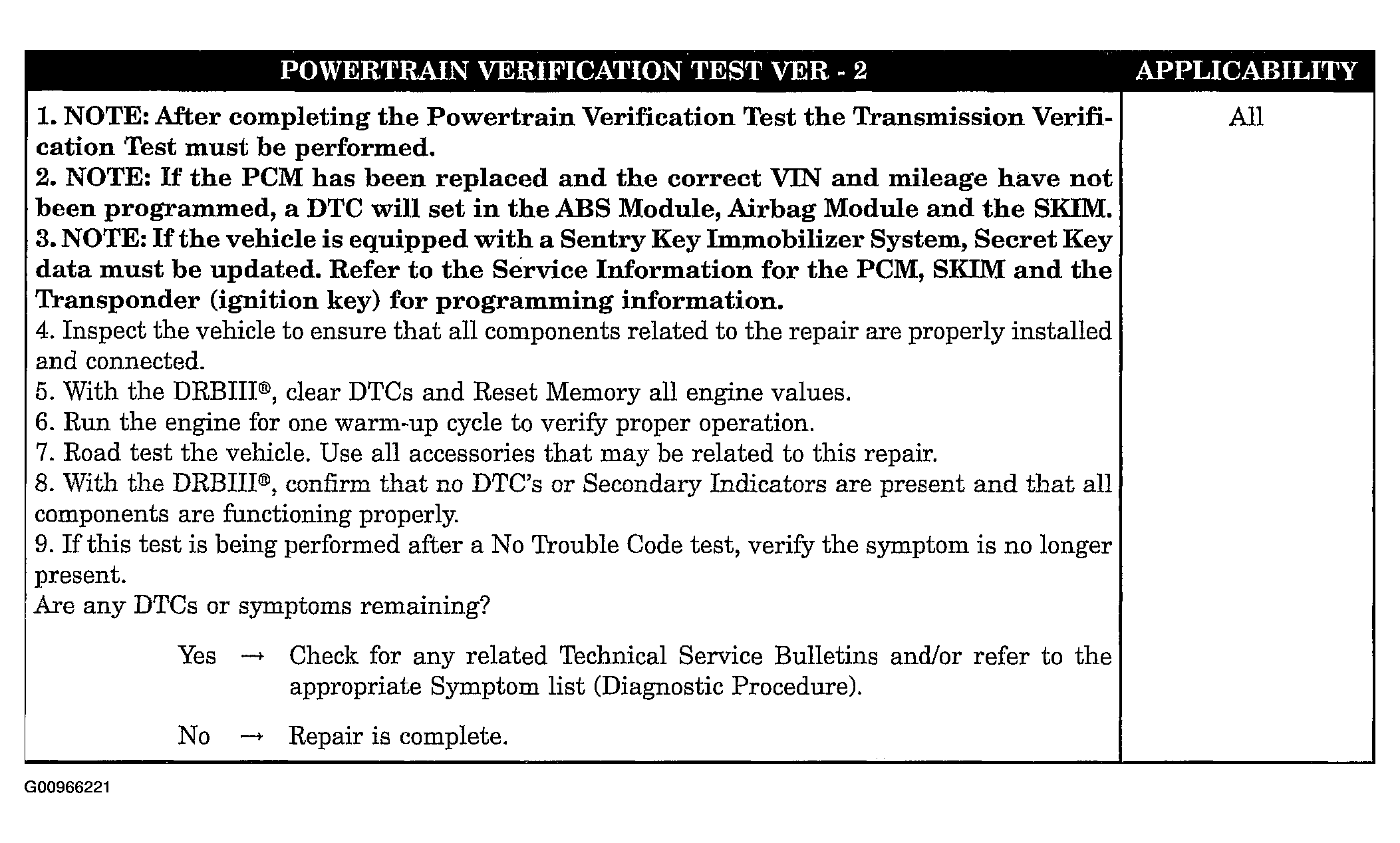

Fig 1: Powertrain Verification Test VER-2
G00966221Courtesy of DAIMLERCHRYSLER CORP.
