Powertrain Verification Test VER-3

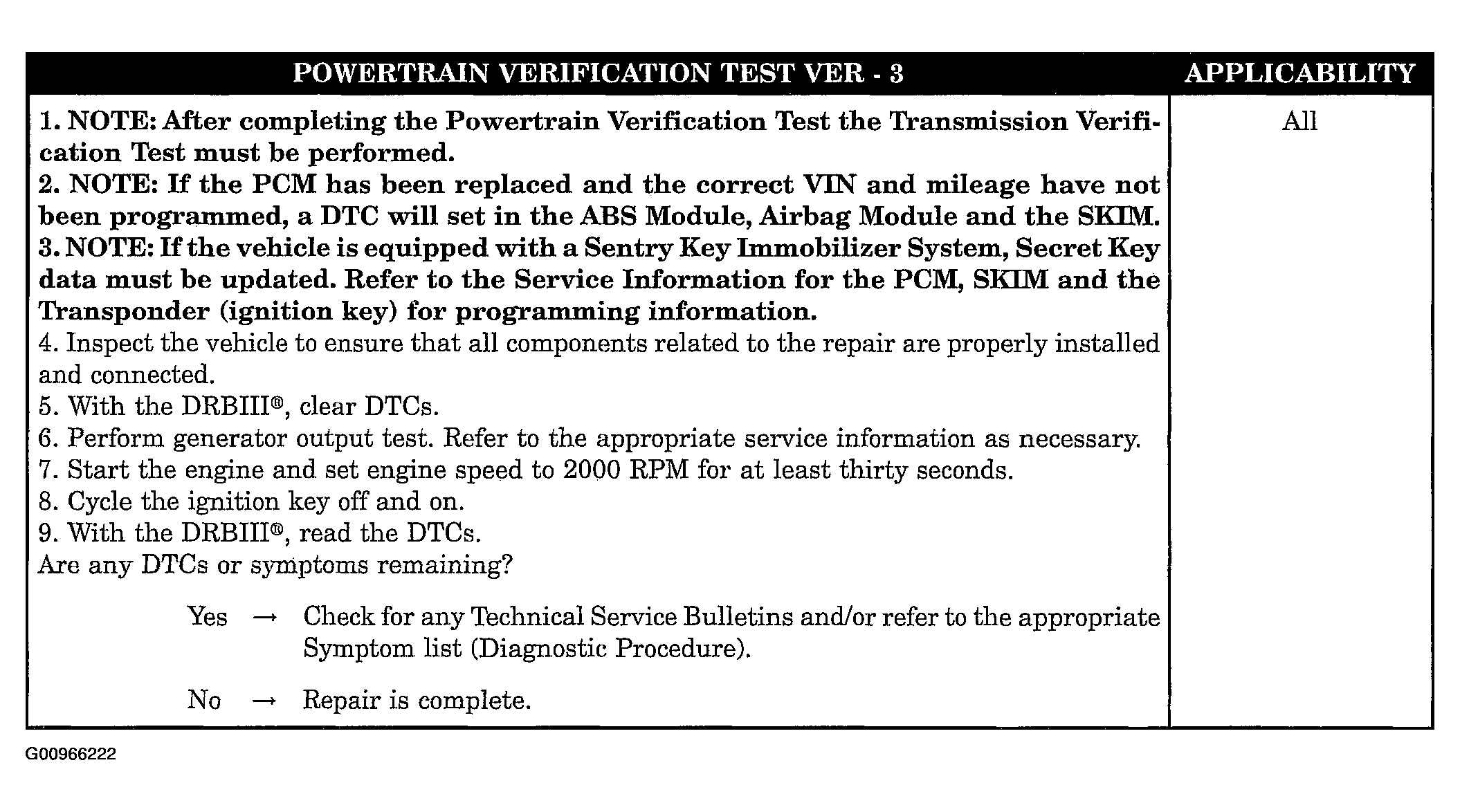

Fig 1: Powertrain Verification Test VER-3
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
