Ignition Coil Resistance - 2.4L

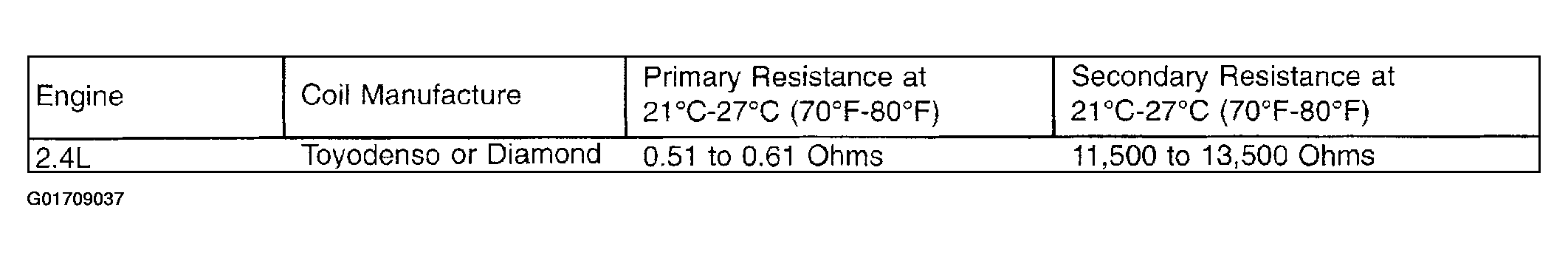

Fig 1: Identifying 2.4L Ignition Coil Resistance
G01709037Courtesy of DAIMLERCHRYSLER CORP.

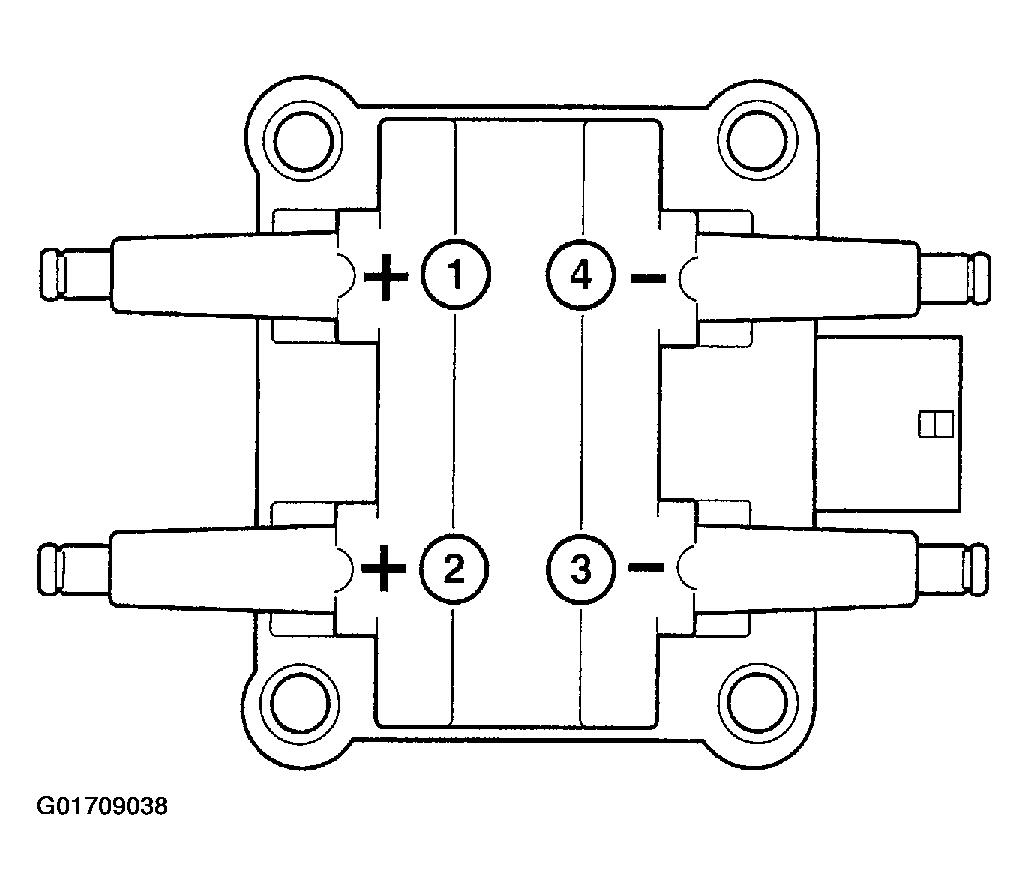

Fig 2: Identifying 2.4L Ignition Coil
G01709038Courtesy of DAIMLERCHRYSLER CORP.
