Crankshaft Position Sensor: Removal: 2.4L

The Crankshaft Position (CKP) sensor is mounted into the right front side of the cylinder block. It is positioned and bolted into a machined hole.

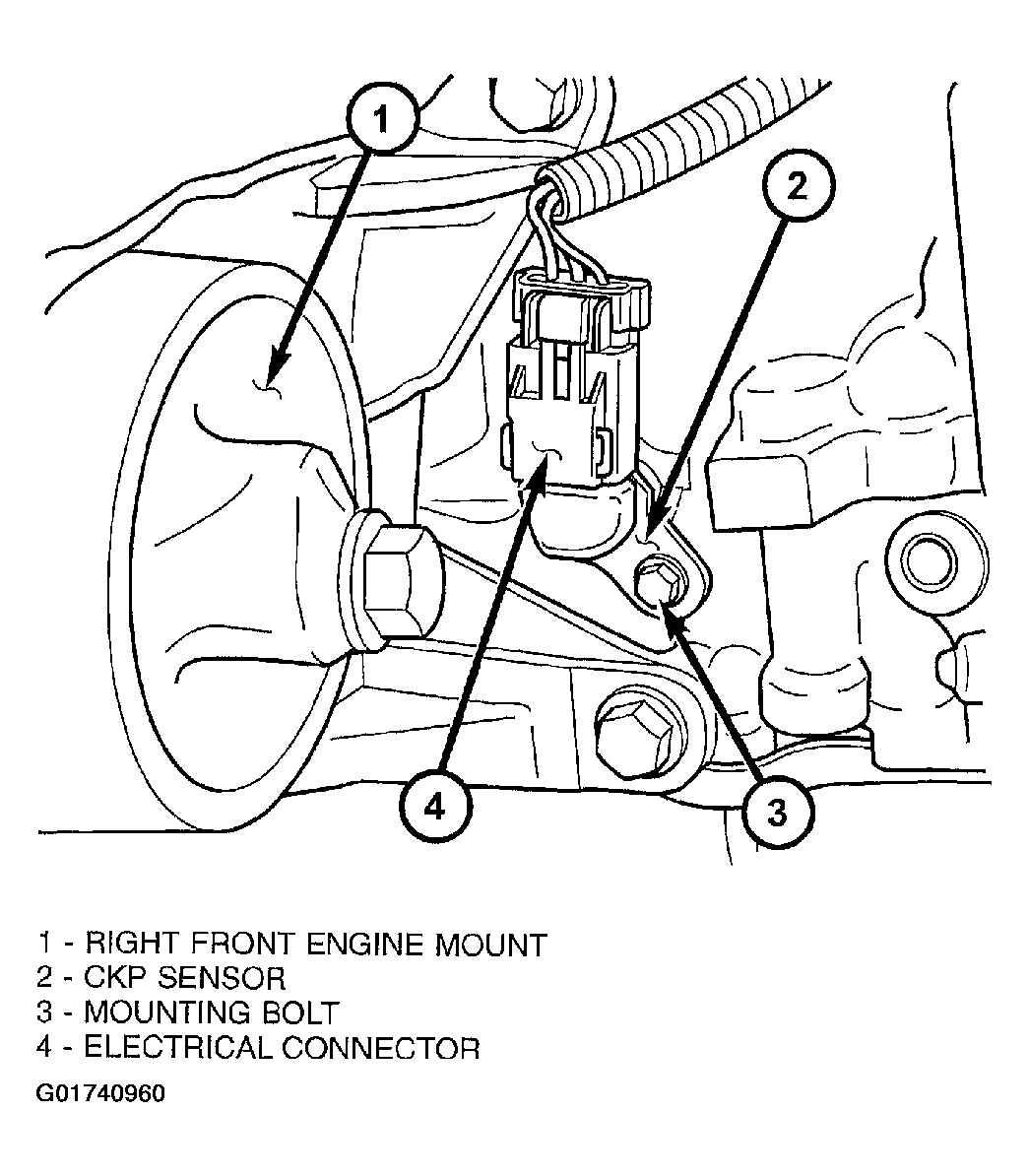

Fig 1: Locating CKP Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect sensor electrical connector.
2. Remove sensor bolt.
3. Carefully twist sensor from cylinder block.
4. Check condition of sensor o-ring.

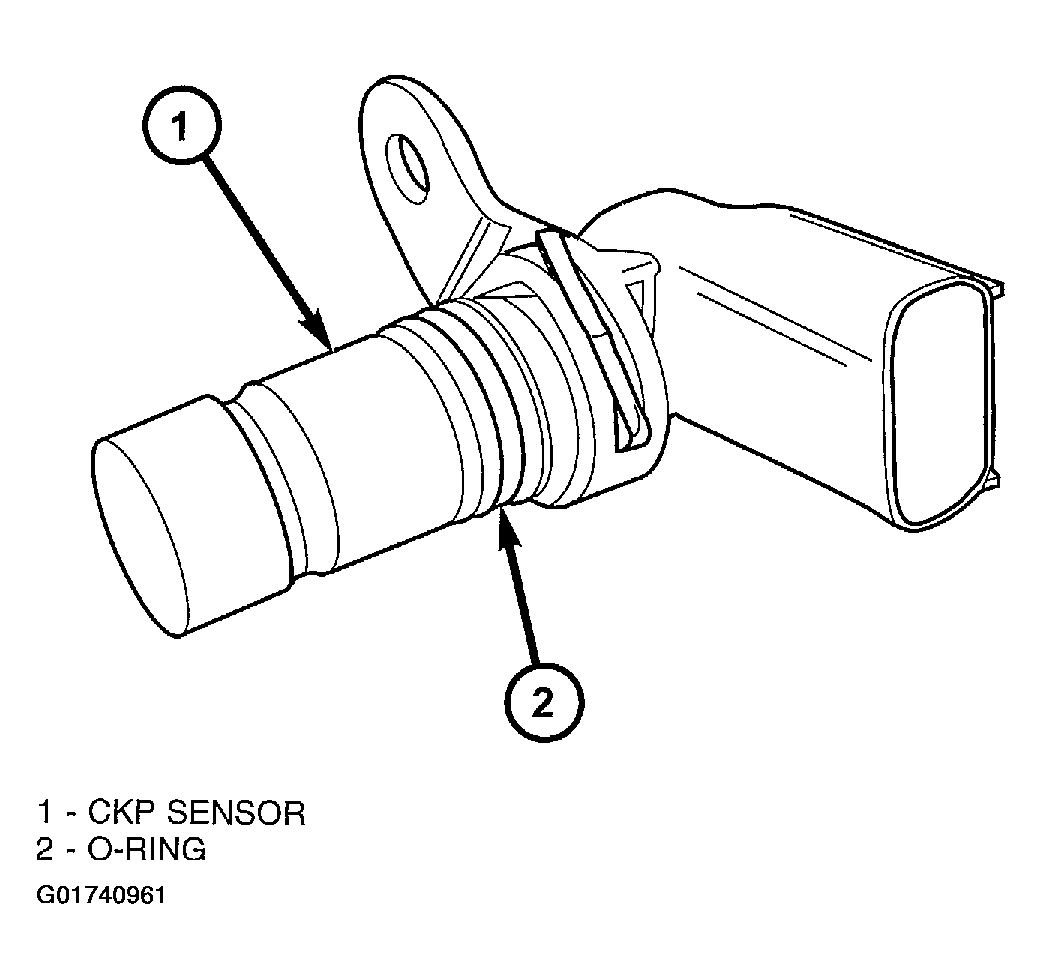

   Fig 2: Checking CKP & O-Ring - 2.4L

   Courtesy of DAIMLERCHRYSLER CORP.
