Fuel Injector: Removal

  1. Remove fuel rail. Refer to Fuel Injector Rail Removal in this section.
  2. Disconnect clip(s) that retain fuel injector(s) to fuel rail.

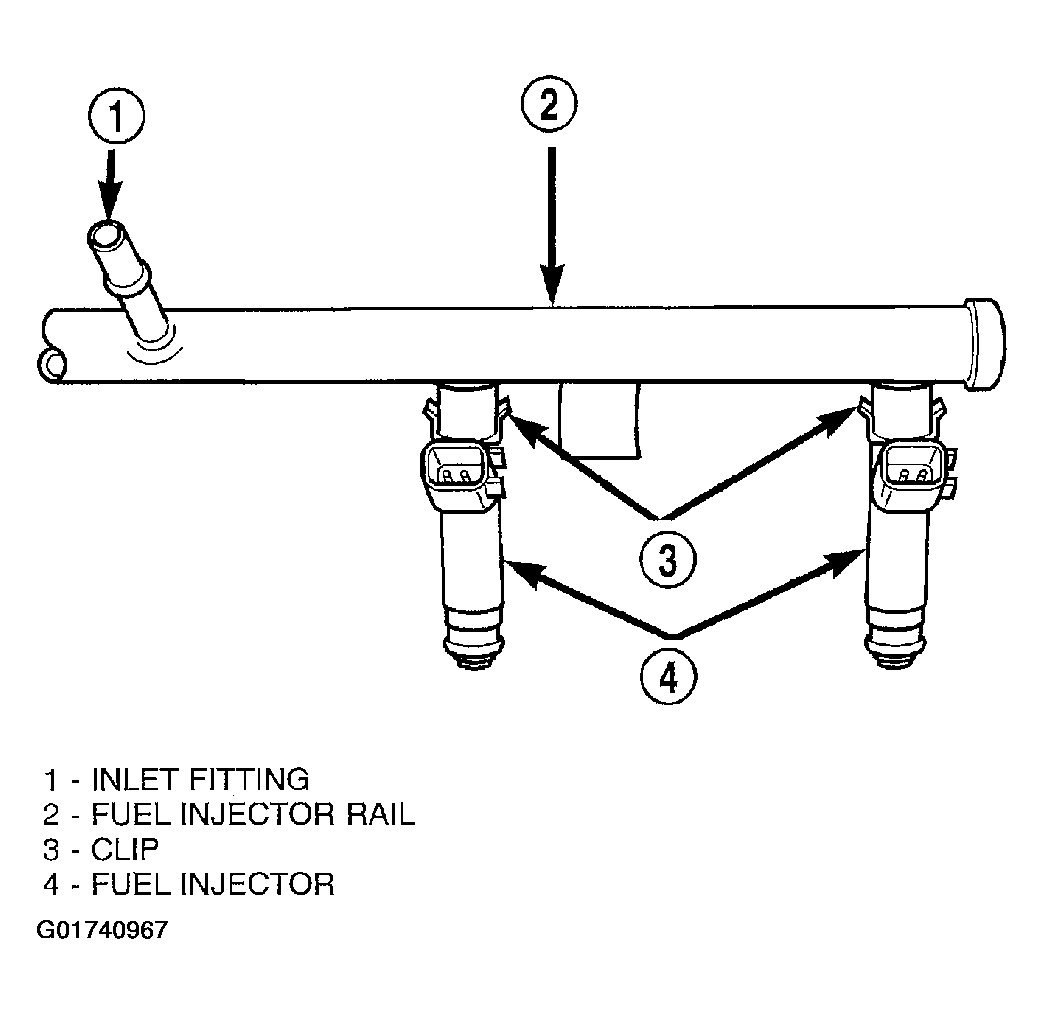

    Fig 1: Identifying Fuel Injector Mounting
    G01740967Courtesy of DAIMLERCHRYSLER CORP.
