Intake Air Temperature Sensor: Removal: 4.0L

The intake manifold air temperature (IAT) sensor is installed into intake manifold plenum near throttle body.

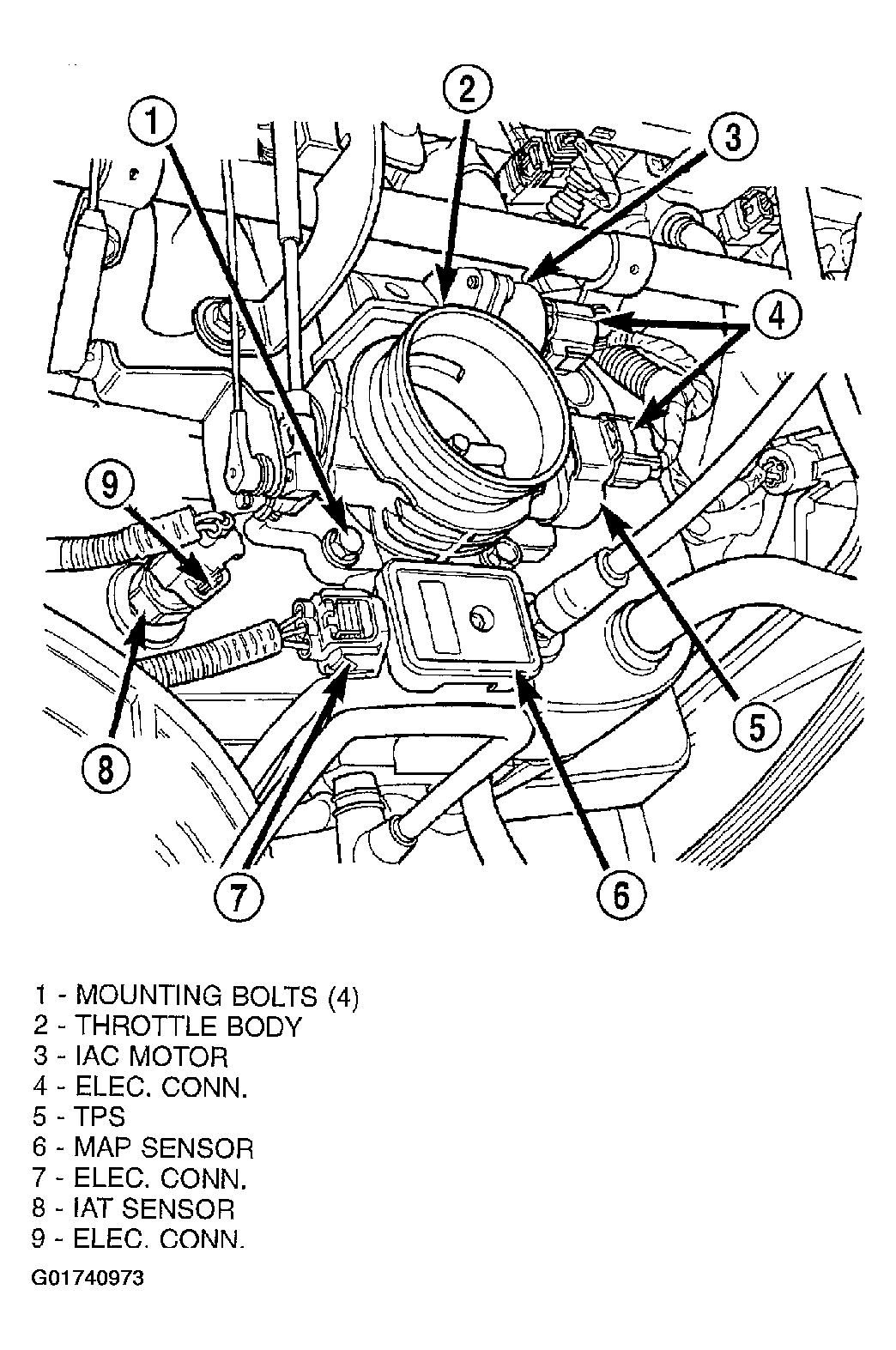

Fig 1: Locating IAT Sensor - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector from IAT sensor.
2. Remove sensor from intake manifold.
