4.0L Early

An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.

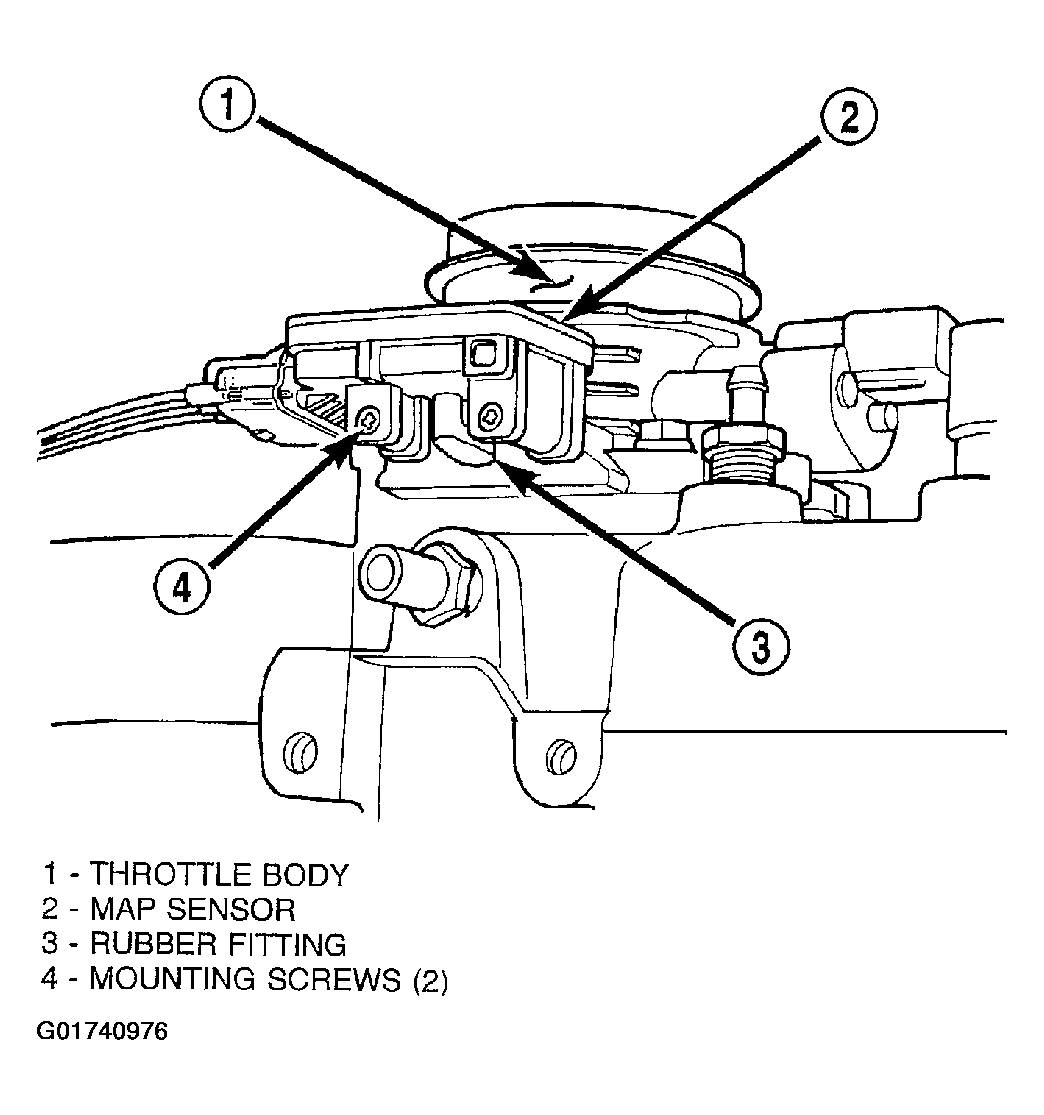

Fig 1: Identifying 4.0L MAP Sensor Mounting - Early

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove air cleaner intake tube at throttle body.
2. Remove two MAP sensor mounting bolts (screws).
3. While removing MAP sensor, slide the rubber L-shaped fitting from throttle body.
4. Remove rubber L-shaped fitting from MAP sensor.
