Throttle Position Sensor: Removal: 2.4L

The Throttle Position Sensor (TPS) is mounted to the throttle body.

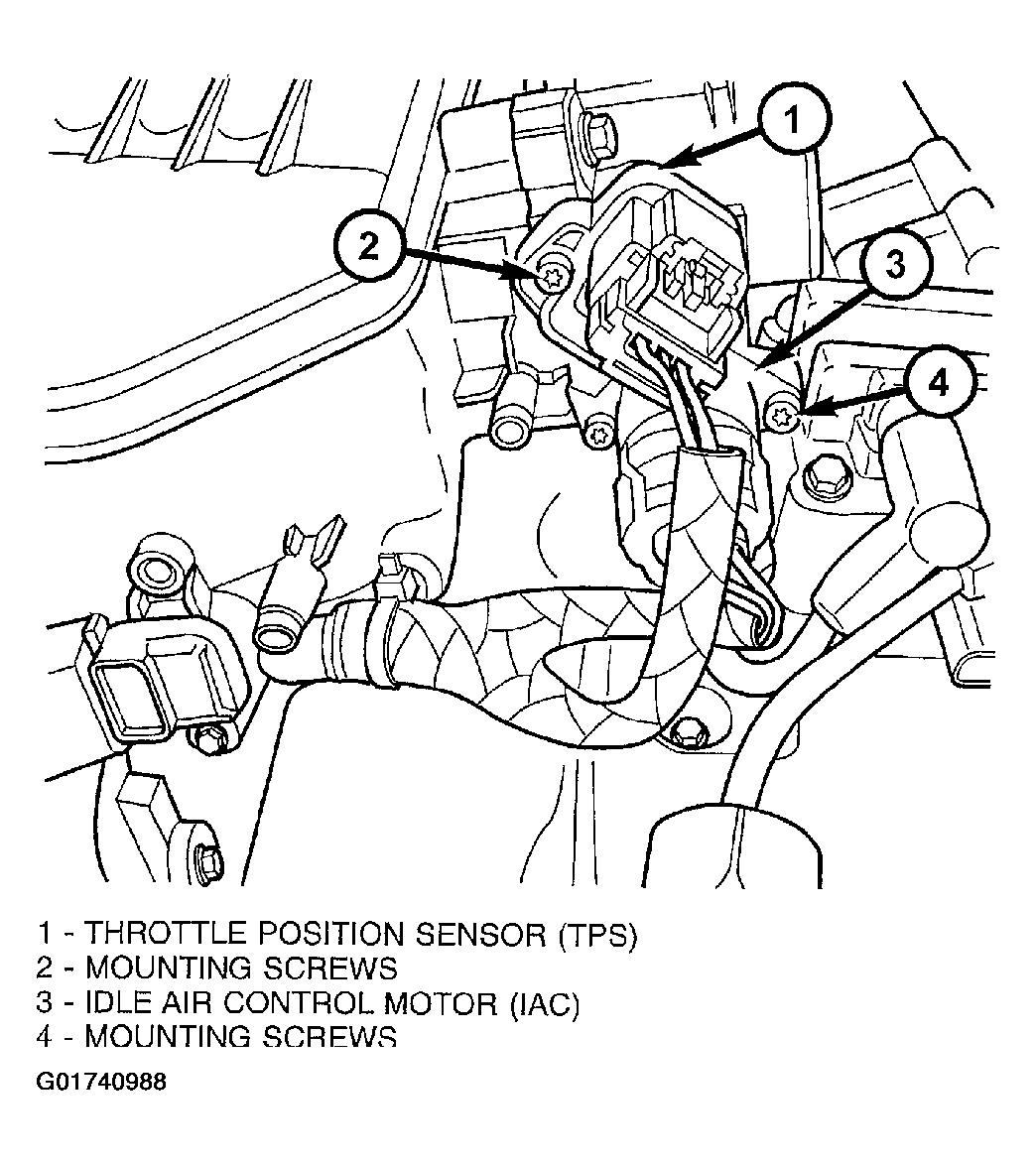

Fig 1: Locating TPS/IAC Motor - 2.4L
G01740988Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect TPS electrical connector.
  2. Remove 2 TPS mounting screws.
  3. Remove TPS.
