Fuel Pump Module - 4 Way

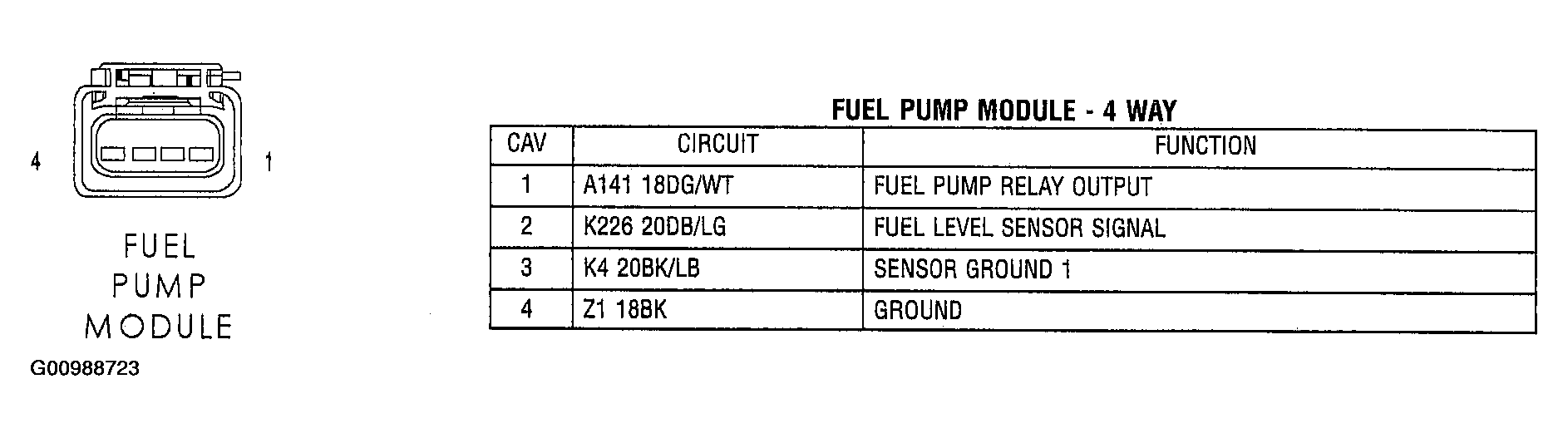

Fig 1: Identifying Fuel Pump Module - 4 Way (1 Of 2)
G00988723Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Fuel Pump Module - 4 Way (1 Of 2)
G00988724Courtesy of DAIMLERCHRYSLER CORP.
