DTC P1698: No Bus Message From Trans Control Module: Testing

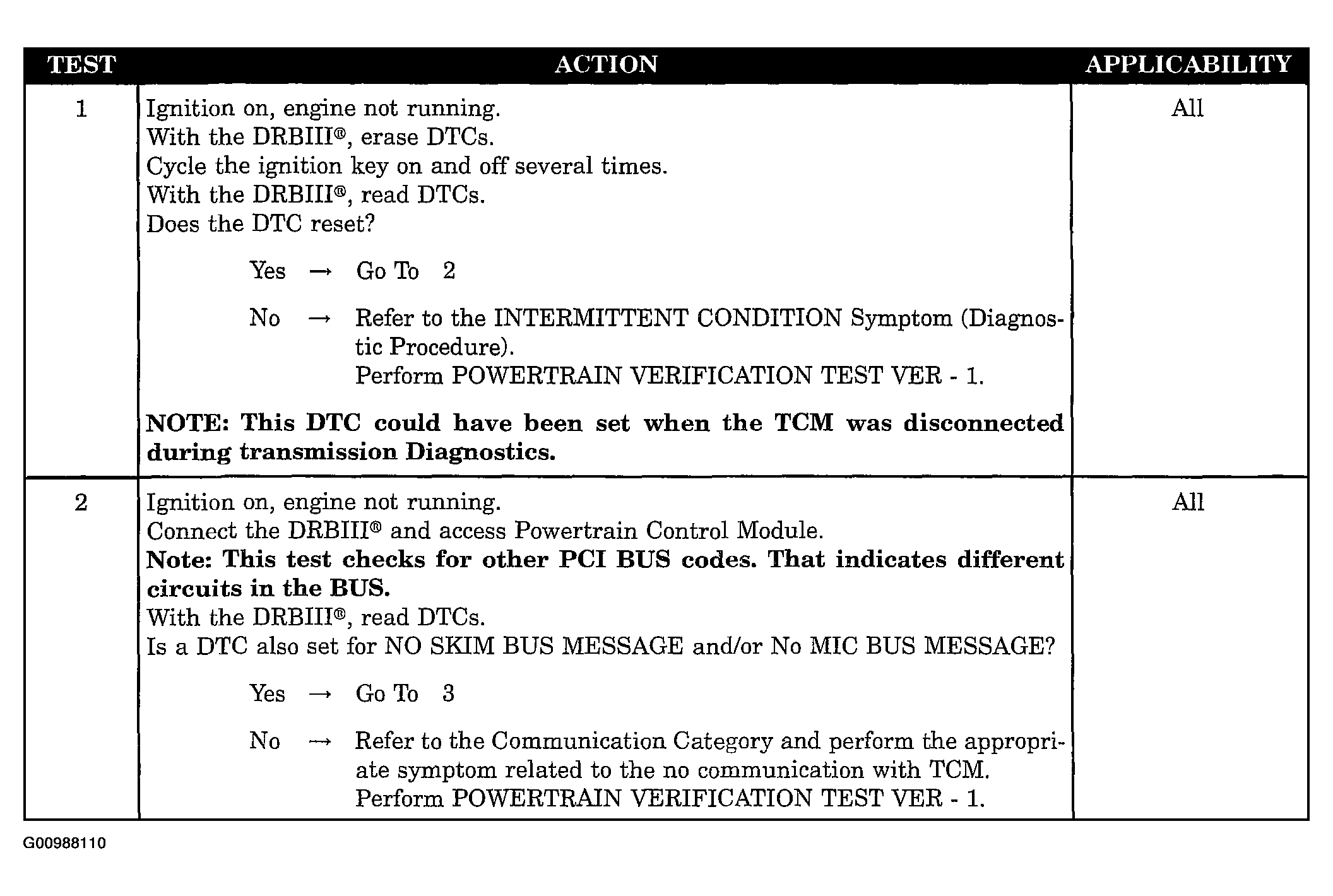

Fig 1: Testing: DTC P1698: No BUS Message From Trans Control Module (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

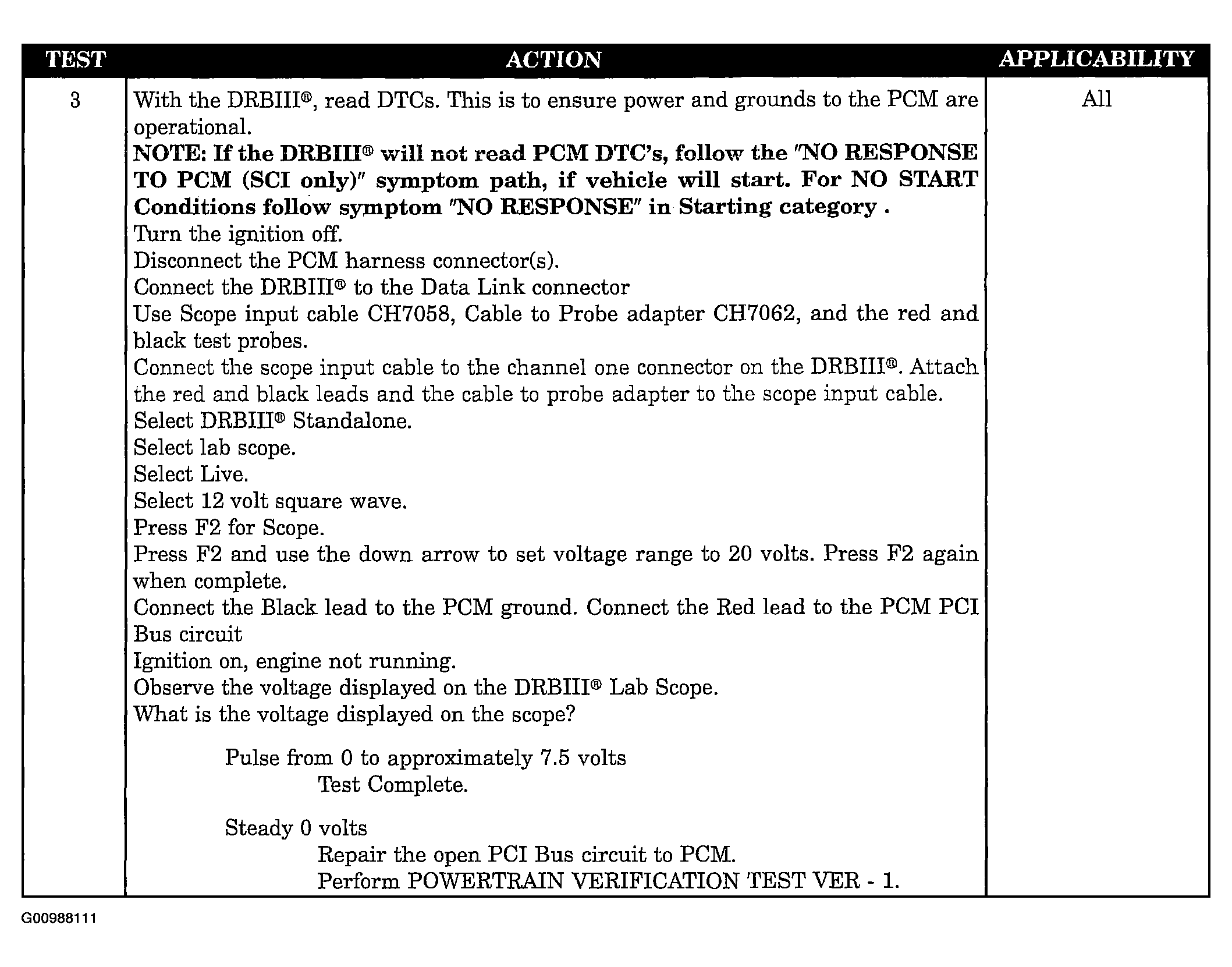

Fig 2: Testing: DTC P1698: No BUS Message From Trans Control Module (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
